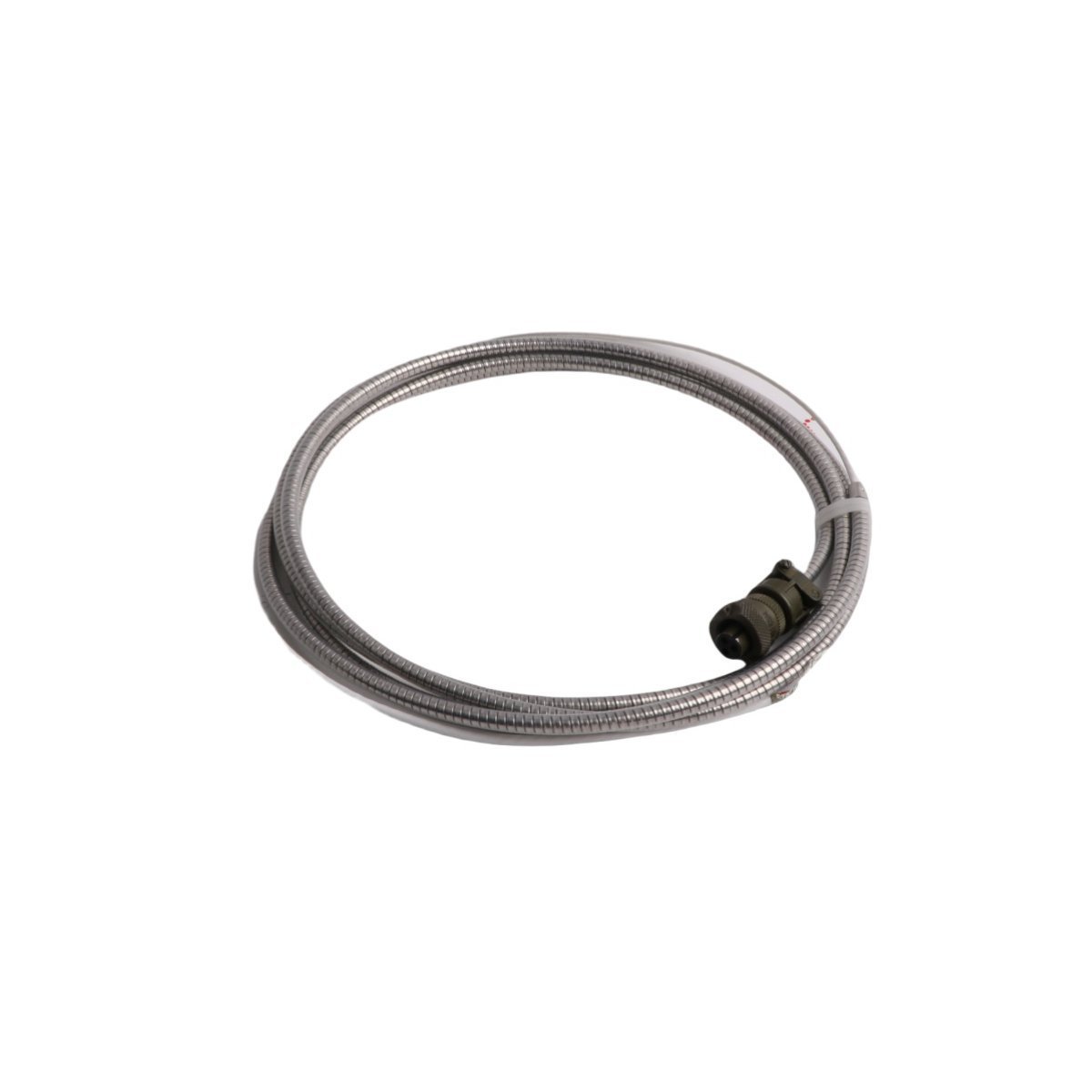

The 16710-12 is a high-quality Extension Cable from Bently Nevada, designed for professional rotating machinery monitoring and protection systems.
| Parameter | Specification |
|---|---|
| Model Number | 16710-12 |
| Manufacturer | Bently Nevada |
| Product Type | Extension Cable |
| Condition | Brand New |
| Origin | USA |
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330192-00-28-05-00 |
| Product Type | 3300 XL 8 mm ETR Proximity Probes |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Probe Tip Temperature Range | -34 °C to +260 °C (-30 °F to +500 °F) |
| Total Length | 0.5 meters (1.6 feet) |
| Case Length | 2.8 inches (71.1 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.
Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a
The Bently Nevada 330102-00-60-10-01-05 is an 8 mm reverse-mount eddy current proximity probe designed for non-contact measurement of vibration and displacement. It functions as a core component of the 3300 XL 8 mm Proximity Transducer System, which also includes an extension cable and a Proximitor Sensor. The probe operates by having the Proximitor Sensor generate a high-frequency radio frequency (RF) signal, which is transmitted through the extension cable and radiated from the probe's tip into a small electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's amplitude. This change is directly proportional to the gap between the probe tip and the target surface. The Proximitor Sensor demodulates this signal, converting it into a DC voltage that accurately represents the physical distance. This conditioned voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500, for real-time analysis of radial vibration, axial position, and shaft speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-60-10-01-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 1.0 meter (3.3 feet) |
| Case Length | 6.0 inches (152 mm) |
| Mounting Option | Reverse Mount |
| Connector Type | Miniature coaxial ClickLoc™ connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Agency Approvals | Multiple Approvals: CSA (Class I, Div 1/2), ATEX/IECEx (Zone 0/1) |
In Oil & Gas and Power Generation applications, the 330102-00-60-10-01-05 probe demonstrates high reliability in demanding operational environments. Its construction with a PPS tip and stainless steel case allows for continuous operation in temperatures ranging from -34 °C to +177 °C (-29 °F to +350 °F). The gold-plated ClickLoc connector provides a secure, corrosion-resistant connection that prevents signal degradation from fluid ingress or vibration-induced intermittence. When paired with a 3300 XL Proximitor Sensor, the system provides a linear measurement range of 2.0 mm (80 mils) with a scale factor of 7.87 V/mm (200 mV/mil), ensuring precise data for machine diagnostics. The system is designed for high immunity to radio frequency interference (RFI), minimizing signal corruption in electrically noisy industrial environments. The probe's physical durability and signal integrity are critical for monitoring high-speed turbomachinery, where accurate measurement of shaft dynamics is essential for preventing catastrophic failure.
Q: What systems is the 330102-00-60-10-01-05 compatible with?
A: The 330102-00-60-10-01-05 probe is a component of the 3300 XL 8 mm Transducer System. For proper operation, it must be used with a 3300 XL extension cable and a 3300 XL Proximitor Sensor (e.g., part number 330180). This complete transducer system is fully compatible with Bently Nevada monitoring systems, including the 3500 Series Machinery Protection System and ADRE Sxp/408 DSPi data acquisition systems. It is not electrically or mechanically compatible with components from other transducer series, such as the 7200 or 3000 series.
Q: What are the installation requirements?
A: As a reverse-mount probe, the 330102-00-60-10-01-05 is installed from inside the machine housing, with the probe body extending outward. A clearance hole must be drilled through the machine case to accommodate the 8 mm probe tip. The target area on the observed shaft must be smooth, free of surface defects, and have a minimum diameter of 10.7 mm (0.42 in) to ensure measurement accuracy. The probe's gap should be set to the center of its linear range, typically corresponding to -10.0 Vdc. The ClickLoc connector must be tightened to the specified torque to ensure a secure, environmentally sealed connection. Cable routing must avoid areas of extreme heat, physical abrasion, and proximity to high-voltage power lines to maintain signal integrity.
The Bently Nevada 200350-12-00-00 is a general-purpose, case-mounted industrial accelerometer designed for measuring absolute bearing housing or machine casing vibration. It utilizes a piezoelectric sensing element that generates a low-impedance voltage signal directly proportional to the acceleration of the component to which it is mounted. This analog voltage signal is transmitted via a two-wire system, which also supplies constant current power to the sensor's internal electronics (IEPE standard). The 200350-12-00-00 is specifically engineered for integration with Bently Nevada machinery protection systems, such as the 3500 series. It directly interfaces with the 3500/42M Proximitor/Seismic Monitor, which processes the raw acceleration signal. The monitor can then provide real-time acceleration data or perform single integration to derive velocity, a common parameter for assessing rotating machinery health. Constructed from 316L stainless steel with a hermetic seal, the 200350-12-00-00 is built to withstand harsh industrial environments, ensuring reliable signal transmission and long operational life in critical machinery monitoring applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 200350-12-00-00 |
| Product Type | Accelerometers |
| Condition | Brand New |
| Warranty | 12 Months |
| Sensitivity | 10.2 mV/m·s⁻² (100 mV/g) ±5% |
| Frequency Response | 0.5 Hz to 10 kHz (±3 dB) |
| Measurement Range | ±490 m/s² (±50 g) peak |
| Power Requirement (IEPE) | 18 to 30 VDC, 2 to 10 mA Constant Current |
| Connector | 2-pin MIL-C-5015, Top Exit |
| Operating Temperature Range | -55 °C to +121 °C (-67 °F to +250 °F) |
| Case Material | 316L Stainless Steel, Hermetically Sealed |
In Oil & Gas and Power Generation applications, the 200350-12-00-00 provides essential data for condition monitoring of critical assets like gas and steam turbines, compressors, pumps, and generators. Its reliability is substantiated by its robust construction; the hermetically sealed 316L stainless steel housing (rated to IP68) prevents ingress of moisture, chemicals, and particulates common in these environments. The sensor is designed for high MTBF (Mean Time Between Failures) through the use of solid-state electronics and minimal moving parts. Environmentally, the 200350-12-00-00 is specified to operate reliably from -55 °C to +121 °C, accommodating a wide range of ambient and machine surface temperatures. It is also designed to survive high-g shock events (up to 5000 g peak), ensuring data integrity is maintained even during machinery startup, shutdown, or upset conditions.
Q: What systems is the 200350-12-00-00 compatible with?
A: The 200350-12-00-00 is designed for primary compatibility with Bently Nevada monitoring systems, including the 3500 Machinery Protection System (interfacing with the 3500/42M Proximitor/Seismic Monitor) and the 3300 Monitoring System. It is also compatible with any third-party data acquisition or monitoring system that can provide standard IEPE (Integrated Electronics Piezo-Electric) sensor power, specifically a constant current source of 2 to 10 mA at a voltage of 18 to 30 VDC.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The mounting surface must be a flat, smooth (recommended finish of 0.8 μm / 32 μin Ra), and clean area on the machine case. A single mounting hole must be drilled and tapped for the sensor's 1/4-28 UNF mounting stud. Apply a thin, uniform layer of coupling fluid (silicone grease) to the mounting surface to eliminate air gaps and ensure optimal vibration transmission. The sensor must be tightened to the specified torque of 2.7 to 5.4 N·m (24 to 48 lbf·in) using a calibrated torque wrench. Ensure the interconnecting cable is routed to prevent strain on the connector and is shielded from high-voltage lines or other sources of electromagnetic interference. Use of conduit is recommended for physical protection.
The Bently Nevada 21000-27-05-40-026-03-02 is a proximity probe housing assembly designed to provide a secure, environmentally sealed, and adjustable mounting for proximity probes on industrial machinery. Its primary function is to protect the sensitive probe element from the harsh process environment (e.g., high pressure, corrosive gases, liquids) while allowing precise positioning relative to the observed machine shaft. This specific assembly is constructed from 316 Stainless Steel for superior corrosion resistance. It features a 3/4-14 NPT mounting thread for direct installation into the machine casing. The assembly houses a 3300 XL 8 mm probe, which operates on the eddy current principle. The probe, connected via an extension cable to a Proximitor Sensor, transmits a high-frequency RF signal. The proximity of the conductive shaft surface modulates this signal, which the Proximitor Sensor demodulates into a DC voltage proportional to the probe-to-shaft gap. This conditioned signal is then supplied to a Bently Nevada 3500 Machinery Protection System for continuous monitoring of radial vibration, axial position, and rotational speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-27-05-40-026-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 316 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Probe Penetration Length | 400 mm (15.7 in) |
| Standoff Length | 50 mm (2.0 in) |
| Included Probe Option | 3300 XL 8 mm probe, 1.0 metre cable, miniature coaxial connector |
| Fittings Option | One 3/4-14 NPT plug provided |
| Housing Operating Temperature | -34 °C to +177 °C (-29 °F to +350 °F) |
In Oil & Gas and Power Generation applications, the 21000-27-05-40-026-03-02 assembly provides a robust and reliable platform for critical machinery monitoring. Its 316 Stainless Steel construction ensures long-term integrity in environments containing hydrogen sulfide (H2S), chlorides, and other corrosive agents common in refineries and offshore platforms. The NPT thread mounting, when installed with appropriate sealant, creates a high-pressure seal, preventing the escape of process gases or liquids. This is critical for safety and environmental compliance on equipment such as centrifugal compressors and high-pressure pumps. The assembly's design facilitates stable probe gapping, which is essential for the accuracy and repeatability of vibration and position measurements required for API 670 compliant protection systems. The housing is engineered for continuous, long-term service with minimal maintenance, contributing to high machine availability and reduced lifecycle costs for critical assets like gas turbines, steam turbines, and generators.
Q: What systems is the 21000-27-05-40-026-03-02 compatible with?
A: The 3300 XL 8 mm probe included with the 21000-27-05-40-026-03-02 assembly is part of a transducer system that requires a matching 3300 XL extension cable and a 3300 XL Proximitor Sensor. The complete transducer system output is fully compatible with Bently Nevada machinery protection and condition monitoring systems, including the 3500 Series (e.g., 3500/42M Proximitor/Seismic Monitor), 3300 Series Monitors, and ADRE data acquisition systems. The housing's 3/4-14 NPT mechanical interface is compatible with any machine case drilled and tapped to this standard thread size.
Q: What are the installation requirements?
A: Installation requires a 3/4-14 NPT tapped hole at the measurement location on the machine casing. An appropriate thread sealant (e.g., PTFE tape or pipe dope compatible with the process fluid and temperature) must be applied to the mounting threads to ensure a pressure-tight seal. The probe must be gapped by adjusting its position within the housing to achieve the correct DC voltage output (typically -10.0 Vdc for a 3300 XL 8 mm system) when measured at the Proximitor Sensor's output terminals. After gapping, the probe is secured in place using the housing's set screws. Adherence to Bently Nevada's specified torque values for the housing and any fittings is mandatory to prevent damage and ensure seal integrity.
The Bently Nevada 330102-00-12-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe, a component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. The probe functions by emitting a high-frequency radio frequency (RF) signal from its encapsulated tip. When positioned near a conductive target material, such as a machine shaft, this RF field induces eddy currents on the surface of the target. The interaction between the probe's field and the eddy currents creates an impedance change in the probe's coil, which is directly proportional to the gap between the probe tip and the target surface. This raw signal is transmitted through its integral 0.5-meter cable to a 3300 XL extension cable and subsequently to a 3300 XL Proximitor Sensor. The Proximitor Sensor demodulates and linearizes the signal, producing a precise DC voltage output that corresponds to the physical gap. This conditioned signal is then supplied to a Bently Nevada 3500 Series monitoring system for continuous machine protection, diagnostics, and data logging.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-12-05-02-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 0.5 meter (1.6 feet) |
| Mounting Option | 3/8-24 UNF threads, Reverse Mount |
| Case Length | 1.2 inches (30.5 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5%, when used with 3300 XL Proximitor and AISI 4140 steel target |
| Frequency Response | 0 Hz (DC) to 10 kHz (-3 dB) |
| Agency Approvals | CSA/NRTL/C, ATEX/IECEx (Ex ia IIC T4 Ga, Ex ia IIIC T135°C Da) |
In Oil & Gas and Power Generation applications, the 330102-00-12-05-02-05 probe is integral to Machinery Protection Systems (MPS) on critical assets like gas and steam turbines, compressors, and large motor-pump sets. It provides the primary measurement for radial vibration, axial thrust position, and shaft eccentricity. The probe's construction from AISI 304 stainless steel ensures high reliability in corrosive and high-temperature environments. Its tip is hermetically sealed with a high-pressure, injection-molded Ryton® PPS material, preventing ingress of oil and process fluids. The specified operating temperature range for the probe tip is -34 °C to +177 °C (-29 °F to +350 °F). The included agency approvals (CSA, ATEX, IECEx) certify the 330102-00-12-05-02-05 for safe operation as an intrinsically safe apparatus in specified hazardous areas, a mandatory requirement for many hydrocarbon processing and power plant environments. The system demonstrates high long-term stability, minimizing calibration drift and ensuring consistent machine protection over extended operational periods.
Q: What systems is the 330102-00-12-05-02-05 compatible with?
A: The 330102-00
The Bently Nevada 330103-00-11-50-02-05 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330103-00-11-50-02-05 |
| Condition | Brand New |
| Warranty | 12 Months |
This Bently Nevada 330103-00-11-50-02-05 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.
Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.
Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
The Bently Nevada 330101-00-20-90-02-00 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330101-00-20-90-02-00 |
| Condition | Brand New |
| Warranty | 12 Months |
This Bently Nevada 330101-00-20-90-02-00 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.
Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.
Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
The Bently Nevada 84661-82 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 84661-82 |
| Condition | Brand New |
| Warranty | 12 Months |
This Bently Nevada 84661-82 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.
Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.
Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
