  4. 21000-16-10-00-041-04-02 | Bently Nevada | Proximity Probe
Sale!
SKU: 21000-16-10-00-041-04-02

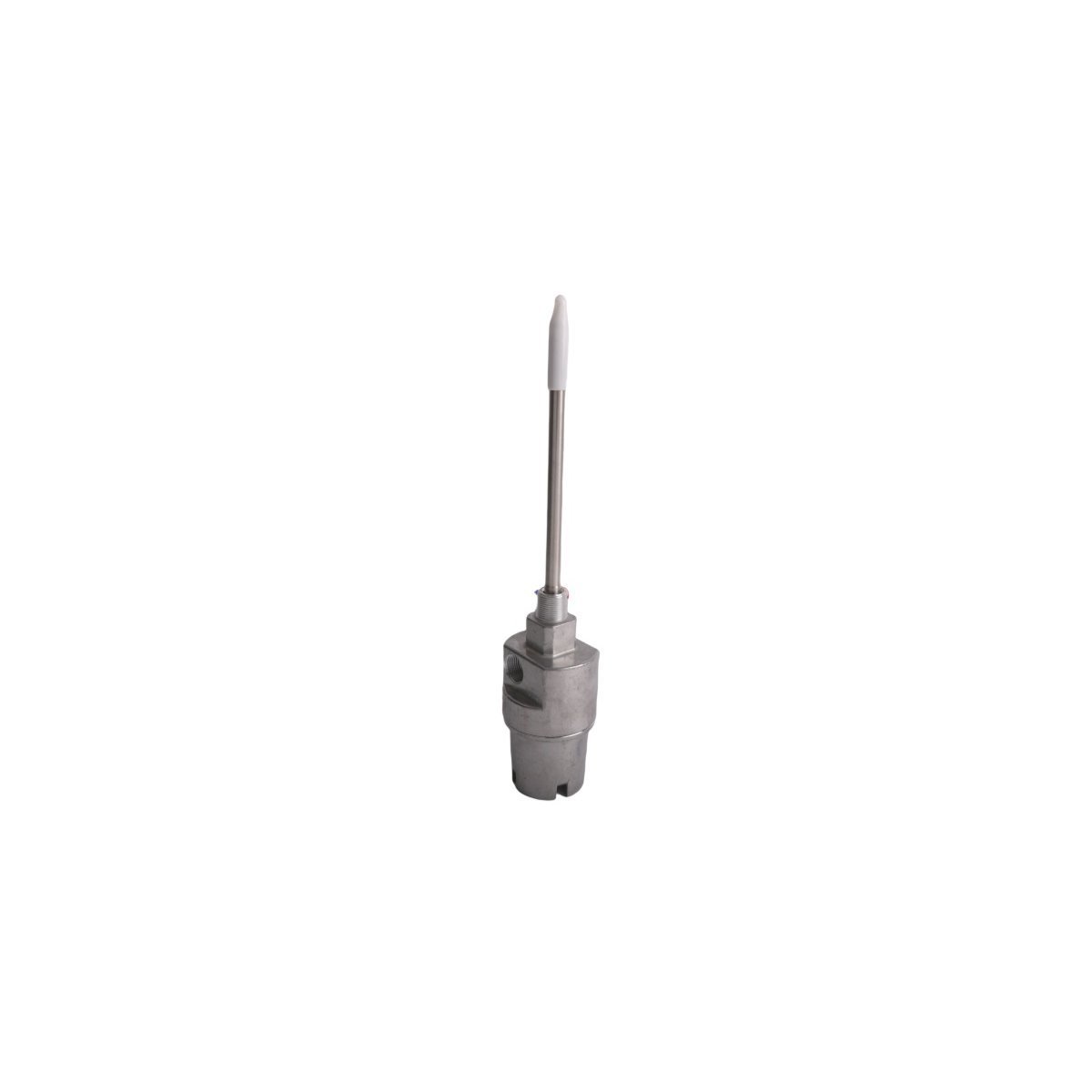

21000-16-10-00-041-04-02 | Bently Nevada | Proximity Probe

Request a Quote

21000-16-10-00-041-04-02 Product datasheet

Model number:

21000-16-10-00-041-04-02

Module Type：

Proximity Probe HousingAssemblies

Manufacture:

Bently Nevada

Condition：

Brand New

Range of Product:

Bently Nevada

Lead time：

In Stock

Weight:

1.08 kg

HS CODE：

8537101190

Dimension:

8.5×8.5×30.5cm

MOQ:

1

Product Origin:

USA

System：

TSI

Discontinued on:

active

Communication Service:

Ethernet router

21000-16-10-00-041-04-02 Functional Description

The Bently Nevada 21000-16-10-00-041-04-02 Proximity Probe HousingAssembliesis a rugged, all-metal proximity probe housing assembly from the proven 21000 series, tailored for external mounting of reverse‑mount 3300 XL proximity probes. Featuring an aluminum body with a 304 stainless steel sleeve, the Bently Nevada 21000‑16‑10‑00‑041‑04‑02 delivers outstanding corrosion resistance and mechanical durability, making it suitable for harsh industrial environments in power generation, oil & gas, and petrochemical applications.

Built to precise specifications, the 21000 Bently Nevada Proximity Probe HousingAssembliesincludes a threaded dome cover, conduit ports, a customizable probe sleeve, O‑rings, a thread seal, and pre-installed reverse-mount probe. It is configured with a 1.0 m cable and a 4.1‑inch penetration depth, ensuring accurate vibration and position measurements while complying with API 670 standards for externally mounted probe housings.

Certified as explosion-proof by CSA for Class I/II/III Divisions 1 & 2 and enclosed in a Type 4 housing, the Bently Nevada 21000-16-10-00-041-04-02 PDFprovides reliable protection against dust, moisture, and mechanical stress. Optional conduit fittings and an internal standoff adapter further enhance installation flexibility and system integrity.

While the 21000-16-10-00-041-04-02 Proximity Probe HousingAssembliesexcels in hazardous-area installations, Bently Nevada’s newer 31000/32000 series offers enhanced environmental resistance and flexible mounting for non-explosion-proof scenarios.

Tags:
