21000-16-10-00-120-03-02 | Bently Nevada | Proximity Probe HousingAssemblies
Technical Overview

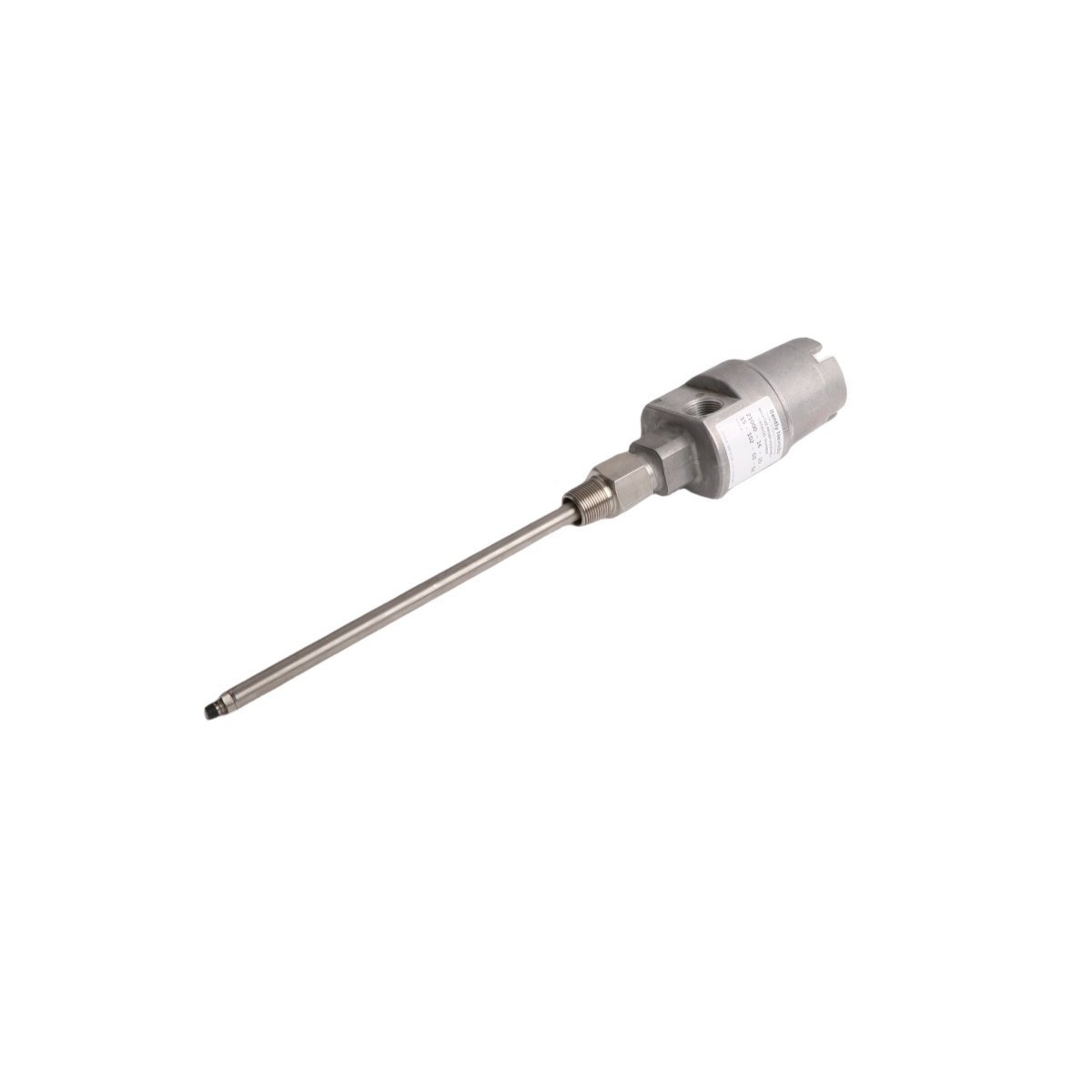

The Bently Nevada 21000-16-10-00-120-03-02 Proximity Probe Housing Assembly provides secure mounting and alignment for proximity probes in rotating machinery monitoring systems. The housing ensures precise probe positioning relative to the target surface, enabling accurate vibration and position measurements. Designed for integration with the Bently Nevada 3500 Monitoring System, this assembly maintains signal integrity in high-temperature, high-vibration environments. The rigid construction minimizes mechanical deflection, while the standardized interface simplifies installation and maintenance.
Detailed Specifications
| Manufacturer | Bently Nevada |
| Part Number | 21000-16-10-00-120-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Thread Size | M16 x 1.0 |
| Probe Insertion Depth | Adjustable with locknut |
| Temperature Range | -40°C to +150°C (-40°F to +302°F) |
| Material | Stainless steel body |
| Electrical Isolation | Optional insulated version available |
Operational Capabilities
Deploys in gas turbines, compressors, and steam turbines for continuous condition monitoring. Withstands 20 g vibration (10-2000 Hz) and maintains probe alignment within ±0.25 mm under normal operating conditions. MTBF exceeds 100,000 hours in refinery applications when properly installed.
Technical FAQ
Q: Is this housing compatible with non-Bently Nevada probes?
A: No. Designed specifically for Bently Nevada 3300/7200 series probes with M16 threading.
Q: What torque values should be applied during installation?
A: Tighten housing body to 40 Nm (30 lb-ft) and locknut to 15 Nm (11 lb-ft) for standard applications.
