Sale!
SKU: 31000-16-05-00-063-03-02

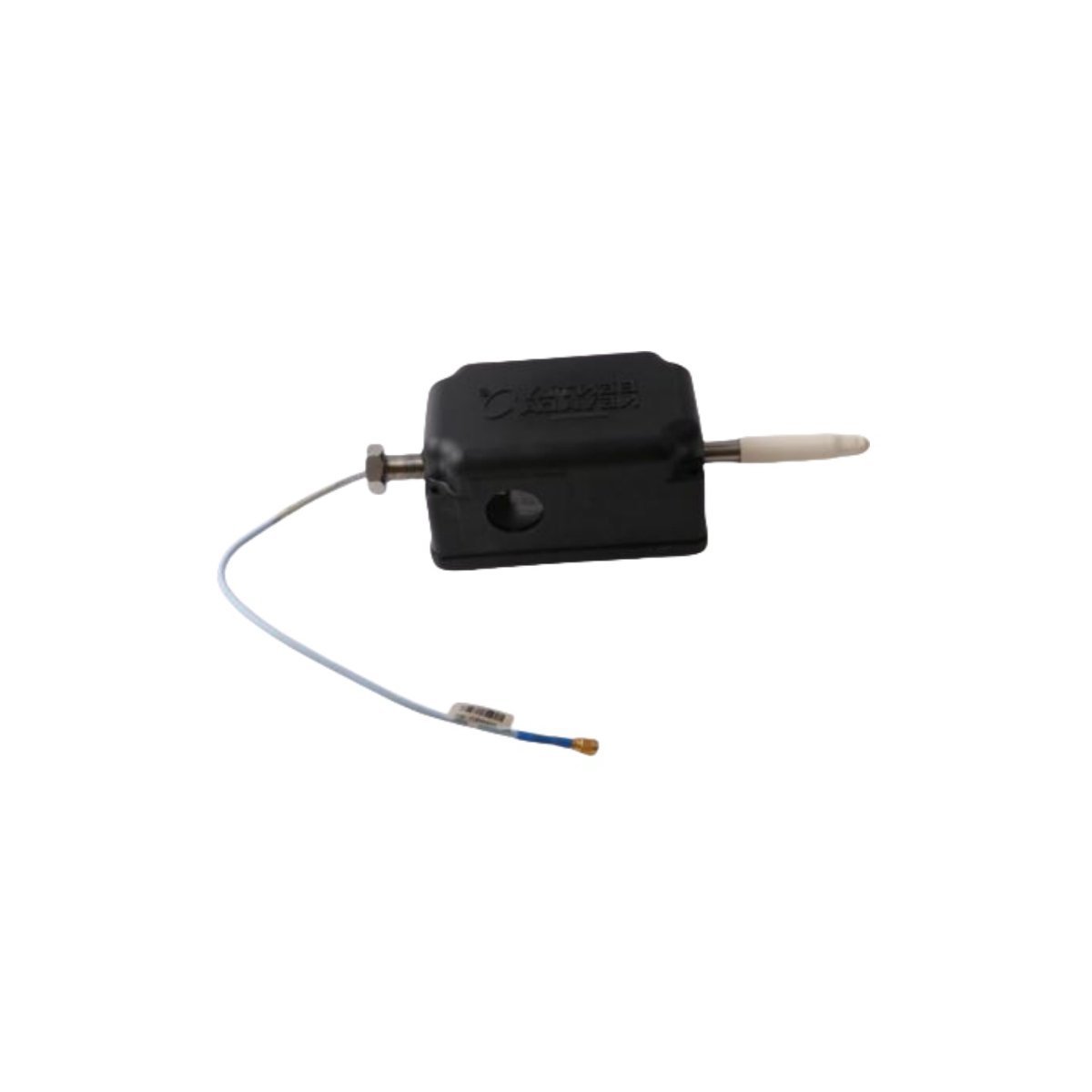

31000-16-05-00-063-03-02 | Bently Nevada | Proximity Probe

Request a Quote

31000-16-05-00-063-03-02 Product datasheet

Model number:

31000-16-05-00-063-03-02

Module Type：

Proximity Probe HousingAssemblies

Manufacture:

Bently Nevada

Condition：

Brand New

Range of Product:

3300 Proximity Transducer System

Lead time：

In Stock

Weight:

1.2 kg

HS CODE：

8537101190

Dimension:

30.02×12×9.14cm

MOQ:

1

Product Origin:

USA

System：

TSI

Discontinued on:

active

Communication Service:

Ethernet router

31000-16-05-00-063-03-02 Functional Description

The Bently Nevada 31000-16-05-00-063-03-02 Proximity Probe HousingAssembliesrepresents a premium proximity probe housing designed for critical machinery protection in extreme environments. Featuring corrosion-resistant PPS thermoplastic and stainless steel construction, this housing meets stringent API 670 standards while enabling external probe access without machine disassembly. Its robust design reduces maintenance downtime by up to 60% in power generation and oil & gas applications.

The 31000-16-05-00-063-03-02 Proximity Probe HousingAssembliescarries ATEX/IECEx Zone 1/21 certification when used with proper barriers. The housing’s 3/4″ NPT threaded connection ensures secure installation while maintaining intrinsic safety in petrochemical plants and refineries where standard enclosures would be inadequate.

The 3300 Series Bently Nevada 31000-16-05-00-063-03-02is specifically designed for 3300 XL probe systems, offering multiple conduit options for flexible field installation. Its precision engineering protects sensitive vibration sensors from chemicals, moisture, and mechanical stress without compromising measurement accuracy in turbines and compressors.

With its combination of durable materials and intelligent design, the Proximity Probe Housing 31000-16-05-00-063-03-02delivers exceptional equipment protection. The Bently Nevada 31000-16-05-00-063-03-02 continues Bently Nevada’s legacy of providing innovative solutions that enhance predictive maintenance programs in the world’s most demanding industrial environments.
