330101-00-80-20-02-05 Product datasheet
Model number: | 330101-00-80-20-02-05 | Module Type： | 3300 XL 8 mm Proximity Probes | |
Manufacture: | Bently Nevada | Condition： | Brand New | |
Range of Product: | 3300 Proximity Transducer System | Lead time： | In Stock | |
Weight: | 0.12 kg | HS CODE： | 8537101190 | |
Dimension: | 15×18×2cm | MOQ: | 1 | |
Product Origin: | USA | System： | TSI | |
Discontinued on: | active | Communication Service: | Ethernet router |
330101-00-78-15-02-05 Functional Description

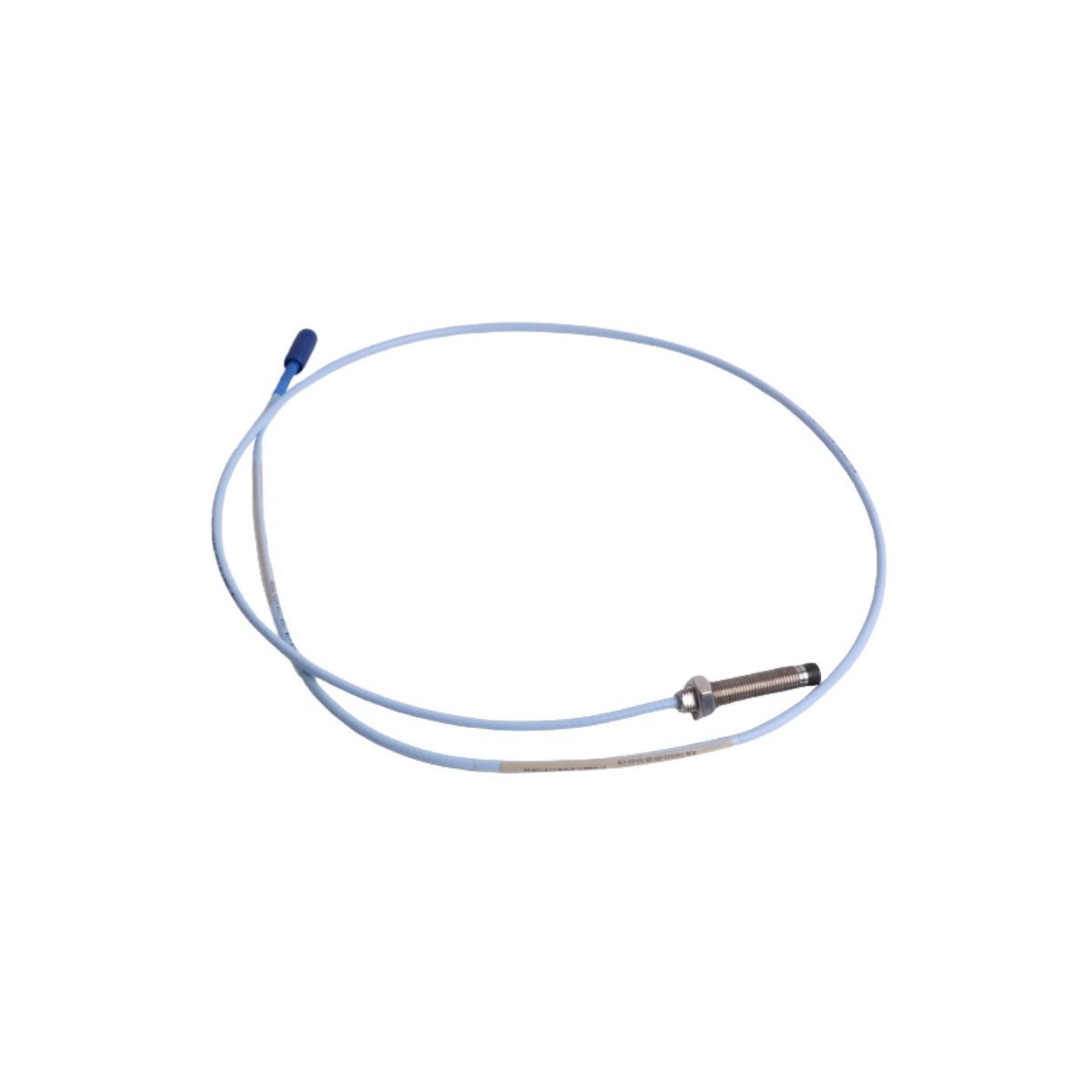

The Bently Nevada 330101-00-80-20-02-05 3300 XL 8 mm Proximity Probesis part of the 3300 XL system and is designed for versatile installations. It supports both high-density DIN-rail mounting and traditional panel mounting, using the same 4-hole footprint as earlier Proximitor Sensor models. This ensures easy integration into existing setups.
The mounting base of the 3300 Series Bently Nevada 330101-00-80-20-02-05provides effective electrical isolation, eliminating the need for separate isolator plates. This design improvement simplifies installation and increases reliability in electrically sensitive environments.
With enhanced immunity to radio frequency and electromagnetic interference, the Bently Nevada 330101-00-80-20-02-05 PDFcan be installed in fiberglass housings without signal degradation. It meets European CE mark requirements without needing shielded conduit or metal enclosures, reducing installation costs.
The 330101-00-80-20-02-05 3300 XL 8 mm Proximity Probes features SpringLoc terminal strips that speed up installation and ensure durable connections. Unlike traditional screw terminals, these require no special tools and prevent loosening over time, making the system more robust and user-friendly in the field.
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
The Bently Nevada 330102-00-60-10-01-05 is an 8 mm reverse-mount eddy current proximity probe designed for non-contact measurement of vibration and displacement. It functions as a core component of the 3300 XL 8 mm Proximity Transducer System, which also includes an extension cable and a Proximitor Sensor. The probe operates by having the Proximitor Sensor generate a high-frequency radio frequency (RF) signal, which is transmitted through the extension cable and radiated from the probe's tip into a small electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's amplitude. This change is directly proportional to the gap between the probe tip and the target surface. The Proximitor Sensor demodulates this signal, converting it into a DC voltage that accurately represents the physical distance. This conditioned voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500, for real-time analysis of radial vibration, axial position, and shaft speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-60-10-01-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 1.0 meter (3.3 feet) |
| Case Length | 6.0 inches (152 mm) |
| Mounting Option | Reverse Mount |
| Connector Type | Miniature coaxial ClickLocâ„¢ connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Agency Approvals | Multiple Approvals: CSA (Class I, Div 1/2), ATEX/IECEx (Zone 0/1) |
In Oil & Gas and Power Generation applications, the 330102-00-60-10-01-05 probe demonstrates high reliability in demanding operational environments. Its construction with a PPS tip and stainless steel case allows for continuous operation in temperatures ranging from -34 °C to +177 °C (-29 °F to +350 °F). The gold-plated ClickLoc connector provides a secure, corrosion-resistant connection that prevents signal degradation from fluid ingress or vibration-induced intermittence. When paired with a 3300 XL Proximitor Sensor, the system provides a linear measurement range of 2.0 mm (80 mils) with a scale factor of 7.87 V/mm (200 mV/mil), ensuring precise data for machine diagnostics. The system is designed for high immunity to radio frequency interference (RFI), minimizing signal corruption in electrically noisy industrial environments. The probe's physical durability and signal integrity are critical for monitoring high-speed turbomachinery, where accurate measurement of shaft dynamics is essential for preventing catastrophic failure.
Q: What systems is the 330102-00-60-10-01-05 compatible with?
A: The 330102-00-60-10-01-05 probe is a component of the 3300 XL 8 mm Transducer System. For proper operation, it must be used with a 3300 XL extension cable and a 3300 XL Proximitor Sensor (e.g., part number 330180). This complete transducer system is fully compatible with Bently Nevada monitoring systems, including the 3500 Series Machinery Protection System and ADRE Sxp/408 DSPi data acquisition systems. It is not electrically or mechanically compatible with components from other transducer series, such as the 7200 or 3000 series.
Q: What are the installation requirements?
A: As a reverse-mount probe, the 330102-00-60-10-01-05 is installed from inside the machine housing, with the probe body extending outward. A clearance hole must be drilled through the machine case to accommodate the 8 mm probe tip. The target area on the observed shaft must be smooth, free of surface defects, and have a minimum diameter of 10.7 mm (0.42 in) to ensure measurement accuracy. The probe's gap should be set to the center of its linear range, typically corresponding to -10.0 Vdc. The ClickLoc connector must be tightened to the specified torque to ensure a secure, environmentally sealed connection. Cable routing must avoid areas of extreme heat, physical abrasion, and proximity to high-voltage power lines to maintain signal integrity.
The Bently Nevada 84661-67 is a specialized interconnect cable engineered for the transmission of low-level analog signals from Velomitor piezo-velocity sensors to a machinery protection system. Its primary function is to provide a reliable, noise-immune physical link between a sensor mounted on rotating machinery and a monitoring module, such as the Bently Nevada 3500/42M. The cable is constructed with a shielded, twisted-pair configuration using 22 AWG conductors. This design is critical for preserving the integrity of the millivolt-level velocity signal by minimizing interference from electromagnetic (EMI) and radio frequency (RFI) sources common in industrial environments. The 84661-67 cable transmits the dynamic voltage signal proportional to the machine's case vibration velocity, enabling the 3500 system to perform accurate vibration analysis and machinery diagnostics. The cable features a ruggedized jacket for resistance to industrial chemicals and abrasion, and its specific length and connectorization are designed for seamless integration without field modification, ensuring consistent system performance and measurement accuracy.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 84661-67 |
| Product Type | Velomitor Interconnect Cable |
| Condition | Brand New |
| Warranty | 12 Months |
| Cable Length | 67 feet (20.4 meters) |
| Cable Construction | Shielded, twisted pair, 22 AWG (0.34 mm²) conductors |
| Sensor End Connector | 2-socket MIL-C-5015 style, environmentally sealed |
| Monitor End Connection | Prepared leads for terminal block installation on 3500/42M I/O module |
| Shielding | Overall aluminum/polyester foil shield with tinned copper drain wire |
| Jacket Material | Chlorinated Polyethylene (CPE) for oil and chemical resistance |
| Operating Temperature Range | -30°C to +100°C (-22°F to +212°F) |
In Oil & Gas and Power Generation applications, the 84661-67 interconnect cable demonstrates high reliability and signal fidelity under demanding operational conditions. Its robust CPE jacket provides protection against hydrocarbons, corrosive chemicals, and mechanical abrasion frequently encountered in these environments. The specified operating temperature range of -30°C to +100°C ensures consistent performance from cold startups to high-temperature operating conditions near turbines, compressors, and pumps. The cable's shielding effectiveness is critical for transmitting clean, low-noise vibration signals from Velomitor sensors, which is essential for the accurate detection of machinery faults such as imbalance, misalignment, and bearing degradation. Proper installation, including correct shield grounding at the monitor end only, prevents ground loops and ensures the high signal-to-noise ratio required for the advanced diagnostic algorithms within the 3500 monitoring system.
Q: What systems is the 84661-67 compatible with?
A: The 84661-67 cable is designed primarily for use with the Bently Nevada 3500 Machinery Protection System, connecting directly to the terminal block of a 3500/42M Velomitor/Seismic Monitor I/O Module. It is compatible with Bently Nevada Velomitor sensors, including the 330500 and 330525 models, and other piezo-velocity sensors that utilize a 2-pin MIL-C-5015 style connector and have similar output characteristics.
Q: What are the installation requirements?
A: Proper installation is critical for signal integrity. 1) Route the 84661-67 cable in dedicated instrument trays or conduit, separated from high-voltage power cables to prevent induced noise. 2) The cable shield drain wire must be terminated at the instrument ground (GND) terminal on the 3500/42M I/O module. Do not connect the shield at the sensor end to prevent ground loops. 3) Ensure the connector at the sensor is fully seated and the locking ring is tightened to maintain the environmental seal. 4) Secure the cable with appropriate clamps to provide strain relief and prevent vibration-induced damage to the cable or connectors. Adhere to a minimum bend radius of 10 times the cable's outer diameter.
The Bently Nevada 21000-27-05-40-026-03-02 is a proximity probe housing assembly designed to provide a secure, environmentally sealed, and adjustable mounting for proximity probes on industrial machinery. Its primary function is to protect the sensitive probe element from the harsh process environment (e.g., high pressure, corrosive gases, liquids) while allowing precise positioning relative to the observed machine shaft. This specific assembly is constructed from 316 Stainless Steel for superior corrosion resistance. It features a 3/4-14 NPT mounting thread for direct installation into the machine casing. The assembly houses a 3300 XL 8 mm probe, which operates on the eddy current principle. The probe, connected via an extension cable to a Proximitor Sensor, transmits a high-frequency RF signal. The proximity of the conductive shaft surface modulates this signal, which the Proximitor Sensor demodulates into a DC voltage proportional to the probe-to-shaft gap. This conditioned signal is then supplied to a Bently Nevada 3500 Machinery Protection System for continuous monitoring of radial vibration, axial position, and rotational speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-27-05-40-026-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 316 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Probe Penetration Length | 400 mm (15.7 in) |
| Standoff Length | 50 mm (2.0 in) |
| Included Probe Option | 3300 XL 8 mm probe, 1.0 metre cable, miniature coaxial connector |
| Fittings Option | One 3/4-14 NPT plug provided |
| Housing Operating Temperature | -34 °C to +177 °C (-29 °F to +350 °F) |
In Oil & Gas and Power Generation applications, the 21000-27-05-40-026-03-02 assembly provides a robust and reliable platform for critical machinery monitoring. Its 316 Stainless Steel construction ensures long-term integrity in environments containing hydrogen sulfide (H2S), chlorides, and other corrosive agents common in refineries and offshore platforms. The NPT thread mounting, when installed with appropriate sealant, creates a high-pressure seal, preventing the escape of process gases or liquids. This is critical for safety and environmental compliance on equipment such as centrifugal compressors and high-pressure pumps. The assembly's design facilitates stable probe gapping, which is essential for the accuracy and repeatability of vibration and position measurements required for API 670 compliant protection systems. The housing is engineered for continuous, long-term service with minimal maintenance, contributing to high machine availability and reduced lifecycle costs for critical assets like gas turbines, steam turbines, and generators.
Q: What systems is the 21000-27-05-40-026-03-02 compatible with?
A: The 3300 XL 8 mm probe included with the 21000-27-05-40-026-03-02 assembly is part of a transducer system that requires a matching 3300 XL extension cable and a 3300 XL Proximitor Sensor. The complete transducer system output is fully compatible with Bently Nevada machinery protection and condition monitoring systems, including the 3500 Series (e.g., 3500/42M Proximitor/Seismic Monitor), 3300 Series Monitors, and ADRE data acquisition systems. The housing's 3/4-14 NPT mechanical interface is compatible with any machine case drilled and tapped to this standard thread size.
Q: What are the installation requirements?
A: Installation requires a 3/4-14 NPT tapped hole at the measurement location on the machine casing. An appropriate thread sealant (e.g., PTFE tape or pipe dope compatible with the process fluid and temperature) must be applied to the mounting threads to ensure a pressure-tight seal. The probe must be gapped by adjusting its position within the housing to achieve the correct DC voltage output (typically -10.0 Vdc for a 3300 XL 8 mm system) when measured at the Proximitor Sensor's output terminals. After gapping, the probe is secured in place using the housing's set screws. Adherence to Bently Nevada's specified torque values for the housing and any fittings is mandatory to prevent damage and ensure seal integrity.
The Bently Nevada 330102-00-12-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe, a component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. The probe functions by emitting a high-frequency radio frequency (RF) signal from its encapsulated tip. When positioned near a conductive target material, such as a machine shaft, this RF field induces eddy currents on the surface of the target. The interaction between the probe's field and the eddy currents creates an impedance change in the probe's coil, which is directly proportional to the gap between the probe tip and the target surface. This raw signal is transmitted through its integral 0.5-meter cable to a 3300 XL extension cable and subsequently to a 3300 XL Proximitor Sensor. The Proximitor Sensor demodulates and linearizes the signal, producing a precise DC voltage output that corresponds to the physical gap. This conditioned signal is then supplied to a Bently Nevada 3500 Series monitoring system for continuous machine protection, diagnostics, and data logging.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-12-05-02-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 0.5 meter (1.6 feet) |
| Mounting Option | 3/8-24 UNF threads, Reverse Mount |
| Case Length | 1.2 inches (30.5 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5%, when used with 3300 XL Proximitor and AISI 4140 steel target |
| Frequency Response | 0 Hz (DC) to 10 kHz (-3 dB) |
| Agency Approvals | CSA/NRTL/C, ATEX/IECEx (Ex ia IIC T4 Ga, Ex ia IIIC T135°C Da) |
In Oil & Gas and Power Generation applications, the 330102-00-12-05-02-05 probe is integral to Machinery Protection Systems (MPS) on critical assets like gas and steam turbines, compressors, and large motor-pump sets. It provides the primary measurement for radial vibration, axial thrust position, and shaft eccentricity. The probe's construction from AISI 304 stainless steel ensures high reliability in corrosive and high-temperature environments. Its tip is hermetically sealed with a high-pressure, injection-molded Ryton® PPS material, preventing ingress of oil and process fluids. The specified operating temperature range for the probe tip is -34 °C to +177 °C (-29 °F to +350 °F). The included agency approvals (CSA, ATEX, IECEx) certify the 330102-00-12-05-02-05 for safe operation as an intrinsically safe apparatus in specified hazardous areas, a mandatory requirement for many hydrocarbon processing and power plant environments. The system demonstrates high long-term stability, minimizing calibration drift and ensuring consistent machine protection over extended operational periods.
Q: What systems is the 330102-00-12-05-02-05 compatible with?
A: The 330102-00
The Bently Nevada 31000-16-05-00-100-03-02 is a proximity probe housing assembly designed for the physical protection and precise positioning of eddy current proximity probes. Its primary function is to provide a rigid, environmentally sealed conduit for mounting a probe to a machine case, enabling accurate measurement of shaft vibration and position. Constructed from 303 stainless steel, the housing offers high resistance to corrosion and physical damage common in industrial environments. This specific assembly, part number 31000-16-05-00-100-03-02, features a 3/4-14 NPT male thread for mounting into the machine case, ensuring a secure and pressure-tight fit. The housing allows for fine adjustment of the probe's distance to the target surface, which is critical for setting the correct DC gap voltage. The signal from the probe, which is an integral part of a complete transducer system, is transmitted through an extension cable to a Proximitor sensor. The Proximitor demodulates this signal into a voltage proportional to the gap, which is then fed into a Bently Nevada 3500 Machinery Protection System for continuous monitoring, analysis, and alarming.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-05-00-100-03-02 |
| Product Type | Proximity Probe Housing Assemblies |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 303 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Standoff Adapter Length | 10.0 inches (254 mm) |
| Total Case Length | 2.1 inches (53 mm) |
| Probe Compatibility | Designed for Bently Nevada 3300 XL 8 mm Proximity Probes |
| Operating Temperature | -34 °C to +177 °C (-29 °F to +350 °F) |
The 31000-16-05-00-100-03-02 housing assembly is engineered for high reliability in demanding industrial settings. In Oil & Gas applications, its 303 stainless steel construction and NPT threaded connection provide excellent resistance to corrosive agents such as hydrogen sulfide (H2S) and ensure pressure containment when installed correctly. In Power Generation environments, the assembly maintains positional stability for the probe across the wide operating temperatures associated with steam and gas turbines, preventing measurement drift due to thermal expansion. The rigid design protects the sensitive probe tip and extension cable from external impact and high vibration, directly contributing to the high Mean Time Between Failures (MTBF) of the overall vibration measurement channel. When installed in accordance with Bently Nevada installation procedures, the housing assembly supports the intrinsic safety and hazardous area certifications of the complete transducer system, making it suitable for deployment in classified locations.
Q: What systems is the 31000-16-05-00-100-03-02 compatible with?
A: The 31000-16-05-00-100-03-02 is an integral component of the Bently Nevada 3300 XL Proximity Transducer System. This system, which includes the probe, extension cable, and a 3300 XL Proximitor Sensor, is designed for direct interface with the Bently Nevada 3500 Machinery Protection System. It is also fully compatible with the legacy 3300 monitoring system. The analog voltage output from the associated Proximitor Sensor can also be integrated with other third-party PLCs, DCS, and data acquisition systems capable of processing a -2 to -18 Vdc signal.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The machine case requires a mounting hole drilled and tapped for a 3/4-14 NPT thread. An appropriate thread sealant must be applied to the housing's male NPT threads to ensure a pressure-tight seal. The housing is then threaded into the machine case and tightened. The proximity probe is inserted into the housing and its axial position is adjusted to achieve the correct DC gap voltage, typically -10 Vdc for a standard 3300 XL 8 mm probe configuration. Once the gap is set, the probe is secured within the housing using its set screws. Proper system grounding, as detailed in Bently Nevada documentation, is mandatory for signal integrity.
The Bently Nevada 21000-16-05-00-115-03-02 is a rigid proximity probe housing assembly engineered to provide a secure and stable mounting for eddy current proximity probes used in machinery protection systems. Its primary function is to physically protect the probe while positioning it at a precise, fixed distance from the observed machine shaft or target surface. This specific assembly, constructed from 303 stainless steel, ensures mechanical integrity and corrosion resistance in harsh industrial environments. It integrates as a critical front-end mechanical component for systems like the Bently Nevada 3500. While the housing itself is a passive component and does not transmit an electrical signal, its dimensional accuracy is fundamental for the integrity of the measurement chain. By holding the probe stationary relative to the machine casing, it enables the connected Proximitor Sensor and monitor to accurately measure radial vibration, axial thrust position, and phase reference (Keyphasor) data. The 1.6-inch penetration length and 1-1/4 - 12 UNF mounting thread are specified for direct installation into pre-drilled and tapped holes on machine casings.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-16-05-00-115-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 303 Stainless Steel |
| Mounting Thread | 1-1/4 - 12 UNF |
| Penetration Length (A) | 1.6 in (40.6 mm) |
| Standoff Length (B) | 0.5 in (12.7 mm) |
| Compatible Probe Series | Bently Nevada 3300 XL 8mm, 3300 8mm, 7200 5mm & 8mm |
| Mounting Option | Supplied with two 1-1/4 - 12 UNF mounting nuts |
| Operating Temperature Range | -51°C to +177°C (-60°F to +350°F) |
In Oil & Gas and Power Generation applications, the 21000-16-05-00-115-03-02 housing assembly demonstrates high reliability on critical rotating machinery such as gas and steam turbines, centrifugal compressors, and boiler feed pumps. Its rigid, single-piece 303 stainless steel construction provides excellent resistance to mechanical vibration and thermal expansion, ensuring measurement stability and data integrity for the connected condition monitoring system. The material specification offers robust protection against corrosion from hydrocarbons, process chemicals, and atmospheric moisture. As a passive mechanical component, its Mean Time Between Failures (MTBF) is exceptionally high, with reliability being primarily dependent on correct installation and torque procedures. The specified operating temperature range of -51°C to +177°C allows for direct mounting on hot machine casings without degradation of its mechanical properties, making it suitable for a wide spectrum of industrial operating conditions.
Q: What systems is the 21000-16-05-00-115-03-02 compatible with?
A: The 21000-16-05-00-115-03-02 is designed as a front-end component for Bently Nevada's 3500 and 3300 Machinery Protection and Condition Monitoring Systems. It is mechanically compatible with any system utilizing Bently Nevada 3300 XL 8mm, 3300 8mm, or 7200 series (5mm and 8mm) proximity probes. Its function is purely mechanical, so electrical compatibility is determined by the probe, extension cable, and Proximitor sensor it is used with.
Q: What are the installation requirements?
A: Installation requires a pre-drilled and tapped hole in the machine casing with a 1-1/4 - 12 UNF thread. The housing is threaded into this mount point. The proximity probe is then inserted into the housing and its axial position is adjusted to set the correct DC gap voltage relative to the shaft
The Bently Nevada 84661-82 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 84661-82 |
| Condition | Brand New |
| Warranty | 12 Months |
This Bently Nevada 84661-82 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.
Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.
Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
The Bently Nevada 21000-16-10-15-075-03-02 is a genuine industrial component designed for critical automation systems. This high-quality product delivers reliable performance in demanding industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-16-10-15-075-03-02 |
| Condition | Brand New |
| Warranty | 12 Months |
Q: Is this a genuine Bently Nevada product?
A: Yes, this is a 100% genuine product with full manufacturer warranty.
Q: What is the warranty period?
A: All products come with a standard 12-month warranty.
