  4. 330881-28-04-110-06-02 | Bently Nevada | PROXPAC XL Proximity Transducer
Sale!
SKU: 330881-28-04-110-06-02

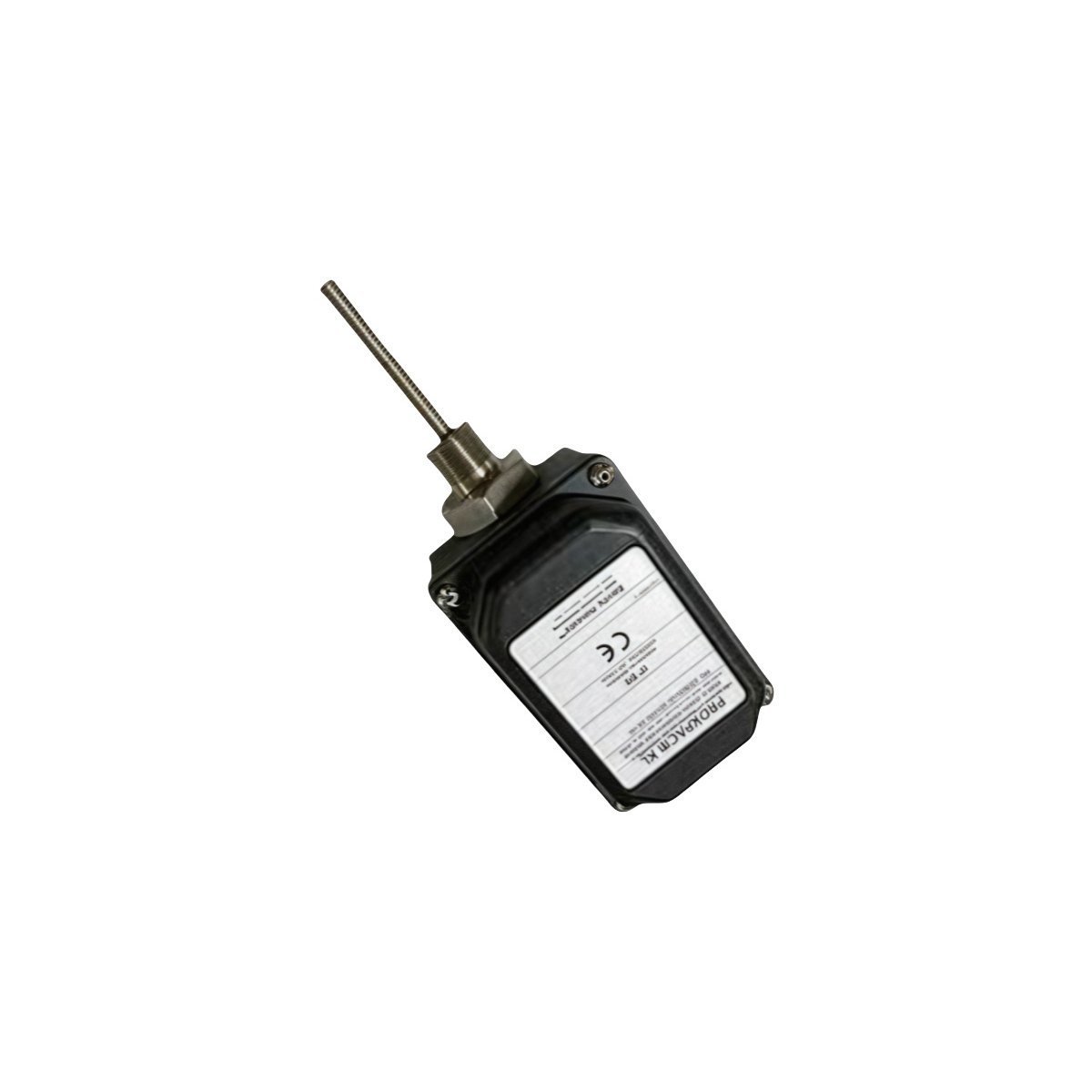

330881-28-04-110-06-02 | Bently Nevada | PROXPAC XL Proximity Transducer

Request a Quote

Technical Overview

The Bently Nevada 330881-28-04-110-06-02 PROXPAC XL Proximity Transducer measures shaft displacement, vibration, and position in rotating machinery. It interfaces with the Bently Nevada 3500 Monitoring System to provide real-time data for condition monitoring and protection. The transducer operates on eddy current principles, generating a voltage proportional to the gap between the probe tip and the target surface. Its hardened stainless steel construction withstands high-temperature, high-pressure environments typical in turbomachinery. The XL variant offers extended cable lengths for flexible installation in constrained spaces.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330881-28-04-110-06-02
Product TypePROXPAC XL Proximity Transducer
Measurement Range0-2.0 mm (80 mils)
Output Signal-2 to -18 VDC (gap voltage)
Temperature Range-40°C to +150°C (-40°F to +302°F)
Cable Length10 m (32.8 ft) standard
CompatibilityBently Nevada 3500/3300 monitoring systems

Operational Capabilities

Designed for continuous monitoring of critical turbomachinery in gas turbines, compressors, and steam turbines. Maintains ±1% linearity across full operating range. IP67-rated housing resists moisture and particulate ingress. Meets API 670 standards for machinery protection systems. Typical MTBF exceeds 100,000 hours in refinery and power generation applications.

Technical FAQ

Q: Does this transducer require external signal conditioning?
A: No. The PROXPAC XL outputs a direct gap voltage signal compatible with Bently Nevada 3500 monitor input modules.

Q: What target material specifications apply?
A: Requires ferrous steel targets with minimum thickness of 1.5mm and surface roughness ≤4µm Ra. Non-conductive coatings must be <0.25mm thick.

Tags:

You may also like

Sale!
21000-34-10-20-058-04-02 | Bently Nevada | Proximity Probe HousingAssemblies

21000-34-10-20-058-04-02 | Bently Nevada | Proximity Probe HousingAssemblies

Technical Overview

The Bently Nevada 21000-34-10-20-058-04-02 is a rigid proximity probe housing assembly designed for the external mounting of proximity probes on machinery casings. Its primary function is to provide a secure, environmentally sealed, and mechanically protected housing for a non-contacting eddy current proximity probe. This specific assembly, constructed from 304 Stainless Steel, ensures robust performance in corrosive industrial environments. It positions a 3300 XL 8 mm probe at a fixed distance from the mounting surface, defined by its 3.4-inch standoff dimension. When integrated into a Bently Nevada 3500 Machinery Protection System, the probe within the 21000-34-10-20-058-04-02 housing measures shaft vibration and position. The probe transmits a high-frequency RF signal, which is modulated by the gap to the conductive target. This signal is then demodulated by a Proximitor sensor, producing a DC voltage proportional to the gap. This voltage is processed by a 3500 monitor module (e.g., 3500/42M) to provide critical data for machinery diagnostics and protection, such as radial vibration, axial thrust position, and speed.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number21000-34-10-20-058-04-02
Product TypeProximity Probe Housing Assembly
ConditionBrand New
Warranty12 Months
Material of Construction304 Stainless Steel
Mounting Thread Option3/4 - 14 NPT
Standoff Adapter Dimension (A)3.4 in (86 mm)
Housing Length (C)5.8 in (147 mm)
Included Probe3300 XL 8 mm Proximity Probe
Probe Cable Length (B)2.0 m (6.6 ft)
Operating Temperature Range-34 °C to +177 °C (-29 °F to +350 °F), limited by probe/cable specifications

Operational Capabilities

In Oil & Gas and Power Generation applications, the 21000-34-10-20-058-04-02 housing assembly demonstrates high reliability in demanding operational conditions. Its 304 Stainless Steel construction provides excellent resistance to corrosion from process fluids, steam, and harsh atmospheric contaminants common in these industries. The rigid design ensures the probe's measurement gap remains stable, preventing measurement drift and false alarms, which is critical for the protection of high-speed turbomachinery. The 3/4 - 14 NPT mounting thread, when installed correctly with appropriate sealant, provides a secure, pressure-tight seal against machine casing pressures. This configuration is rated for hazardous area classifications when used with appropriate intrinsic safety barriers. The assembly's design minimizes susceptibility to mechanical shock and vibration, ensuring the integrity of the measurement signal path from the probe to the monitoring system for long-term, uninterrupted machinery protection.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 21000-34-10-20-058-04-02 compatible with?
A: The 21000-34-10-20-058-04-02 contains a 3300 XL 8 mm probe. This probe is a component of a complete transducer system that must also include a 3300 XL extension cable and a 3300 XL Proximitor Sensor. The complete transducer system is directly compatible with Bently Nevada monitoring systems, including the 3500 Series, 3300 Series, and the Orbit 60 Series. It provides a standard analog voltage signal (typically 2 to 18 Vdc or -2 to -18 Vdc) to the monitor's input module for processing.

Q: What are the installation requirements?
A: Installation requires a machined mounting boss on the machine case with a 3/4 - 14 NPT tapped hole. The surface of the boss must be perpendicular to the shaft centerline to ensure accurate measurement. Use an appropriate thread sealant (e.g., PTFE tape or liquid sealant rated for the process temperature and fluid) on the NPT threads to create a secure seal and prevent loosening. The assembly should be tightened to the specified torque value. After mechanical installation, the probe gap must be set by adjusting the probe within the housing to achieve the desired DC voltage, typically the center of its linear range (e.g., -10 Vdc for a standard 80 mil / 2 mm range), before locking it in place.

Sale!
21504-00-32-10-02 | Bently Nevada | Vibration Probe

21504-00-32-10-02 | Bently Nevada | Vibration Probe

Technical Overview

The Bently Nevada 21504-00-32-10-02 is a 3300 NSv series proximity vibration probe, a fundamental component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. Its primary function is to measure the distance (gap) between the probe tip and a conductive target material, typically a machine shaft. The probe operates by generating a high-frequency radio frequency (RF) field from its tip coil. When brought near the conductive target, this field induces eddy currents on the target's surface. These eddy currents alter the impedance of the probe's coil system. This change in impedance is detected by an associated Proximitor Sensor, which demodulates the signal into a voltage directly proportional to the probe-to-target gap. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Machinery Protection System, for real-time analysis, trending, and alarming. The 21504-00-32-10-02 is constructed with a stainless steel case for durability in industrial environments and is specifically configured with a 320 mm case length and a 1.0-meter integral cable.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number21504-00-32-10-02
Product Type3300 NSv Proximity Vibration Probe
ConditionBrand New
Warranty12 Months
Unthreaded Length0 mm
Case Length320 mm (12.6 in)
Total Length1.0 metre (3.3 feet)
Connector TypeMiniature coaxial ClickLoc connector, standard cable
Probe Tip MaterialPolyphenylene Sulfide (PPS)
Case MaterialAISI 304 Stainless Steel
System Linear Range2 mm (80 mils)
System Scale Factor7.87 V/mm (200 mV/mil) with 3300 NSv Proximitor

Operational Capabilities

In Oil & Gas and Power Generation applications, the 21504-00-32-10-02 probe demonstrates high reliability for continuous monitoring of critical assets such as gas and steam turbines, compressors, and large pump motors. Its non-contacting measurement principle eliminates mechanical wear, contributing to a high Mean Time Between Failures (MTBF) for the overall protection system. The probe is engineered to operate reliably in harsh industrial conditions. The probe tip is rated for continuous operation from -34 °C to +177 °C (-29 °F to +351 °F). The robust stainless steel case provides protection against physical impact and contaminants common in plant environments. When installed as part of a complete 3300 NSv transducer system, it provides a stable and repeatable measurement essential for machine protection and condition monitoring programs, enabling early detection of developing faults like imbalance, misalignment, and fluid-induced instabilities.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 21504-00-32-10-02 compatible with?
A: The 21504-00-32-10-02 probe is a component of the Bently Nevada 3300 NSv Proximity Transducer System. For correct operation, it must be used in conjunction with a 3300 NSv extension cable and a 3300 NSv Proximitor Sensor. The output from the Proximitor Sensor is compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as any data acquisition system, PLC, or DCS capable of accepting a -24 Vdc powered, 7.87 V/mm (200 mV/mil) analog signal.

Q: What are the installation requirements?
A: Proper installation is critical for measurement accuracy. The probe must be mounted perpendicular to the target surface using a rigid bracket. The physical gap should be set to place the DC output voltage in the middle of the system's linear range, typically -10 Vdc. The target area on the shaft must be at least 10.7 mm (0.42 in) in diameter, smooth (0.4 to 0.8 µm / 16 to 32 µin rms), and free of any electrical or magnetic irregularities (e.g., chrome plating, magnetised spots). Cable routing must avoid high-voltage power lines and other sources of electromagnetic interference. All ClickLoc connectors must be fully engaged to ensure a secure connection.

Sale!
330192-00-28-05-00 | Bently Nevada | 3300 XL 8 mm ETR Proximity Probes

330192-00-28-05-00 | Bently Nevada | 3300 XL 8 mm ETR Proximity Probes

Technical Overview

The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330192-00-28-05-00
Product Type3300 XL 8 mm ETR Proximity Probes
ConditionBrand New
Warranty12 Months
Linear Range2.0 mm (80 mils)
Scale Factor7.87 V/mm (200 mV/mil) ±5%
Probe Tip Temperature Range-34 °C to +260 °C (-30 °F to +500 °F)
Total Length0.5 meters (1.6 feet)
Case Length2.8 inches (71.1 mm)
Connector TypeMiniature coaxial ClickLoc connector, gold-plated
Probe Tip MaterialPolyphenylene Sulfide (PPS)

Operational Capabilities

The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a

Sale!
330703-00-100-10-11-CN | Bently Nevada | 3300 XL 11 mm Proximity Probes

330703-00-100-10-11-CN | Bently Nevada | 3300 XL 11 mm Proximity Probes

Technical Overview

The Bently Nevada 330703-00-100-10-11-CN is an 11 mm eddy current proximity probe designed for non-contact displacement and vibration measurement on rotating machinery. It functions as a core component of the 3300 XL 11 mm Transducer System, which also includes a matched extension cable and a 3300 XL 11 mm Proximitor Sensor. The system operates on the eddy current principle, where the Proximitor Sensor emits a high-frequency radio frequency (RF) signal through the probe and extension cable. This signal radiates from the probe tip, creating an electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's impedance. The Proximitor Sensor demodulates this signal to produce a DC voltage directly proportional to the gap between the probe tip and the target surface. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 series, for real-time analysis of radial vibration, axial position, and shaft speed. The 330703-00-100-10-11-CN features a robust stainless steel case and a chemically resistant Polyphenylene Sulfide (PPS) tip, ensuring reliability in harsh industrial environments.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330703-00-100-10-11-CN
Product Type3300 XL 11 mm Proximity Probe
ConditionBrand New
Warranty12 Months
Linear Range4.0 mm (160 mils)
Scale Factor2.00 mV/µm (50 mV/mil) ± 6.5%
Total Length1.0 metre
Probe Tip MaterialPolyphenylene Sulfide (PPS)
Probe Case MaterialAISI 304 Stainless Steel
Connector TypeMiniature coaxial ClickLoc™ connector, gold-plated
Agency ApprovalCN Ex (China Ex) for hazardous area installations

Operational Capabilities

The 330703-00-100-10-11-CN proximity probe is engineered for high reliability in demanding industrial applications, particularly within Oil & Gas and Power Generation sectors. Its 11 mm tip provides a larger linear measurement range and is well-suited for monitoring large shaft diameters or applications requiring a greater standoff distance. The probe's construction ensures operational integrity across a wide temperature range, with the probe tip rated for -51 °C to +177 °C (-60 °F to +351 °F). The 3300 XL system design provides enhanced immunity to radio frequency interference (RFI/EMI), minimizing the risk of signal corruption from nearby motors, generators, or radio sources. The gold-plated ClickLoc™ connector ensures a secure, corrosion-resistant connection that prevents intermittent signals caused by vibration. When installed and maintained according to manufacturer specifications, the system demonstrates high Mean Time Between Failures (MTBF) and is a critical component for machinery protection systems (MPS) and condition monitoring programs, compliant with standards such as API 670.

Applications

  • Steam and gas turbines for power generation
  • Large centrifugal and reciprocating compressors in oil & gas processing
  • Boiler feed water pumps and other critical pump applications
  • Large electric motors and generators
  • Gearboxes and other industrial rotating machinery with fluid-film bearings
  • Integration into predictive maintenance and machinery protection systems (MPS)
  • Axial (thrust) position and radial vibration monitoring

Technical FAQ

Q: What systems is the 330703-00-100-10-11-CN compatible with?
A: The 330703-00-100-10-11-CN probe must be used as part of a complete Bently Nevada 3300 XL 11 mm Transducer System. This requires a matching 3300 XL 11 mm Proximitor Sensor (e.g., part number 330780) and a 3300 XL 11 mm extension cable. It is not interchangeable with components from 5 mm or 8 mm transducer systems, as the scale factor and linear range are different. The complete transducer system provides a voltage output compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as third-party PLCs, DCS, and data acquisition systems designed to accept a 3-wire, -24 Vdc powered eddy current probe input.

Q: What are the installation requirements?
A: Proper installation is critical for accurate measurements. The probe must be mounted perpendicular to the observed shaft surface using a rigid bracket. The target area on the shaft must be smooth (typically 0.4 to 0.8 µm / 16 to 32 µin Ra), free of chrome or other non-conductive plating, and clear of any residual magnetism or electrical runout. The probe must be gapped correctly by adjusting its distance to the shaft until the Proximitor Sensor output voltage is at the center of the linear range, typically -10.0 Vdc. The probe case locknut should be torqued to the specified value to prevent loosening. The integral cable and any extension cable should be secured to avoid strain on the connectors and routed away from high-voltage power cables to minimize interference.

Sale!
330102-00-60-10-01-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

330102-00-60-10-01-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

Technical Overview

The Bently Nevada 330102-00-60-10-01-05 is an 8 mm reverse-mount eddy current proximity probe designed for non-contact measurement of vibration and displacement. It functions as a core component of the 3300 XL 8 mm Proximity Transducer System, which also includes an extension cable and a Proximitor Sensor. The probe operates by having the Proximitor Sensor generate a high-frequency radio frequency (RF) signal, which is transmitted through the extension cable and radiated from the probe's tip into a small electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's amplitude. This change is directly proportional to the gap between the probe tip and the target surface. The Proximitor Sensor demodulates this signal, converting it into a DC voltage that accurately represents the physical distance. This conditioned voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500, for real-time analysis of radial vibration, axial position, and shaft speed.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330102-00-60-10-01-05
Product Type3300 XL 8 mm Reverse Mount Proximity Probe
ConditionBrand New
Warranty12 Months
Total Length1.0 meter (3.3 feet)
Case Length6.0 inches (152 mm)
Mounting OptionReverse Mount
Connector TypeMiniature coaxial ClickLoc™ connector, gold-plated
Probe Tip MaterialPolyphenylene Sulfide (PPS)
Probe Case MaterialAISI 304 Stainless Steel
Agency ApprovalsMultiple Approvals: CSA (Class I, Div 1/2), ATEX/IECEx (Zone 0/1)

Operational Capabilities

In Oil & Gas and Power Generation applications, the 330102-00-60-10-01-05 probe demonstrates high reliability in demanding operational environments. Its construction with a PPS tip and stainless steel case allows for continuous operation in temperatures ranging from -34 °C to +177 °C (-29 °F to +350 °F). The gold-plated ClickLoc connector provides a secure, corrosion-resistant connection that prevents signal degradation from fluid ingress or vibration-induced intermittence. When paired with a 3300 XL Proximitor Sensor, the system provides a linear measurement range of 2.0 mm (80 mils) with a scale factor of 7.87 V/mm (200 mV/mil), ensuring precise data for machine diagnostics. The system is designed for high immunity to radio frequency interference (RFI), minimizing signal corruption in electrically noisy industrial environments. The probe's physical durability and signal integrity are critical for monitoring high-speed turbomachinery, where accurate measurement of shaft dynamics is essential for preventing catastrophic failure.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 330102-00-60-10-01-05 compatible with?
A: The 330102-00-60-10-01-05 probe is a component of the 3300 XL 8 mm Transducer System. For proper operation, it must be used with a 3300 XL extension cable and a 3300 XL Proximitor Sensor (e.g., part number 330180). This complete transducer system is fully compatible with Bently Nevada monitoring systems, including the 3500 Series Machinery Protection System and ADRE Sxp/408 DSPi data acquisition systems. It is not electrically or mechanically compatible with components from other transducer series, such as the 7200 or 3000 series.

Q: What are the installation requirements?
A: As a reverse-mount probe, the 330102-00-60-10-01-05 is installed from inside the machine housing, with the probe body extending outward. A clearance hole must be drilled through the machine case to accommodate the 8 mm probe tip. The target area on the observed shaft must be smooth, free of surface defects, and have a minimum diameter of 10.7 mm (0.42 in) to ensure measurement accuracy. The probe's gap should be set to the center of its linear range, typically corresponding to -10.0 Vdc. The ClickLoc connector must be tightened to the specified torque to ensure a secure, environmentally sealed connection. Cable routing must avoid areas of extreme heat, physical abrasion, and proximity to high-voltage power lines to maintain signal integrity.

Sale!
200350-12-00-00 | Bently Nevada | Accelerometers

200350-12-00-00 | Bently Nevada | Accelerometers

Technical Overview

The Bently Nevada 200350-12-00-00 is a general-purpose, case-mounted industrial accelerometer designed for measuring absolute bearing housing or machine casing vibration. It utilizes a piezoelectric sensing element that generates a low-impedance voltage signal directly proportional to the acceleration of the component to which it is mounted. This analog voltage signal is transmitted via a two-wire system, which also supplies constant current power to the sensor's internal electronics (IEPE standard). The 200350-12-00-00 is specifically engineered for integration with Bently Nevada machinery protection systems, such as the 3500 series. It directly interfaces with the 3500/42M Proximitor/Seismic Monitor, which processes the raw acceleration signal. The monitor can then provide real-time acceleration data or perform single integration to derive velocity, a common parameter for assessing rotating machinery health. Constructed from 316L stainless steel with a hermetic seal, the 200350-12-00-00 is built to withstand harsh industrial environments, ensuring reliable signal transmission and long operational life in critical machinery monitoring applications.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number200350-12-00-00
Product TypeAccelerometers
ConditionBrand New
Warranty12 Months
Sensitivity10.2 mV/m·s⁻² (100 mV/g) ±5%
Frequency Response0.5 Hz to 10 kHz (±3 dB)
Measurement Range±490 m/s² (±50 g) peak
Power Requirement (IEPE)18 to 30 VDC, 2 to 10 mA Constant Current
Connector2-pin MIL-C-5015, Top Exit
Operating Temperature Range-55 °C to +121 °C (-67 °F to +250 °F)
Case Material316L Stainless Steel, Hermetically Sealed

Operational Capabilities

In Oil & Gas and Power Generation applications, the 200350-12-00-00 provides essential data for condition monitoring of critical assets like gas and steam turbines, compressors, pumps, and generators. Its reliability is substantiated by its robust construction; the hermetically sealed 316L stainless steel housing (rated to IP68) prevents ingress of moisture, chemicals, and particulates common in these environments. The sensor is designed for high MTBF (Mean Time Between Failures) through the use of solid-state electronics and minimal moving parts. Environmentally, the 200350-12-00-00 is specified to operate reliably from -55 °C to +121 °C, accommodating a wide range of ambient and machine surface temperatures. It is also designed to survive high-g shock events (up to 5000 g peak), ensuring data integrity is maintained even during machinery startup, shutdown, or upset conditions.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 200350-12-00-00 compatible with?
A: The 200350-12-00-00 is designed for primary compatibility with Bently Nevada monitoring systems, including the 3500 Machinery Protection System (interfacing with the 3500/42M Proximitor/Seismic Monitor) and the 3300 Monitoring System. It is also compatible with any third-party data acquisition or monitoring system that can provide standard IEPE (Integrated Electronics Piezo-Electric) sensor power, specifically a constant current source of 2 to 10 mA at a voltage of 18 to 30 VDC.

Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The mounting surface must be a flat, smooth (recommended finish of 0.8 μm / 32 μin Ra), and clean area on the machine case. A single mounting hole must be drilled and tapped for the sensor's 1/4-28 UNF mounting stud. Apply a thin, uniform layer of coupling fluid (silicone grease) to the mounting surface to eliminate air gaps and ensure optimal vibration transmission. The sensor must be tightened to the specified torque of 2.7 to 5.4 N·m (24 to 48 lbf·in) using a calibrated torque wrench. Ensure the interconnecting cable is routed to prevent strain on the connector and is shielded from high-voltage lines or other sources of electromagnetic interference. Use of conduit is recommended for physical protection.

Sale!
21000-27-05-40-026-03-02 | Bently Nevada | Proximity ProbeHousing Assemblies

21000-27-05-40-026-03-02 | Bently Nevada | Proximity ProbeHousing Assemblies

Technical Overview

The Bently Nevada 21000-27-05-40-026-03-02 is a proximity probe housing assembly designed to provide a secure, environmentally sealed, and adjustable mounting for proximity probes on industrial machinery. Its primary function is to protect the sensitive probe element from the harsh process environment (e.g., high pressure, corrosive gases, liquids) while allowing precise positioning relative to the observed machine shaft. This specific assembly is constructed from 316 Stainless Steel for superior corrosion resistance. It features a 3/4-14 NPT mounting thread for direct installation into the machine casing. The assembly houses a 3300 XL 8 mm probe, which operates on the eddy current principle. The probe, connected via an extension cable to a Proximitor Sensor, transmits a high-frequency RF signal. The proximity of the conductive shaft surface modulates this signal, which the Proximitor Sensor demodulates into a DC voltage proportional to the probe-to-shaft gap. This conditioned signal is then supplied to a Bently Nevada 3500 Machinery Protection System for continuous monitoring of radial vibration, axial position, and rotational speed.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number21000-27-05-40-026-03-02
Product TypeProximity Probe Housing Assembly
ConditionBrand New
Warranty12 Months
Housing Material316 Stainless Steel
Mounting Thread3/4-14 NPT
Probe Penetration Length400 mm (15.7 in)
Standoff Length50 mm (2.0 in)
Included Probe Option3300 XL 8 mm probe, 1.0 metre cable, miniature coaxial connector
Fittings OptionOne 3/4-14 NPT plug provided
Housing Operating Temperature-34 °C to +177 °C (-29 °F to +350 °F)

Operational Capabilities

In Oil & Gas and Power Generation applications, the 21000-27-05-40-026-03-02 assembly provides a robust and reliable platform for critical machinery monitoring. Its 316 Stainless Steel construction ensures long-term integrity in environments containing hydrogen sulfide (H2S), chlorides, and other corrosive agents common in refineries and offshore platforms. The NPT thread mounting, when installed with appropriate sealant, creates a high-pressure seal, preventing the escape of process gases or liquids. This is critical for safety and environmental compliance on equipment such as centrifugal compressors and high-pressure pumps. The assembly's design facilitates stable probe gapping, which is essential for the accuracy and repeatability of vibration and position measurements required for API 670 compliant protection systems. The housing is engineered for continuous, long-term service with minimal maintenance, contributing to high machine availability and reduced lifecycle costs for critical assets like gas turbines, steam turbines, and generators.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 21000-27-05-40-026-03-02 compatible with?
A: The 3300 XL 8 mm probe included with the 21000-27-05-40-026-03-02 assembly is part of a transducer system that requires a matching 3300 XL extension cable and a 3300 XL Proximitor Sensor. The complete transducer system output is fully compatible with Bently Nevada machinery protection and condition monitoring systems, including the 3500 Series (e.g., 3500/42M Proximitor/Seismic Monitor), 3300 Series Monitors, and ADRE data acquisition systems. The housing's 3/4-14 NPT mechanical interface is compatible with any machine case drilled and tapped to this standard thread size.

Q: What are the installation requirements?
A: Installation requires a 3/4-14 NPT tapped hole at the measurement location on the machine casing. An appropriate thread sealant (e.g., PTFE tape or pipe dope compatible with the process fluid and temperature) must be applied to the mounting threads to ensure a pressure-tight seal. The probe must be gapped by adjusting its position within the housing to achieve the correct DC voltage output (typically -10.0 Vdc for a 3300 XL 8 mm system) when measured at the Proximitor Sensor's output terminals. After gapping, the probe is secured in place using the housing's set screws. Adherence to Bently Nevada's specified torque values for the housing and any fittings is mandatory to prevent damage and ensure seal integrity.

Sale!
21000-16-05-00-115-03-02 | Bently Nevada | Proximity ProbeHousing Assemblies

21000-16-05-00-115-03-02 | Bently Nevada | Proximity ProbeHousing Assemblies

Technical Overview

The Bently Nevada 21000-16-05-00-115-03-02 is a rigid proximity probe housing assembly engineered to provide a secure and stable mounting for eddy current proximity probes used in machinery protection systems. Its primary function is to physically protect the probe while positioning it at a precise, fixed distance from the observed machine shaft or target surface. This specific assembly, constructed from 303 stainless steel, ensures mechanical integrity and corrosion resistance in harsh industrial environments. It integrates as a critical front-end mechanical component for systems like the Bently Nevada 3500. While the housing itself is a passive component and does not transmit an electrical signal, its dimensional accuracy is fundamental for the integrity of the measurement chain. By holding the probe stationary relative to the machine casing, it enables the connected Proximitor Sensor and monitor to accurately measure radial vibration, axial thrust position, and phase reference (Keyphasor) data. The 1.6-inch penetration length and 1-1/4 - 12 UNF mounting thread are specified for direct installation into pre-drilled and tapped holes on machine casings.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number21000-16-05-00-115-03-02
Product TypeProximity Probe Housing Assembly
ConditionBrand New
Warranty12 Months
Housing Material303 Stainless Steel
Mounting Thread1-1/4 - 12 UNF
Penetration Length (A)1.6 in (40.6 mm)
Standoff Length (B)0.5 in (12.7 mm)
Compatible Probe SeriesBently Nevada 3300 XL 8mm, 3300 8mm, 7200 5mm & 8mm
Mounting OptionSupplied with two 1-1/4 - 12 UNF mounting nuts
Operating Temperature Range-51°C to +177°C (-60°F to +350°F)

Operational Capabilities

In Oil & Gas and Power Generation applications, the 21000-16-05-00-115-03-02 housing assembly demonstrates high reliability on critical rotating machinery such as gas and steam turbines, centrifugal compressors, and boiler feed pumps. Its rigid, single-piece 303 stainless steel construction provides excellent resistance to mechanical vibration and thermal expansion, ensuring measurement stability and data integrity for the connected condition monitoring system. The material specification offers robust protection against corrosion from hydrocarbons, process chemicals, and atmospheric moisture. As a passive mechanical component, its Mean Time Between Failures (MTBF) is exceptionally high, with reliability being primarily dependent on correct installation and torque procedures. The specified operating temperature range of -51°C to +177°C allows for direct mounting on hot machine casings without degradation of its mechanical properties, making it suitable for a wide spectrum of industrial operating conditions.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 21000-16-05-00-115-03-02 compatible with?
A: The 21000-16-05-00-115-03-02 is designed as a front-end component for Bently Nevada's 3500 and 3300 Machinery Protection and Condition Monitoring Systems. It is mechanically compatible with any system utilizing Bently Nevada 3300 XL 8mm, 3300 8mm, or 7200 series (5mm and 8mm) proximity probes. Its function is purely mechanical, so electrical compatibility is determined by the probe, extension cable, and Proximitor sensor it is used with.

Q: What are the installation requirements?
A: Installation requires a pre-drilled and tapped hole in the machine casing with a 1-1/4 - 12 UNF thread. The housing is threaded into this mount point. The proximity probe is then inserted into the housing and its axial position is adjusted to set the correct DC gap voltage relative to the shaft

Sale!
Honeywell Experion PKS 51307038-100 Power Control Module

Honeywell Experion PKS 51307038-100 Power Control Module

The Honeywell 51307038-100 is a dedicated Power Control Module for the Experion PKS series. It provides stable voltage regulation and integrated diagnostic reporting to ensure the reliability of industrial DCS hardware.
Sale!
Allen-Bradley MPL-B4560F-SJ72AA Kinetix MP-Series Low-Inertia AC Servo Motor

Allen-Bradley MPL-B4560F-SJ72AA Kinetix MP-Series Low-Inertia AC Servo Motor

The Allen-Bradley MPL-B4560F-SJ72AA is a 460V AC low-inertia servo motor from the Kinetix MP-Series. It features a 3,000 RPM rated speed, a high-resolution optical encoder, and a 130mm frame. Designed for high-speed industrial motion, this brushless motor includes rotatable SpeedTec connectors and a keyed shaft for precise, dynamic automation control.
Sale!
Bently Nevada 990-05-50-02-01 Vibration Transmitter

Bently Nevada 990-05-50-02-01 Vibration Transmitter

Technical Overview

The Bently Nevada 990-05-50-02-01 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number990-05-50-02-01
ConditionBrand New
Warranty12 Months

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation in manufacturing plants

Operational Capabilities

This Bently Nevada 990-05-50-02-01 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.

Technical FAQ

Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.

Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.

Sale!
Bently Nevada 330103-00-11-50-02-05 3300 XL 8 mm Probe

Bently Nevada 330103-00-11-50-02-05 3300 XL 8 mm Probe

Technical Overview

The Bently Nevada 330103-00-11-50-02-05 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330103-00-11-50-02-05
ConditionBrand New
Warranty12 Months

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation in manufacturing plants

Operational Capabilities

This Bently Nevada 330103-00-11-50-02-05 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.

Technical FAQ

Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.

Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
