- 330881-28-04-115-06-02 | Bently Nevada | PROXPAC XL Proximity Transducer
SKU: 330881-28-04-115-06-02

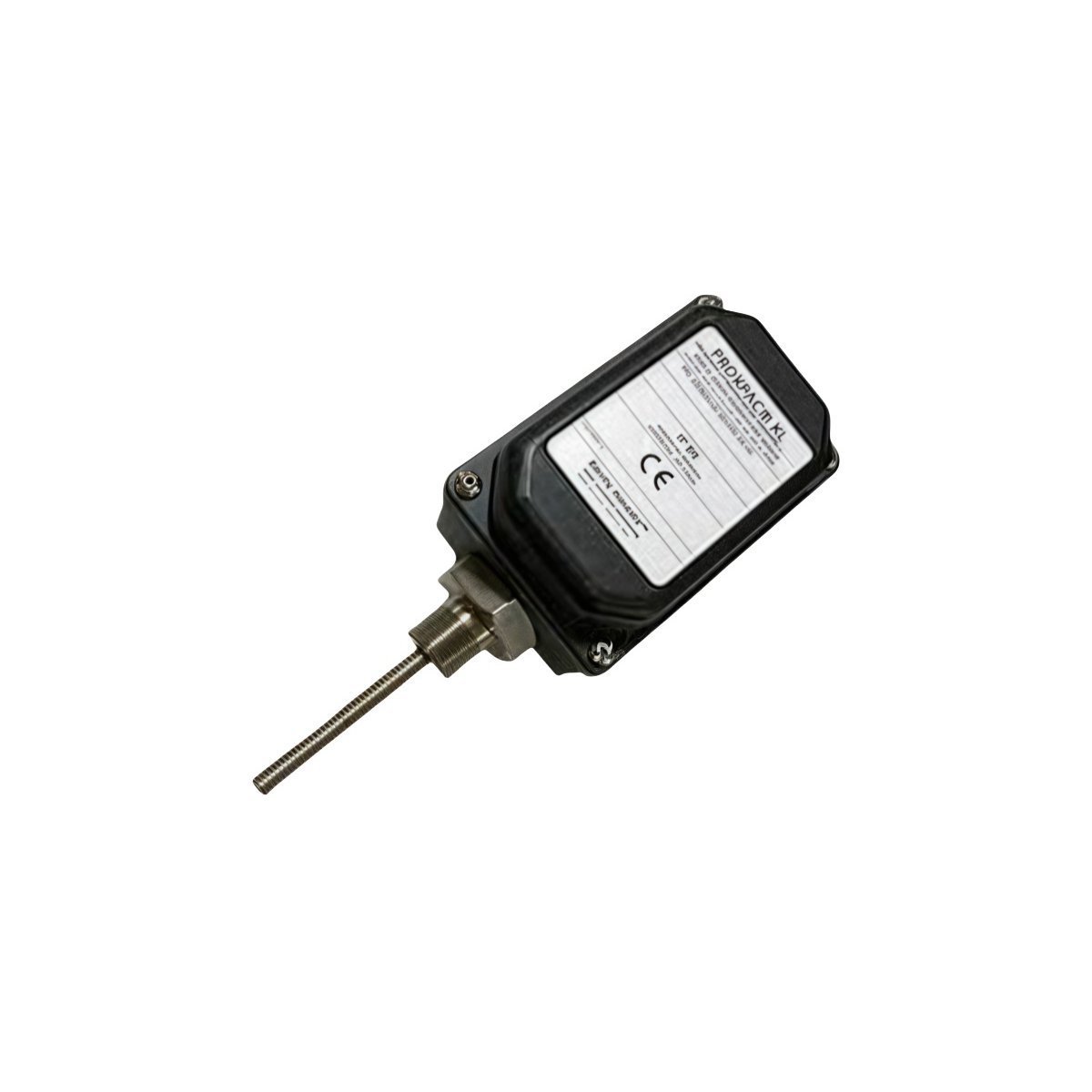

330881-28-04-115-06-02 | Bently Nevada | PROXPAC XL Proximity Transducer
Product Description
The Bently Nevada 330881-28-04-115-06-02 is a genuine PROXPAC XL Proximity Transducer designed for industrial automation systems.
Specifications
- Part Number: 330881-28-04-115-06-02
- Manufacturer: Bently Nevada
- Type: PROXPAC XL Proximity Transducer
- Condition: Brand New
- Warranty: 12 Months
Applications
- Industrial automation systems
- Process control equipment
- Manufacturing machinery
- Power generation plants
You may also like
The Bently Nevada 330881-16-00-180-03-02 PROXPAC XL is an integrated proximity transducer assembly. It combines a 3300 XL Proximitor sensor and probe into one unit, providing precise vibration and position data for Turbine Supervisory Instrumentation (TSI) systems
330881-28-04-034-06-02 | Bently Nevada | PROXPAC XL Proximity Transducer
Technical Overview
The Bently Nevada 330881-28-04-034-06-02 is an integrated PROXPAC XL Proximity Transducer system. This component combines an 8 mm proximity probe, an extension cable, and a signal conditioner into a single, factory-calibrated assembly, which eliminates the need for individual component calibration in the field. The transducer operates on the eddy current principle. The probe tip emits a high-frequency radio frequency (RF) signal, which induces eddy currents on the surface of a conductive machine element, such as a rotating shaft. The transducer's internal circuitry measures the impedance changes resulting from the interaction between the RF field and the eddy currents. This impedance is directly proportional to the physical gap between the probe tip and the target surface. The integrated signal conditioner demodulates this signal and provides a continuous DC voltage output that is precisely proportional to the measured gap. This output voltage is then transmitted to a monitoring system, such as the Bently Nevada 3500 series, for analysis of vibration, axial position, or rotational speed. The construction of the 330881-28-04-034-06-02 ensures high signal integrity by minimizing interconnections, making it suitable for critical machinery monitoring applications.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330881-28-04-034-06-02 |
| Product Type | PROXPAC XL Proximity Transducer |
| Condition | Brand New |
| Warranty | 12 Months |
| Total System Length | 2.8 metres (9.2 feet) |
| Probe Configuration | 3300 XL 8 mm probe, 1/4-28 UNF thread, 0.5 m cable |
| Agency Approvals | Multiple Approvals: CSA (Class I, Div 1/2); ATEX/IECEx (Zone 0/1) |
| Scale Factor | 8.0 V/mm (200 mV/mil), ±5% for AISI 4140 Steel |
| Linear Range | 2.0 mm (80 mils), beginning at 0.25 mm (10 mils) from the probe face |
| Frequency Response | 0 Hz (DC) to 10 kHz (-3 dB) |
| Power Supply Requirement | -17.5 Vdc to -26 Vdc at 12 mA maximum consumption |
| Mounting Option | Panel Mount, 4-Hole Square Flange |
Operational Capabilities
In Oil & Gas and Power Generation applications, the 330881-28-04-034-06-02 provides continuous, online data for machinery protection and condition monitoring. It is engineered for measuring radial vibration, axial thrust position, and differential expansion on large rotating equipment such as gas and steam turbines, centrifugal and reciprocating compressors, and large pump motors. The integrated design enhances reliability by eliminating the connectors between the probe, extension cable, and Proximitor sensor, which are common points of failure and signal degradation due to moisture ingress or vibration. The factory-calibrated system ensures measurement consistency and accuracy without field adjustments. Environmentally, the 330881-28-04-034-06-02 is specified with multiple agency approvals (CSA, ATEX, IECEx), certifying it for safe operation in hazardous areas with explosive gas atmospheres (e.g., Class I, Division 1; Zone 0). The electronics housing is rated for an operating temperature of -34 °C to +85 °C (-30 °F to +185 °F), ensuring performance in demanding industrial environments.
Applications
- Power generation turbines and generators
- Oil & gas compressors and pumps
- Industrial rotating machinery monitoring
- Predictive maintenance systems
- Process automation
Technical FAQ
Q: What systems is the 330881-28-04-034-06-02 compatible with?
A: The 330881-28-04-034-06-02 is fully compatible with the Bently Nevada 3500 Machinery Protection System, specifically interfacing with modules such as the 3500/42M Proximitor/Seismic Monitor. It is also compatible with any PLC, DCS, or data acquisition system that can provide a -17.5 Vdc to -26 Vdc power supply and accept a proportional analog voltage input (typically configured for a range like -2 to -18 Vdc). The transducer is factory-calibrated for AISI 4140 steel; use with other target materials will require a different calibration or result in measurement inaccuracies.
Q: What are the installation requirements?
A: Installation requires both mechanical mounting and electrical wiring. The probe portion, with its 1/4-28 UNF thread, must be installed in a rigid bracket and its gap set relative to the machine shaft. The standard practice is to set the DC gap voltage to the center of the linear range (e.g., -10.0 V
330881-28-05-070-00-02 | Bently Nevada | PROXPAC XL Proximity Transducer
Technical Overview
The Bently Nevada 330881-28-05-070-00-02 PROXPAC XL Proximity Transducer measures shaft displacement, vibration, and position in rotating machinery. It operates on eddy current principles, generating an electromagnetic field to detect changes in gap distance between the probe tip and the target surface. The transducer interfaces with the Bently Nevada 3500 System, providing real-time monitoring and protection for critical equipment. Its robust construction ensures stable performance in high-temperature and high-vibration environments.
Detailed Specifications
| Manufacturer | Bently Nevada |
| Part Number | 330881-28-05-070-00-02 |
| Product Type | PROXPAC XL Proximity Transducer |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| Output Signal | -2 to -18 VDC (scaled to gap voltage) |
| Frequency Response | 0 to 10 kHz (±3 dB) |
| Target Material | Ferrous steel (AISI 4140 recommended) |
| Cable Length | 5 meters standard (16.4 ft) |
Operational Capabilities
Designed for Oil & Gas and Power Generation applications, the PROXPAC XL provides reliable monitoring of turbomachinery, compressors, and turbines. It maintains ±1% linearity over the operating range and meets API 670 standards for machinery protection systems. The transducer resists moisture, chemicals, and EMI interference, ensuring long-term stability in harsh environments.
Technical FAQ
Q: Is this transducer compatible with non-Bently Nevada monitoring systems?
A: Yes, provided the system accepts standard eddy current probe signals (-2 to -18 VDC) and has appropriate conditioning circuitry.
Q: What is the recommended installation gap for optimal performance?
A: Set the initial gap to 1.27 mm (50 mils) ±10% for standard applications. Verify calibration using a micrometer or gap simulator.
330881-28-04-110-06-02 | Bently Nevada | PROXPAC XL Proximity Transducer
Technical Overview
The Bently Nevada 330881-28-04-110-06-02 PROXPAC XL Proximity Transducer measures shaft displacement, vibration, and position in rotating machinery. It interfaces with the Bently Nevada 3500 Monitoring System to provide real-time data for condition monitoring and protection. The transducer operates on eddy current principles, generating a voltage proportional to the gap between the probe tip and the target surface. Its hardened stainless steel construction withstands high-temperature, high-pressure environments typical in turbomachinery. The XL variant offers extended cable lengths for flexible installation in constrained spaces.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330881-28-04-110-06-02 |
| Product Type | PROXPAC XL Proximity Transducer |
| Measurement Range | 0-2.0 mm (80 mils) |
| Output Signal | -2 to -18 VDC (gap voltage) |
| Temperature Range | -40°C to +150°C (-40°F to +302°F) |
| Cable Length | 10 m (32.8 ft) standard |
| Compatibility | Bently Nevada 3500/3300 monitoring systems |
Operational Capabilities
Designed for continuous monitoring of critical turbomachinery in gas turbines, compressors, and steam turbines. Maintains ±1% linearity across full operating range. IP67-rated housing resists moisture and particulate ingress. Meets API 670 standards for machinery protection systems. Typical MTBF exceeds 100,000 hours in refinery and power generation applications.
Technical FAQ
Q: Does this transducer require external signal conditioning?
A: No. The PROXPAC XL outputs a direct gap voltage signal compatible with Bently Nevada 3500 monitor input modules.
Q: What target material specifications apply?
A: Requires ferrous steel targets with minimum thickness of 1.5mm and surface roughness ≤4µm Ra. Non-conductive coatings must be <0.25mm thick.

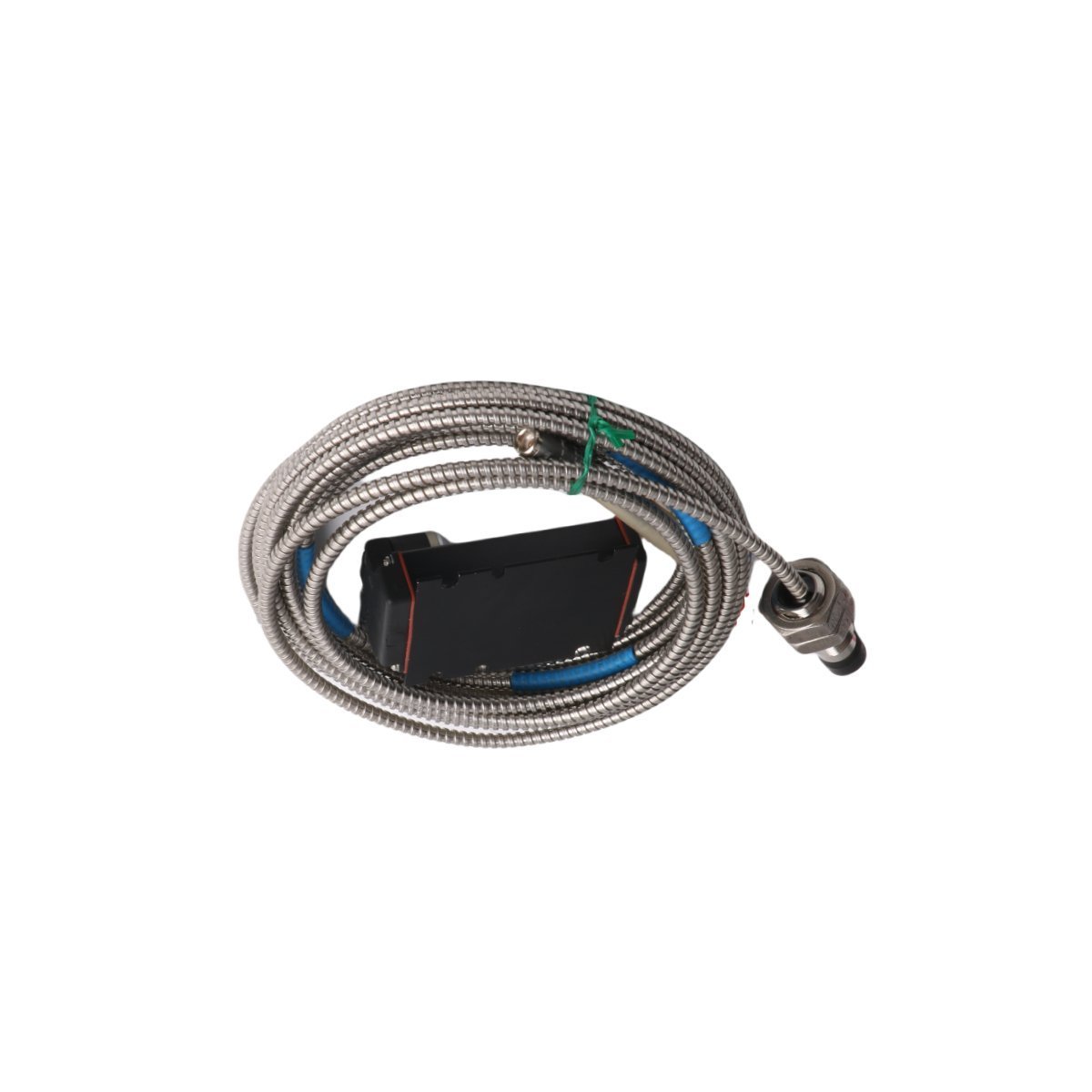

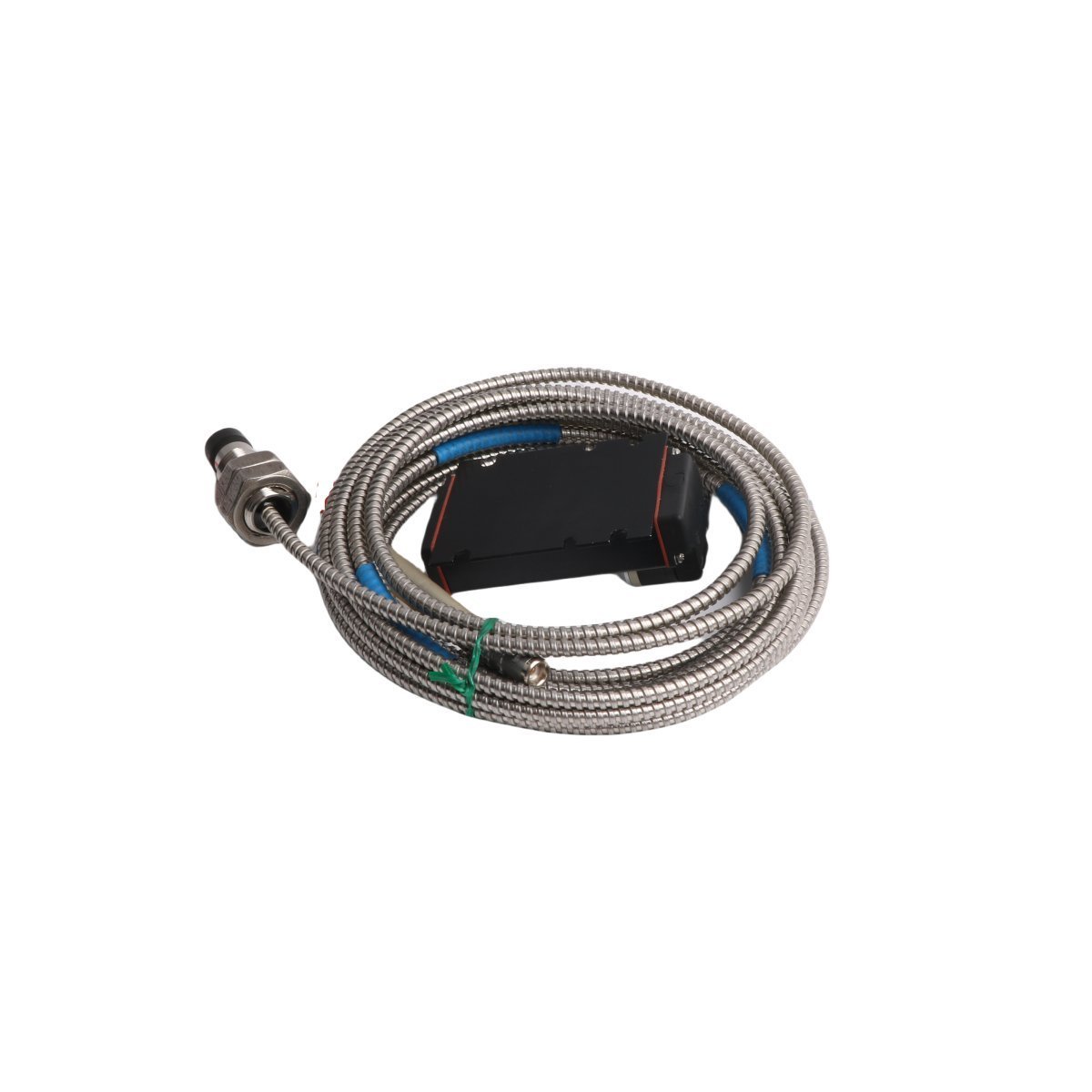

Emerson EPRO PR6424/01 CS CON021 Eddy Current Displacement Sensor
