  4. 330901-00-90-05-02-05 | Bently Nevada | Proximity Probe
Sale!
SKU: 330901-00-90-05-02-05

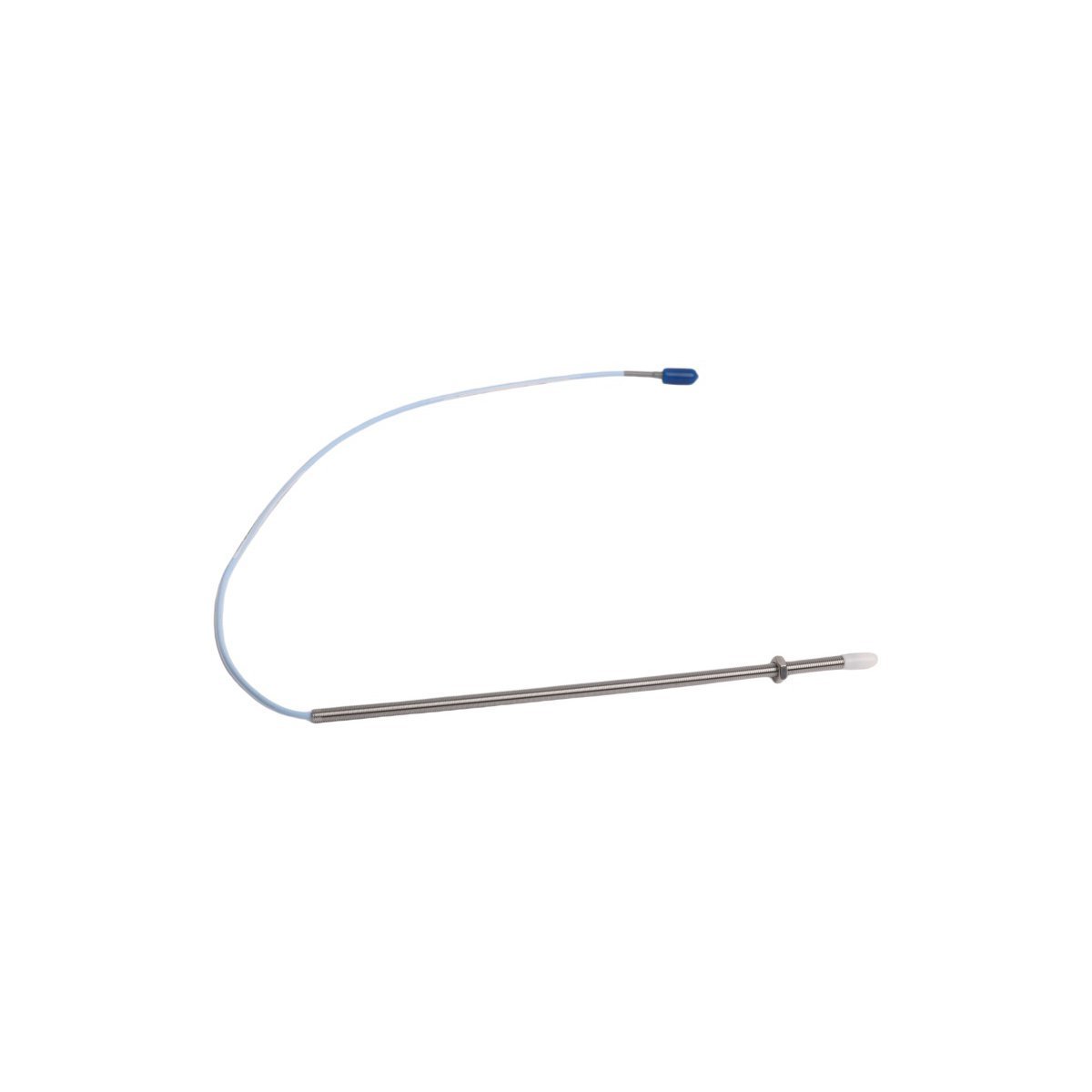

330901-00-90-05-02-05 | Bently Nevada | Proximity Probe

Request a Quote

330901-00-90-05-02-05Product datasheet

Model number:

330901-00-90-05-02-05

Module Type：

3300 NSv Probe

Manufacture:

Bently Nevada

Condition：

Brand New

Range of Product:

3300 Proximity Transducer System

Lead time：

In Stock

Weight:

0.05 kg

HS CODE：

8537101190

Dimension:

1.2x1x69cm

MOQ:

1

Product Origin:

USA

System：

TSI

Discontinued on:

active

Communication Service:

Ethernet router

330901-00-90-05-02-05 Functional Description

The Bently Nevada 330901-00-90-05-02-05 3300 NSv Probeis part of the 3300 XL NSv Proximity Transducer System, designed for compact installations such as centrifugal air compressors, refrigeration units, and process gas compressors. It is ideal where space constraints prevent the use of standard 3300 and 3300 XL 5 mm or 8 mm systems. The system includes a 3300 NSv probe, extension cable, and a 3300 XL NSv Proximitor Sensor.

Engineered for tight or reduced side-view applications, the 3300 Series 330901-00-90-05-02-05performs reliably in radial and axial measurements, even on shaft diameters under 51 mm or flat targets under 15 mm. It’s suitable for radial vibration, axial (thrust) position, tachometer, and phase reference (Keyphasor) signal measurements on fluid-film bearing machines.

The 3300 NSv Probe 330901-00-90-05-02-05offers an average scale factor of 7.87 V/mm (200 mV/mil), the industry standard for eddy current probes. Its enhanced small-target capabilities offer a linear range of 1.5 mm, surpassing the older 3000-series 190 systems.

For upgrades, the 330901-00-90-05-02-05 Proximity Probes allows compatibility with existing 3300 RAM probes and extension cables, simplifying transitions. Full system upgrades from legacy 3000- or 7000-series models require replacement with NSv-compatible components like the Bently Nevada 330901-00-90-05-02-05.
