  4. 330930-045-04-CN | Bently Nevada | 3300 NSv Extension Cable
Sale!
SKU: 330930-045-04-CN

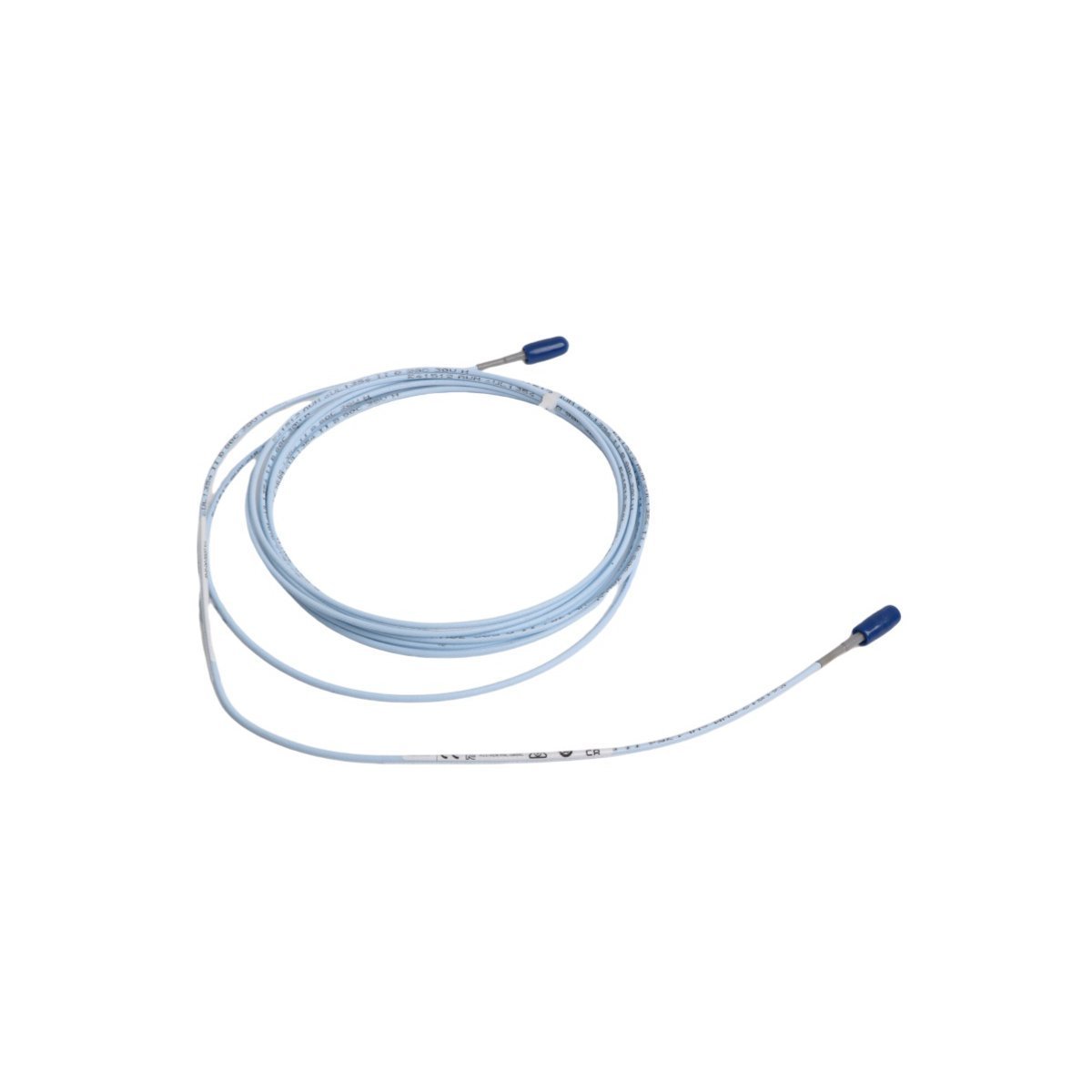

330930-045-04-CN | Bently Nevada | 3300 NSv Extension Cable

Request a Quote

Technical Overview

The Bently Nevada 330930-045-04-CN is a 3300 NSv Extension Cable designed to connect 3300 NSv proximity probes and other compatible sensors to the Bently Nevada 3500 monitoring system. It extends signal transmission between sensors and monitoring modules while maintaining signal integrity in high-vibration environments. The cable is shielded to minimize electromagnetic interference (EMI) and features durable construction for industrial use. It integrates with the 3500 System to provide reliable machinery protection and condition monitoring.

Detailed Specifications

ManufacturerBently Nevada
Part Number330930-045-04-CN
Product Type3300 NSv Extension Cable
LengthSpecified per order (standard options available)
ShieldingEMI/RFI shielded
Connector TypeCompatible with 3300 NSv probes and 3500 System
Temperature Range-40°C to +85°C (-40°F to +185°F)

Operational Capabilities

Deploy the 330930-045-04-CN in Oil & Gas and Power Generation applications where extended sensor reach is required without signal degradation. The cable maintains consistent performance in high-temperature and high-vibration environments. Its shielding ensures minimal noise interference, supporting accurate machinery health data collection for the 3500 System.

Technical FAQ

Q: Is this extension cable compatible with all 3300 NSv probes?
A: Yes, it is designed to work with standard 3300 NSv proximity probes and similar sensors. Verify probe specifications for exceptions.

Q: What is the maximum recommended cable length to avoid signal loss?
A: Signal integrity depends on environmental factors. For optimal performance, consult Bently Nevada’s guidelines for your specific application.
