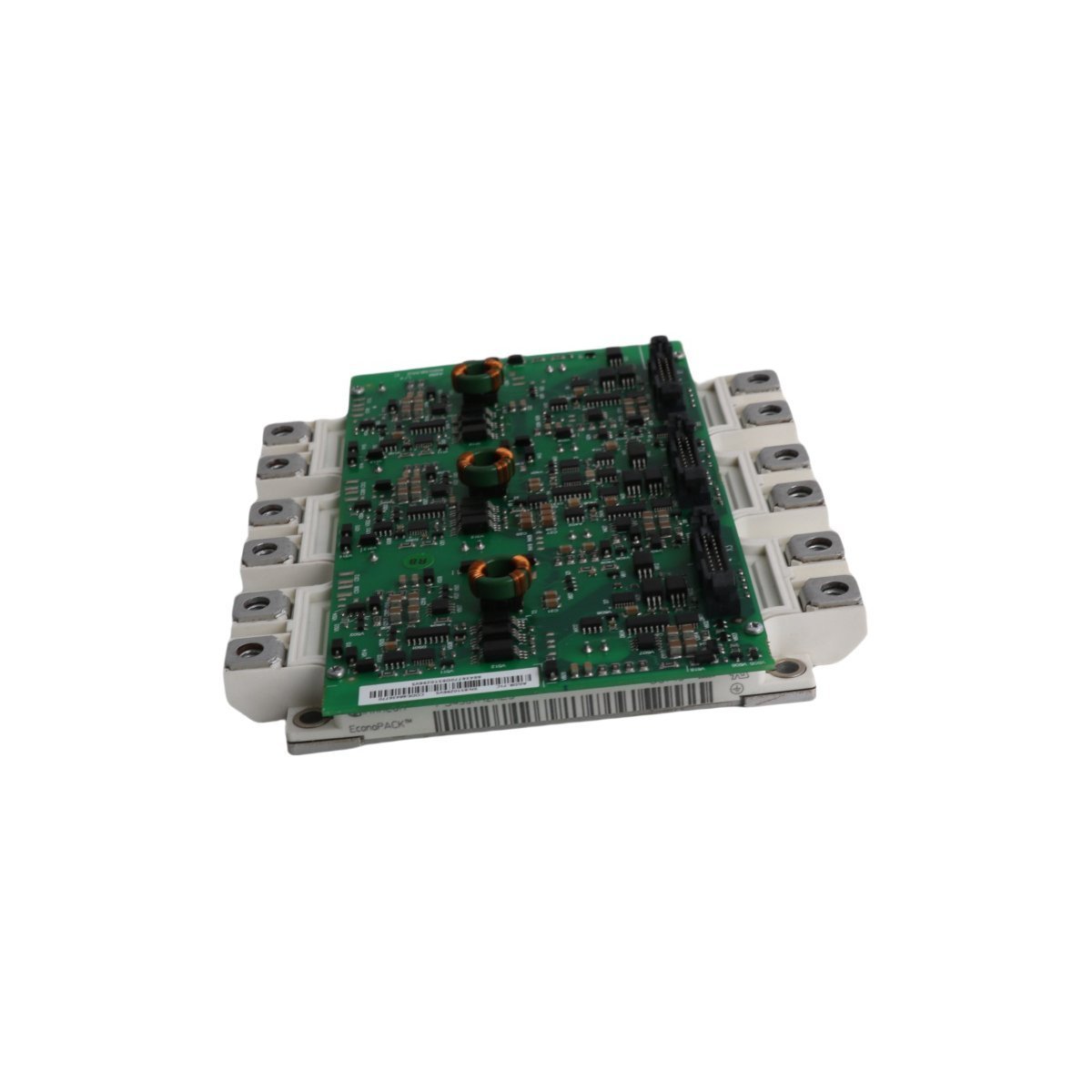

The ABB FS450R12KE3/AGDR-71C is a 1200V, 450A IGBT module kit featuring an integrated AGDR-71C gate driver. Specifically engineered for ACS800 series drives, it utilizes graphite TIM foil for superior heat dissipation and long-term reliability in heavy-duty industrial power conversion.
The ABB FS450R12KE3/AGDR-71C serves as a high-performance power semiconductor assembly designed for industrial motor control. This kit integrates a robust IGBT module with a dedicated gate driver board to ensure precise switching. It primarily supports the ACS800 series frequency converters in demanding heavy-duty environments.
ABB utilizes EconoPACK+ technology within this module to optimize power density. The assembly features advanced Thermal Interface Material (TIM) instead of traditional silicone grease. This graphite-based foil improves heat conduction and prevents dry-out over long service cycles.
| Parameter | Value |
| Manufacturer | ABB |
| Model Identifier | FS450R12KE3 / AGDR-71C |
| Collector-Emitter Voltage ($V_{ces}$) | 1200V |
| Continuous DC Collector Current ($I_c$) | 450A |
| Peak Gate Current | $\pm$35A |
| Isolation Voltage | 4kV AC |
| Maximum Switching Frequency | 20kHz |
| Control Voltage Range | +15V / -8V DC |
| Weight | 1.02 kg |
The pre-applied TIM foil significantly reduces thermal resistance between the module and the heatsink. This technology handles rapid temperature fluctuations better than standard thermal paste.
The AGDR-71C board provides essential protection features including under-voltage lockout and short-circuit detection. It ensures reliable gate signaling for the 1200V rated IGBT components.
The module kit complies with industrial DCS standards for high-vibration environments. It maintains stable electrical characteristics during continuous 450A operation in power conversion stages.
Engineers typically specify this IGBT kit for ACS800 drive maintenance and system upgrades. It excels in renewable energy inverters, heavy industrial machinery, and complex automated manufacturing lines. The assembly remains fully backward compatible with existing ACS800 drive chassis configurations.
