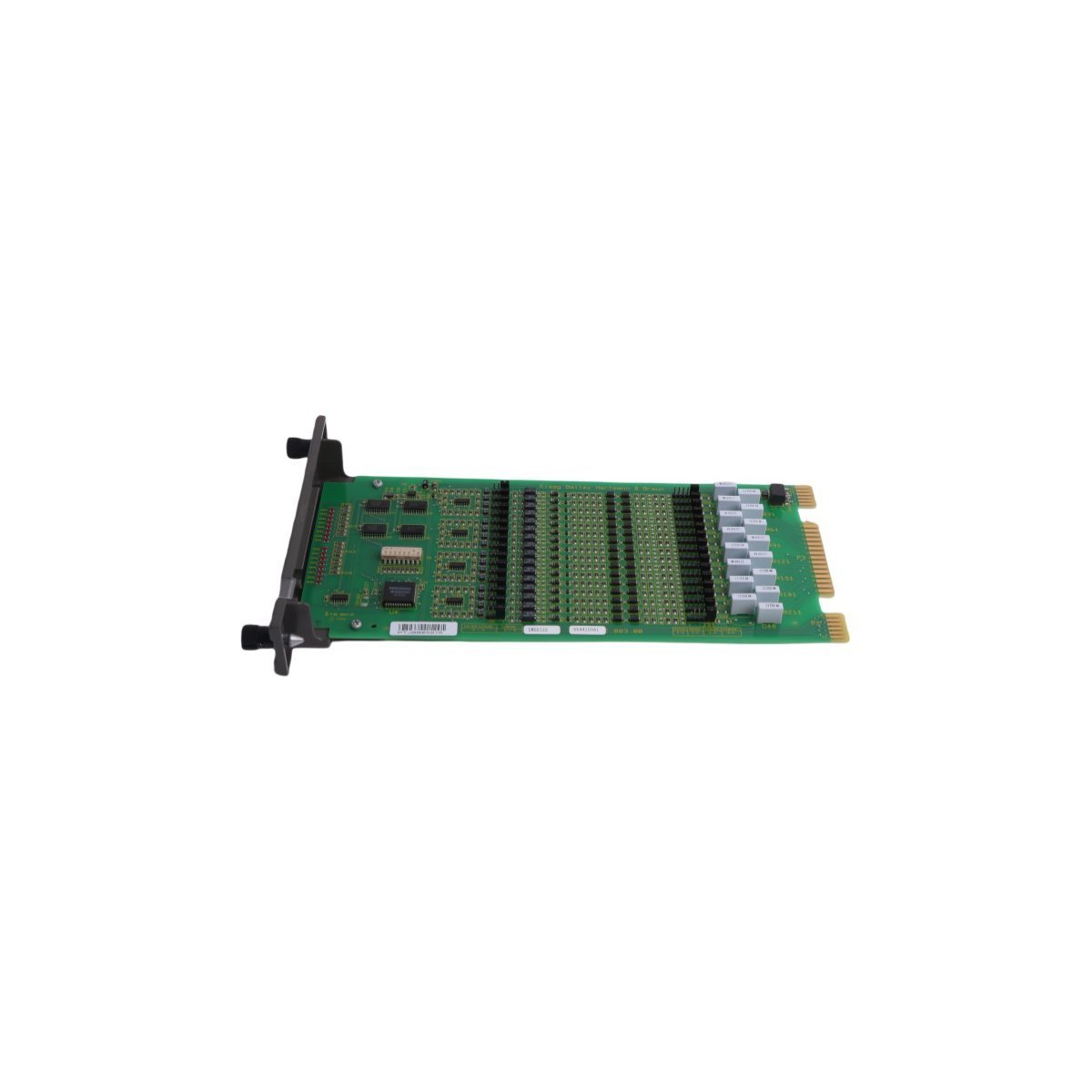

ABB IMDSI22 Bailey Digital Signal Input Module

The ABB IMDSI22 functions as a high-density digital signal interface within the Harmony Rack (HR) I/O series. This module primarily operates as a pulse input slave unit for the Symphony Infi 90 distributed control system. It efficiently captures and processes discrete signals from field devices for real-time monitoring. Because it handles multiple inputs simultaneously, it significantly reduces the hardware footprint in control cabinets. Engineers utilize this module to bridge field data with complex automation logic seamlessly.

Key Performance Specifications

• Series: Bailey Harmony Rack / Infi 90
• Input Type: Digital Pulse / Contact Closure
• Channel Count: 16 Isolated Channels
• Operating Temperature: -40°C to +70°C
• Module Weight: 0.28 kg
• Dimensions: 35 x 310 x 175 mm
• System Architecture: Slave Module for DCS
• Origin: Sweden

Hardware Design and Reliability

The module features a robust printed circuit board designed to resist industrial interference. Integrated isolation protection prevents electrical surges from damaging the central processing units. Furthermore, the unit supports high-speed signal sampling to ensure data accuracy for fast-moving processes. The slim vertical form factor allows for efficient cooling within standard rack mounts. This design choice extends the lifespan of internal electronic components in continuous operation.

Integration and Communication

The IMDSI22 integrates directly into the Infi 90 bus architecture through standard backplane connectors. It communicates status data to master controllers via the specialized Bailey communication protocols. Consequently, the system maintains high-speed interoperability across the entire automation network. The plug-and-play nature of the Harmony series simplifies both initial installation and long-term maintenance. This reliability makes it a preferred choice for power generation and chemical processing plants.

Environmental Adaptability

This module excels in extreme climate conditions due to its wide thermal operating range. It maintains stable signal processing even in unconditioned industrial environments. Moreover, the durable enclosure protects the circuitry against dust and vibration. This resilience ensures that the module remains active in critical infrastructure applications. Users benefit from reduced maintenance requirements and lower total cost of ownership.
