SKU: 2711P-T6M5D8

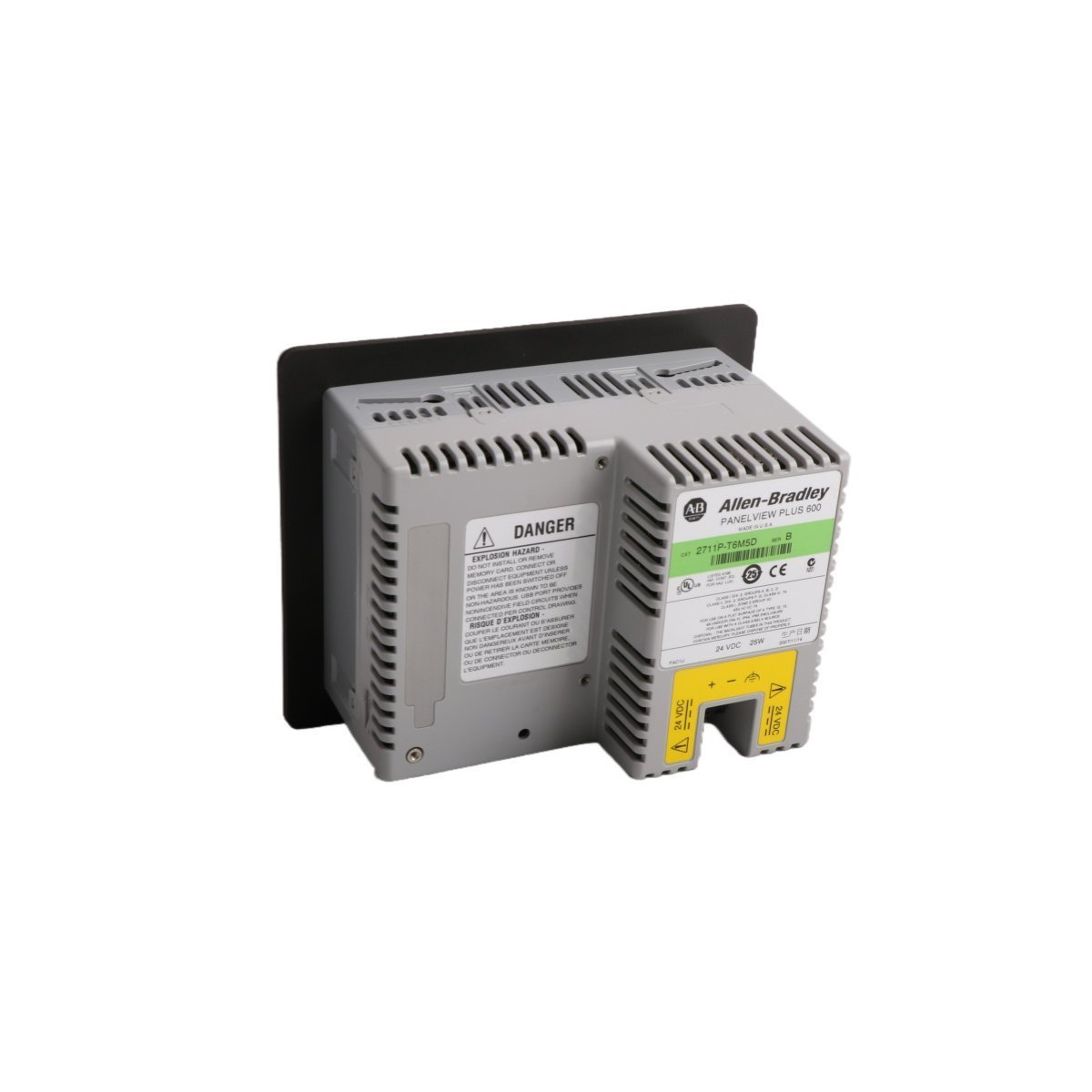

Allen-Bradley 2711P-T6M5D8 PanelView Plus 6 600 Graphic Terminal

The Allen-Bradley 2711P-T6M5D8 is a rugged 5.7-inch PanelView Plus 6 600 grayscale terminal designed for touch-based operator interface. Equipped with 256MB RAM, RS-232 communication, and 24V DC power, this HMI provides a dependable solution for monitoring and controlling industrial PLC systems in demanding environments.

Product Description

The Allen-Bradley 2711P-T6M5D8 belongs to the PanelView Plus 6 series, serving as a specialized human-machine interface (HMI) for streamlined industrial monitoring. This terminal features a 5.7-inch monochrome grayscale display that utilizes TFT LCD technology to provide high-contrast visualization in various ambient lighting conditions. By integrating a resistive touchscreen interface, the unit allows plant floor operators to execute commands and navigate complex system diagnostics with precision.

Internally, the 2711P-T6M5D8 utilizes a robust hardware architecture comprising 256 MB of RAM and 512 MB of non-volatile storage. Consequently, users can manage demanding graphical applications and log critical process data without performance degradation. For expanded storage requirements, the terminal includes a secure digital (SD) card slot that supports external industrial-grade memory modules. Furthermore, the device operates on a standard 24V DC power supply, which ensures seamless integration into modern industrial control panels.

Communication flexibility remains a core strength of this HMI. The integrated RS-232 serial port enables point-to-point data exchange via DF1 or DH-485 protocols, allowing direct connection to SLC 500 or MicroLogix controllers. Additionally, the inclusion of both USB host and device ports facilitates the connection of peripheral hardware, such as keyboards, mice, or flash drives for firmware updates. Because of its rugged construction and reliable interaction methods, this terminal frequently appears in OEM machinery and local control stations where durability is a primary requirement.
