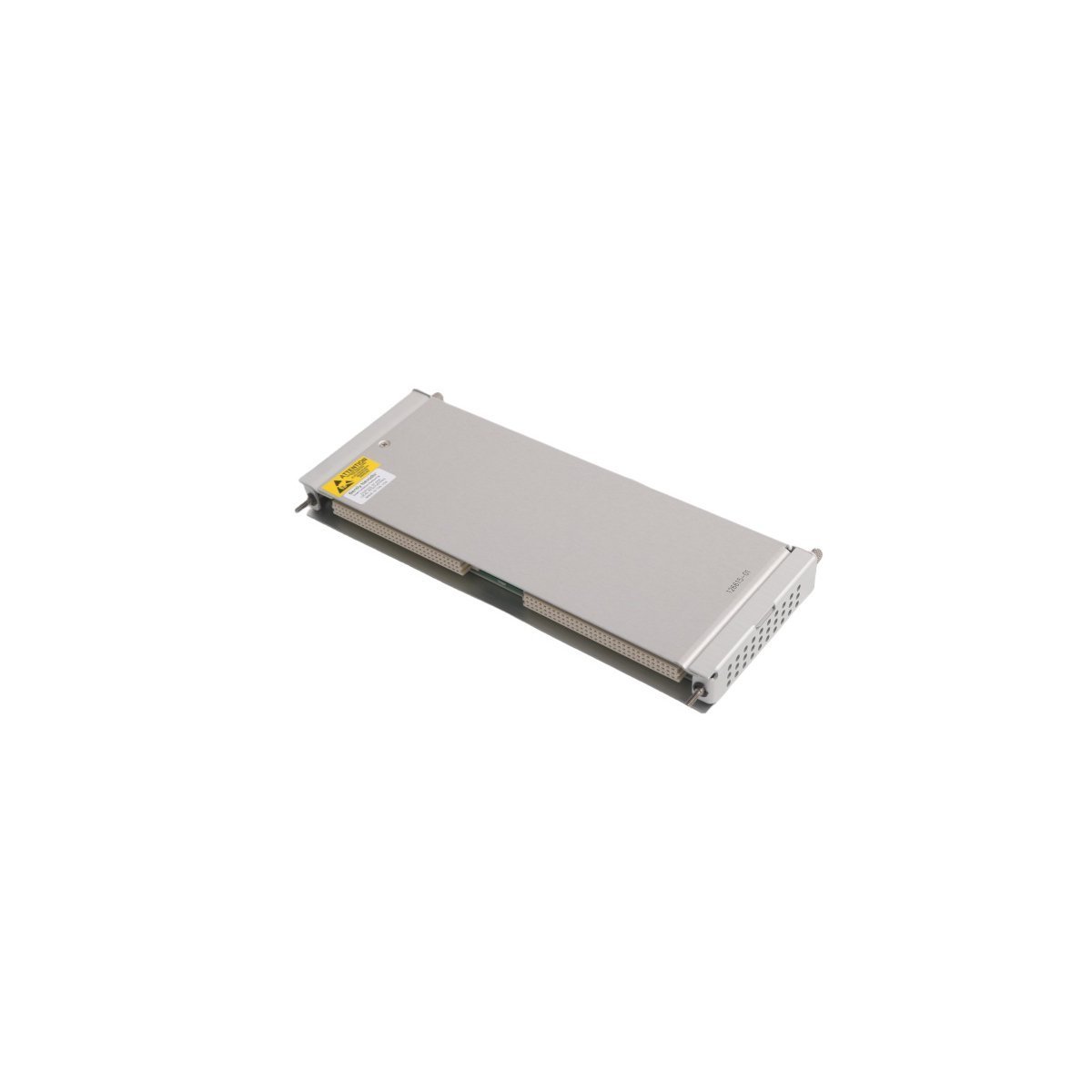

Bently Nevada 126615-01 3500/42M Proximitor I/O Module

Technical Specification Overview

The Bently Nevada 126615-01 acts as a specialized Internal Termination I/O Module designed for the 3500/42M Proximitor Seismic Monitor. This module provides the critical physical interface for connecting proximity probes and seismic transducers to the 3500 machinery protection rack. By facilitating the high-speed transfer of vibration, position, and speed data from the field to the monitor’s processing electronics, the 126615-01 ensures that the system maintains a continuous, real-time pulse on rotating machinery health.

Design and Functional Capabilities

Engineers developed the 126615-01 specifically for internal termination applications, featuring a design that allows for direct wiring within the cabinet. It supports a four-channel configuration, processing signals from various transducer types simultaneously. Furthermore, the module incorporates advanced surge protection and noise filtering to safeguard the monitor electronics from field-side electrical transients.

• Manufacturer: Bently Nevada
• Model Number: 126615-01
• Module Type: Internal Termination I/O Module
• Compatibility: 3500/42M Proximitor Seismic Monitor
• Channel Support: 4 Independent Channels
• Mounting: Rear slot of the 3500 system rack
• Connector Type: Euro-style terminal blocks
• Net Weight: 0.45 kg
• Dimensions: 2.5 x 24.1 x 10.2 cm

Operational Impact and Industrial Applications

This I/O module actively powers predictive maintenance strategies by serving as the primary gateway for sensor data. Consequently, plant operators can monitor complex mechanical behaviors such as shaft orbit, radial vibration, and axial thrust. Because the 126615-01 handles both proximity and seismic inputs, it allows the 3500/42M monitor to protect a vast array of industrial assets, ranging from high-speed turbines to low-speed cooling tower fans.

Key applications include:

• TSI Integration: Delivering shaft vibration data to Turbine Supervisory Instrumentation.
• Machinery Protection: Triggering automatic emergency trips based on vibration thresholds.
• Diagnostic Analysis: Providing clean buffered signals for portable data collectors and System 1 software.

Mechanical Integrity and Reliability

To ensure survival in punishing environments, Bently Nevada utilizes industrial-grade terminal blocks that resist loosening caused by mechanical vibration. The module’s hardware architecture supports “hot-swapping,” which enables maintenance teams to replace the I/O module without shutting down the entire 3500 rack. Additionally, the gold-plated backplane connectors ensure a low-resistance electrical path, preserving signal accuracy over years of continuous operation in corrosive or high-temperature plant atmospheres.
