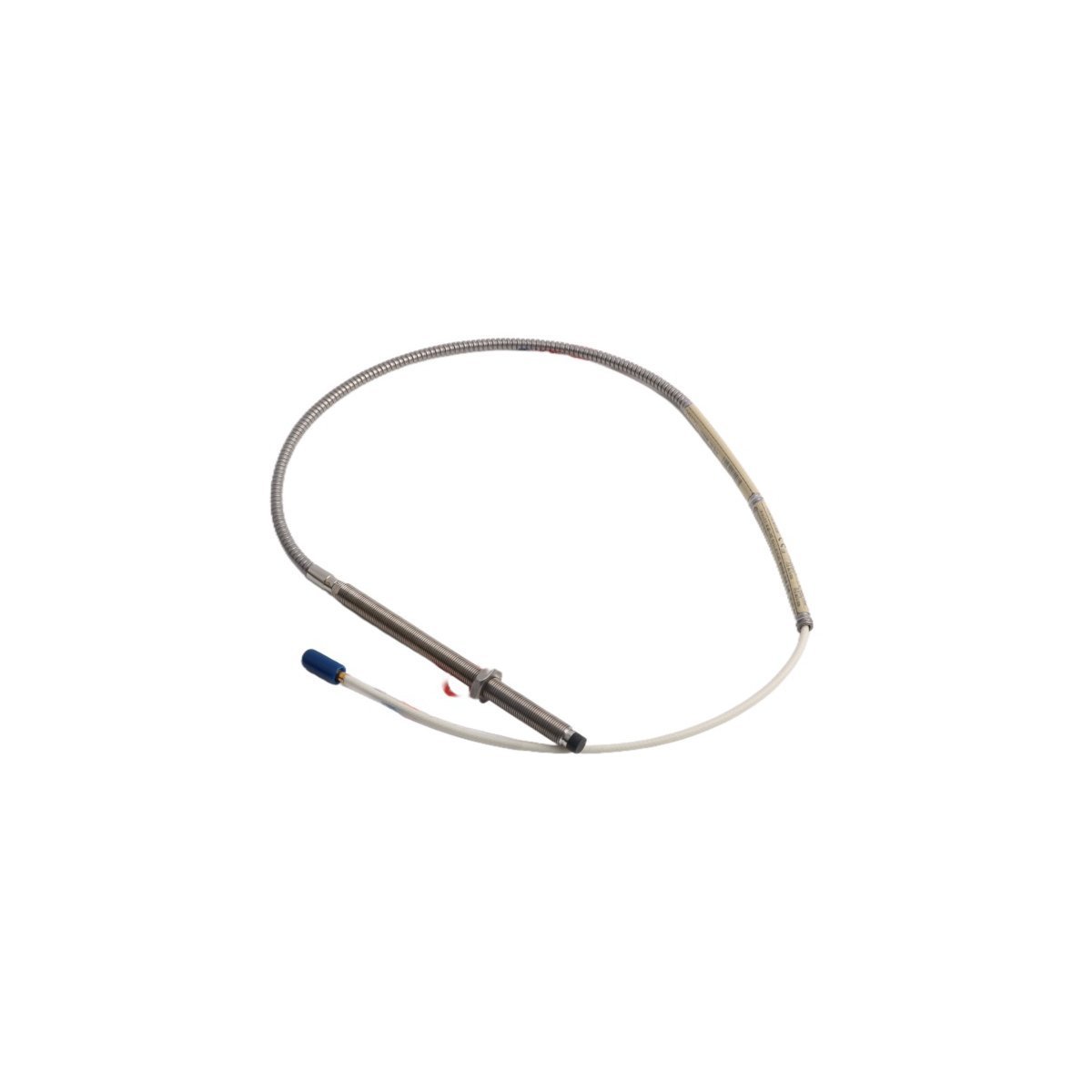

The Bently Nevada 22810-00-05-05-00 is a 5-meter interconnect cable for 3300 proximity systems. It provides API 670 compliant signal transmission for vibration and position monitoring.
The Bently Nevada 22810-00-05-05-00 facilitates precise electrical communication within proximity transducer systems. This interconnect cable carries a voltage signal directly proportional to the gap between the probe and target. It captures both steady-state position data and high-frequency dynamic vibration levels. Consequently, operators can monitor machinery health with extreme accuracy in real-time. This specialized link ensures that raw sensor data reaches monitoring hardware without interference.
Engineers typically deploy this cable on critical rotating assets using fluid-film bearings. It serves as a vital component for measuring shaft vibration and axial thrust position. Furthermore, the cable supports Keyphasor reference inputs and rotational speed monitoring. This versatility makes it essential for comprehensive machine protection strategies in power plants. It also performs reliably in oil, gas, and petrochemical processing environments.
This 5-meter system adheres strictly to the American Petroleum Institute (API) 670 requirements. Compliance ensures standardized mechanical configurations, linear accuracy, and thermal stability. Moreover, the 22810 series supports full hardware interchangeability across compatible Proximitor sensors and probes. This design choice removes the requirement for specialized bench calibration during component replacement. Therefore, maintenance teams can swap parts quickly to minimize system downtime.
Bently Nevada builds these cables to withstand the rigors of industrial conduit and tray environments. The robust insulation resists chemical exposure and moisture ingress over long service periods. Additionally, the lightweight construction simplifies the routing process during large-scale system integration. These cables provide a stable platform for predictive maintenance programs in complex industrial facilities. They ensure consistent high-level performance under various operational loads.
| Attribute | Specification |
| Manufacturer | Bently Nevada |
| Model Number | 22810-00-05-05-00 |
| System Compatibility | 3300 / 7200 Series |
| Total Cable Length | 5.0 Meters |
| Standard Compliance | API 670 |
| Measurement Type | Static Position and Dynamic Vibration |
| Shipping Weight | 0.06 kg (Net) / 0.40 kg (Gross) |
| Product Origin | USA |
The Bently Nevada 21504-00-32-10-02 is a 3300 NSv series proximity vibration probe, a fundamental component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. Its primary function is to measure the distance (gap) between the probe tip and a conductive target material, typically a machine shaft. The probe operates by generating a high-frequency radio frequency (RF) field from its tip coil. When brought near the conductive target, this field induces eddy currents on the target's surface. These eddy currents alter the impedance of the probe's coil system. This change in impedance is detected by an associated Proximitor Sensor, which demodulates the signal into a voltage directly proportional to the probe-to-target gap. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Machinery Protection System, for real-time analysis, trending, and alarming. The 21504-00-32-10-02 is constructed with a stainless steel case for durability in industrial environments and is specifically configured with a 320 mm case length and a 1.0-meter integral cable.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21504-00-32-10-02 |
| Product Type | 3300 NSv Proximity Vibration Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Unthreaded Length | 0 mm |
| Case Length | 320 mm (12.6 in) |
| Total Length | 1.0 metre (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc connector, standard cable |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 304 Stainless Steel |
| System Linear Range | 2 mm (80 mils) |
| System Scale Factor | 7.87 V/mm (200 mV/mil) with 3300 NSv Proximitor |
In Oil & Gas and Power Generation applications, the 21504-00-32-10-02 probe demonstrates high reliability for continuous monitoring of critical assets such as gas and steam turbines, compressors, and large pump motors. Its non-contacting measurement principle eliminates mechanical wear, contributing to a high Mean Time Between Failures (MTBF) for the overall protection system. The probe is engineered to operate reliably in harsh industrial conditions. The probe tip is rated for continuous operation from -34 °C to +177 °C (-29 °F to +351 °F). The robust stainless steel case provides protection against physical impact and contaminants common in plant environments. When installed as part of a complete 3300 NSv transducer system, it provides a stable and repeatable measurement essential for machine protection and condition monitoring programs, enabling early detection of developing faults like imbalance, misalignment, and fluid-induced instabilities.
Q: What systems is the 21504-00-32-10-02 compatible with?
A: The 21504-00-32-10-02 probe is a component of the Bently Nevada 3300 NSv Proximity Transducer System. For correct operation, it must be used in conjunction with a 3300 NSv extension cable and a 3300 NSv Proximitor Sensor. The output from the Proximitor Sensor is compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as any data acquisition system, PLC, or DCS capable of accepting a -24 Vdc powered, 7.87 V/mm (200 mV/mil) analog signal.
Q: What are the installation requirements?
A: Proper installation is critical for measurement accuracy. The probe must be mounted perpendicular to the target surface using a rigid bracket. The physical gap should be set to place the DC output voltage in the middle of the system's linear range, typically -10 Vdc. The target area on the shaft must be at least 10.7 mm (0.42 in) in diameter, smooth (0.4 to 0.8 µm / 16 to 32 µin rms), and free of any electrical or magnetic irregularities (e.g., chrome plating, magnetised spots). Cable routing must avoid high-voltage power lines and other sources of electromagnetic interference. All ClickLoc connectors must be fully engaged to ensure a secure connection.
The Bently Nevada 330703-00-100-10-11-CN is an 11 mm eddy current proximity probe designed for non-contact displacement and vibration measurement on rotating machinery. It functions as a core component of the 3300 XL 11 mm Transducer System, which also includes a matched extension cable and a 3300 XL 11 mm Proximitor Sensor. The system operates on the eddy current principle, where the Proximitor Sensor emits a high-frequency radio frequency (RF) signal through the probe and extension cable. This signal radiates from the probe tip, creating an electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's impedance. The Proximitor Sensor demodulates this signal to produce a DC voltage directly proportional to the gap between the probe tip and the target surface. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 series, for real-time analysis of radial vibration, axial position, and shaft speed. The 330703-00-100-10-11-CN features a robust stainless steel case and a chemically resistant Polyphenylene Sulfide (PPS) tip, ensuring reliability in harsh industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330703-00-100-10-11-CN |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 4.0 mm (160 mils) |
| Scale Factor | 2.00 mV/µm (50 mV/mil) ± 6.5% |
| Total Length | 1.0 metre |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Connector Type | Miniature coaxial ClickLocâ„¢ connector, gold-plated |
| Agency Approval | CN Ex (China Ex) for hazardous area installations |
The 330703-00-100-10-11-CN proximity probe is engineered for high reliability in demanding industrial applications, particularly within Oil & Gas and Power Generation sectors. Its 11 mm tip provides a larger linear measurement range and is well-suited for monitoring large shaft diameters or applications requiring a greater standoff distance. The probe's construction ensures operational integrity across a wide temperature range, with the probe tip rated for -51 °C to +177 °C (-60 °F to +351 °F). The 3300 XL system design provides enhanced immunity to radio frequency interference (RFI/EMI), minimizing the risk of signal corruption from nearby motors, generators, or radio sources. The gold-plated ClickLoc™ connector ensures a secure, corrosion-resistant connection that prevents intermittent signals caused by vibration. When installed and maintained according to manufacturer specifications, the system demonstrates high Mean Time Between Failures (MTBF) and is a critical component for machinery protection systems (MPS) and condition monitoring programs, compliant with standards such as API 670.
Q: What systems is the 330703-00-100-10-11-CN compatible with?
A: The 330703-00-100-10-11-CN probe must be used as part of a complete Bently Nevada 3300 XL 11 mm Transducer System. This requires a matching 3300 XL 11 mm Proximitor Sensor (e.g., part number 330780) and a 3300 XL 11 mm extension cable. It is not interchangeable with components from 5 mm or 8 mm transducer systems, as the scale factor and linear range are different. The complete transducer system provides a voltage output compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as third-party PLCs, DCS, and data acquisition systems designed to accept a 3-wire, -24 Vdc powered eddy current probe input.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurements. The probe must be mounted perpendicular to the observed shaft surface using a rigid bracket. The target area on the shaft must be smooth (typically 0.4 to 0.8 µm / 16 to 32 µin Ra), free of chrome or other non-conductive plating, and clear of any residual magnetism or electrical runout. The probe must be gapped correctly by adjusting its distance to the shaft until the Proximitor Sensor output voltage is at the center of the linear range, typically -10.0 Vdc. The probe case locknut should be torqued to the specified value to prevent loosening. The integral cable and any extension cable should be secured to avoid strain on the connectors and routed away from high-voltage power cables to minimize interference.
The Bently Nevada 330102-00-60-10-01-05 is an 8 mm reverse-mount eddy current proximity probe designed for non-contact measurement of vibration and displacement. It functions as a core component of the 3300 XL 8 mm Proximity Transducer System, which also includes an extension cable and a Proximitor Sensor. The probe operates by having the Proximitor Sensor generate a high-frequency radio frequency (RF) signal, which is transmitted through the extension cable and radiated from the probe's tip into a small electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's amplitude. This change is directly proportional to the gap between the probe tip and the target surface. The Proximitor Sensor demodulates this signal, converting it into a DC voltage that accurately represents the physical distance. This conditioned voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500, for real-time analysis of radial vibration, axial position, and shaft speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-60-10-01-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 1.0 meter (3.3 feet) |
| Case Length | 6.0 inches (152 mm) |
| Mounting Option | Reverse Mount |
| Connector Type | Miniature coaxial ClickLocâ„¢ connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Agency Approvals | Multiple Approvals: CSA (Class I, Div 1/2), ATEX/IECEx (Zone 0/1) |
In Oil & Gas and Power Generation applications, the 330102-00-60-10-01-05 probe demonstrates high reliability in demanding operational environments. Its construction with a PPS tip and stainless steel case allows for continuous operation in temperatures ranging from -34 °C to +177 °C (-29 °F to +350 °F). The gold-plated ClickLoc connector provides a secure, corrosion-resistant connection that prevents signal degradation from fluid ingress or vibration-induced intermittence. When paired with a 3300 XL Proximitor Sensor, the system provides a linear measurement range of 2.0 mm (80 mils) with a scale factor of 7.87 V/mm (200 mV/mil), ensuring precise data for machine diagnostics. The system is designed for high immunity to radio frequency interference (RFI), minimizing signal corruption in electrically noisy industrial environments. The probe's physical durability and signal integrity are critical for monitoring high-speed turbomachinery, where accurate measurement of shaft dynamics is essential for preventing catastrophic failure.
Q: What systems is the 330102-00-60-10-01-05 compatible with?
A: The 330102-00-60-10-01-05 probe is a component of the 3300 XL 8 mm Transducer System. For proper operation, it must be used with a 3300 XL extension cable and a 3300 XL Proximitor Sensor (e.g., part number 330180). This complete transducer system is fully compatible with Bently Nevada monitoring systems, including the 3500 Series Machinery Protection System and ADRE Sxp/408 DSPi data acquisition systems. It is not electrically or mechanically compatible with components from other transducer series, such as the 7200 or 3000 series.
Q: What are the installation requirements?
A: As a reverse-mount probe, the 330102-00-60-10-01-05 is installed from inside the machine housing, with the probe body extending outward. A clearance hole must be drilled through the machine case to accommodate the 8 mm probe tip. The target area on the observed shaft must be smooth, free of surface defects, and have a minimum diameter of 10.7 mm (0.42 in) to ensure measurement accuracy. The probe's gap should be set to the center of its linear range, typically corresponding to -10.0 Vdc. The ClickLoc connector must be tightened to the specified torque to ensure a secure, environmentally sealed connection. Cable routing must avoid areas of extreme heat, physical abrasion, and proximity to high-voltage power lines to maintain signal integrity.
The Bently Nevada 330102-00-12-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe, a component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. The probe functions by emitting a high-frequency radio frequency (RF) signal from its encapsulated tip. When positioned near a conductive target material, such as a machine shaft, this RF field induces eddy currents on the surface of the target. The interaction between the probe's field and the eddy currents creates an impedance change in the probe's coil, which is directly proportional to the gap between the probe tip and the target surface. This raw signal is transmitted through its integral 0.5-meter cable to a 3300 XL extension cable and subsequently to a 3300 XL Proximitor Sensor. The Proximitor Sensor demodulates and linearizes the signal, producing a precise DC voltage output that corresponds to the physical gap. This conditioned signal is then supplied to a Bently Nevada 3500 Series monitoring system for continuous machine protection, diagnostics, and data logging.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-12-05-02-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 0.5 meter (1.6 feet) |
| Mounting Option | 3/8-24 UNF threads, Reverse Mount |
| Case Length | 1.2 inches (30.5 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5%, when used with 3300 XL Proximitor and AISI 4140 steel target |
| Frequency Response | 0 Hz (DC) to 10 kHz (-3 dB) |
| Agency Approvals | CSA/NRTL/C, ATEX/IECEx (Ex ia IIC T4 Ga, Ex ia IIIC T135°C Da) |
In Oil & Gas and Power Generation applications, the 330102-00-12-05-02-05 probe is integral to Machinery Protection Systems (MPS) on critical assets like gas and steam turbines, compressors, and large motor-pump sets. It provides the primary measurement for radial vibration, axial thrust position, and shaft eccentricity. The probe's construction from AISI 304 stainless steel ensures high reliability in corrosive and high-temperature environments. Its tip is hermetically sealed with a high-pressure, injection-molded Ryton® PPS material, preventing ingress of oil and process fluids. The specified operating temperature range for the probe tip is -34 °C to +177 °C (-29 °F to +350 °F). The included agency approvals (CSA, ATEX, IECEx) certify the 330102-00-12-05-02-05 for safe operation as an intrinsically safe apparatus in specified hazardous areas, a mandatory requirement for many hydrocarbon processing and power plant environments. The system demonstrates high long-term stability, minimizing calibration drift and ensuring consistent machine protection over extended operational periods.
Q: What systems is the 330102-00-12-05-02-05 compatible with?
A: The 330102-00
The Bently Nevada 31000-16-05-00-100-03-02 is a proximity probe housing assembly designed for the physical protection and precise positioning of eddy current proximity probes. Its primary function is to provide a rigid, environmentally sealed conduit for mounting a probe to a machine case, enabling accurate measurement of shaft vibration and position. Constructed from 303 stainless steel, the housing offers high resistance to corrosion and physical damage common in industrial environments. This specific assembly, part number 31000-16-05-00-100-03-02, features a 3/4-14 NPT male thread for mounting into the machine case, ensuring a secure and pressure-tight fit. The housing allows for fine adjustment of the probe's distance to the target surface, which is critical for setting the correct DC gap voltage. The signal from the probe, which is an integral part of a complete transducer system, is transmitted through an extension cable to a Proximitor sensor. The Proximitor demodulates this signal into a voltage proportional to the gap, which is then fed into a Bently Nevada 3500 Machinery Protection System for continuous monitoring, analysis, and alarming.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-05-00-100-03-02 |
| Product Type | Proximity Probe Housing Assemblies |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 303 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Standoff Adapter Length | 10.0 inches (254 mm) |
| Total Case Length | 2.1 inches (53 mm) |
| Probe Compatibility | Designed for Bently Nevada 3300 XL 8 mm Proximity Probes |
| Operating Temperature | -34 °C to +177 °C (-29 °F to +350 °F) |
The 31000-16-05-00-100-03-02 housing assembly is engineered for high reliability in demanding industrial settings. In Oil & Gas applications, its 303 stainless steel construction and NPT threaded connection provide excellent resistance to corrosive agents such as hydrogen sulfide (H2S) and ensure pressure containment when installed correctly. In Power Generation environments, the assembly maintains positional stability for the probe across the wide operating temperatures associated with steam and gas turbines, preventing measurement drift due to thermal expansion. The rigid design protects the sensitive probe tip and extension cable from external impact and high vibration, directly contributing to the high Mean Time Between Failures (MTBF) of the overall vibration measurement channel. When installed in accordance with Bently Nevada installation procedures, the housing assembly supports the intrinsic safety and hazardous area certifications of the complete transducer system, making it suitable for deployment in classified locations.
Q: What systems is the 31000-16-05-00-100-03-02 compatible with?
A: The 31000-16-05-00-100-03-02 is an integral component of the Bently Nevada 3300 XL Proximity Transducer System. This system, which includes the probe, extension cable, and a 3300 XL Proximitor Sensor, is designed for direct interface with the Bently Nevada 3500 Machinery Protection System. It is also fully compatible with the legacy 3300 monitoring system. The analog voltage output from the associated Proximitor Sensor can also be integrated with other third-party PLCs, DCS, and data acquisition systems capable of processing a -2 to -18 Vdc signal.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The machine case requires a mounting hole drilled and tapped for a 3/4-14 NPT thread. An appropriate thread sealant must be applied to the housing's male NPT threads to ensure a pressure-tight seal. The housing is then threaded into the machine case and tightened. The proximity probe is inserted into the housing and its axial position is adjusted to achieve the correct DC gap voltage, typically -10 Vdc for a standard 3300 XL 8 mm probe configuration. Once the gap is set, the probe is secured within the housing using its set screws. Proper system grounding, as detailed in Bently Nevada documentation, is mandatory for signal integrity.
The Bently Nevada 330103-00-11-50-02-05 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330103-00-11-50-02-05 |
| Condition | Brand New |
| Warranty | 12 Months |
This Bently Nevada 330103-00-11-50-02-05 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.
Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.
Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
The Bently Nevada 330104-00-14-10-11-00 Proximity Probes is a genuine industrial component.
| Condition | New |
