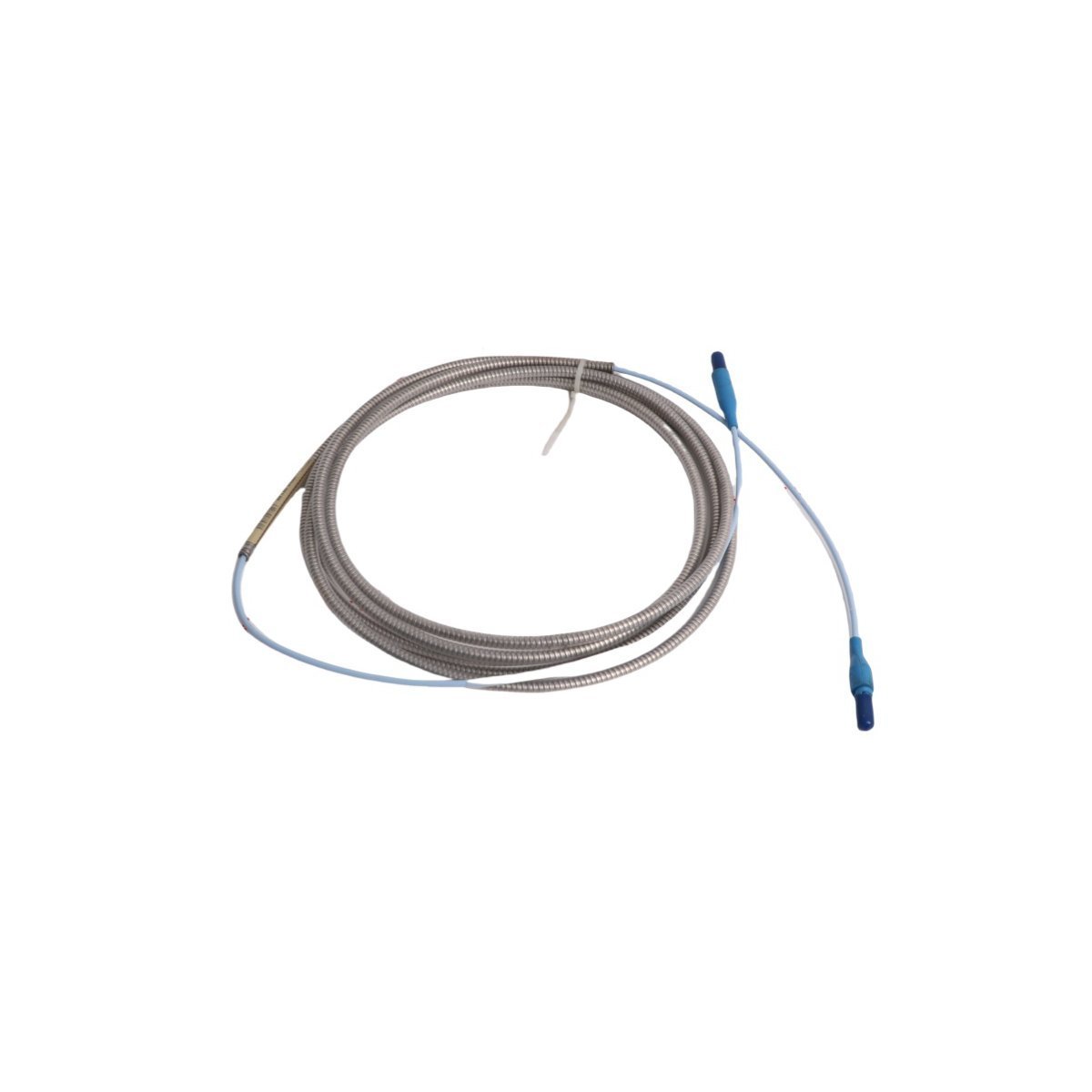

Bently Nevada 3300 XL 8mm Proximity Transducer Cable 330130-045-03-00

​Product Description

The Bently Nevada 330130-045-03-00 acts as a high-performance bridge within the 3300 XL 8mm proximity transducer system. This specialized extension cable facilitates the seamless transfer of eddy-current signals from the probe to the Proximitor sensor. By maintaining signal purity, it allows the system to monitor critical vibration data and shaft positions in high-speed rotating machinery.

Core Functions and Applications

This cable plays a central role in Turbine Supervisory Instrumentation (TSI) by ensuring precise gap measurements. Consequently, it enables the monitoring system to convert the physical distance between the probe tip and the target into an accurate, proportional voltage. Maintenance teams typically integrate this cable into systems focused on:

• Monitoring radial vibration and axial thrust position in fluid-film bearings.
• Capturing Keyphasor signals and rotational speed data.
• Protecting industrial assets such as steam turbines, gas turbines, and large-scale compressors.

Technical Characteristics and Construction

Engineers designed the 330130-045-03-00 to withstand the extreme conditions found in industrial power plants and refineries. For instance, the cable features gold-plated ClickLoc connectors that resist corrosion while maintaining a secure, low-resistance electrical bond. Furthermore, the patented strain relief design actively prevents mechanical fatigue caused by persistent machine oscillations.

• Enhanced Compatibility: This model supports seamless integration with both modern 3300 XL components and legacy 3300 series 5mm or 8mm systems.
• Superior Insulation: The high-grade fluoropolymer jacket provides excellent chemical resistance and remains stable across a wide temperature spectrum.
• Industry Compliance: The cable adheres strictly to API 670 standards, guaranteeing reliability for mission-critical vibration monitoring.

Technical Specifications
