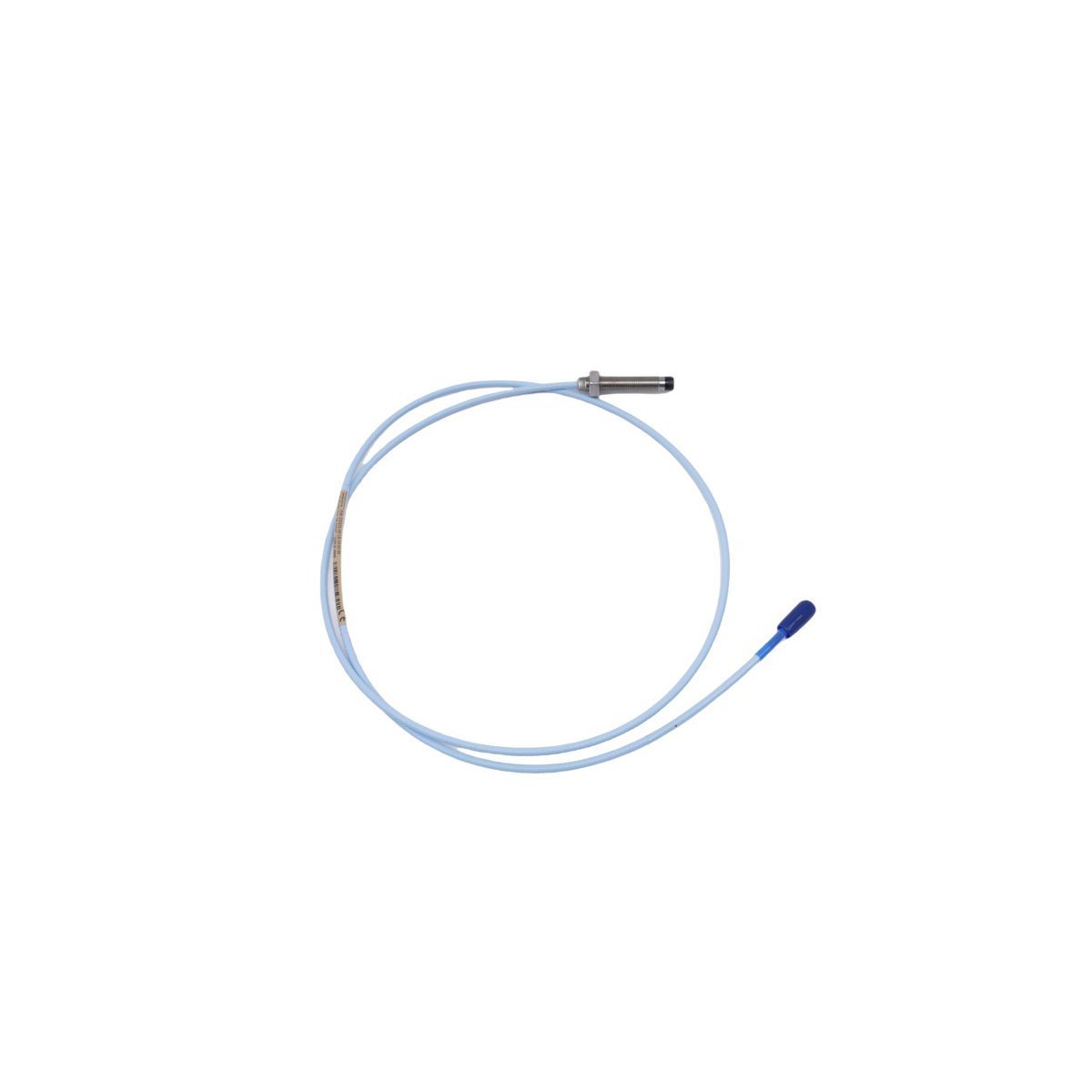

The Bently Nevada 330101-00-19-10-02-00 is a 3300 XL 8mm proximity probe featuring a 1.0-meter cable and a 1.9″ threaded case. It provides high-accuracy vibration monitoring for critical rotating assets.
The Bently Nevada 330101-00-19-10-02-00 operates as a high-precision, non-contacting displacement sensor designed for the 3300 XL 8mm Proximity Transducer System. This probe measures the microscopic distance between the sensor tip and a target shaft by generating a high-frequency eddy current field. By converting these physical gap changes into a proportional voltage signal, the system allows the 3500 Monitoring Rack to track shaft vibration and axial position with sub-millimeter resolution.
Engineers designed this specific probe configuration with a 3/8-24 UNF threaded body and a 1.0-meter integral cable. This model features a 1.9-inch overall case length with no unthreaded portion, providing a robust mounting interface for standard bearing housings or brackets. Furthermore, the 3300 XL series offers advanced thermal stability, ensuring that the scale factor remains consistent across a wide temperature range, which is critical for maintaining measurement accuracy during the intense thermal cycles of steam or gas turbine operations.
This proximity probe actively drives predictive maintenance strategies by delivering a continuous stream of machinery health data. Consequently, plant operators can identify mechanical faults such as rotor imbalance, shaft misalignment, or bearing degradation before they lead to catastrophic equipment failure. Moreover, the integration of these probes into a 3500 Monitoring System allows for automated machinery protection and emergency trip functions.
Primary industrial applications include:
To ensure maximum durability in punishing atmospheres, Bently Nevada utilizes a 304 stainless steel case and a PPS (polyphenylene sulfide) resin tip. This construction creates a hermetic seal that resists the ingress of moisture, lubricating oils, and process steam. Additionally, the patented ClickLoc connector technology provides a secure, vibration-resistant electrical path. This mechanism prevents the signal attenuation that often occurs when standard connectors loosen due to the high-frequency mechanical oscillations typical of industrial bearing housings.
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
The Bently Nevada 330102-00-12-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe, a component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. The probe functions by emitting a high-frequency radio frequency (RF) signal from its encapsulated tip. When positioned near a conductive target material, such as a machine shaft, this RF field induces eddy currents on the surface of the target. The interaction between the probe's field and the eddy currents creates an impedance change in the probe's coil, which is directly proportional to the gap between the probe tip and the target surface. This raw signal is transmitted through its integral 0.5-meter cable to a 3300 XL extension cable and subsequently to a 3300 XL Proximitor Sensor. The Proximitor Sensor demodulates and linearizes the signal, producing a precise DC voltage output that corresponds to the physical gap. This conditioned signal is then supplied to a Bently Nevada 3500 Series monitoring system for continuous machine protection, diagnostics, and data logging.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-12-05-02-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 0.5 meter (1.6 feet) |
| Mounting Option | 3/8-24 UNF threads, Reverse Mount |
| Case Length | 1.2 inches (30.5 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5%, when used with 3300 XL Proximitor and AISI 4140 steel target |
| Frequency Response | 0 Hz (DC) to 10 kHz (-3 dB) |
| Agency Approvals | CSA/NRTL/C, ATEX/IECEx (Ex ia IIC T4 Ga, Ex ia IIIC T135°C Da) |
In Oil & Gas and Power Generation applications, the 330102-00-12-05-02-05 probe is integral to Machinery Protection Systems (MPS) on critical assets like gas and steam turbines, compressors, and large motor-pump sets. It provides the primary measurement for radial vibration, axial thrust position, and shaft eccentricity. The probe's construction from AISI 304 stainless steel ensures high reliability in corrosive and high-temperature environments. Its tip is hermetically sealed with a high-pressure, injection-molded Ryton® PPS material, preventing ingress of oil and process fluids. The specified operating temperature range for the probe tip is -34 °C to +177 °C (-29 °F to +350 °F). The included agency approvals (CSA, ATEX, IECEx) certify the 330102-00-12-05-02-05 for safe operation as an intrinsically safe apparatus in specified hazardous areas, a mandatory requirement for many hydrocarbon processing and power plant environments. The system demonstrates high long-term stability, minimizing calibration drift and ensuring consistent machine protection over extended operational periods.
Q: What systems is the 330102-00-12-05-02-05 compatible with?
A: The 330102-00
The Bently Nevada 31000-16-05-00-100-03-02 is a proximity probe housing assembly designed for the physical protection and precise positioning of eddy current proximity probes. Its primary function is to provide a rigid, environmentally sealed conduit for mounting a probe to a machine case, enabling accurate measurement of shaft vibration and position. Constructed from 303 stainless steel, the housing offers high resistance to corrosion and physical damage common in industrial environments. This specific assembly, part number 31000-16-05-00-100-03-02, features a 3/4-14 NPT male thread for mounting into the machine case, ensuring a secure and pressure-tight fit. The housing allows for fine adjustment of the probe's distance to the target surface, which is critical for setting the correct DC gap voltage. The signal from the probe, which is an integral part of a complete transducer system, is transmitted through an extension cable to a Proximitor sensor. The Proximitor demodulates this signal into a voltage proportional to the gap, which is then fed into a Bently Nevada 3500 Machinery Protection System for continuous monitoring, analysis, and alarming.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-05-00-100-03-02 |
| Product Type | Proximity Probe Housing Assemblies |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 303 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Standoff Adapter Length | 10.0 inches (254 mm) |
| Total Case Length | 2.1 inches (53 mm) |
| Probe Compatibility | Designed for Bently Nevada 3300 XL 8 mm Proximity Probes |
| Operating Temperature | -34 °C to +177 °C (-29 °F to +350 °F) |
The 31000-16-05-00-100-03-02 housing assembly is engineered for high reliability in demanding industrial settings. In Oil & Gas applications, its 303 stainless steel construction and NPT threaded connection provide excellent resistance to corrosive agents such as hydrogen sulfide (H2S) and ensure pressure containment when installed correctly. In Power Generation environments, the assembly maintains positional stability for the probe across the wide operating temperatures associated with steam and gas turbines, preventing measurement drift due to thermal expansion. The rigid design protects the sensitive probe tip and extension cable from external impact and high vibration, directly contributing to the high Mean Time Between Failures (MTBF) of the overall vibration measurement channel. When installed in accordance with Bently Nevada installation procedures, the housing assembly supports the intrinsic safety and hazardous area certifications of the complete transducer system, making it suitable for deployment in classified locations.
Q: What systems is the 31000-16-05-00-100-03-02 compatible with?
A: The 31000-16-05-00-100-03-02 is an integral component of the Bently Nevada 3300 XL Proximity Transducer System. This system, which includes the probe, extension cable, and a 3300 XL Proximitor Sensor, is designed for direct interface with the Bently Nevada 3500 Machinery Protection System. It is also fully compatible with the legacy 3300 monitoring system. The analog voltage output from the associated Proximitor Sensor can also be integrated with other third-party PLCs, DCS, and data acquisition systems capable of processing a -2 to -18 Vdc signal.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The machine case requires a mounting hole drilled and tapped for a 3/4-14 NPT thread. An appropriate thread sealant must be applied to the housing's male NPT threads to ensure a pressure-tight seal. The housing is then threaded into the machine case and tightened. The proximity probe is inserted into the housing and its axial position is adjusted to achieve the correct DC gap voltage, typically -10 Vdc for a standard 3300 XL 8 mm probe configuration. Once the gap is set, the probe is secured within the housing using its set screws. Proper system grounding, as detailed in Bently Nevada documentation, is mandatory for signal integrity.
