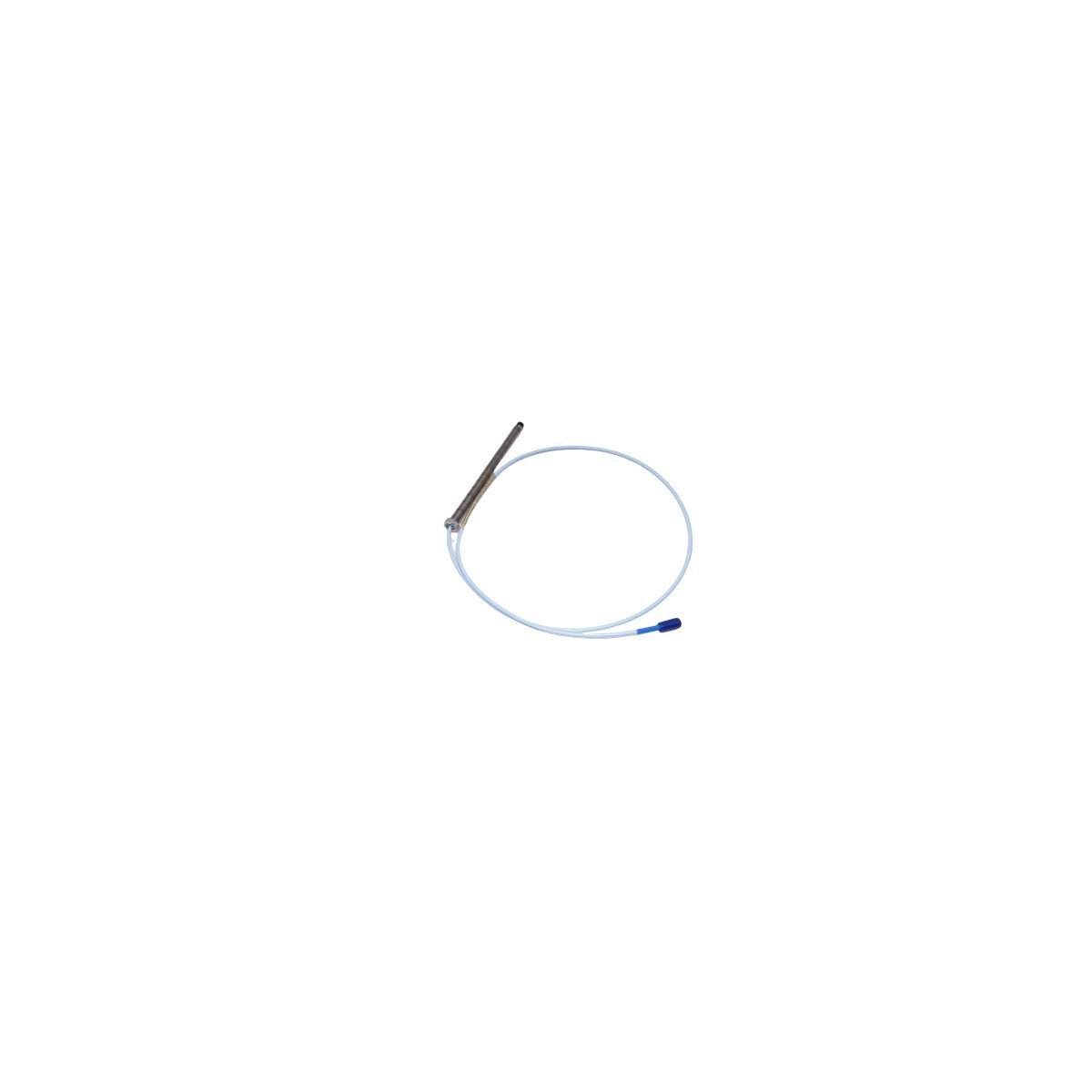

Bently Nevada 330101-00-60-10-02-00 Proximity Probe

The Bently Nevada 330101-00-60-10-02-00 is a 3300 XL 8mm proximity probe designed for precision vibration and position monitoring. This eddy current sensor features a 6.0-inch case length and 1.0-meter cable for reliable machinery protection in harsh industrial environments.

Request a Quote

The Bently Nevada 330101-00-60-10-02-00 serves as a high-precision eddy current sensor within the 3300 XL series. This 8mm proximity probe monitors critical machinery health by measuring radial vibration and axial position. It converts the physical distance between the probe tip and the target material into a proportional voltage signal. This data allows operators to detect early mechanical wear in high-speed rotating assets.

Industrial Applications and Integration

Engineers primarily deploy this sensor in Turbo-machinery Instrumentation (TSI) systems. It integrates seamlessly with Bently Nevada 3500 monitoring racks and Proximitor sensors. The probe excels in monitoring steam turbines, centrifugal compressors, and large electric motors. Its rugged Polyphenylene Sulfide (PPS) tip resists chemical corrosion and moisture penetration in extreme environments.

Operational Advantages

The 3300 XL 8mm system provides complete interchangeability between probes and cables. This feature eliminates the need for individual calibration when replacing components. The Gold-plated Brass ClickLoc connectors ensure a secure electrical connection with minimal signal loss. Furthermore, the thick-wall stainless steel housing protects the internal coil from physical impacts during installation.

Technical Configuration and Specifications

This specific configuration follows a modular part numbering system to meet precise industrial requirements.

  • Model Number: 330101-00-60-10-02-00
  • Unthreaded Length: 0.0 inches
  • Overall Case Length: 6.0 inches
  • Total Cable Length: 1.0 meter (3.3 feet)
  • Connector Option: Miniature coaxial ClickLoc connector with connector protector
  • Agency Approval: Multiple hazardous area certifications available
  • Linear Range: 2.0 mm (80 mils)
  • Nominal Sensitivity: 7.87 V/mm (200 mV/mil)
  • Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
