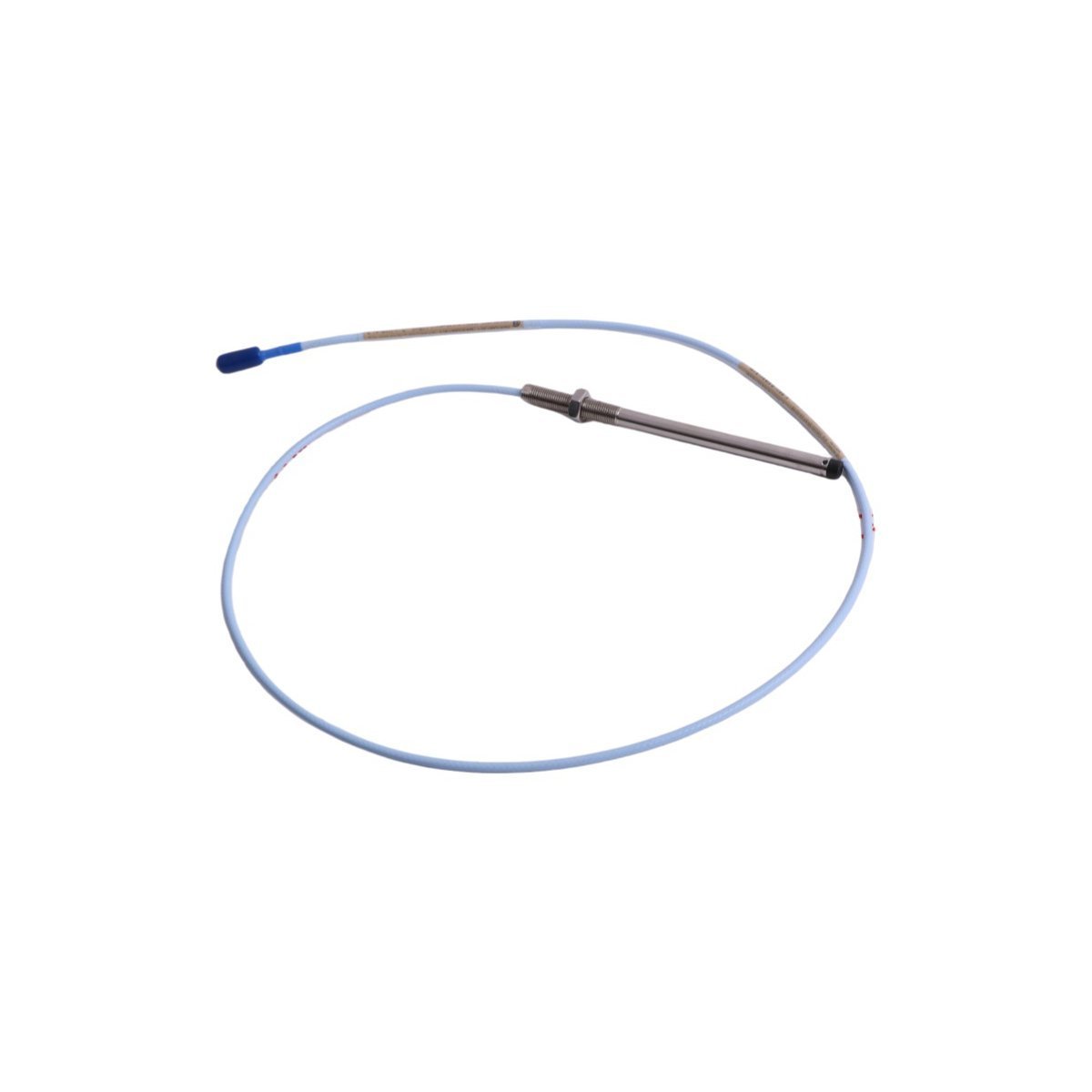

Bently Nevada 330101-37-57-10-02-05 3300 XL 8mm Proximity Probe

The Bently Nevada 330101-37-57-10-02-05 is a 3300 XL 8mm proximity probe with a 5.7″ case and 1.0-meter cable. It offers multiple hazardous area approvals for precision machinery monitoring.

Request a Quote

Technical Specification Overview

The Bently Nevada 330101-37-57-10-02-05 functions as a premium, non-contacting sensor within the 3300 XL 8mm Proximity Transducer System. This device measures the microscopic gap between the probe tip and a rotating shaft by generating a high-frequency eddy current field. By converting physical displacement into a proportional voltage signal, the probe enables the 3500 Monitoring System to track shaft vibration and axial position with high precision. Consequently, this model serves as a vital component for protecting critical rotating assets from mechanical failure.

Design and Functional Capabilities

Engineers designed this specific probe configuration with an extended 3.7-inch unthreaded length and a 5.7-inch overall case length. This specialized geometry allows the probe to pass through thick machine casings or mounting brackets while maintaining precise tip positioning. Furthermore, the 3300 XL series provides exceptional thermal stability, ensuring that your vibration data remains accurate even during the significant temperature shifts typical of industrial turbine operations.

  • Manufacturer: Bently Nevada
  • Model Number: 330101-37-57-10-02-05
  • System Series: 3300 XL 8mm
  • Unthreaded Length: 3.7 inches
  • Overall Case Length: 5.7 inches
  • Total Cable Length: 1.0 Meter
  • Connector Option: Miniature coaxial ClickLoc connector
  • Agency Approval: Multiple Approvals
  • Mounting Thread: 3/8-24 UNF
  • Linear Range: 2.0 mm

Operational Impact and Industrial Applications

This proximity probe actively drives predictive maintenance strategies by delivering a continuous stream of machinery health data to the control room. Because the “-05” rating includes global hazardous area certifications, the probe is suitable for deployment in refineries and chemical plants where explosive atmospheres exist. Consequently, operators can detect early signs of rotor imbalance, shaft misalignment, or bearing wear, thereby preventing costly unplanned outages.

Primary industrial applications include:

  • Radial Vibration Monitoring: Tracking the dynamic movement of shafts in centrifugal compressors.
  • Axial Thrust Position: Measuring the longitudinal displacement of rotors in steam and gas turbines.
  • Keyphasor Signals: Providing a phase reference pulse to synchronize vibration data for advanced diagnostic analysis.

Mechanical Integrity and Environmental Resilience

To ensure survival in punishing environments, Bently Nevada utilizes a 304 stainless steel case and a PPS (polyphenylene sulfide) resin tip. This construction creates a hermetic seal that resists the ingress of oil, moisture, and steam. Additionally, the patented ClickLoc connector technology provides a secure, vibration-resistant electrical path. This mechanism prevents signal attenuation or loss that often occurs when standard connectors loosen due to the high-frequency mechanical oscillations common in industrial bearing housings.
