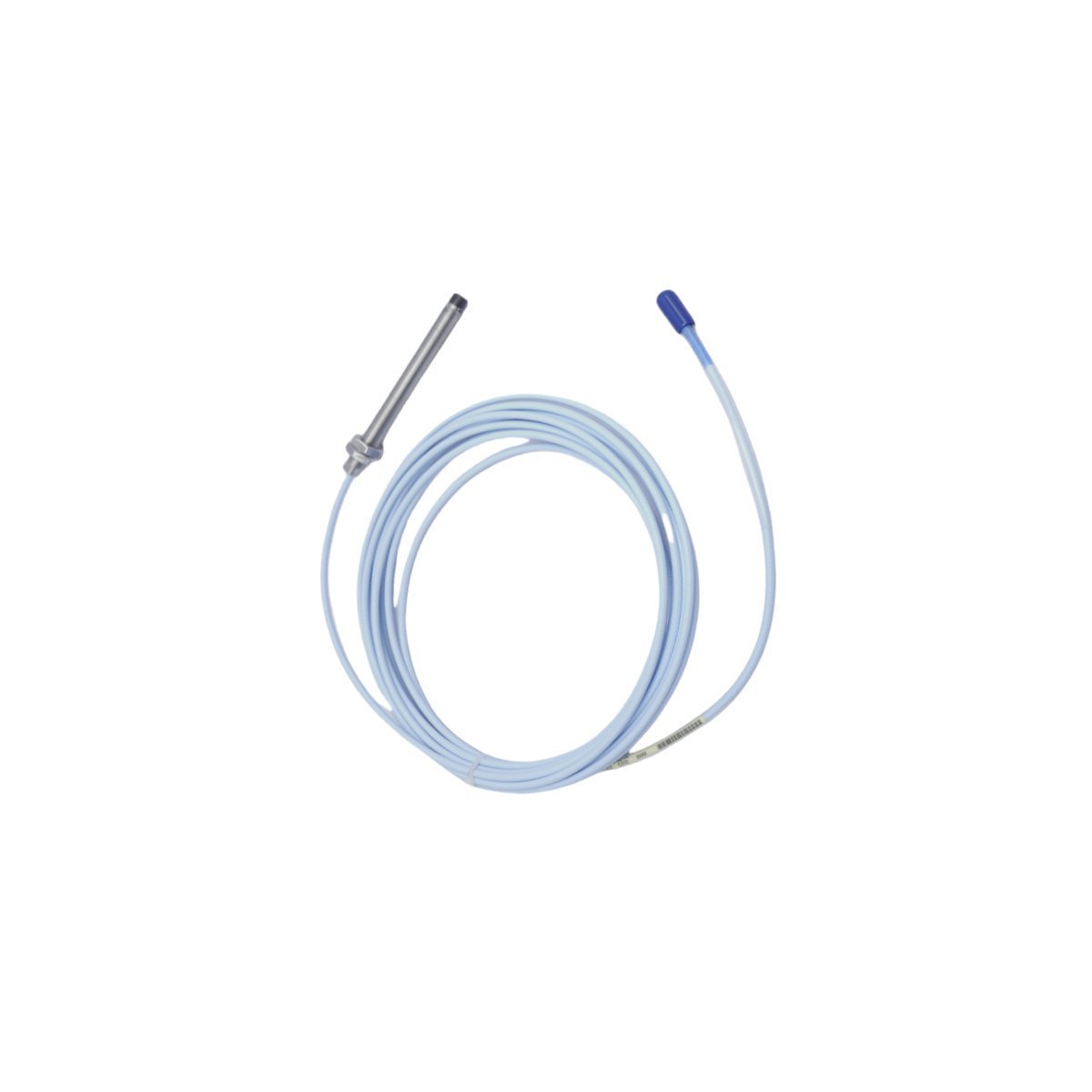

The Bently Nevada 330103-00-10-50-02-00 is a 3300 XL 8mm proximity probe featuring a 100mm case and 5.0m armored cable. It delivers precise non-contact vibration and position data for critical industrial rotating assets and protection systems.
The Bently Nevada 330103-00-10-50-02-00 performs critical non-contact measurements on rotating equipment. This 8mm proximity probe tracks shaft vibration and axial position with high accuracy. It operates by generating a high-frequency electromagnetic field via eddy current technology. Furthermore, the sensor detects minute changes in the gap between the tip and target. These readings allow the 3500 monitoring system to assess machine health. Consequently, operators can identify potential mechanical imbalances before they cause damage.
The part number 330103-00-10-50-02-00 defines several essential physical characteristics for installation. The -00- option specifies a flush-mount configuration with zero unthreaded length. Additionally, the -10- suffix indicates a 100mm overall case length for deep bore access. The -50- segment provides a 5.0-meter total cable length for direct system connection. This model also includes the -02- option, which adds protective stainless steel armor. This flexible conduit shields the internal coaxial cable from harsh mechanical stress.
Heavy-duty industrial zones require hardware that survives extreme thermal and chemical exposure. This probe features a tip made of polyphenylene sulfide (PPS). This high-performance plastic resists most common industrial lubricants and solvents. Moreover, the stainless steel body prevents corrosion in humid or coastal environments. The sensor functions reliably in temperatures ranging from -51°C to +177°C. These robust materials ensure long-term signal stability and low maintenance costs.
Refineries and power plants rely on these sensors for high-value asset protection. Maintenance teams install them on steam turbines, compressors, and large high-speed motors. The 5.0-meter integrated cable simplifies routing through complex machine enclosures. Furthermore, the ClickLoc connector provides a moisture-resistant and vibration-proof electrical link. This ensures the integrity of the data remains perfect during continuous operation. Precise monitoring helps facilities transition from reactive to predictive maintenance strategies.
This probe integrates perfectly with the 3300 XL Proximitor sensor series. Proper gapping during setup ensures the sensor operates within its linear range. The armored cable prevents signal interference and physical abrasion in tight spaces. Additionally, the system complies with global safety standards for hazardous locations. Reliability remains a hallmark of the Bently Nevada 3300 XL series worldwide. High-quality construction guarantees a long mean time between failures for your monitoring chain.
| Feature | Detailed Specification |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm (Fully Threaded) |
| Case Length | 100 mm |
| Total Cable Length | 5.0 Meters |
| Protective Armor | Stainless Steel Flexible Conduit |
| Agency Approvals | Multiple International Certifications |
The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330192-00-28-05-00 |
| Product Type | 3300 XL 8 mm ETR Proximity Probes |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Probe Tip Temperature Range | -34 °C to +260 °C (-30 °F to +500 °F) |
| Total Length | 0.5 meters (1.6 feet) |
| Case Length | 2.8 inches (71.1 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.
Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a
