  4. Proximity Probes
  5. Bently Nevada 330103-06-10-10-02-05 Proximity Probes
Sale!
SKU: 330103-06-10-10-02-05

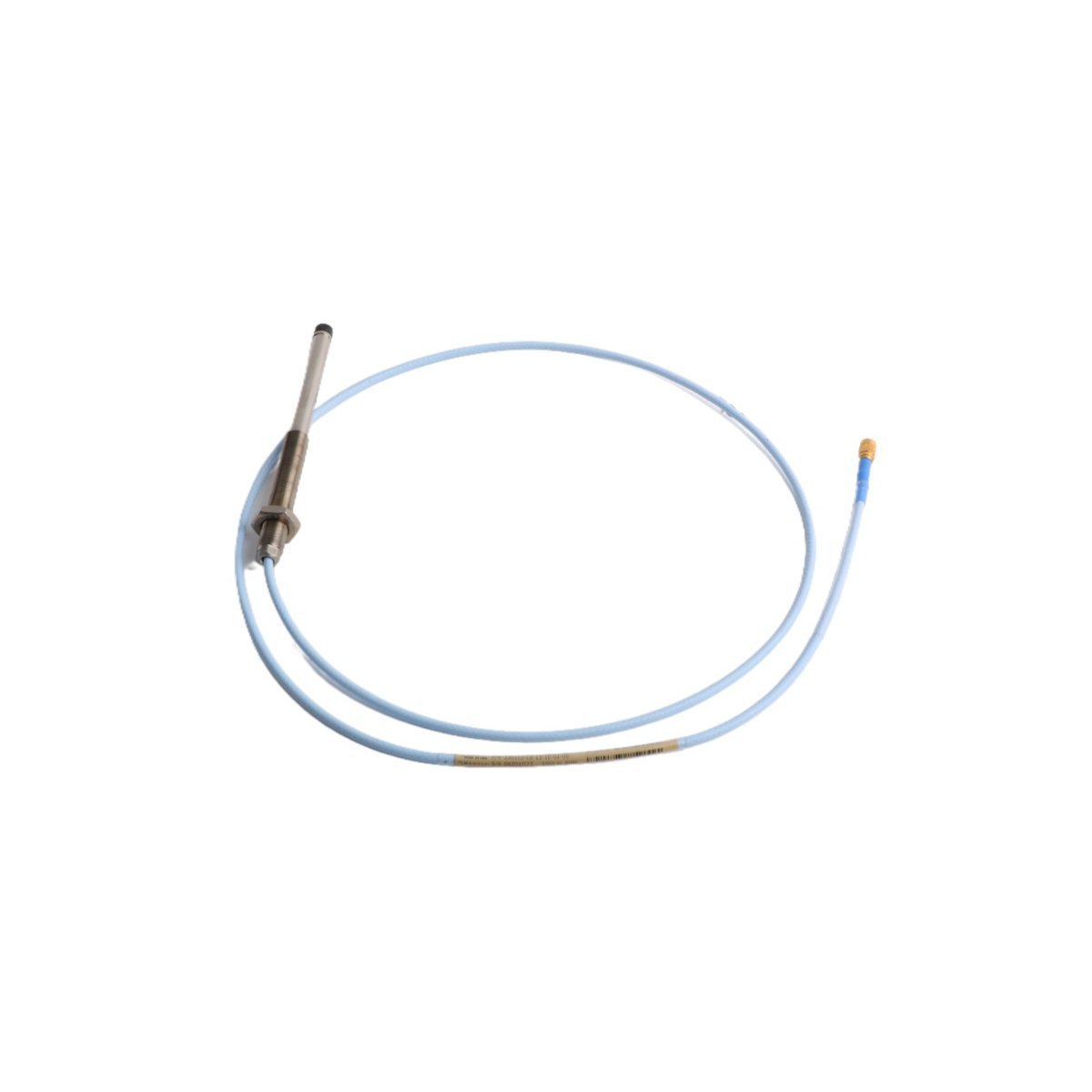

Bently Nevada 330103-06-10-10-02-05 Proximity Probes

The Bently Nevada 330103-06-10-10-02-05 is an 8 mm 3300 XL proximity probe featuring an M10 x 1 thread. It includes a 1.0-meter cable and a PPS plastic tip for durable vibration monitoring in hazardous environments.

Request a Quote

The Bently Nevada 330103-06-10-10-02-05 is a specialized sensor for industrial machinery protection. This 8 mm probe detects shaft vibration and axial position without physical contact. It translates mechanical movement into a precise electrical signal. Therefore, plant operators can monitor the health of turbines and compressors in real-time. This specific model belongs to the 3300 XL series. It helps prevent unplanned downtime by identifying early mechanical issues.

Mechanical Design and Strength

Advanced materials define the construction of this proximity sensor. The probe tip features molded PPS plastic to protect internal induction coils. This encapsulation significantly increases the resistance to physical impact and chemical exposure. Furthermore, the unit utilizes an M10 x 1 metric thread for secure mounting. The probe body has a 60 mm unthreaded section and a 100 mm total case length. These dimensions allow for deep insertion into machine housings or bearing caps.

Electrical Connectivity and Safety

Signal integrity remains a priority for the 3300 XL transducer system. This probe includes a 1.0-meter standard cable for reliable data transmission. A gold-plated ClickLoc connector provides a secure, low-resistance path to the extension cable. Consequently, the sensor maintains high accuracy even in electrically noisy environments. The device also carries CSA, ATEX, and IECEx certifications. These global approvals permit safe use in hazardous or explosive atmospheres.

Installation and Integration

Operators can easily integrate this probe into existing 3300 XL monitoring systems. It works best when paired with a matching Proximitor sensor and extension cable. The metric threading ensures compatibility with standard international machinery ports. Additionally, the lightweight 0.08 kg design reduces stress on mounting brackets. Reliable performance continues across a wide temperature range. This makes the probe a trusted choice for global industrial facilities.

Technical Specifications Summary

SpecificationDetails
ManufacturerBently Nevada
Model Number330103-06-10-10-02-05
Probe Diameter8 mm
Thread TypeM10 x 1 (Metric)
Unthreaded Length60 mm
Overall Case Length100 mm
Cable Length1.0 Meter (3.3 Feet)
ConnectorMiniature Coaxial ClickLoc
CertificationsATEX, IECEx, CSA
Tags: ,

You may also like

Sale!
330192-00-28-05-00 | Bently Nevada | 3300 XL 8 mm ETR Proximity Probes

330192-00-28-05-00 | Bently Nevada | 3300 XL 8 mm ETR Proximity Probes

Technical Overview

The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330192-00-28-05-00
Product Type3300 XL 8 mm ETR Proximity Probes
ConditionBrand New
Warranty12 Months
Linear Range2.0 mm (80 mils)
Scale Factor7.87 V/mm (200 mV/mil) ±5%
Probe Tip Temperature Range-34 °C to +260 °C (-30 °F to +500 °F)
Total Length0.5 meters (1.6 feet)
Case Length2.8 inches (71.1 mm)
Connector TypeMiniature coaxial ClickLoc connector, gold-plated
Probe Tip MaterialPolyphenylene Sulfide (PPS)

Operational Capabilities

The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a

Sale!
330703-00-100-10-11-CN | Bently Nevada | 3300 XL 11 mm Proximity Probes

330703-00-100-10-11-CN | Bently Nevada | 3300 XL 11 mm Proximity Probes

Technical Overview

The Bently Nevada 330703-00-100-10-11-CN is an 11 mm eddy current proximity probe designed for non-contact displacement and vibration measurement on rotating machinery. It functions as a core component of the 3300 XL 11 mm Transducer System, which also includes a matched extension cable and a 3300 XL 11 mm Proximitor Sensor. The system operates on the eddy current principle, where the Proximitor Sensor emits a high-frequency radio frequency (RF) signal through the probe and extension cable. This signal radiates from the probe tip, creating an electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's impedance. The Proximitor Sensor demodulates this signal to produce a DC voltage directly proportional to the gap between the probe tip and the target surface. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 series, for real-time analysis of radial vibration, axial position, and shaft speed. The 330703-00-100-10-11-CN features a robust stainless steel case and a chemically resistant Polyphenylene Sulfide (PPS) tip, ensuring reliability in harsh industrial environments.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330703-00-100-10-11-CN
Product Type3300 XL 11 mm Proximity Probe
ConditionBrand New
Warranty12 Months
Linear Range4.0 mm (160 mils)
Scale Factor2.00 mV/µm (50 mV/mil) ± 6.5%
Total Length1.0 metre
Probe Tip MaterialPolyphenylene Sulfide (PPS)
Probe Case MaterialAISI 304 Stainless Steel
Connector TypeMiniature coaxial ClickLocâ„¢ connector, gold-plated
Agency ApprovalCN Ex (China Ex) for hazardous area installations

Operational Capabilities

The 330703-00-100-10-11-CN proximity probe is engineered for high reliability in demanding industrial applications, particularly within Oil & Gas and Power Generation sectors. Its 11 mm tip provides a larger linear measurement range and is well-suited for monitoring large shaft diameters or applications requiring a greater standoff distance. The probe's construction ensures operational integrity across a wide temperature range, with the probe tip rated for -51 °C to +177 °C (-60 °F to +351 °F). The 3300 XL system design provides enhanced immunity to radio frequency interference (RFI/EMI), minimizing the risk of signal corruption from nearby motors, generators, or radio sources. The gold-plated ClickLoc™ connector ensures a secure, corrosion-resistant connection that prevents intermittent signals caused by vibration. When installed and maintained according to manufacturer specifications, the system demonstrates high Mean Time Between Failures (MTBF) and is a critical component for machinery protection systems (MPS) and condition monitoring programs, compliant with standards such as API 670.

Applications

  • Steam and gas turbines for power generation
  • Large centrifugal and reciprocating compressors in oil & gas processing
  • Boiler feed water pumps and other critical pump applications
  • Large electric motors and generators
  • Gearboxes and other industrial rotating machinery with fluid-film bearings
  • Integration into predictive maintenance and machinery protection systems (MPS)
  • Axial (thrust) position and radial vibration monitoring

Technical FAQ

Q: What systems is the 330703-00-100-10-11-CN compatible with?
A: The 330703-00-100-10-11-CN probe must be used as part of a complete Bently Nevada 3300 XL 11 mm Transducer System. This requires a matching 3300 XL 11 mm Proximitor Sensor (e.g., part number 330780) and a 3300 XL 11 mm extension cable. It is not interchangeable with components from 5 mm or 8 mm transducer systems, as the scale factor and linear range are different. The complete transducer system provides a voltage output compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as third-party PLCs, DCS, and data acquisition systems designed to accept a 3-wire, -24 Vdc powered eddy current probe input.

Q: What are the installation requirements?
A: Proper installation is critical for accurate measurements. The probe must be mounted perpendicular to the observed shaft surface using a rigid bracket. The target area on the shaft must be smooth (typically 0.4 to 0.8 µm / 16 to 32 µin Ra), free of chrome or other non-conductive plating, and clear of any residual magnetism or electrical runout. The probe must be gapped correctly by adjusting its distance to the shaft until the Proximitor Sensor output voltage is at the center of the linear range, typically -10.0 Vdc. The probe case locknut should be torqued to the specified value to prevent loosening. The integral cable and any extension cable should be secured to avoid strain on the connectors and routed away from high-voltage power cables to minimize interference.

Sale!
330102-00-12-05-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

330102-00-12-05-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

Technical Overview

The Bently Nevada 330102-00-12-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe, a component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. The probe functions by emitting a high-frequency radio frequency (RF) signal from its encapsulated tip. When positioned near a conductive target material, such as a machine shaft, this RF field induces eddy currents on the surface of the target. The interaction between the probe's field and the eddy currents creates an impedance change in the probe's coil, which is directly proportional to the gap between the probe tip and the target surface. This raw signal is transmitted through its integral 0.5-meter cable to a 3300 XL extension cable and subsequently to a 3300 XL Proximitor Sensor. The Proximitor Sensor demodulates and linearizes the signal, producing a precise DC voltage output that corresponds to the physical gap. This conditioned signal is then supplied to a Bently Nevada 3500 Series monitoring system for continuous machine protection, diagnostics, and data logging.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330102-00-12-05-02-05
Product Type3300 XL 8 mm Reverse Mount Proximity Probe
ConditionBrand New
Warranty12 Months
Total Length0.5 meter (1.6 feet)
Mounting Option3/8-24 UNF threads, Reverse Mount
Case Length1.2 inches (30.5 mm)
Connector TypeMiniature coaxial ClickLoc connector, gold-plated
Linear Range2.0 mm (80 mils)
Scale Factor7.87 V/mm (200 mV/mil) ±5%, when used with 3300 XL Proximitor and AISI 4140 steel target
Frequency Response0 Hz (DC) to 10 kHz (-3 dB)
Agency ApprovalsCSA/NRTL/C, ATEX/IECEx (Ex ia IIC T4 Ga, Ex ia IIIC T135°C Da)

Operational Capabilities

In Oil & Gas and Power Generation applications, the 330102-00-12-05-02-05 probe is integral to Machinery Protection Systems (MPS) on critical assets like gas and steam turbines, compressors, and large motor-pump sets. It provides the primary measurement for radial vibration, axial thrust position, and shaft eccentricity. The probe's construction from AISI 304 stainless steel ensures high reliability in corrosive and high-temperature environments. Its tip is hermetically sealed with a high-pressure, injection-molded Ryton® PPS material, preventing ingress of oil and process fluids. The specified operating temperature range for the probe tip is -34 °C to +177 °C (-29 °F to +350 °F). The included agency approvals (CSA, ATEX, IECEx) certify the 330102-00-12-05-02-05 for safe operation as an intrinsically safe apparatus in specified hazardous areas, a mandatory requirement for many hydrocarbon processing and power plant environments. The system demonstrates high long-term stability, minimizing calibration drift and ensuring consistent machine protection over extended operational periods.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 330102-00-12-05-02-05 compatible with?
A: The 330102-00

Sale!
Bently Nevada 330101-00-45-20-12-05 Proximity Probes

Bently Nevada 330101-00-45-20-12-05 Proximity Probes

The Bently Nevada 330101-00-45-20-12-05 is an 8mm 3300 XL proximity probe. It features a 3/8-24 UNF thread and a 2.0-meter cable. This high-precision sensor monitors shaft vibration and position in critical rotating machinery.
Sale!
Bently Nevada 330180-51-CN 3300 XL Proximitor Sensor

Bently Nevada 330180-51-CN 3300 XL Proximitor Sensor

The Bently Nevada 330180-51-CN is a 5.0-meter 3300 XL Proximitor sensor for vibration and displacement monitoring. It features a DIN rail mount design, linear voltage output, and API 670 compliance. This rugged sensor ensures precise machinery diagnostics in harsh industrial environments.
Sale!
Bently Nevada 330101-00-43-15-12-05 8 mm Proximity Probes

Bently Nevada 330101-00-43-15-12-05 8 mm Proximity Probes

The Bently Nevada 330101-00-43-15-12-05 is an 8 mm 3300 XL proximity probe with a 3/8-24 UNF thread. It features a 4.3-inch case and a 1.5-meter cable. This sensor provides precise vibration and position data for critical rotating assets in hazardous environments.
Sale!
Bently Nevada 330905-00-25-05-02-00 3300 NSv Proximity Probe

Bently Nevada 330905-00-25-05-02-00 3300 NSv Proximity Probe

The Bently Nevada 330905-00-25-05-02-00 is a 3300 NSv proximity probe designed for vibration and position monitoring. This 0.06kg sensor provides high-temperature resistance and precision distance measurement for industrial TSI systems.
