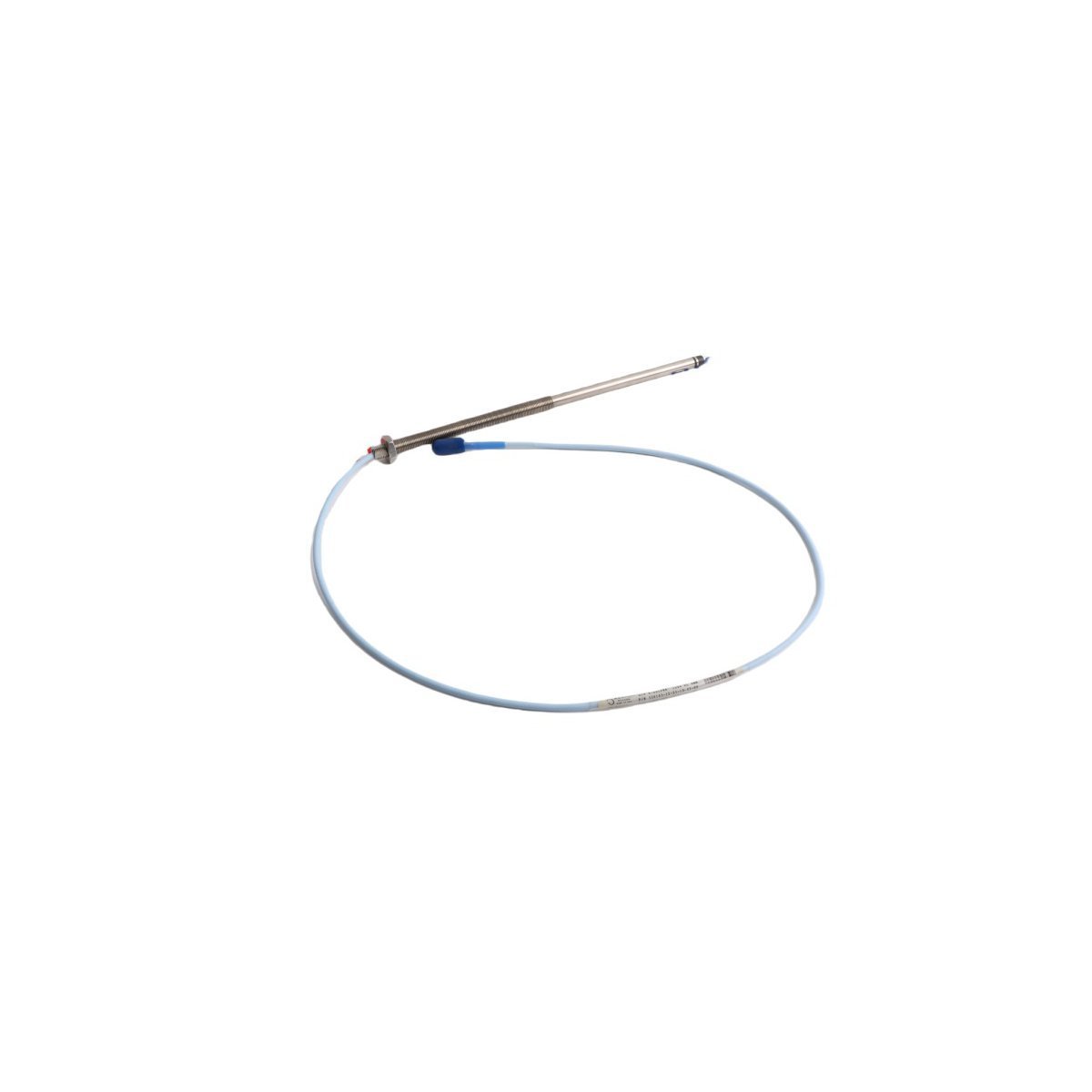

The Bently Nevada 330103-12-25-10-02-00 is a 3300 XL 8mm proximity probe featuring a 1.0-meter cable and a 1.2″ unthreaded length. It delivers high-accuracy vibration and displacement monitoring for critical industrial rotating assets.
The Bently Nevada 330103-12-25-10-02-00 serves as a high-precision, non-contacting sensor designed for the 3300 XL 8mm Proximity Transducer System. This probe measures both static (displacement) and dynamic (vibration) distances by generating an eddy current field that interacts with a target metal surface. By converting physical gap changes into a proportional voltage signal, the sensor allows the monitoring system to track shaft behavior with sub-millimeter resolution.
Engineers designed this specific probe configuration to provide a 3/8-24 UNF threaded body with a 1.0-meter integral cable. This model features a specialized 1.2-inch unthreaded length, allowing it to pass through thicker housing walls or brackets without the threads engaging prematurely. The 8mm tip offers a standard linear range of 2.0 mm (80 mils), which remains the global industry benchmark for monitoring fluid-film bearings. Furthermore, the 3300 XL series features advanced thermal stability, ensuring that data remains accurate despite significant temperature fluctuations within the machine housing.
This proximity probe actively powers predictive maintenance strategies by delivering high-fidelity data to Turbine Supervisory Instrumentation (TSI). Consequently, operators can identify mechanical faults—such as shaft misalignment, rotor imbalance, or bearing degradation—long before they escalate into catastrophic failures. Moreover, the integration of these probes into a 3500 Monitoring System allows for automatic machinery protection and emergency trip functions.
Primary industrial applications include:
To ensure survival in punishing atmospheres, Bently Nevada utilizes a 304 stainless steel case and a PPS (polyphenylene sulfide) resin tip. This construction creates a hermetic seal that resists the ingress of oil, moisture, and steam. Additionally, the patented ClickLoc connector technology provides a secure, vibration-resistant electrical path. This mechanism prevents the signal loss that often occurs when standard connectors loosen due to the high-frequency mechanical oscillations typical of industrial bearing housings.
