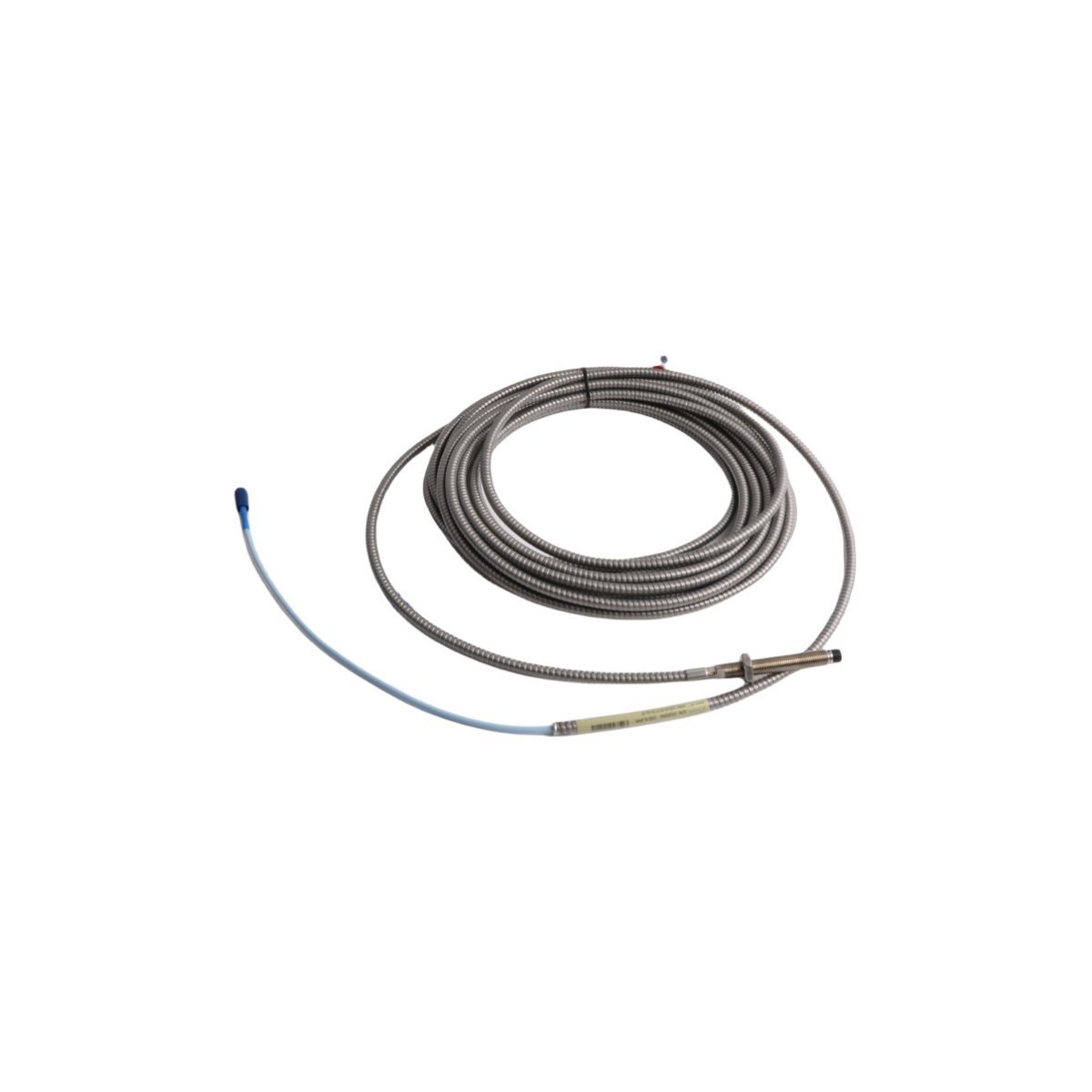

Bently Nevada 330104-00-07-90-02-00 Proximity Probe

The Bently Nevada 330104-00-07-90-02-00 is a 3300 XL 8mm proximity probe featuring an M10x1 metric thread and a 9.0-meter cable. This high-precision sensor monitors vibration and shaft position in critical industrial turbomachinery.

Request a Quote

The Bently Nevada 330104-00-07-90-02-00 operates as a specialized eddy current sensor for industrial asset protection. This 3300 XL series probe measures the physical gap between the sensor tip and rotating shafts. It provides critical data regarding radial vibration, shaft alignment, and axial position. Consequently, plant operators can monitor mechanical health in real time to prevent sudden equipment failure.

Primary Applications and System Use

Maintenance teams typically install this probe on critical rotating machinery within the energy and oil sectors. It functions perfectly with centrifugal compressors, high-speed gearboxes, and steam turbines. Because it integrates with the 3500 Monitoring System, it ensures high-speed data acquisition. This sensor remains a standard choice for Turbo-machinery Instrumentation (TSI) deployments globally.

Performance and Durability Features

The 3300 XL 8mm system offers significant resistance against environmental stressors. The probe tip withstands high-pressure environments and corrosive lubricants without losing signal integrity. Furthermore, the 9-meter integrated cable utilizes a Fluoroethylene Propylene (FEP) jacket for chemical protection. The ClickLoc connector technology prevents accidental disconnections while maintaining low electrical resistance. These features collectively ensure long-term stability and minimize the need for manual recalibration.

Core Technical Specifications

  • Model Number: 330104-00-07-90-02-00
  • Thread Type: M10 x 1 metric thread
  • Unthreaded Length: 0 mm
  • Overall Case Length: 70 mm
  • Total Cable Length: 9.0 meters (29.5 feet)
  • Connector Style: Miniature coaxial ClickLoc with connector protector
  • Linear Range: 2.0 mm (80 mils) starting at approximately 0.25 mm
  • Scale Factor: 7.87 V/mm (200 mV/mil) nominal
  • Housing Material: 304 stainless steel with PPS probe tip
