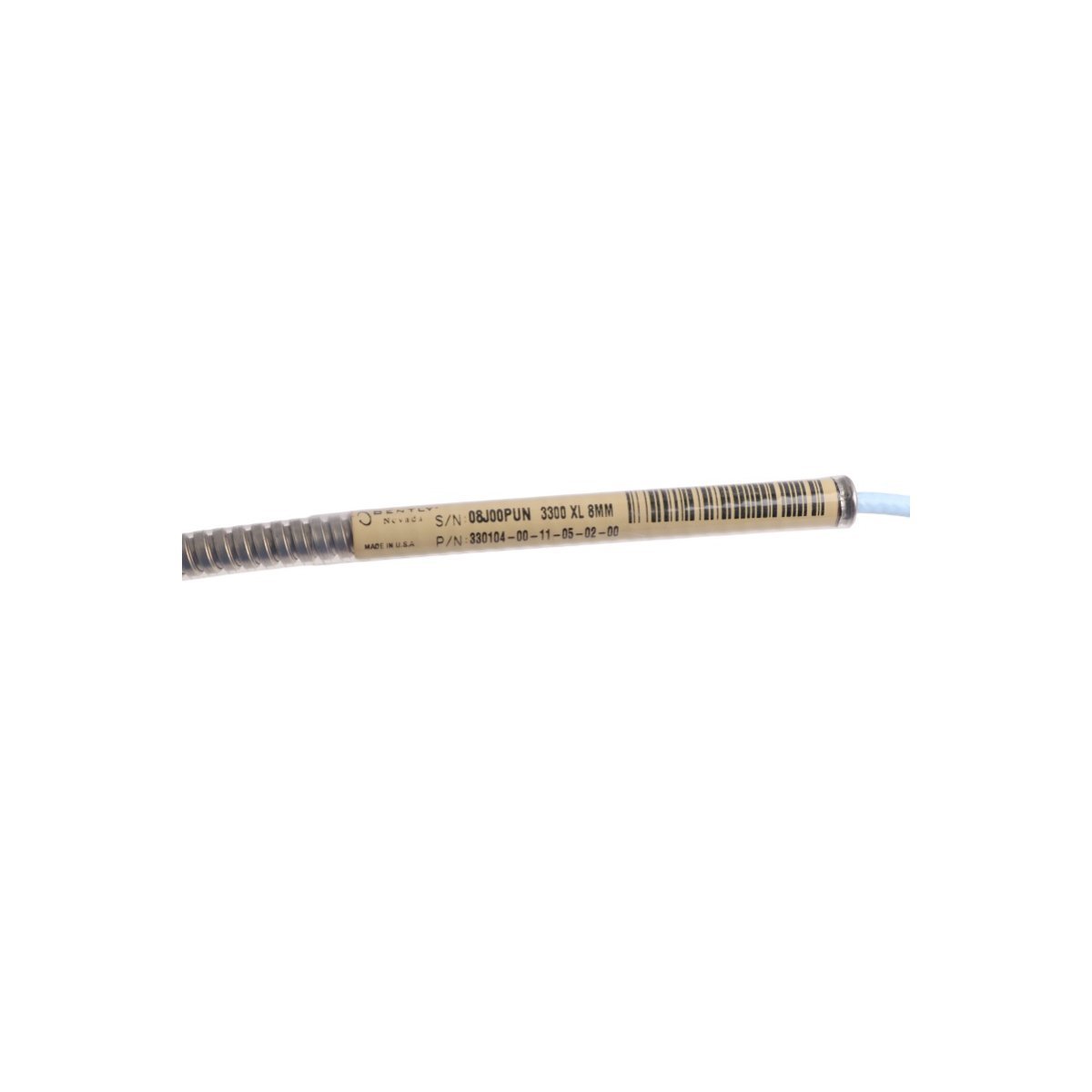

The Bently Nevada 330104-00-11-05-02-00 is a 3300 XL 8mm proximity probe with M10x1 threads and a 0.5m cable. It delivers precise vibration and displacement sensing for critical rotating equipment.
The Bently Nevada 330103-00-11-05-02-00 offers high-performance displacement monitoring for critical rotating machinery. This 3300 XL series eddy current probe measures radial vibration and shaft position with extreme precision. It functions as a non-contact sensor to track mechanical movement in real-time. Specifically, this model integrates seamlessly with 3500 series protection systems. It provides reliable data to prevent costly unplanned downtime in industrial facilities.
This 8mm probe features a rugged Polyphenylene Sulfide (PPS) tip for chemical resistance. Consequently, it maintains accuracy even in environments containing moisture or oil. The stainless steel housing protects internal components from mechanical shock. Furthermore, the patented ClickLoc connector prevents accidental disconnection during operation. This robust design supports a wide operating temperature range from -40°C to +85°C. These characteristics ensure stable signal transmission in the most demanding industrial settings.
Maintenance teams typically install this sensor on high-value assets across the energy sector. It excels at monitoring steam turbines, centrifugal compressors, and large pumps. Additionally, the probe tracks shaft eccentricity and axial thrust position. This capability is vital for hydroelectric plants and offshore platforms. By providing early fault detection, it identifies bearing wear and shaft misalignment quickly. This allows operators to schedule maintenance before catastrophic failure occurs.
The 330104-00-11-05-02-00 provides complete interchangeability with other 3300 XL system components. This feature eliminates the need for recalibration when replacing individual probes or cables. Moreover, the sensor supports advanced alarm logic within the 3500 monitoring rack. It effectively captures both high-frequency and low-frequency vibration phenomena. Choosing this genuine Bently Nevada probe ensures long-term operational stability and equipment safety.
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330192-00-28-05-00 |
| Product Type | 3300 XL 8 mm ETR Proximity Probes |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Probe Tip Temperature Range | -34 °C to +260 °C (-30 °F to +500 °F) |
| Total Length | 0.5 meters (1.6 feet) |
| Case Length | 2.8 inches (71.1 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.
Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a
