  5. Bently Nevada 330104-02-08-10-01-00 3300 XL 8 mm Proximity
Sale!
SKU: 330104-02-08-10-01-00

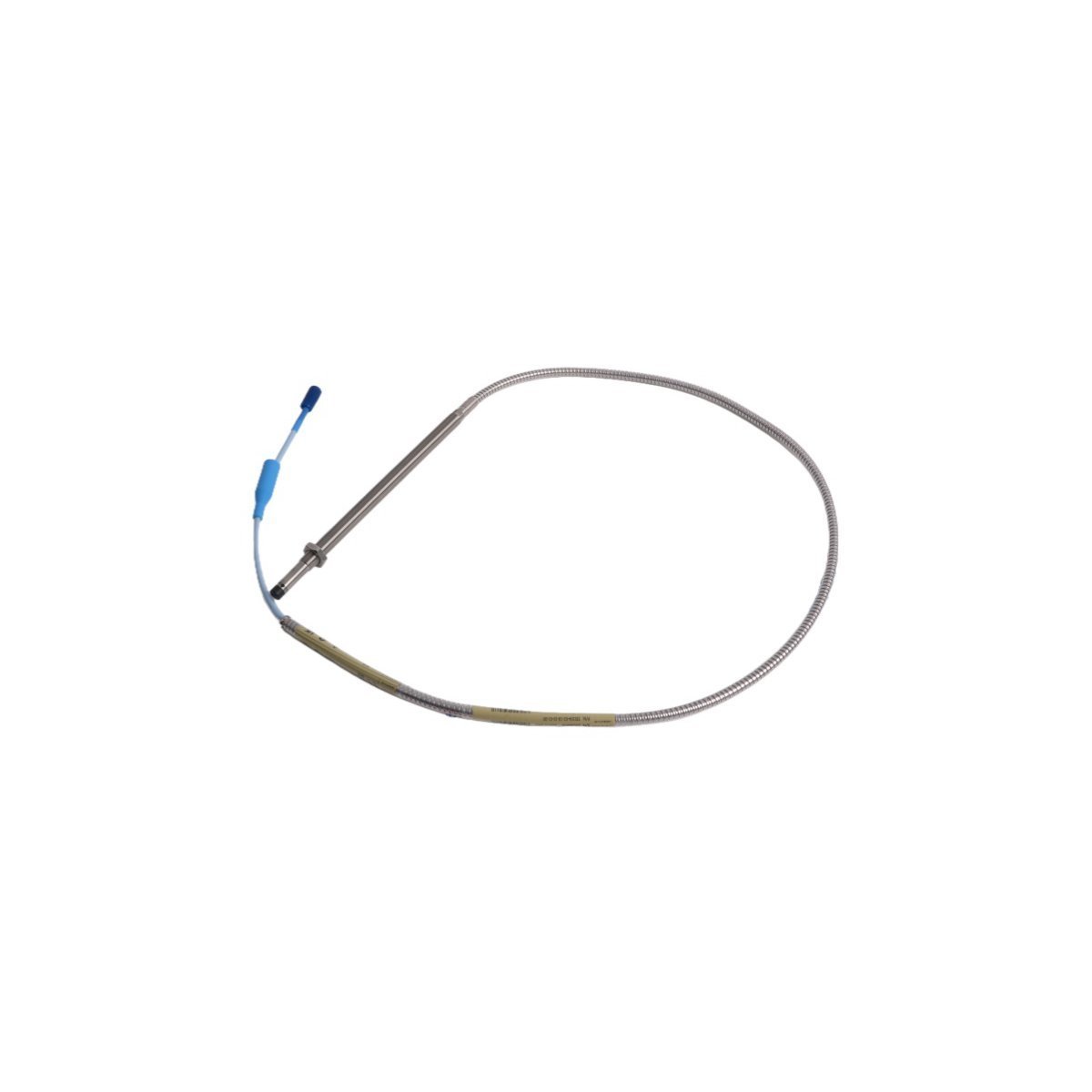

Bently Nevada 330104-02-08-10-01-00 3300 XL 8 mm Proximity

The Bently Nevada 330104-02-08-10-01-00 is a 3300 XL 8mm proximity probe with M10x1 threads. This 1.0-meter sensor provides precision vibration monitoring for industrial machinery in hazardous areas.

Request a Quote

The Bently Nevada 330104-02-08-10-01-00 is a high-precision 8mm proximity probe. This sensor belongs to the industry-standard 3300 XL series. It measures vibration and position in critical rotating machinery. The probe converts the distance to a conductive target into a voltage signal. Furthermore, this model features an M10 x 1 metric thread. The rugged design ensures accurate data for machinery protection systems. Consequently, it supports proactive maintenance for turbines and compressors.

Engineering Features

The probe tip utilizes high-performance PPS plastic for superior chemical resistance. This encapsulation protects the internal coil from harsh industrial fluids. Moreover, the 3300 XL series offers full interchangeability with older 3300 components. This feature eliminates the need for complex system recalibration. The factory calibrates each unit for AISI 4140 steel targets by default. Additionally, the ClickLoc connector prevents accidental disconnection during operation. This ensures a stable signal path for critical monitoring tasks.

Industrial Implementation

Operators typically install this probe in fluid-film bearing housings. It effectively tracks radial vibration and axial thrust movements. The armored cable options provide extra protection in high-stress zones. Furthermore, the 1.0-meter length allows for flexible routing to Proximitor sensors. The probe functions reliably in explosive atmospheres and hazardous locations. This compliance meets strict global safety requirements for oil and gas facilities. As a result, the 330104-02 minimizes unplanned downtime in heavy industry.

Technical Specifications

ParameterSpecification Detail
BrandBently Nevada
Model Number330104-02-08-10-01-00
Tip Diameter8 mm
Thread SizeM10 x 1 (Metric)
Unthreaded Length20 mm
Case Length80 mm
Total Length1.0 Meter
Connector TypeMiniature Coaxial ClickLoc
Weight0.06 kg
CertificationsCSA, ATEX, IECEx
