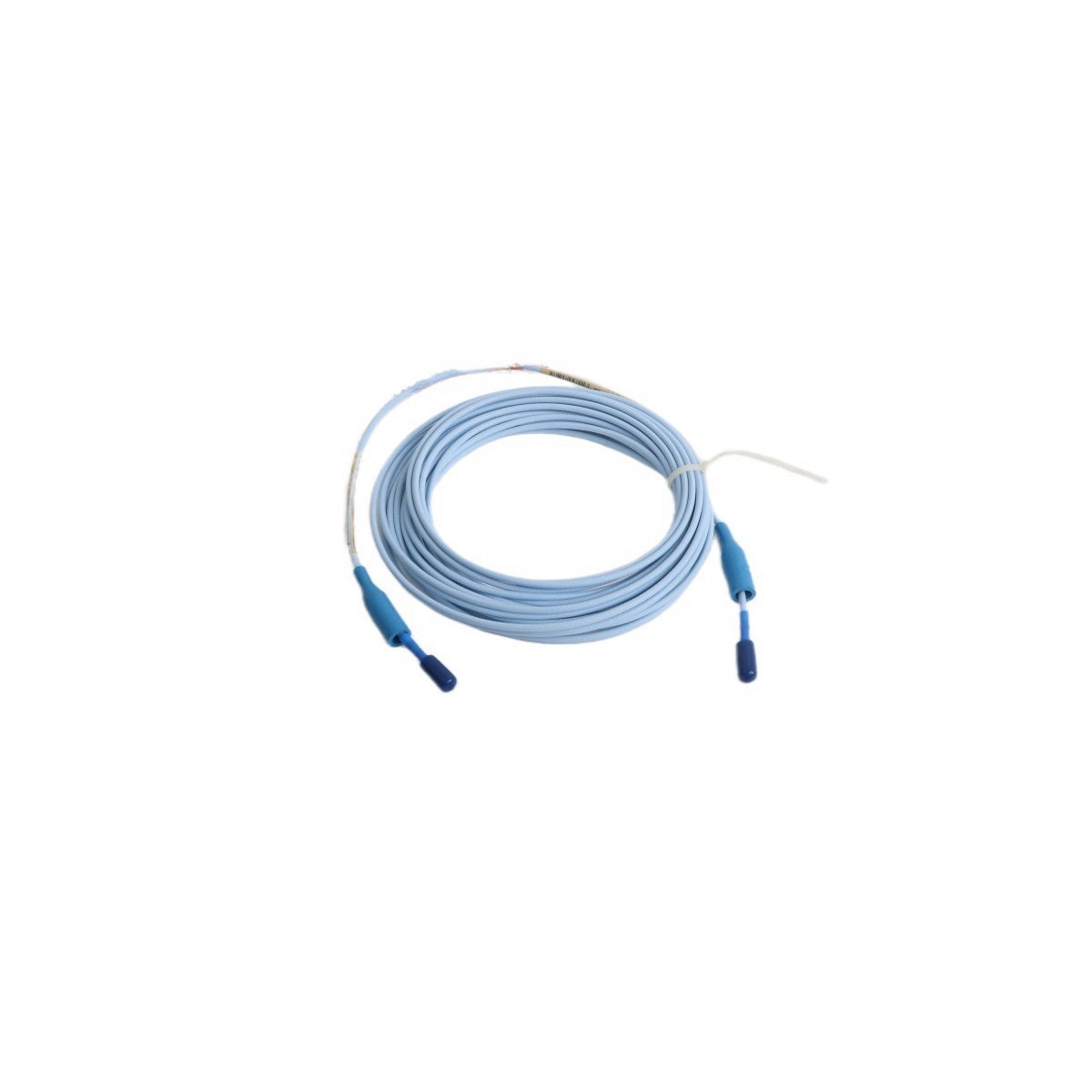

The Bently Nevada 330130-080-02-05 is an 8.0-meter 3300 XL extension cable featuring ClickLoc connectors and a connector protector. Certified for hazardous areas (ATEX/IECEx), it provides high-integrity signal transmission for proximity probes in temperatures up to +177°C.
The Bently Nevada 330130-080-02-05 drives superior signal integrity within the 3300 XL Proximity Transducer System. This 8.0-meter extension cable bridges the critical gap between proximity probes and Proximitor sensors, protecting the high-frequency eddy current signals required for precise machinery diagnostics. By utilizing low-loss coaxial construction, the cable prevents signal degradation and electromagnetic interference (EMI) from compromising vibration data. This reliability ensures that the 3500 Monitoring System receives the accurate, real-time information necessary for automated machinery protection and early fault detection in high-speed rotating assets.
The 330130-080-02-05 empowers maintenance teams to monitor equipment in volatile and harsh industrial settings. The FEP jacket resists chemical corrosion, moisture ingress, and extreme thermal cycling, maintaining electrical stability even when exposed to lubricating oils or caustic process fluids. Furthermore, the 02 connector option includes a factory-installed connector protector, which seals the coaxial junction against environmental contaminants and prevents accidental grounding. This ruggedized design effectively minimizes unplanned downtime by eliminating common signal failure points in:
Technicians utilize the 330130-080-02-05 to complete a standard 9.0-meter measurement loop. The “ClickLoc” connectors feature a gold-plated, positive-lock mechanism that prevents accidental disconnection caused by high-frequency machinery vibration. To ensure peak measurement accuracy and a calibrated scale factor of 7.87 V/mm (200 mV/mil), the user must pair this 8.0-meter cable with a 1.0-meter proximity probe. The 05 agency approval option ensures that the entire sensor loop meets strict safety standards for explosive atmospheres, allowing for seamless integration into plant-wide safety-instrumented systems (SIS) and Turbine Supervisory Instrumentation (TSI).
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
