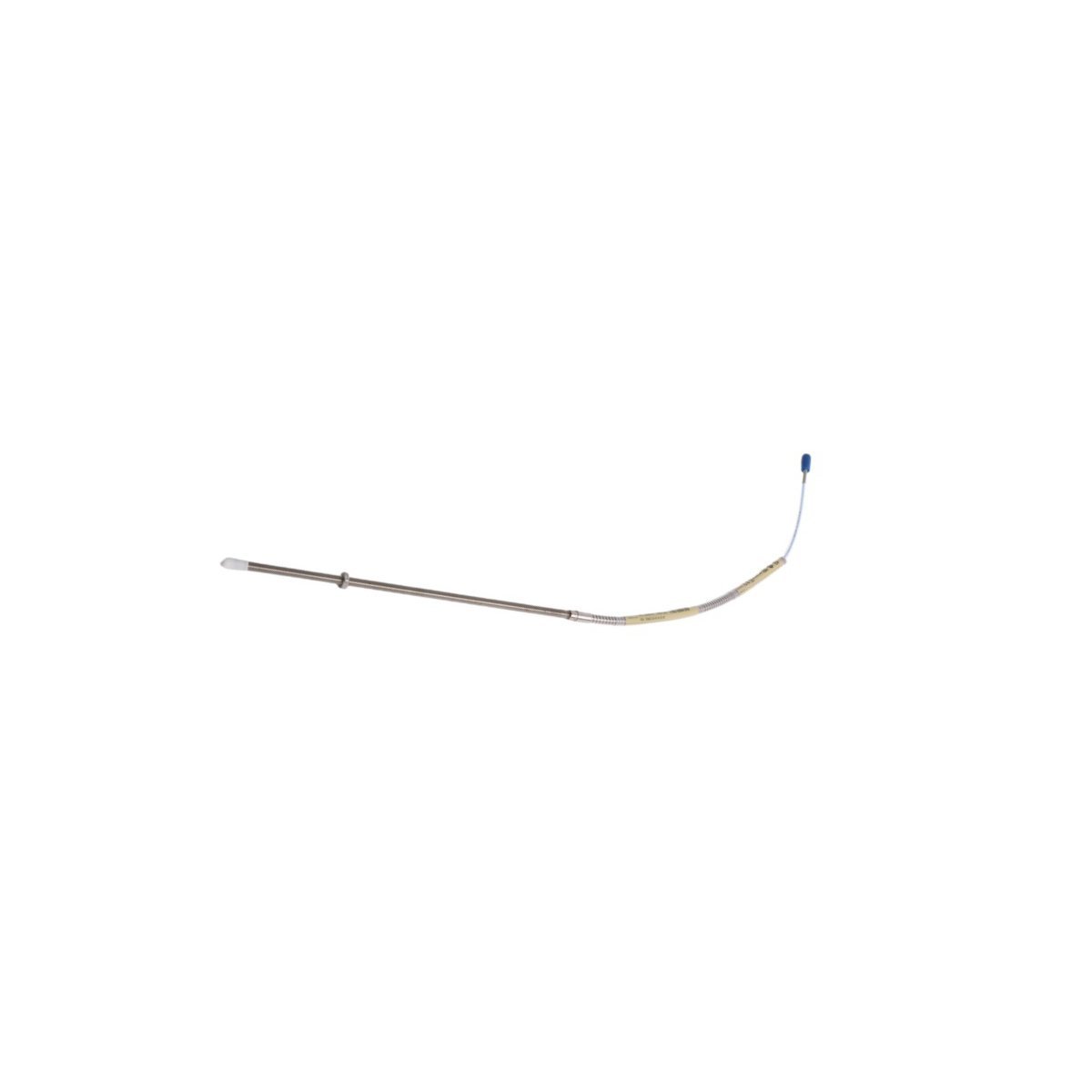

The Bently Nevada 330902-05-30-10-02-05 is an armored 3300 NSv proximity probe designed for tight spaces and small targets. It provides accurate vibration and position data for centrifugal compressors.
The Bently Nevada 330902-05-30-10-02-05 provides precision vibration sensing in extremely confined areas. This NSv series probe addresses specific installation challenges where standard 5mm or 8mm sensors cannot fit. It excels in applications involving tight counterbores or side-view restrictions. Consequently, this hardware ensures critical data collection from centrifugal air compressors and refrigeration units. The sensor maintains high accuracy despite the physical limitations of the machinery housing. Small target surfaces and narrow shaft diameters do not compromise its performance.
This transducer system serves multiple diagnostic functions for fluid-film bearing machines. It effectively measures radial vibration and axial thrust position with high repeatability. Additionally, the probe supports zero-speed detection and tachometer applications for process gas compressors. Because it handles Keyphasor signals, engineers use it for advanced rotor dynamics analysis. The design specifically targets shafts smaller than 51 mm in diameter. Furthermore, it accurately monitors flat axial targets as small as 15 mm. These capabilities make it an essential tool for comprehensive machinery protection.
The 330902-05-30-10-02-05 model features integrated stainless steel armor for maximum cable protection. This armored casing prevents lead wire damage in harsh industrial environments. The probe utilizes a 1/4-28 UNF thread with a 0.5-inch unthreaded length and 3.0-inch total case length. Each unit includes a 1.0-meter cable ending in a ClickLoc miniature coaxial connector. This connection type ensures a secure, vibration-resistant signal path to the Proximitor sensor. Therefore, the system delivers stable performance throughout its entire service life.
This American-manufactured probe integrates seamlessly with the 3300 XL NSv Proximitor sensor family. The 0.06 kg lightweight design simplifies installation in complex multi-sensor setups. Moreover, the hardware complies with international safety standards for hazardous area deployments. It remains a top choice for predictive maintenance programs in the oil and gas sector. The robust construction minimizes signal drift during long-term monitoring cycles. As a result, users benefit from reduced maintenance costs and improved machinery uptime.
| Category | Specification |
| Manufacturer | Bently Nevada |
| Model Number | 330902-05-30-10-02-05 |
| Probe Series | 3300 NSv (Narrow Side view) |
| Thread Type | 1/4-28 UNF |
| Unthreaded Length | 0.5 inches (approx. 13 mm) |
| Case Length | 3.0 inches (approx. 76 mm) |
| Total Cable Length | 1.0 Meter |
| Protection | Stainless Steel Armor |
| Mounting Application | Restricted Spaces / Small Targets |
The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330192-00-28-05-00 |
| Product Type | 3300 XL 8 mm ETR Proximity Probes |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Probe Tip Temperature Range | -34 °C to +260 °C (-30 °F to +500 °F) |
| Total Length | 0.5 meters (1.6 feet) |
| Case Length | 2.8 inches (71.1 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.
Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a
The Bently Nevada 330101-00-20-90-02-00 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330101-00-20-90-02-00 |
| Condition | Brand New |
| Warranty | 12 Months |
This Bently Nevada 330101-00-20-90-02-00 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.
Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.
Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
