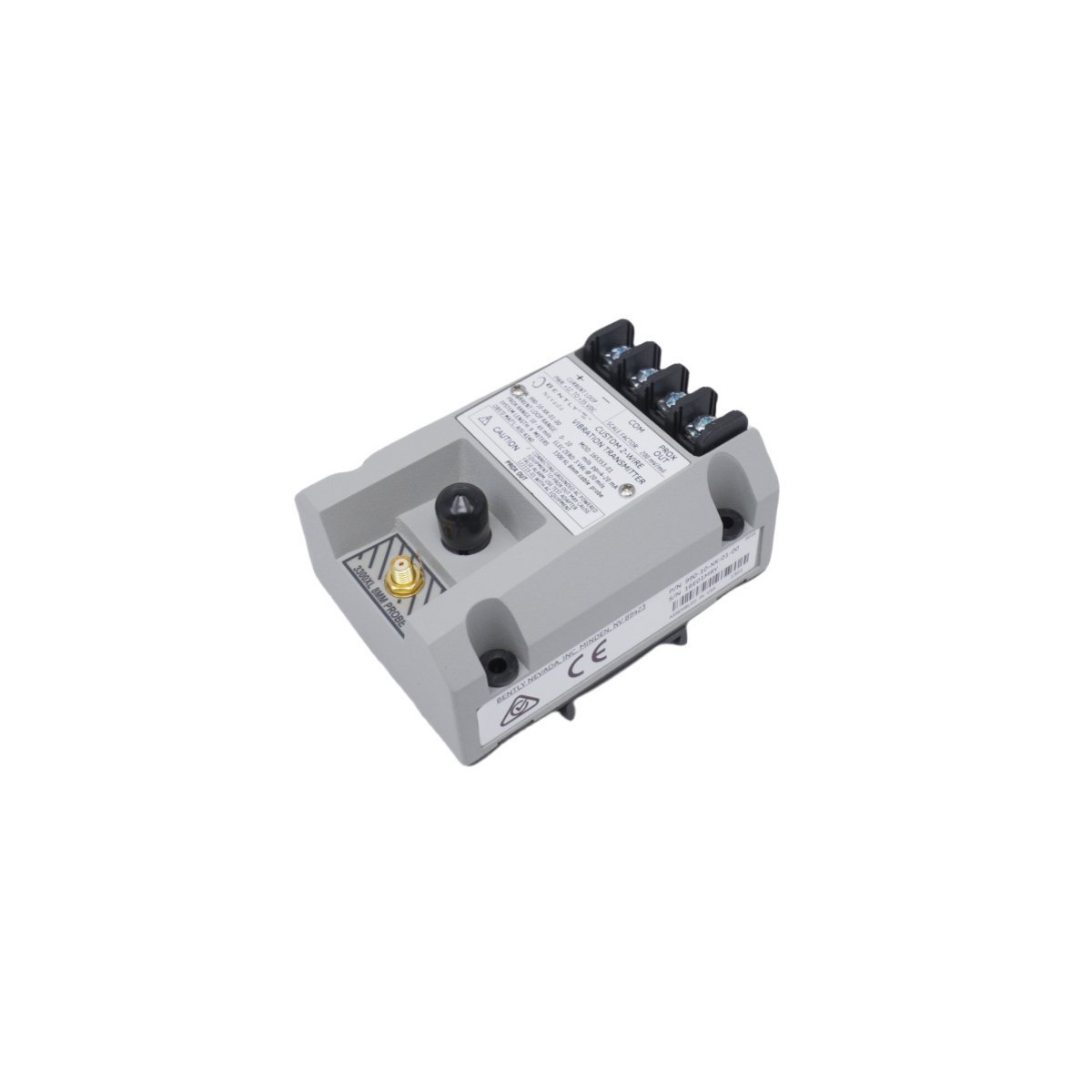

Bently Nevada 990-10-XX-01-00 165353-01 Vibration Transmitter

High-Performance Signal Conditioning and Integration

The Bently Nevada 990-10-XX-01-00 transforms complex eddy current signals into actionable industrial data. This loop-powered transmitter accepts raw input from 3300 XL 8mm proximity probes and generates a proportional 4-20 mA output. By bypassing the need for a central 3500 monitoring rack, the 990 series enables direct integration with Programmable Logic Controllers (PLC) and Distributed Control Systems (DCS). This streamlined architecture empowers operators to monitor radial vibration or axial thrust position on “balance of plant” assets with the same precision found in high-level Turbine Supervisory Instrumentation (TSI).

Critical Technical Specifications

• Brand: Bently Nevada
• Part Number: 990-10-XX-01-00
• ​Modification: MOD 165353-01
• Input Source: 3300 XL 8mm Proximity Transducer System
• Output Signal: 4-20 mA DC
• System Connectivity: Supports 5.0m or 9.0m total system lengths
• Supply Voltage: +12 to +35 Vdc
• Temperature Resilience: -35°C to +85°C
• Safety Integrity: “Not OK” status drops current < 3.6 mA for fault detection
• Hazardous Ratings: CSA, ATEX, and IECEx certified for volatile zones

Predictive Maintenance and Reliability Benefits

The 990-10-XX-01-00 drives predictive maintenance (PdM) strategies by delivering real-time asset health insights. The MOD 165353-01 designation signifies a specialized factory enhancement, typically engineered to improve signal integrity in high-interference environments or to match unique machinery scaling requirements. Furthermore, the transmitter’s current-loop output resists electromagnetic interference (EMI), ensuring accurate data transmission over long distances. This reliability makes the 990 series indispensable for protecting:

• Centrifugal and axial pumps
• Cooling tower fans and blowers
• Small steam turbines and electric motors
• Industrial gearboxes and compressors

Installation and Field Application

Maintenance teams install the 990-10 vibration transmitter on standard 35mm DIN rails or via bulkhead mounting, usually within a local junction box near the machine. This proximity to the sensor reduces the length of sensitive coaxial cabling, which significantly lowers the risk of signal degradation. The 4-20 mA loop architecture simplifies wiring by sharing power and signal on a single twisted-pair shielded cable. Consequently, this configuration reduces installation costs while providing a robust fail-safe: the control system instantly distinguishes between a machinery alarm and a sensor failure via the “Not OK” current drop.
