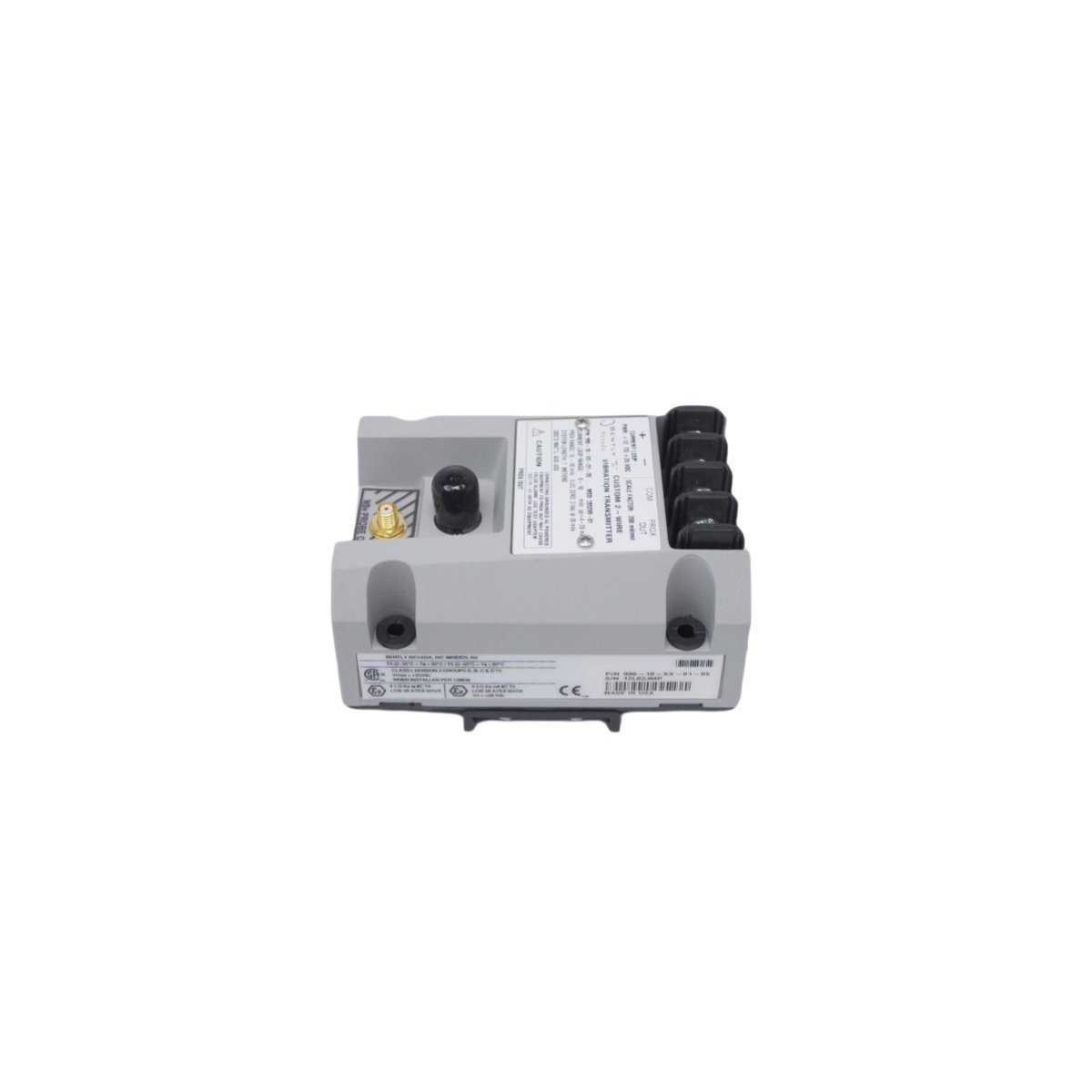

Bently Nevada 990-10-XX-01-05 285269-01 2-Wire Vibration Transmitter

Continuous Machinery Protection and 4-20 mA Integration

The Bently Nevada 990-10-XX-01-05 drives cost-effective machinery protection by converting proximity probe signals into a standard 4-20 mA industrial output. This 2-wire vibration transmitter enables direct integration with Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and SCADA systems without requiring a dedicated monitoring rack. The transmitter measures radial vibration or axial thrust position on rotating machinery, providing the real-time data needed for automated alarms and emergency shutdowns. By utilizing this compact solution, industrial facilities achieve continuous oversight of less critical or “balance of plant” assets that still require reliable vibration monitoring.

Critical Technical Specifications

• Brand: Bently Nevada
• Model Number: 990-10-XX-01-05
• Modification Number: MOD:285269-01
• Output Signal: 4-20 mA dc
• Input Compatibility: Standard 3300 XL 8mm proximity probe and extension cable
• Power Requirement: 12 to 35 Vdc
• Full-Scale Range: 0-5 mils, 0-10 mils, or 0-250 μm
• Agency Approvals: 05 Option
• Operating Temperature: -35°C to +85°C
• Mounting: 35mm DIN rail or bulkhead mounting options

Operational Reliability and Control System Efficiency

The 990-10-XX-01-05 transmitter maximizes machinery uptime by delivering stable, interference-resistant signals over long distances. The 2-wire, loop-powered design simplifies wiring architecture and reduces installation costs by eliminating the need for local power supplies at the machine. Furthermore, the MOD:285269-01 designation indicates a specialized configuration—often involving enhanced signal filtering or adjusted scale factors—to meet unique application requirements. This transmitter empowers maintenance teams to monitor:

• Industrial fans and blowers
• Centrifugal pumps and motors
• Small-to-medium reciprocating compressors
• Hydroelectric turbines and cooling tower gearboxes

Installation and Loop Configuration

Maintenance technicians install the 990-10 transmitter in a local weather-resistant housing or control cabinet near the machinery. To ensure peak measurement accuracy, the user must pair the transmitter with a matched 3300 XL 8mm probe and extension cable, typically resulting in a total system length of 5.0 or 9.0 meters. The transmitter includes a “Prox Out” BNC connector, which allows technicians to connect portable data collectors for advanced vibration analysis without breaking the 4-20 mA loop. This dual-functionality ensures both continuous protection through the control system and periodic deep-dive diagnostics for predictive maintenance (PdM) programs.
