Emerson MMS6823 Data Acquisition Module

Technical Overview

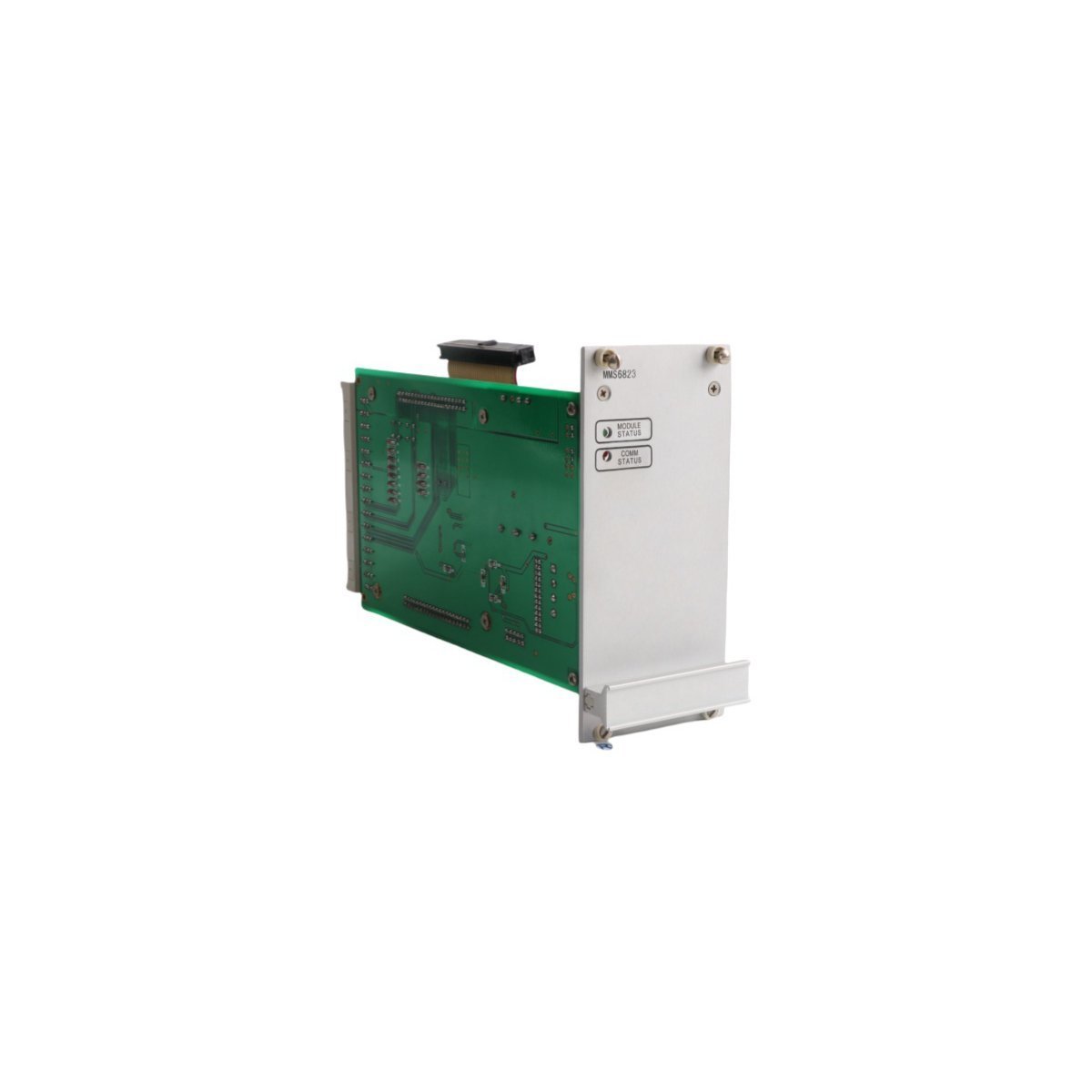

The Emerson MMS6823 serves as a core communication and data management unit within the epro MMS 6000 machine monitoring system. This module actively collects, processes, and distributes status information from various machine protection monitors installed in the system rack. By functioning as a central data acquisition hub, the MMS6823 converts internal proprietary signals into standardized formats suitable for higher-level analysis and archiving, ensuring that plant operators maintain a comprehensive view of rotating asset health.

Functional Capabilities and System Architecture

This data acquisition module manages the flow of real-time diagnostics between the local machine protection modules and the supervisory network. Because the MMS6823 features integrated communication interfaces, it facilitates the remote parameterization of all monitors within a single 19-inch rack. Furthermore, the unit incorporates internal memory and processing logic to handle the cyclic polling of vibration, position, and speed data without burdening the external control system.

To improve system reliability, the MMS6823 utilizes high-speed data buses to ensure that transient machine events are captured with high precision. Since the module belongs to the modular MMS 6000 family, it integrates seamlessly with interface cards like the MMS6831 to bridge the gap between field hardware and a central PC or Distributed Control System (DCS). Moreover, the module includes front-panel indicators that provide immediate visual confirmation of the data bus status and hardware health, which significantly streamlines the troubleshooting process for maintenance teams.

Key Technical Characteristics

• Manufacturer: Emerson (epro)
• Model Number: MMS6823
• Product Type: Central Data Acquisition and Communication Module
• System Platform: MMS 6000 Machine Monitoring System
• Slot Requirement: Dedicated slot within a 19-inch IMR system frame
• Communication Support: RS232, RS485, and internal system bus protocols
• Parameterization: Supports remote configuration via specialized epro software
• Physical Format: European standard card format
• Operational Goal: Centralized monitoring of vibration and protection data

Primary Applications

• Collecting real-time vibration data from steam and gas turbines for analysis.
• Managing centralized parameterization for multi-channel machinery protection systems.
• Interfacing epro MMS 6000 racks with plant-wide DCS and PLC networks.
• Synchronizing data acquisition for high-speed compressors and large pumps.
• Providing a diagnostic gateway for predictive maintenance and machinery health auditing.
