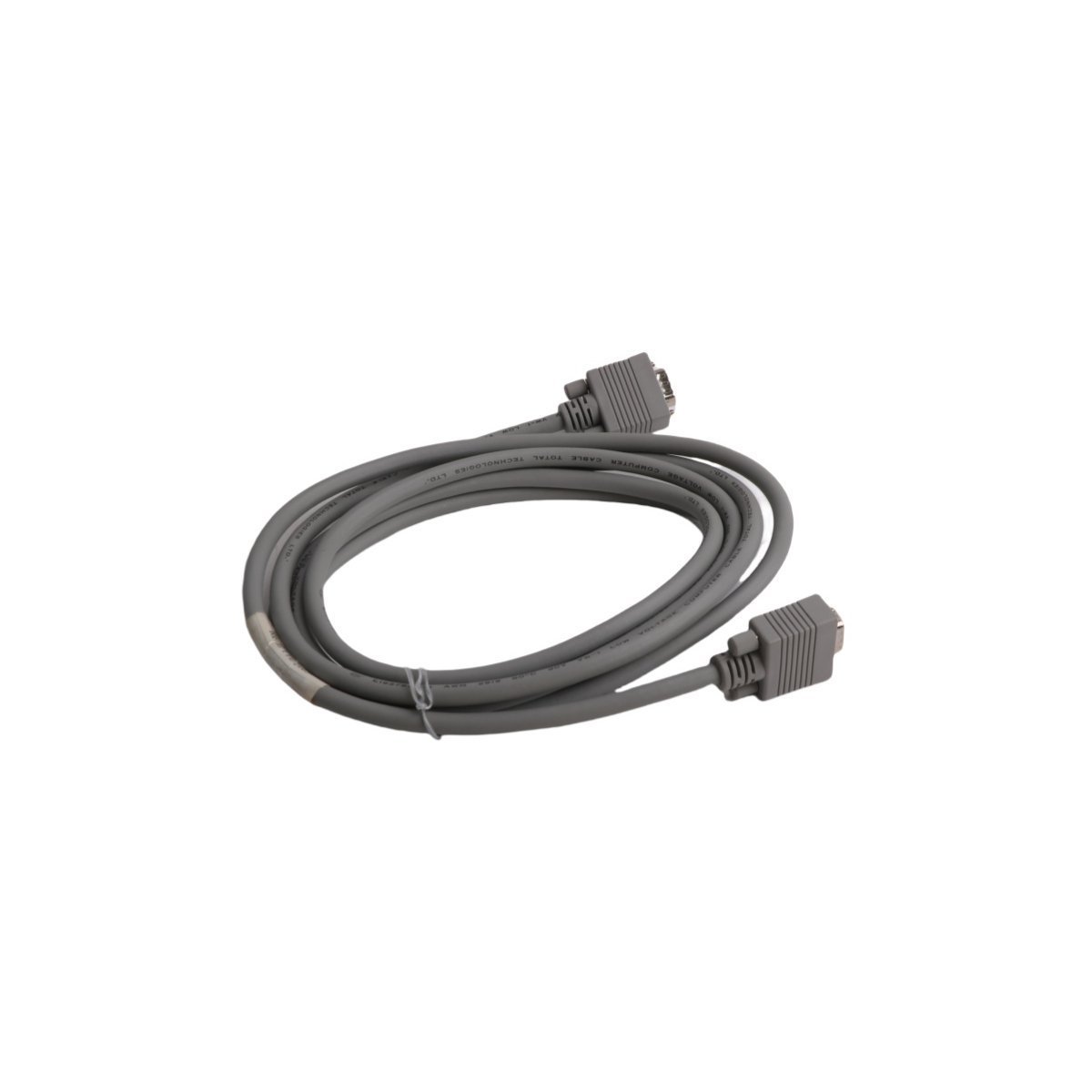

Honeywell 51196742-200 REV E Cable Cordset

The Honeywell 51196742-200, also cataloged as the 51196742-200 REV E Cable Cordset, operates as a dedicated hardware component for signal transmission and interconnection within Experion PKS DCS platforms.

Hardware Specifications

Process Instrumentation and Connectivity

In process control architectures, the 51196742-200 provides the physical layer for 4-20 mA HART loop protocol transmission. To begin with, the cable construction ensures channel-to-channel isolation by utilizing high-density shielding; consequently, this design effectively mitigates electromagnetic interference (EMI) and radio frequency interference (RFI) prevalent in industrial environments. Furthermore, the cable assembly is specifically engineered to maintain low impedance, which is, in fact, critical for consistent signal integrity over extended cable runs.

Moreover, within the Honeywell Experion PKS framework, this component serves as the vital link that facilitates the interface between field devices and I/O modules. As a result, the system ensures that process variables are communicated accurately without signal attenuation. Additionally, when considering signal stability, the implementation of such cabling serves to minimize loop noise, which is inherently beneficial for high-precision control. To conclude this technical overview, the robust nature of the connection ensures that data transmission remains synchronized with the controller’s scan cycle.

Frequently Asked Questions

Q: Can this cable cordset be used in hazardous area installations?

A: Installation in hazardous areas must strictly adhere to the control drawings and safety documentation provided by the system integrator. Ensure that the routing and termination comply with local electrical codes for intrinsic safety, if applicable.

Q: Is this cable compatible with existing legacy Honeywell controller I/O racks?

A: The REV E designation indicates specific revisions; therefore, verify compatibility with the target I/O module revision level to ensure correct pin-out alignment and signal mapping.

Field Installation Guidelines

• Cable Routing: Maintain a minimum separation distance of 300 mm from high-voltage power lines and variable frequency drive cables to minimize induced noise.
• Bend Radius: Adhere to a minimum bend radius of 10 times the outer diameter of the cable to prevent internal conductor damage and impedance mismatch.
• Shield Termination: Connect the cable shield to the designated protective earth (PE) or instrumentation ground terminal at the cabinet entry point. Do not terminate the shield at both ends if it creates a ground loop path.
• Connector Seating: Verify that all connectors are fully seated and the retention mechanisms are engaged. Ensure the contact surfaces are free of moisture, oil, and particulates before coupling.
