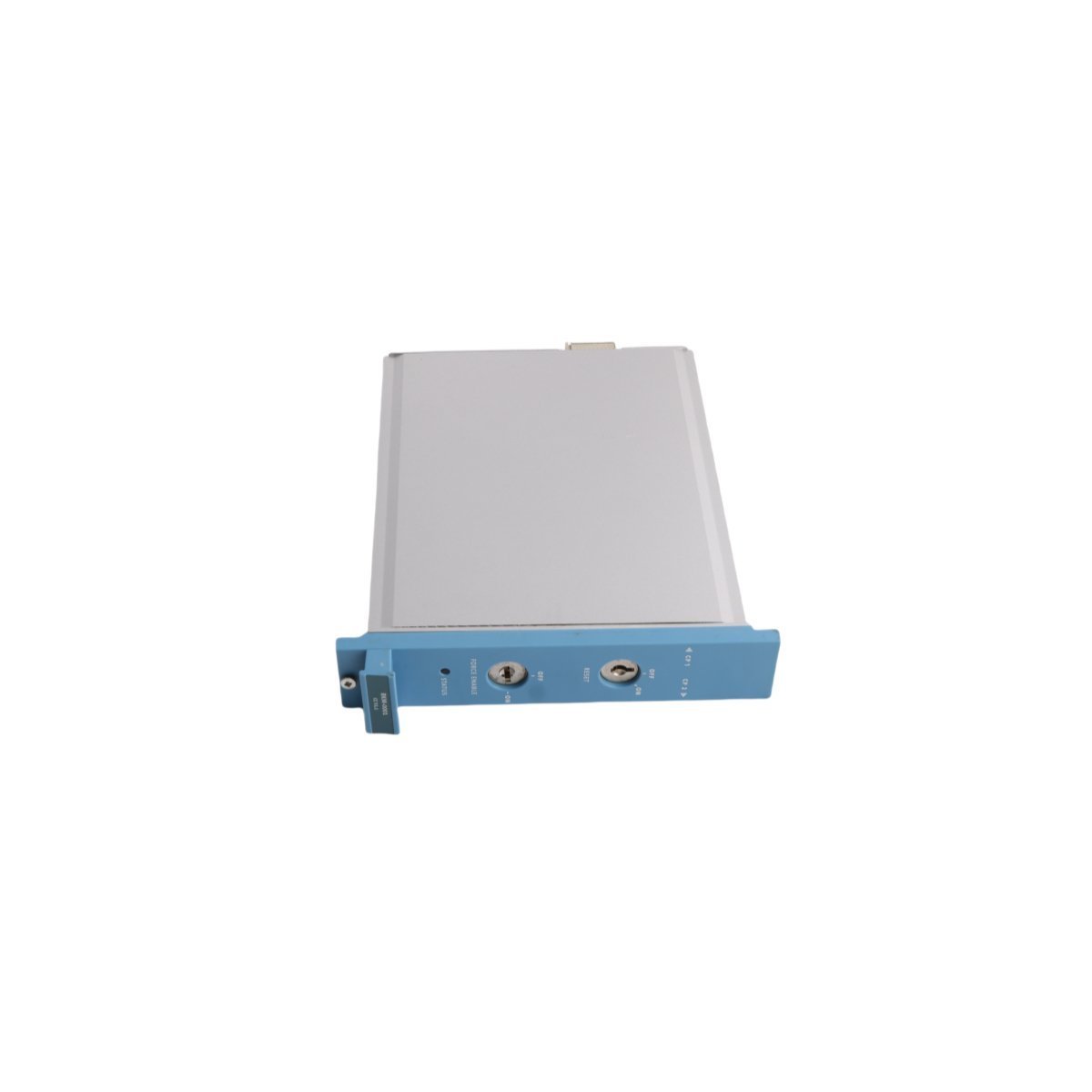

Honeywell FC-BKM-0001 Battery Switch Module

Technical Overview

The Honeywell FC-BKM-0001 operates as a specialized Battery Switch Module within the Safety Manager and Fail Safe Control (FSC) system architectures. This module serves as the primary management interface for the system’s backup battery supply, ensuring that the safety controller retains its application memory and internal clock settings during a complete loss of main power. Because it facilitates a seamless transition between primary power and battery backup, the FC-BKM-0001 remains a vital component for maintaining the safety integrity of SIL-rated industrial systems.

Operational Logic and Memory Protection

The FC-BKM-0001 manages the health and connectivity of the lithium battery packs used to energize the controller’s static RAM (SRAM). To ensure maximum system availability, the module continuously monitors the battery voltage levels and performs periodic load tests. If the module detects a low-voltage condition or a disconnected battery, it immediately triggers a system alarm. Furthermore, the unit incorporates protective circuitry that prevents the batteries from discharging unnecessarily when the main power is stable.

To further enhance diagnostic transparency, the FC-BKM-0001 features front-panel status indicators that allow maintenance personnel to verify battery health at a glance. Moreover, since the module supports redundant configurations within a dual-controller setup, it ensures that memory retention remains active even if one battery circuit fails. Consequently, the module allows for the “hot-swap” replacement of battery packs. In addition to its switching functions, the module utilizes ruggedized connectors to maintain high-integrity contact in high-vibration industrial environments. As a result, the FC-BKM-0001 provides the reliable energy management required to prevent data loss and ensure a rapid system reboot following a power outage.

Key Technical Characteristics

• Brand: Honeywell
• Model Number: FC-BKM-0001
• Product Series: Safety Manager / FSC
• Product Type: Battery Switch / Memory Backup Module
• Function: Battery monitoring and SRAM power switching
• Battery Compatibility: Specialized Lithium battery packs
• Diagnostic Indicators: LED status lights (Battery OK, Battery Low/Fault)
• Mounting: Standard Safety Manager I/O or Processor subrack
• Redundancy: Supported in redundant controller architectures
• Protection: Short-circuit and reverse polarity protection

Primary Applications

• Maintaining application logic memory in Honeywell Safety Manager systems.
• Powering internal real-time clocks (RTC) for accurate event logging.
• Providing backup power for configuration data in petrochemical safety racks.
• Safeguarding system parameters in offshore emergency shutdown (ESD) systems.
• Managing battery health for decentralized process safety controllers.
