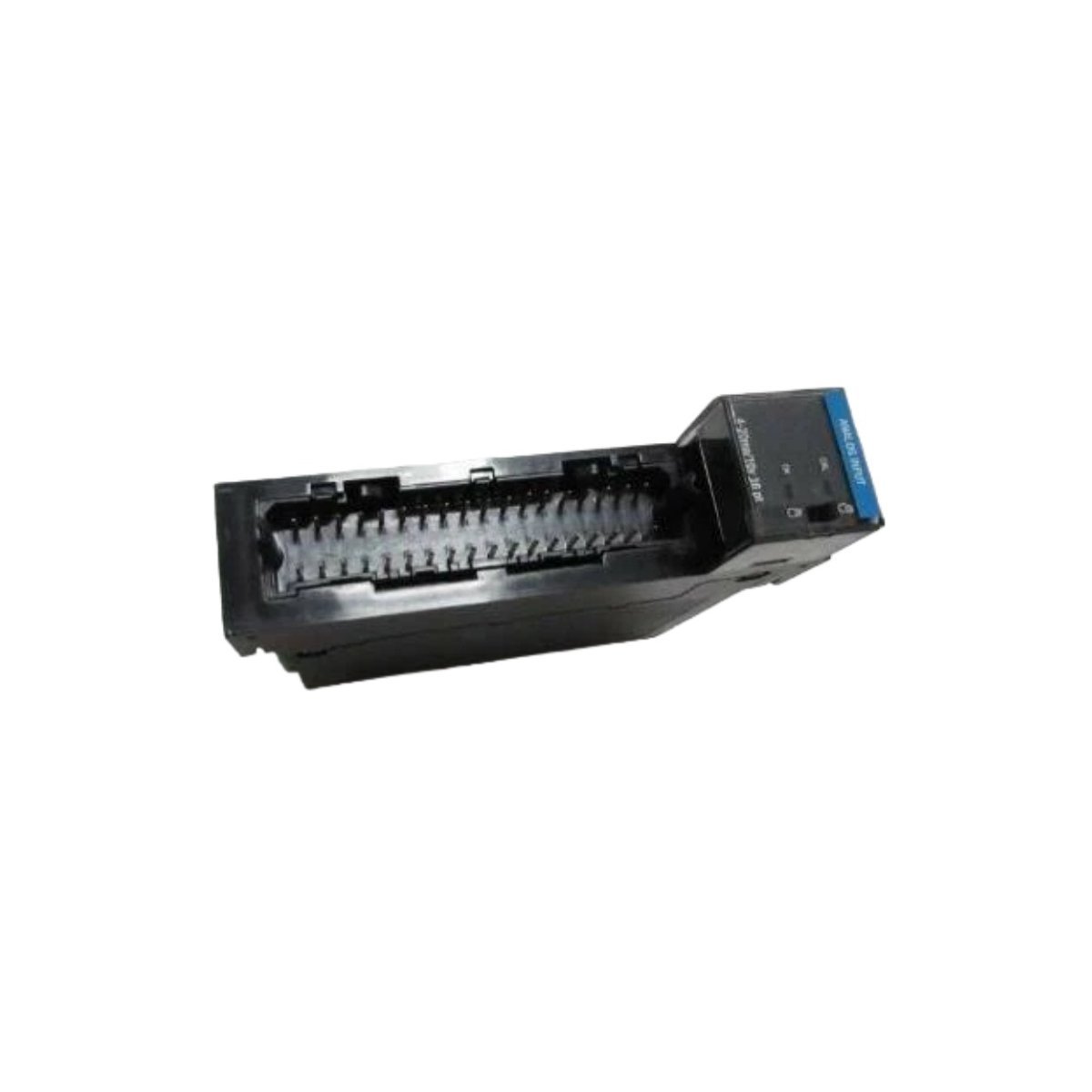

Honeywell TC-1AH161 High Level Analog Input Module

The Honeywell TC-1AH161 functions as a high-density interface for distributed control systems (DCS). This module specializes in high-level analog signal acquisition for industrial automation. It features 16 independent input channels to monitor various process variables. The unit effectively converts analog field signals into precise digital data. Consequently, operators receive accurate real-time information for critical decision-making. The TC-1AH161 supports a variety of sensor types across multiple industrial platforms. Its robust architecture ensures long-term stability in continuous processing environments.

Operational Performance and Design

Honeywell engineers this module to handle the rigors of heavy industrial interference. The TC-1AH161 utilizes advanced filtering technology to eliminate electrical noise. This ensures high-fidelity data transmission even over long cable runs. Furthermore, the module includes comprehensive galvanic isolation between channels. This feature prevents ground loops and protects the controller from field surges. The high-density design allows users to maximize cabinet space. Moreover, the unit maintains low power consumption during full-load operations. It remains reliable across an impressive temperature range of 125 degrees.

Application and Integration

The TC-1AH161 integrates seamlessly into the Honeywell Experion and TDC architectures. It primarily serves the oil, gas, and power generation sectors. Maintenance teams appreciate the module for its plug-and-play installation capabilities. Furthermore, the onboard diagnostics provide immediate feedback on channel health. This reduces troubleshooting time during unplanned plant outages. The module housing provides excellent protection against dust and atmospheric moisture. As a result, the TC-1AH161 offers a future-proof solution for complex signal processing. It continues to set the standard for high-level analog acquisition.

Technical Specifications
