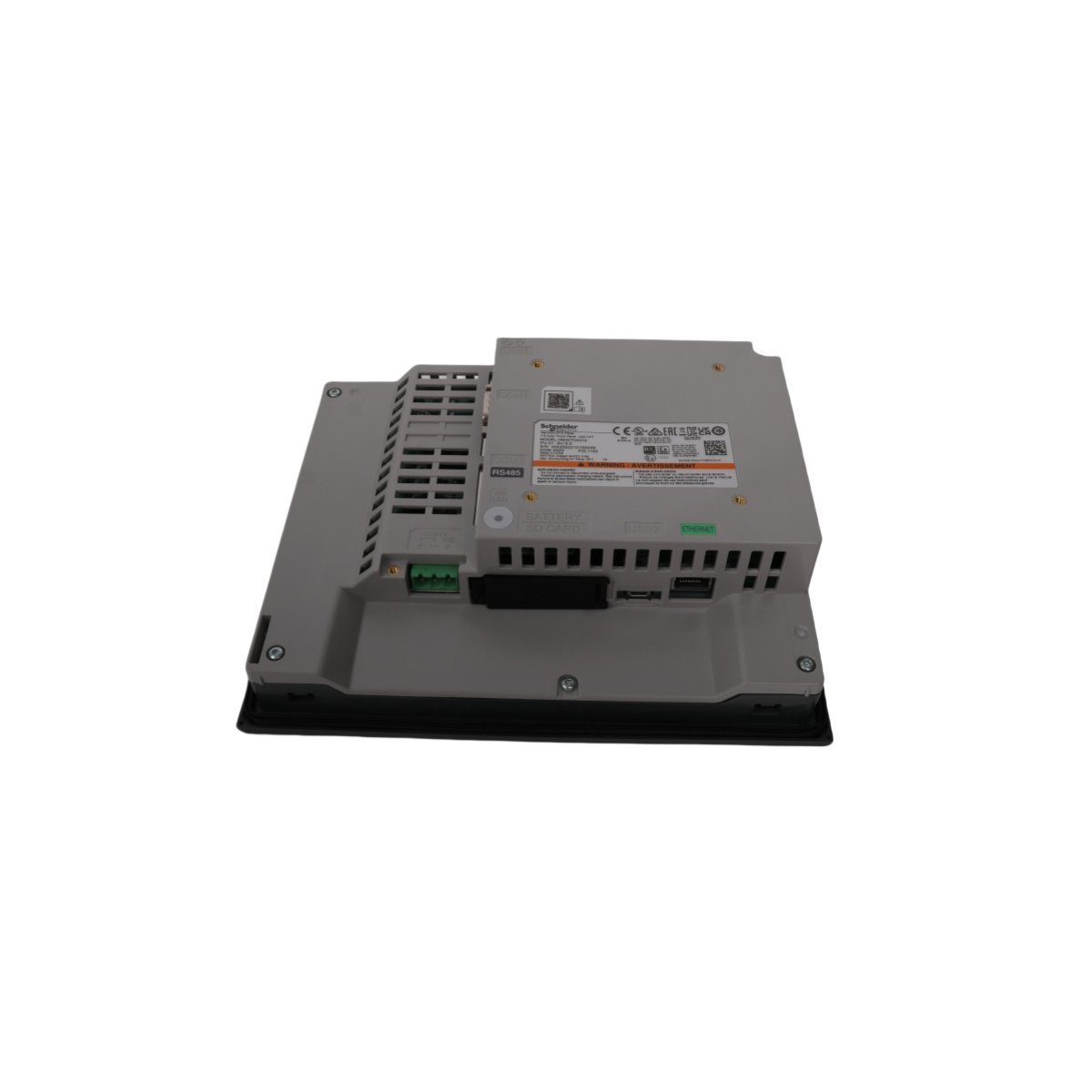

Schneider Electric HMIGTO4310 Magelis GTO Touch Panel

Functional Overview

The Schneider Electric HMIGTO4310 belongs to the Magelis GTO high-performance terminal range, specifically engineered to provide an advanced Human-Machine Interface (HMI) for complex industrial machinery. This unit features a 7.5-inch TFT color display that enables operators to monitor and control automated processes with high precision. By utilizing a resistive analog film, the screen supports versatile interaction even when operators wear industrial gloves, ensuring consistent performance in demanding factory environments.

Visual Performance and Display Characteristics

This HMI enhances data visibility through a high-resolution interface designed for clarity in various lighting conditions. Key display attributes include:

• Display Type: Backlit 65,536-color TFT LCD providing vibrant process visualization.
• Resolution: VGA 640 x 480 pixels, ensuring sharp text and detailed graphical objects.
• Brightness Control: 16 levels of adjustment via the touch panel to suit ambient light levels.
• Language Support: Multi-language font capability including ASCII, Cyrillic, Greek, and Chinese (Simplified and Traditional).

Connectivity and Communication Architecture

The HMIGTO4310 functions as a versatile communication hub, allowing it to interface simultaneously with various industrial controllers and peripheral devices. It integrates the following ports:

• Ethernet Port: 10BASE-T/100BASE-TX for high-speed network integration and remote monitoring.
• Serial Interfaces: Includes one RJ45 (RS232C/RS485) and one 9-pin male D-Sub (RS232C) for legacy PLC connections.
• USB Slots: Features one USB 2.0 Type A for data logging and one USB 2.0 Type Mini-B for programming.
• Storage Expansion: Built-in SD Card slot (supporting up to 32GB) for recipe management and log storage.

Application and Industrial Durability

Schneider Electric designed this module to withstand the rigors of heavy industrial sectors, including food and beverage processing, pharmaceutical manufacturing, and chemical plants. The front panel maintains an IP65 rating, which actively protects the internal electronics against dust and pressurized water jets. Moreover, the unit operates reliably in temperatures up to 55°C, making it suitable for hot processing zones or enclosed control cabinets.

Technical Specifications

• Rated Supply Voltage: 24 V DC
• Processor: RISC 600 MHz
• Memory: 96 MB Flash and 512 kB internal RAM (backed by battery)
• Enclosure Material: PBT (Polybutylene terephthalate) for chemical resistance
• Dimensions: 218 mm (W) x 173 mm (H) x 60 mm (D)
• Cut-out Dimensions: 209 mm x 164 mm
• Net Weight: 1.2 kg
