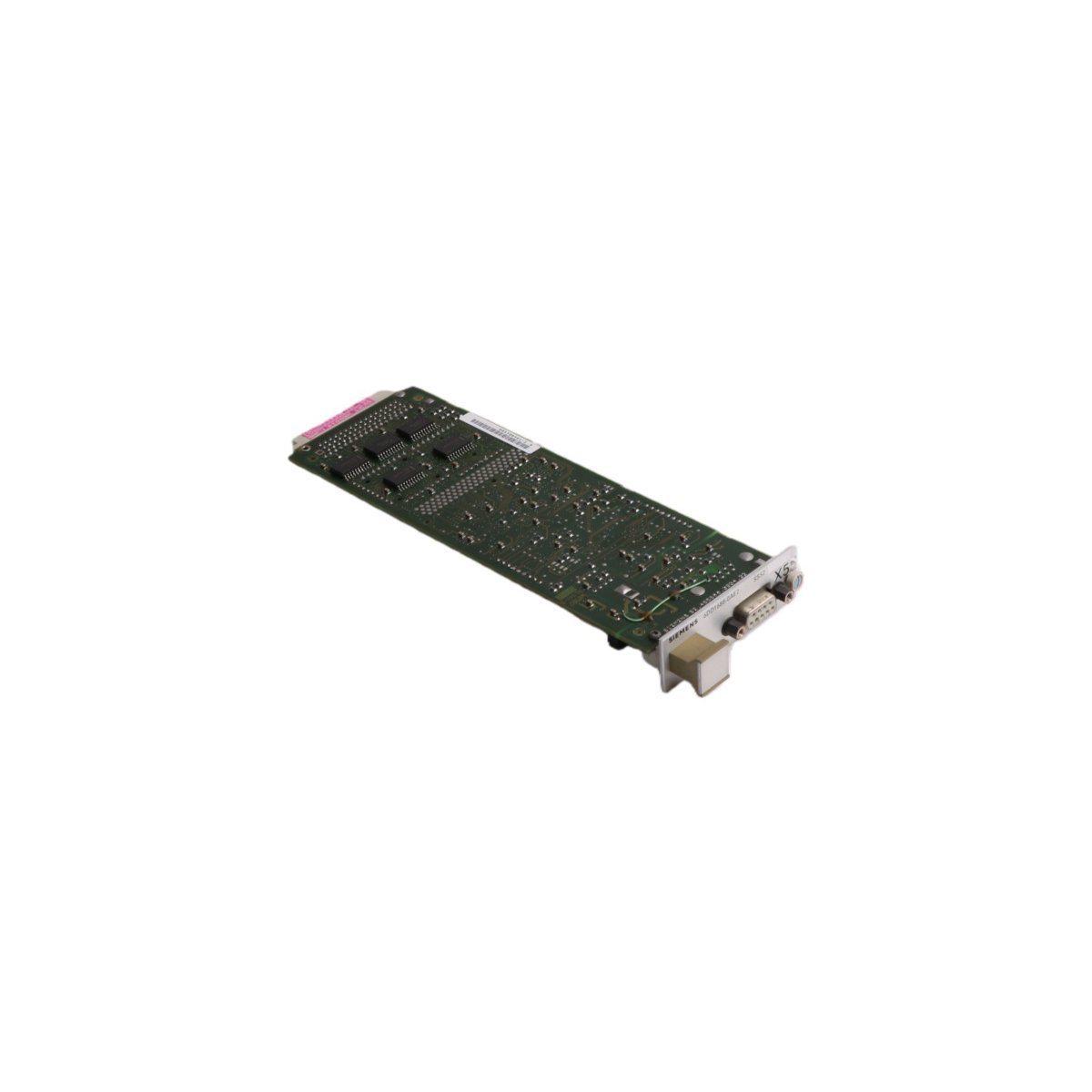

The Siemens 6DD1688-0AE2 is an SS52 master communication submodule for SIMADYN D. It provides an isolated PROFIBUS DP interface via the CS7 carrier module.
The Siemens 6DD1688-0AE2 serves as a specialized SS52 master interface for the SIMADYN D system. This communication submodule installs directly into the CS7 carrier board to expand networking capabilities. It primarily establishes a deterministic PROFIBUS DP connection for complex industrial environments. Consequently, the unit enables high-speed data flow between central processors and distributed field devices. This module remains essential for maintaining synchronized real-time control in sophisticated plant architectures.
Data exchange occurs through the 16 kbyte dual-port RAM on the parent CS7 module. This architectural choice ensures extremely low latency during intensive processing tasks. Furthermore, the X5 connector utilizes an RS-485 interface with full electrical isolation. This design protects the internal circuitry from external electrical noise and interference. Therefore, the module maintains signal integrity across long-distance cable runs in industrial settings. It effectively bridges the central control layer with the peripheral device network.
Industrial facilities often deploy this module for advanced drive automation and process control. The hardware supports flexible connection methods via SINEC L2 bus connectors or terminals. Users can configure internal terminating resistors to optimize signal quality across the network. Because of this adaptability, the module fits various bus topologies and system layouts. It provides the necessary master-level control for managing multiple PROFIBUS DP slaves. This reliability makes it a vital component for mission-critical automation infrastructure.
| Attribute | Specification |
| Model Number | 6DD1688-0AE2 |
| Interface Type | SS52 Master Interface |
| Protocol Support | PROFIBUS DP (SINEC L2) |
| Physical Layer | RS-485 Isolated |
| Carrier Module | Siemens CS7 Support Module |
| Memory Buffer | 16 kbyte Dual-Port RAM |
| Product Weight | 0.95 kg |
| Manufacturing | Germany |
The 6DD1688-0AE2 provides a robust solution for establishing powerful industrial networking. Its specialized engineering ensures precise coordination between automated system layers. By managing the PROFIBUS DP bus, it guarantees consistent performance for complex control loops. The module remains an indispensable asset for legacy SIMADYN D system maintenance and expansion. It continues to deliver the precision required for modern manufacturing and power generation sectors.
