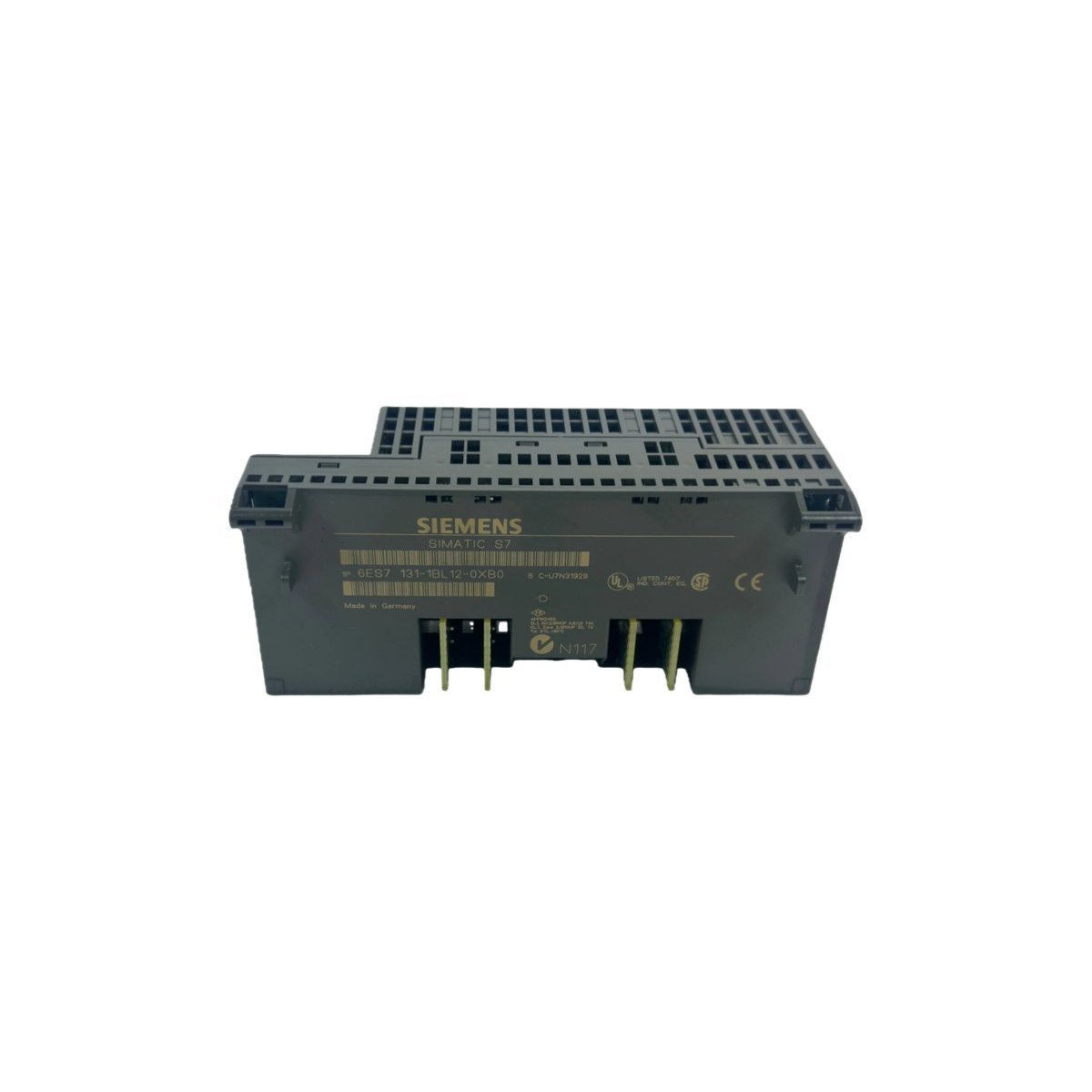

The Siemens 6ES7131-1BL12-0XB0 is a 32-channel digital input module for ET 200L distributed I/O systems. It features 24V DC operation, 12-bit precision, and modular expandability via SIMATIC SC. This electronic block offers a compact, reliable solution for PROFIBUS-DP industrial networks.
The Siemens 6ES7131-1BL12-0XB0 operates as a high-density digital input module for the ET 200L system. It specifically processes discrete signals from field sensors and switches. This electronic block bridges the gap between mechanical field devices and the PROFIBUS-DP network. Consequently, it provides real-time status updates to the central controller. The unit excels in decentralized configurations where space and wiring efficiency are paramount.
| Feature | Technical Data |
| Brand | Siemens |
| Order Number | 6ES7131-1BL12-0XB0 |
| Input Channels | 32 Digital Inputs |
| Rated Load Voltage | 24V DC |
| Input Voltage (Logic 1) | 13V to 30V DC |
| Input Voltage (Logic 0) | -30V to +5V DC |
| Current Consumption | 180 mA (from L+ supply) |
| Power Dissipation | 4.8W (Typical) |
| Voltage Buffering | 20 ms |
| Terminal Support | TB 32L Terminal Block |
This module features advanced circuitry to ensure continuous operation in harsh environments. For instance, built-in reverse polarity protection prevents damage from incorrect wiring. Additionally, the 20 ms buffering capability filters out brief power fluctuations. This ensures the PLC receives stable data even during transient electrical events. The module mounts easily on the TB 32L terminal block for rapid installation. Its compact form factor significantly reduces the required footprint in control cabinets.
A major benefit involves the modular expandability through the SIMATIC SC system. Users can increase the channel count by adding a TB 16SC Smart Connect block. This flexibility allows the system to grow alongside your production needs. Furthermore, the unit integrates seamlessly into existing PROFIBUS-DP architectures. It is an ideal solution for material handling and process plant automation. Engineers choose this component for its proven reliability and straightforward commissioning process.
