  4. TK-3E | Bently Nevada | Proximity Probe
Sale!
SKU: TK-3E 177313-02-02-00

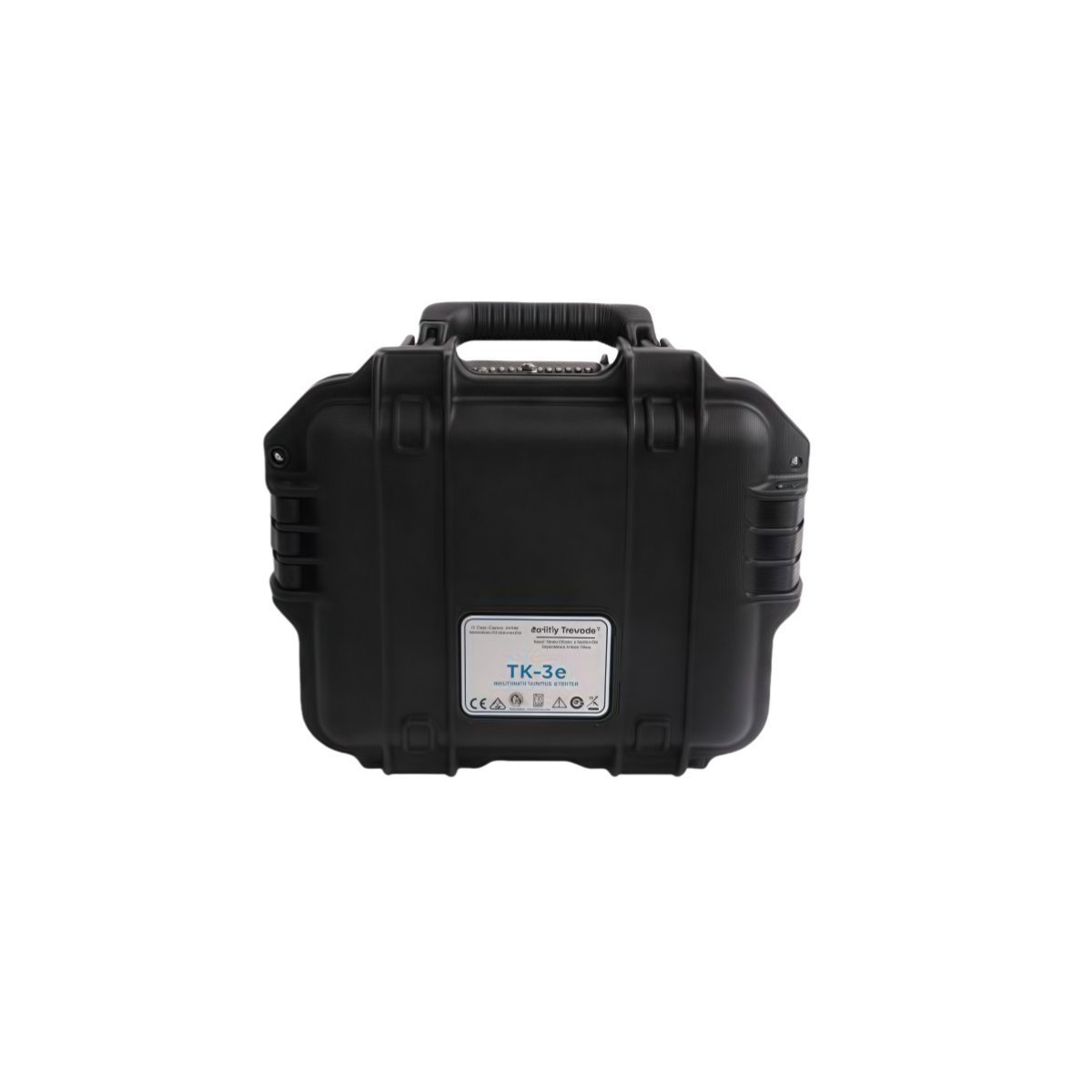

TK-3E | Bently Nevada | Proximity Probe

Request a Quote

TK-3E 177313-02-02-00 Product datasheet

Model number:

TK-3E 177313-02-02-00

Module Type：

Proximity System Test Kit

Manufacture:

Bently Nevada

Condition：

Brand New

Range of Product:

Bently Nevada

Lead time：

In Stock

Weight:

5.5 kg

HS CODE：

8537101190

Dimension:

30x25x20cm

MOQ:

1

Product Origin:

USA

System：

TSI

Discontinued on:

active

Communication Service:

Ethernet router

TK-3E 177313-02-02-00 Functional Description

TheBently Nevada TK-3E 177313-02-02-00 Proximity System Test Kit is a professional proximity system test kit designed for calibrating shaft vibration and position monitoring systems. This essential tool verifies the accuracy of Bently Nevada monitors and proximity transducer systems through precise mechanical simulations. The TK-3E 177313 Test Kit Bently Nevadafeatures a removable spindle micrometer assembly with universal probe mount, accommodating probes from 5mm to 19mm (0.197″-0.75″) for comprehensive field calibration.

Engineers rely on the Bently Nevada TK-3E 177313-02-02-00 for its motor-driven wobble plate, which generates controlled mechanical vibration (50-254μm/2-10 mils peak-to-peak) to test monitor responses. The kit’s magnetic base ensures stable positioning during calibration, while eliminating the need for oscilloscopes through DC voltage output measurements.

Key applications of the TK-3E 177313-02-02-00 TSI Moduleinclude troubleshooting and preventive maintenance of turbines, compressors, and pumps. Its swing-arm assembly maintains consistent probe alignment during vibration tests, enabling accurate comparison between mechanical inputs and monitor readings.

For critical machinery protection, the Bently Nevada TK-3E Proximity System Electric Driven Test Kit delivers API-compliant calibration, ensuring transducer systems meet ±5% accuracy standards. The kit’s rugged design and portable configuration make it indispensable for field service teams maintaining industrial monitoring systems.
