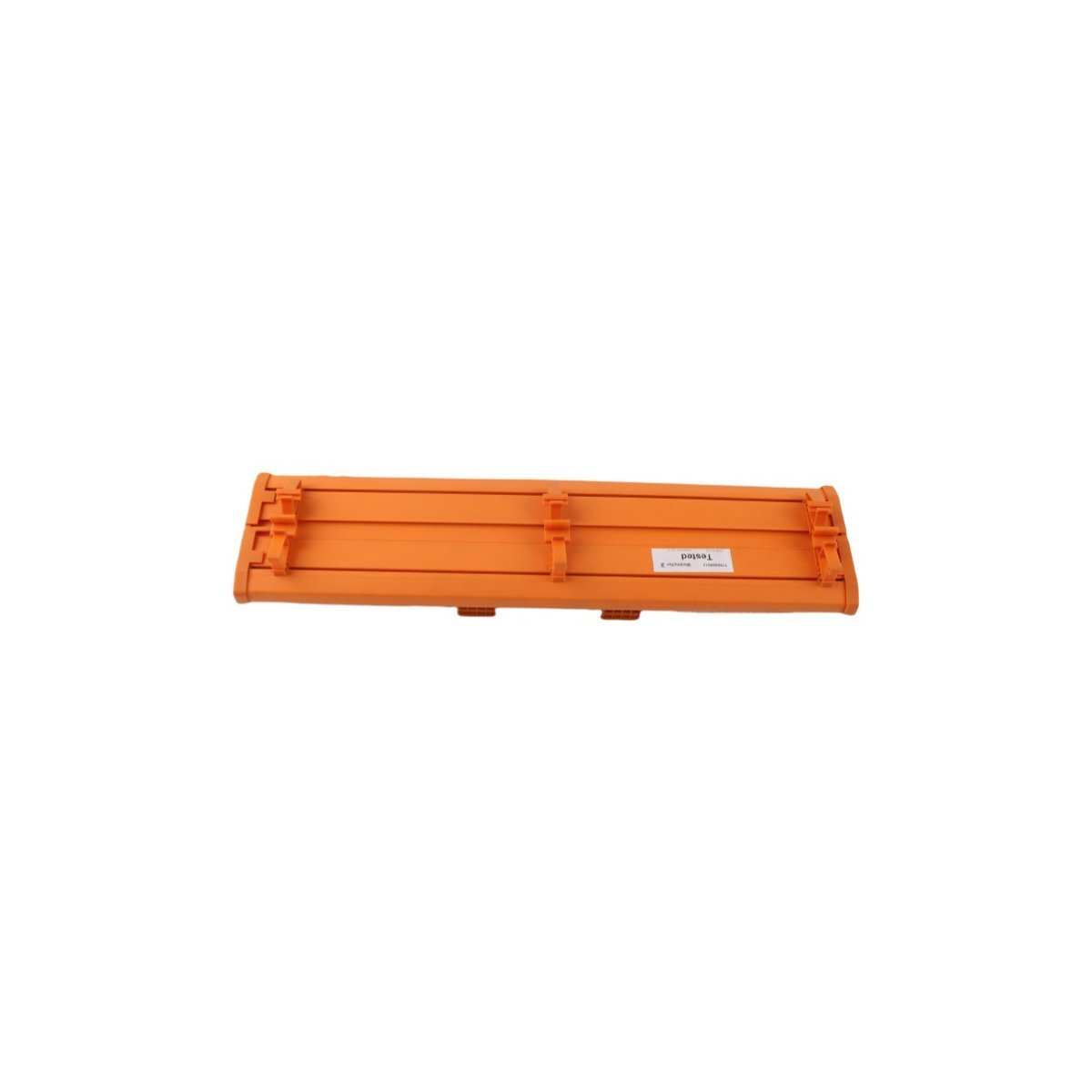

Triconex 9674-810 Terminal Board

The Triconex 9674-810 is a high-reliability External Termination Panel for Tricon v9 and v10 safety systems. Designed for rugged industrial environments, this terminal board facilitates secure field-to-control connectivity for digital output signals in SIL3-rated safety applications.

Request a Quote

Product Overview

The Triconex 9674-810 serves as a specialized External Termination Panel (ETP) for Tricon v9 and v10 Triple Modular Redundant (TMR) safety systems. Specifically, it acts as the physical bridge between field-level wiring and high-density I/O modules. This terminal board secures signal integrity in high-stakes safety instrumented systems (SIS) by providing an organized landing point for field cables.

Industrial Connectivity and Signal Management

The 9674-810 simplifies complex wiring while upholding the fault-tolerant standards of the Triconex architecture.

  • Facilitates Field Interfacing: This board connects field devices, such as solenoid valves or motor starters, directly to the Tricon system through heavy-duty terminal blocks.

  • Supports Digital Output Distribution: Primarily, it distributes commands from TMR modules to final control elements in the field.

  • Streamlines System Maintenance: Consequently, technicians can replace I/O modules in the main chassis without disturbing field wiring, which significantly reduces the risk of wiring errors.

Rugged Design and Environmental Resilience

Because industrial environments subject hardware to extreme stress, the 9674-810 utilizes a build that exceeds these challenges.

  • Endures Harsh Conditions: Furthermore, the board uses high-grade materials that resist corrosive atmospheres, high humidity, and extreme temperature fluctuations.

  • Provides Passive Protection: The design includes electrical isolation and protection features. As a result, these features prevent field-side surges from damaging the expensive TMR modules.

  • Ensures Reliable Data Flow: High-quality gold or silver-plated contact points transmit low-voltage control signals with minimal resistance and maximum clarity.

Primary Industrial Applications

The 9674-810 Terminal Board remains essential for large-scale safety configurations, including:

  • Oil and Gas Production: It manages emergency shutdown (ESD) valve clusters.

  • Petrochemical Plants: It interfaces with critical alarm systems and suppression equipment.

  • Power Distribution: It provides the termination point for high-reliability breaker control logic.

  • Marine and Offshore: It operates reliably in the salty, corrosive environments of drilling platforms.

Technical Specifications

  • Model Number: 9674-810

  • Manufacturer: Triconex (Schneider Electric)

  • Module Type: External Termination Panel (ETP) / Terminal Board

  • System Compatibility: Tricon v9–v10 Systems

  • Configuration: High-Density Digital Output Support

  • Weight: 1.42 kg

  • Dimensions: 43.2 cm x 10.7 cm x 9 cm
