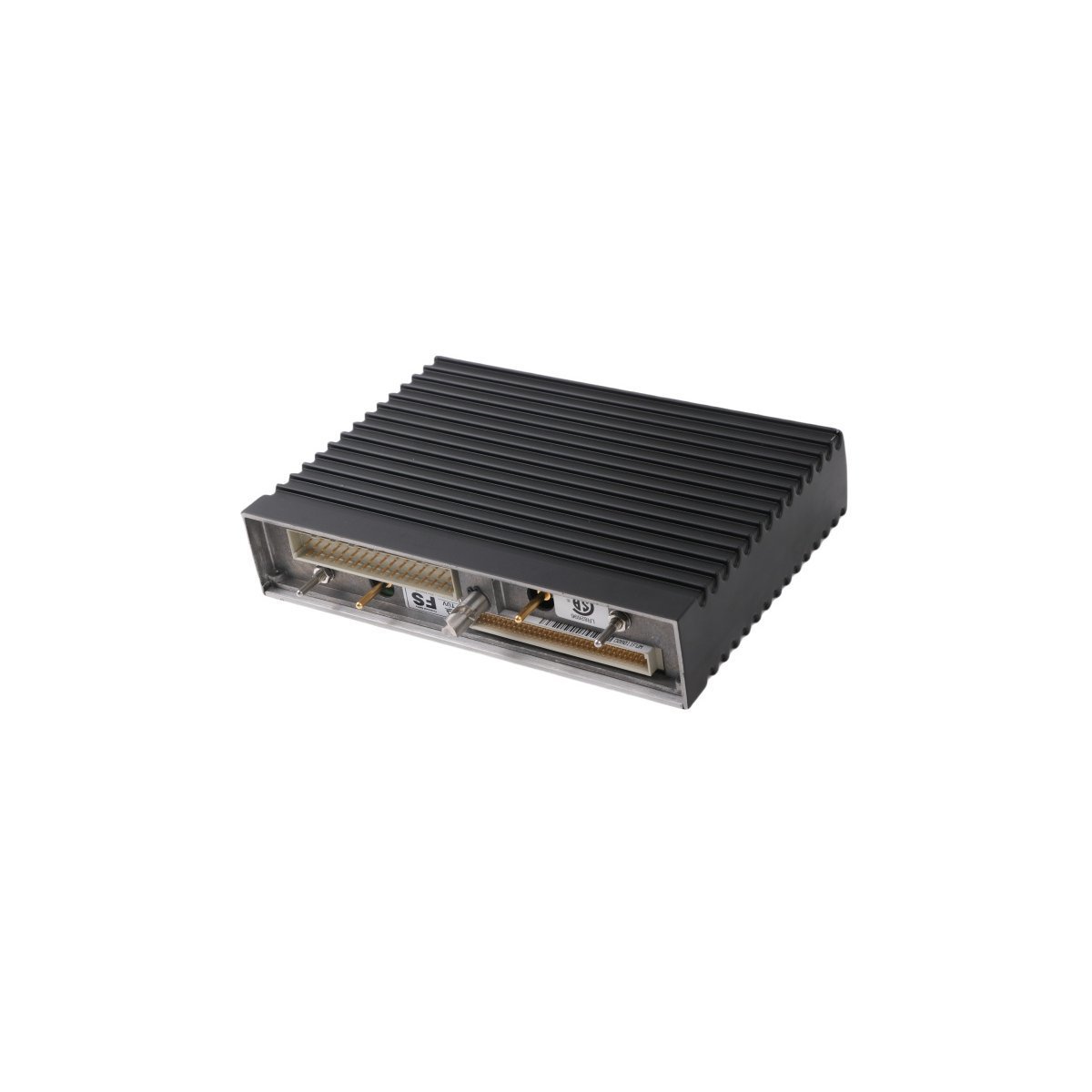

Triconex DI3301 Trident Digital Input Module

The Triconex DI3301 is a 32-channel Digital Input Module engineered for the Trident and Tricon safety systems. Featuring Triple Modular Redundant (TMR) architecture and support for 24V/48VDC inputs, this SIL 3-rated module provides the secure signal isolation and high-reliability data acquisition required for critical emergency shutdown and process safety environments.

Technical Overview

The Triconex DI3301 operates as a foundational safety interface within the Trident and Tricon CX control platforms. This module functions as a high-density data acquisition point, managing discrete signals from critical field instrumentation while providing a secure barrier between hazardous process zones and the logic controller. Because Triconex builds this unit with a Triple Modular Redundant (TMR) internal architecture, it ensures that every digital input state is processed across three isolated paths. Consequently, the system maintains absolute operational integrity by voting on signal states, which effectively eliminates the risk of a single point of failure causing a false trip or a failed safety demand.

Operational Logic and Safety Performance

The DI3301 manages up to 32 digital input channels, offering versatile voltage compatibility for both 24VDC and 48VDC field devices. To facilitate maximum process uptime, the module utilizes sophisticated opto-isolation technology to protect the internal system bus from external electrical transients. Furthermore, the unit incorporates comprehensive self-diagnostic routines that continuously verify the health of each input circuit. Moreover, since the module supports “hot-swappable” replacement, maintenance teams can install a new unit into an active chassis without interrupting the safety loop or de-energizing the controller.

In addition to its high-speed signal capture, the DI3301 features specialized input filtering that prevents contact bounce or electrical noise from triggering false logic states. Transitioning from raw field data to actionable safety logic, the module reports real-time diagnostics to the Trident processors, identifying faults such as field power loss or hardware discrepancies. To further enhance system flexibility, users can configure the channels to support diverse safety instrumented functions (SIF), ranging from emergency shutdown (ESD) to fire and gas (F&G) monitoring. As a result, the DI3301 delivers the extreme reliability and fault tolerance required to achieve SIL 3 certification in high-risk industrial environments.

Key Technical Characteristics

Brand: Triconex (Schneider Electric)
Model Number: DI3301
Product Series: Trident / Tricon
Module Type: Digital Input (DI) Module
Input Channels: 32 Channels
Nominal Voltages: 24VDC / 48VDC (Field-selectable)
Safety Rating: SIL 3 (IEC 61508)
Architecture: Triple Modular Redundant (TMR)
Physical Weight: 1.3 kg
Dimensions: 4.3 x 18.8 x 21.8 cm
Origin: USA
Compliance: TUV certified for safety-critical applications

Primary Applications

Monitoring emergency shutdown (ESD) pushbuttons and field limit switches.
Interfacing with discrete fire and gas (F&G) sensors in offshore platforms.
Managing burner management system (BMS) safety interlocks in power plants.
Providing fault-tolerant signal acquisition for chemical reactor protection.
Executing high-speed sequence of events (SOE) recording for post-fault analysis.
