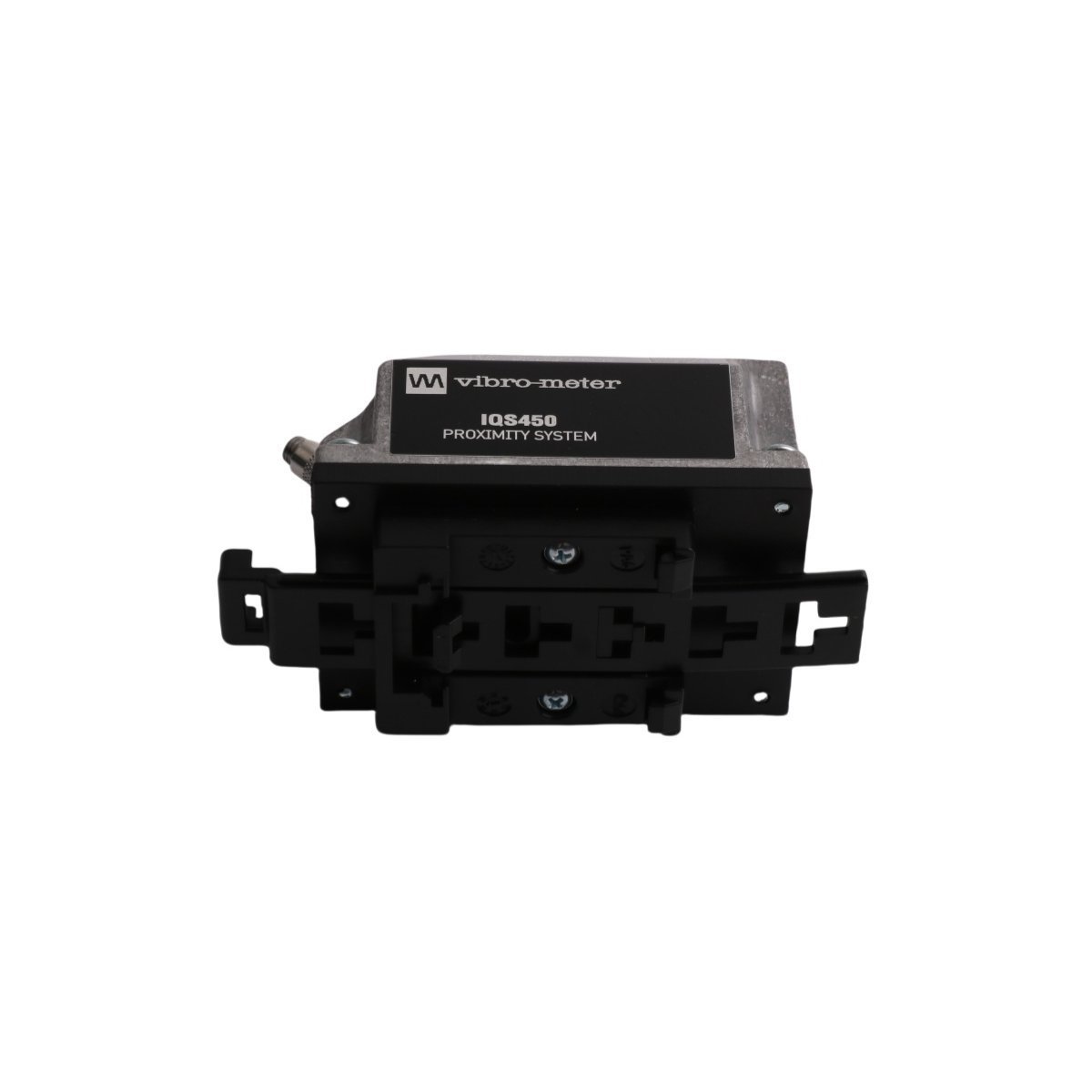

The Vibro-Meter IQS450 (204-450-000-002) is a precision signal conditioner for TQ4xx proximity sensors. Featuring high-frequency linearization, integrated diagnostics, and robust EMI shielding, this module converts displacement signals into stable outputs for critical vibration monitoring in turbine systems.
The Vibro-Meter IQS450 (part number 204-450-000-002) operates as a high-precision signal conditioner within the TQ4xx series proximity measurement system. This module serves the critical role of converting the high-frequency oscillation from a proximity transducer into a stable voltage or current output proportional to the gap between the sensor and the target. Because the IQS450 utilizes a high-frequency carrier signal, it can detect minute changes in displacement with sub-micron resolution. Furthermore, this signal conditioner provides the necessary excitation for the inductive sensor while simultaneously filtering and linearizing the return signal. Consequently, this unit is an indispensable component for monitoring shaft vibration and axial position in high-speed rotating machinery.
To ensure maximum reliability in machinery protection applications, the IQS450 incorporates sophisticated diagnostic functions that continuously supervise the measurement loop. The unit monitors the integrity of the connection to the TQ transducer and the EA extension cable, providing an immediate fault signal if an open or short circuit occurs. Moreover, the 204-450-000-002 variant is calibrated for specific system lengths—typically 5m or 10m—ensuring that the output remains linear across the entire measurement range. In addition to the primary monitoring output, the module features a raw signal output for diagnostic spectrum analysis. This proactive monitoring capability effectively prevents false trips while ensuring that the protection system remains ready to respond to real mechanical anomalies.
Meggitt (Vibro-Meter) has engineered the IQS450 to withstand the extreme electromagnetic and environmental challenges found in industrial power plants. The module is housed in a robust, compact aluminum enclosure that provides excellent shielding against electromagnetic interference (EMI) and radio frequency interference (RFI). Additionally, the unit supports versatile mounting options, including 35mm DIN-rail and base-plate installation, which simplifies the integration into existing control cabinets. Because the IQS450 is designed for high-availability environments, it supports long-distance signal transmission to remote monitoring racks like the VM600. As a result, this durability and flexibility make it a preferred solution for protecting critical assets such as gas turbines, steam turbines, and large centrifugal compressors.
