  4. 330101-00-27-50-02-00 | Bently Nevada | 3300 XL 8 mm Probe
Sale!
SKU: 330101-00-27-50-02-00

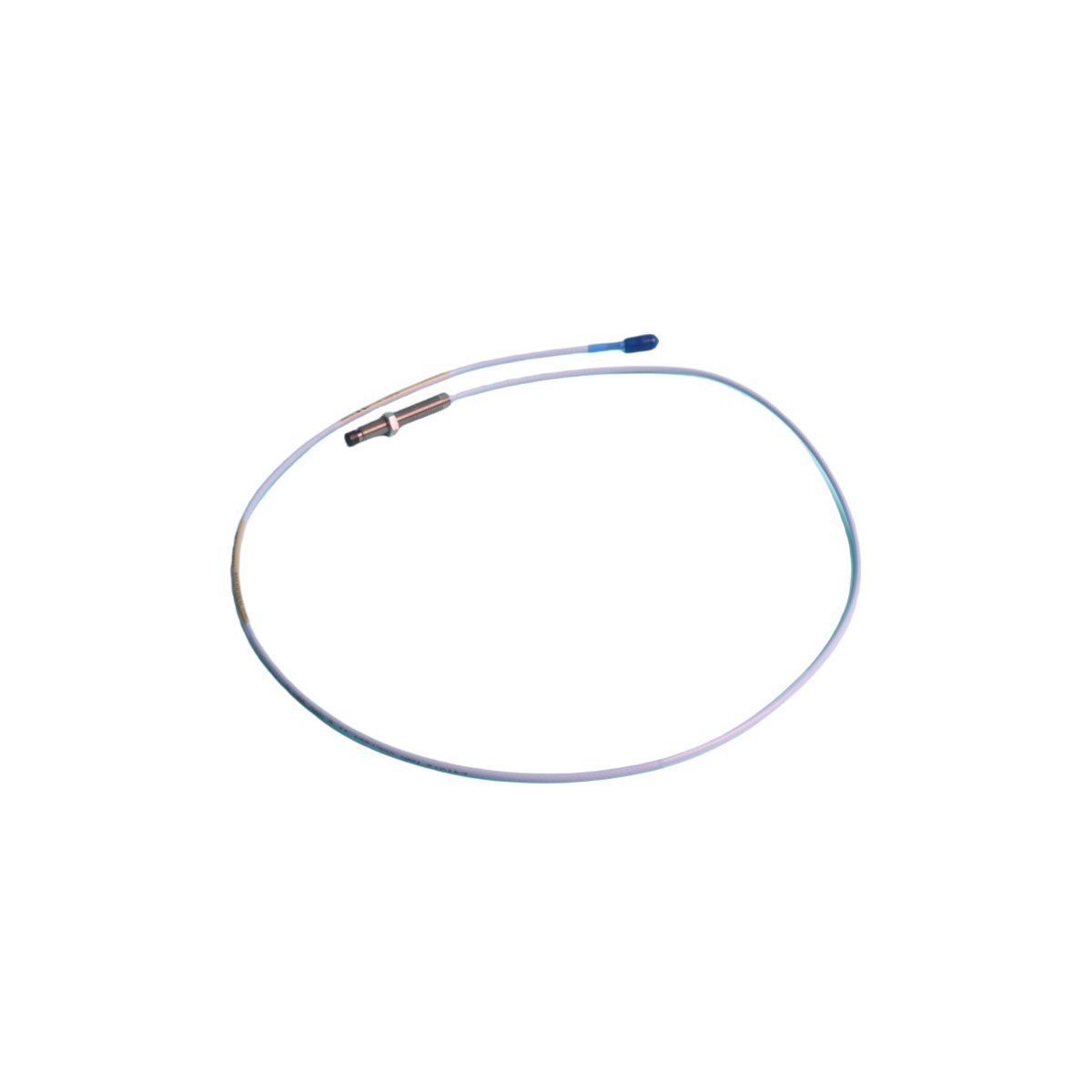

330101-00-27-50-02-00 | Bently Nevada | 3300 XL 8 mm Probe

Request a Quote

330101-00-27-50-02-00 Product datasheet

Model number:

330101-00-27-50-02-00

Module Type：

3300 XL 8 mm Probe

Manufacture:

Bently Nevada

Condition：

Brand New

Range of Product:

3300 Proximity Transducer System

Lead time：

In Stock

Weight:

0.55 kg

HS CODE：

8537101190

Dimension:

20.5×22.4×3.5cm

MOQ:

1

Product Origin:

USA

System：

TSI

Discontinued on:

active

Communication Service:

Ethernet router

330101-00-27-50-02-00 Functional Description

The 330101-00-27-50-02-00 Bently Nevada is a 5mm standard-mount proximity probe that forms a critical component of the 3300 XL transducer system. Designed for precision vibration and position monitoring, this probe features M8×1 threads and a 0.5-meter cable with gold-plated ClickLoc™ connector, ensuring secure installation in space-constrained applications. When paired with 3300 XL Proximitor Sensors and extension cables, the 3300 Proximity Transducer System 330101-00-27-50-02-00delivers output voltage proportional to target distance, enabling accurate measurement of both static position and dynamic vibration in rotating machinery.

As part of Bently Nevada’s enhanced transducer system, the 330101-00-27-50-02-00 3300 XL 8 mm Extended Temperature Range (ETR) Proximityincorporates patented TipLoc molding technology for superior probe tip-to-body bonding strength. Its compact 5mm diameter makes it ideal for installations where larger 8mm probes cannot fit, while maintaining the same side-view clearance requirements. The probe’s 50 lb (220N) pull strength (via CableLoc design) and API 670 compliance ensure reliable performance in demanding environments like fluid-film bearing machines, compressors, and turbines.

The Proximity Probe 330101-00-27-50-02-00offers complete interchangeability with other 3300 XL system components, eliminating need for bench calibration. For applications requiring fluid resistance, optional FluidLoc cable versions prevent oil migration through cable interiors. When integrated into the full transducer system (probe + XL extension cable + XL Proximitor), the Bently Nevada 330101-00-27-50-02-00 PDFprovides stable signal output across wide temperature ranges, making it suitable for Keyphasor and speed measurement applications.

With its robust construction and advanced features, the 330101-00-27-50-02-00 Proximity Probe Bently Nevadarepresents an optimal solution for machinery protection systems. Its gold-plated connectors and armored options (when specified) enhance durability in harsh industrial environments. For optimal performance, users should ensure proper connector protection and verify electrical length matching between all system components in critical vibration monitoring applications.
