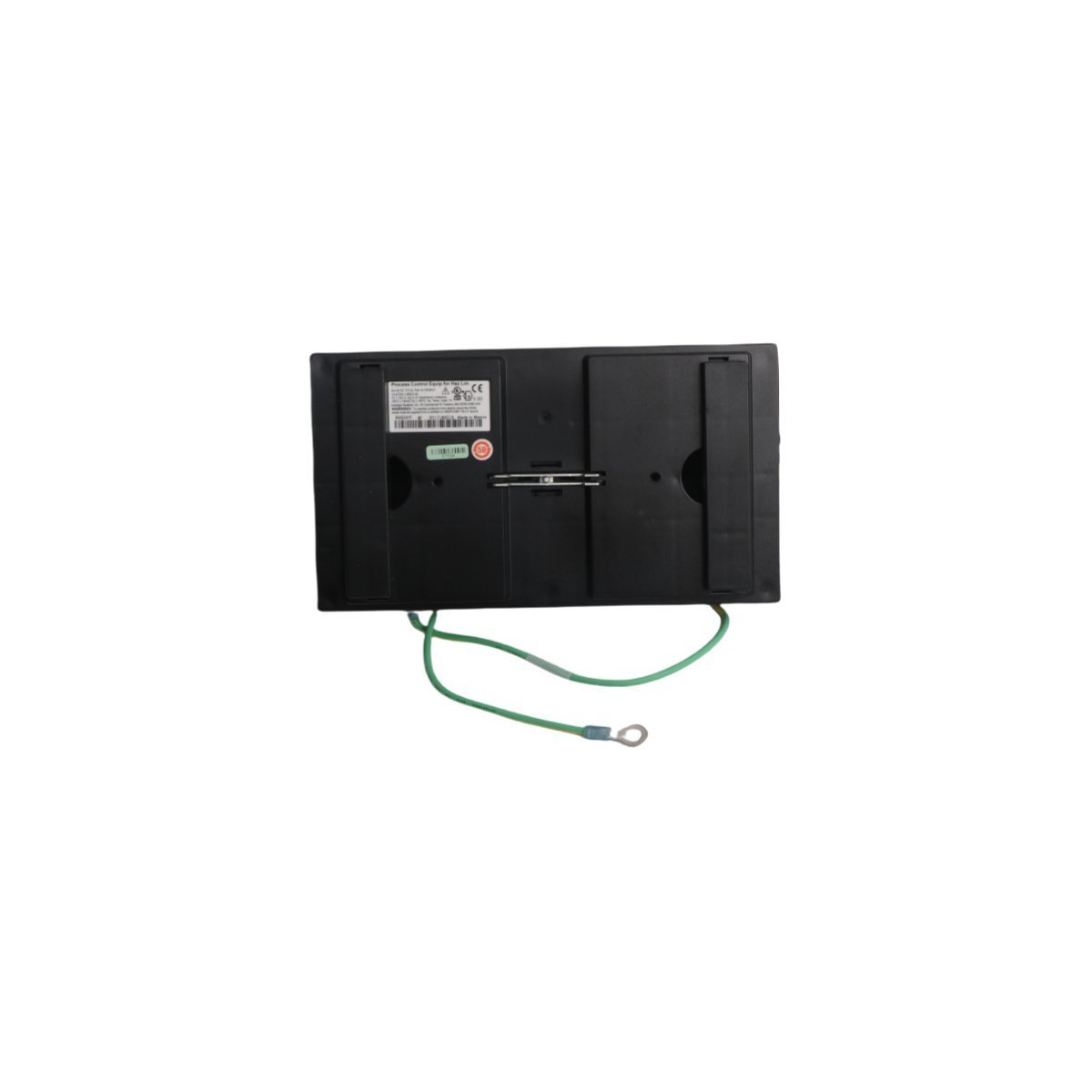

Foxboro RH924YF I/A Series FCP280 DIN-Rail Mounted Modular Baseplate

The Foxboro RH924YF serves as a high-density mounting foundation specifically engineered for the FCP280 Field Control Processor. This modular baseplate provides the critical physical and electrical infrastructure required to support the I/A Series and EcoStruxure Foxboro DCS hardware. By utilizing a rugged DIN-rail mounting design, the RH924YF ensures that control processors remain securely positioned while facilitating high-speed communication across the system’s internal bus.

Core Functional Capabilities

• Robust Mounting Foundation: Provides a stable mechanical platform that secures FCP280 modules against industrial vibrations and mechanical stress.
• Redundant Power Distribution: Features integrated circuitry to deliver reliable, redundant DC power to the mounted control processors.
• High-Speed Interconnectivity: Facilitates the high-speed HDLC and Ethernet connections necessary for real-time data exchange between the processor and I/O modules.
• Modular Expansion: Designed for seamless integration into DIN-rail rows, allowing for easy system scaling as facility requirements grow.
• Fieldbus Integration: Acts as the primary interface point for connecting fieldbus cables, ensuring organized and secure cable management.

Operational Advantages and Integration

The RH924YF is essential for modern control room architectures. Specifically, its compact footprint allows for maximum hardware density within standard industrial cabinets. Because it incorporates built-in termination for redundant networks, the baseplate eliminates the need for complex external wiring. Consequently, installation time is significantly reduced while system reliability is enhanced. Furthermore, the modular nature of the RH924YF means that technicians can replace or upgrade processors without disturbing the underlying baseplate wiring. As a result, maintenance teams can perform system updates with minimal impact on active process loops. Moreover, the baseplate’s design promotes natural convection, which assists in keeping the attached modules within safe thermal limits.

Technical Specifications Summary

• Manufacturer: Foxboro (Schneider Electric / Invensys)
• Model Number: RH924YF
• Equipment Type: Modular Baseplate
• Mounting Style: Standard 35mm DIN-rail
• Module Compatibility: Specifically designed for FCP280 processors
• Communication Support: Dual-redundant 100 Mbps HDLC / Ethernet
• Power Input: Dual 24V DC power feeds for redundancy
• Environmental Rating: Industrial grade for cabinet installation

Industrial Utility and Compliance

Due to its high-reliability design, the RH924YF is widely deployed in mission-critical environments such as oil refineries, offshore platforms, and nuclear power plants. In addition to its structural durability, the baseplate is certified to meet stringent international standards including CE and UL. Ultimately, the RH924YF provides the essential physical backbone required to maintain the continuous operation of complex distributed control systems.
