  4. Emerson EPRO PR6423/010-000 CON021 Eddy Current Signal Converter
Sale!
SKU: PR6423/010-000 CON021

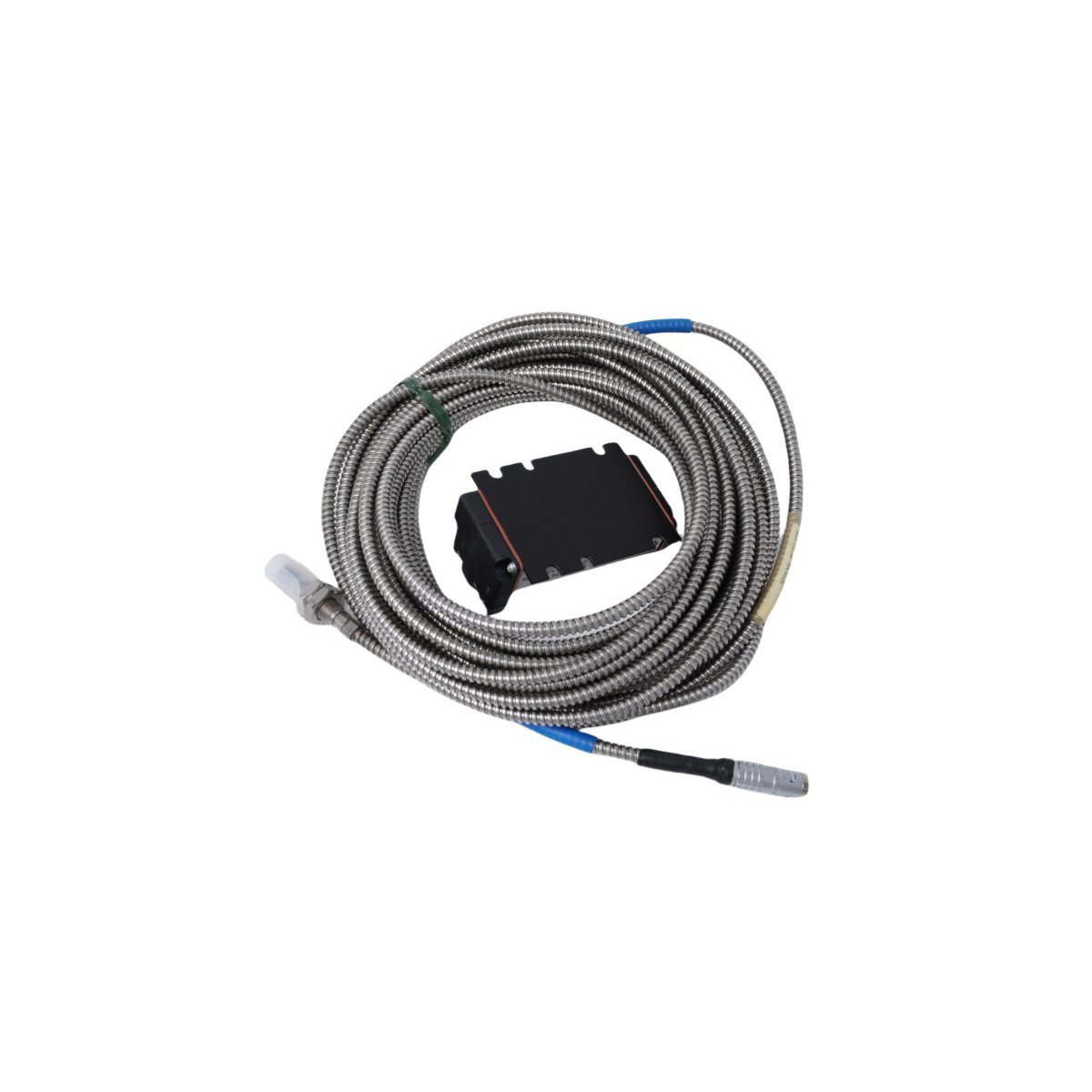

Emerson EPRO PR6423/010-000 CON021 Eddy Current Signal Converter

The Emerson EPRO PR6423/010-000 CON021 Eddy Current Signal Converter delivers ultra-precise, non-contact displacement and vibration measurements for critical rotating machinery. Featuring an tip diameter, a rugged stainless steel housing, and advanced internal temperature compensation, it provides reliable, continuous asset protection and seamless DCS integration in harsh, high-pressure industrial environments.

Request a Quote

Product Overview

The Emerson EPRO PR6423/010-000 CON021 is a high-precision, industrial-grade Eddy Current Signal Converter / Displacement Transducer. Originally developed under the specialized EPRO brand and now integrated into Emerson’s machinery health monitoring portfolio, this non-contact measuring system is engineered for continuous machine protection. By generating an alternating magnetic field, it precisely measures dynamic shaft vibration, axial shaft position, eccentricity, and thermal expansion on critical, high-speed rotating assets.

Core Technical Specifications

ParameterSpecification Details
ManufacturerEmerson Process Management (EPRO Series)
Model NumberPR6423/010-000 CON021
Module TypeEddy Current Signal Converter / Proximity Sensor
Sensor Tip Diameter8 mm
Measurement PrincipalNon-Contact Eddy Current (Inductive)
Net Hardware Weight0.36 kg
Physical Dimensions20.0 x 20.0 x 4.0 cm
System ClassificationDCS / Asset Condition Monitoring
Harmonized Tariff Code8537101190
Lifecycle StatusActive

Environmental and Structural Hardening

The PR6423/010-000 CON021 converter is built to withstand hazardous, high-vibration, and corrosive industrial spaces, offering the following design metrics:

  • Housing Material: Hermetically sealed, heavy-duty stainless steel housing.
  • Electromagnetic Immunity: Advanced built-in RFI/EMI shielding to suppress line noise generated by nearby high-voltage variable frequency drives (VFDs) or generators.
  • Media Resistance: Chemical- and oil-resistant construction, allowing the sensor tip to operate reliably inside oily turbine bearing housings, high-pressure zones, and corrosive atmospheres.
  • Thermal Stability: Integrated internal temperature compensation circuits to ensure structural measurement drift does not occur during high-temperature plant startup cycles.

Industrial Applications and Machinery Deployment

This eddy current probe system acts as a frontline tool for automated machine protection loops and predictive maintenance programs, specifically monitoring:

  • Steam and Gas Turbines: Continuous observation of relative shaft vibration and thrust bearing wear (axial displacement) to prevent catastrophic rotor-to-stator contact.
  • Centrifugal Compressors: Real-time tracking of high-frequency oil film instability (oil whirl/whip) and rotor imbalances.
  • Large Industrial Pumps & Fans: Tracking thermal case expansion and shaft misalignment profiles over extended runtime intervals.

Operational Characteristics and Functional Advantages

  • Non-Contact Precision: Uses eddy currents to map structural changes down to the micrometer level without ever touching the monitored shaft surface, eliminating friction wear and ensuring zero physical loading on the asset.
  • Linear Signal Out Put: Translates raw micro-gap fluctuations into stable, standardized linear analog outputs, making it natively compatible with most vibration monitors and Distributed Control Systems (DCS).
  • Deterministic Fault Tripping: Operates with high-frequency response rates, passing real-time fault dynamics instantaneously to emergency machinery shutdown protection relays to prevent catastrophic mechanical failure.
  • Simplified Field Integration: Features a modular, compact footprint designed for direct mounting near machine bearings, simplifying probe adjustment and minimizing maintenance downtime.
Tags: ,

You may also like

Sale!
Emerson Ovation 1P00028G01 Remote Node Transition Panel

Emerson Ovation 1P00028G01 Remote Node Transition Panel

The Emerson Ovation 1P00028G01 Remote Node Transition Panel provides robust signal routing and high-integrity electrical isolation for legacy Ovation Distributed Control Systems (DCS). Operating at 220V AC across an ultra-wide temperature range of -40°C to +85°C, this compact transition panel eliminates field line noise and ensures reliable, deterministic peer-to-peer communication between remote I/O nodes and central controllers in demanding industrial environments.

Sale!
Honeywell 10001/R/I Fail Safe Control Vertical Bus Driver Module

Honeywell 10001/R/I Fail Safe Control Vertical Bus Driver Module

The Honeywell 10001/R/I is a Vertical Bus Driver for the Fail Safe Control (FSC) system. This compact 0.14kg module ensures high-speed data integrity across safety-critical backplanes. Designed for reliability in ESD and SIS applications, it features advanced diagnostics and a rugged USA-manufactured build for demanding industrial environments.
Sale!
Allen-Bradley 1756-L60M03SE GuardLogix Safety CPU Controller Module

Allen-Bradley 1756-L60M03SE GuardLogix Safety CPU Controller Module

The Allen-Bradley 1756-L60M03SE is a GuardLogix Safety CPU module featuring 750 KB memory and 3-axis SERCOS motion control. This ControlLogix processor supports extensive networking via EtherNet/IP and ControlNet, making it ideal for integrated safety and high-precision motion applications.
Sale!
Yokogawa SNT501-13 Optical ESB Bus Repeater Module

Yokogawa SNT501-13 Optical ESB Bus Repeater Module

The Yokogawa SNT501-13 is a premium Optical ESB Bus Repeater Module designed for long-distance DCS and SIS communication. It supports high-speed 128 Mbps data transfer over fiber optics up to 5 km, providing the EMI immunity and redundancy required for mission-critical industrial automation safety.
Sale!
89477-30 | Bently Nevada | Interconnect Cable

89477-30 | Bently Nevada | Interconnect Cable

Technical Overview

The Bently Nevada 89477-30 is a specialized interconnect cable engineered for the 3500 Machinery Protection System. Its primary function is to establish a high-integrity communication link between a 3500/42M Proximitor/Seismic Monitor and its corresponding rear-mounted I/O module. The cable transmits raw, unamplified dynamic vibration and axial position signals from the I/O module's input terminals to the monitor's processing circuitry. It concurrently carries the -24 Vdc power from the monitor to the I/O module, which in turn powers the connected Proximitor probes. The 89477-30 is constructed as a multi-conductor, shielded assembly to ensure high signal-to-noise ratio (SNR) and protect the low-amplitude transducer signals from electromagnetic interference (EMI) and radio-frequency interference (RFI) prevalent in industrial environments. This robust shielding is critical for the accuracy of sub-mil (micrometer) level measurements required for effective machinery diagnostics and protection. The cable's specific length and keyed connectors ensure proper installation and signal path integrity within the 3500 rack architecture.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number89477-30
Product TypeInterconnect Cable
ConditionBrand New
Warranty12 Months
Cable Length3.0 meters (9.8 feet)
Connector TypeMulti-pin, keyed D-subminiature with jackscrew locking mechanisms
System CompatibilityBently Nevada 3500/42M Proximitor/Seismic Monitor and associated I/O modules
Cable ConstructionMulti-conductor, 22 AWG, with overall foil and/or braid shielding
Operating Temperature-30°C to +65°C (-22°F to +149°F)
Signal TypeTransmits dynamic transducer signals (vibration, position) and DC power
Application EnvironmentFor internal use within 3500 system racks; not rated for field installation

Operational Capabilities

In Oil & Gas and Power Generation applications, the 89477-30 interconnect cable demonstrates high reliability essential for continuous machinery protection. Its performance is defined by its ability to maintain signal integrity in environments with significant electrical noise and mechanical vibration. The cable's robust construction, featuring secure locking connectors and comprehensive shielding, prevents signal degradation and intermittent connections, which are potential sources of false trips or missed alarms in a protection system. The specified operating temperature range of -30°C to +65°C ensures stable performance within control cabinets and rack rooms that experience thermal cycling. The reliability of the 89477-30 is a critical factor in the overall safety integrity level (SIL) rating of the 3500 system, as it provides the foundational data link for detecting incipient faults such as bearing wear, imbalance, and shaft cracks in critical rotating assets.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 89477-30 compatible with?
A: The 89477-30 interconnect cable is designed exclusively for the Bently Nevada 3500 Machinery Protection System. It specifically facilitates the connection between a 3500/42M Proximitor/Seismic Monitor and its corresponding I/O module (e.g., 3500/42M I/O with Internal Terminations). It is not designed or validated for use with other Bently Nevada system series (such as 3300) or any third-party monitoring equipment.

Q: What are the installation requirements?
A: Installation must be performed by a qualified instrumentation technician familiar with the 3500 system. The cable is to be routed within the 3500 rack, ensuring it is not pinched, kinked, or subjected to tension. Adhere to a minimum bend radius of 10 times the cable's outer diameter. The keyed connectors prevent incorrect mating; do not apply force if resistance is met. After seating the connectors, fully tighten the jackscrews to prevent disconnection from cabinet vibration. Route the 89477-30 cable away from high-voltage AC power wiring to further mitigate any risk of noise induction.

Sale!
330192-00-28-05-00 | Bently Nevada | 3300 XL 8 mm ETR Proximity Probes

330192-00-28-05-00 | Bently Nevada | 3300 XL 8 mm ETR Proximity Probes

Technical Overview

The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330192-00-28-05-00
Product Type3300 XL 8 mm ETR Proximity Probes
ConditionBrand New
Warranty12 Months
Linear Range2.0 mm (80 mils)
Scale Factor7.87 V/mm (200 mV/mil) ±5%
Probe Tip Temperature Range-34 °C to +260 °C (-30 °F to +500 °F)
Total Length0.5 meters (1.6 feet)
Case Length2.8 inches (71.1 mm)
Connector TypeMiniature coaxial ClickLoc connector, gold-plated
Probe Tip MaterialPolyphenylene Sulfide (PPS)

Operational Capabilities

The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a

Sale!
330102-00-60-10-01-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

330102-00-60-10-01-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

Technical Overview

The Bently Nevada 330102-00-60-10-01-05 is an 8 mm reverse-mount eddy current proximity probe designed for non-contact measurement of vibration and displacement. It functions as a core component of the 3300 XL 8 mm Proximity Transducer System, which also includes an extension cable and a Proximitor Sensor. The probe operates by having the Proximitor Sensor generate a high-frequency radio frequency (RF) signal, which is transmitted through the extension cable and radiated from the probe's tip into a small electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's amplitude. This change is directly proportional to the gap between the probe tip and the target surface. The Proximitor Sensor demodulates this signal, converting it into a DC voltage that accurately represents the physical distance. This conditioned voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500, for real-time analysis of radial vibration, axial position, and shaft speed.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330102-00-60-10-01-05
Product Type3300 XL 8 mm Reverse Mount Proximity Probe
ConditionBrand New
Warranty12 Months
Total Length1.0 meter (3.3 feet)
Case Length6.0 inches (152 mm)
Mounting OptionReverse Mount
Connector TypeMiniature coaxial ClickLoc™ connector, gold-plated
Probe Tip MaterialPolyphenylene Sulfide (PPS)
Probe Case MaterialAISI 304 Stainless Steel
Agency ApprovalsMultiple Approvals: CSA (Class I, Div 1/2), ATEX/IECEx (Zone 0/1)

Operational Capabilities

In Oil & Gas and Power Generation applications, the 330102-00-60-10-01-05 probe demonstrates high reliability in demanding operational environments. Its construction with a PPS tip and stainless steel case allows for continuous operation in temperatures ranging from -34 °C to +177 °C (-29 °F to +350 °F). The gold-plated ClickLoc connector provides a secure, corrosion-resistant connection that prevents signal degradation from fluid ingress or vibration-induced intermittence. When paired with a 3300 XL Proximitor Sensor, the system provides a linear measurement range of 2.0 mm (80 mils) with a scale factor of 7.87 V/mm (200 mV/mil), ensuring precise data for machine diagnostics. The system is designed for high immunity to radio frequency interference (RFI), minimizing signal corruption in electrically noisy industrial environments. The probe's physical durability and signal integrity are critical for monitoring high-speed turbomachinery, where accurate measurement of shaft dynamics is essential for preventing catastrophic failure.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 330102-00-60-10-01-05 compatible with?
A: The 330102-00-60-10-01-05 probe is a component of the 3300 XL 8 mm Transducer System. For proper operation, it must be used with a 3300 XL extension cable and a 3300 XL Proximitor Sensor (e.g., part number 330180). This complete transducer system is fully compatible with Bently Nevada monitoring systems, including the 3500 Series Machinery Protection System and ADRE Sxp/408 DSPi data acquisition systems. It is not electrically or mechanically compatible with components from other transducer series, such as the 7200 or 3000 series.

Q: What are the installation requirements?
A: As a reverse-mount probe, the 330102-00-60-10-01-05 is installed from inside the machine housing, with the probe body extending outward. A clearance hole must be drilled through the machine case to accommodate the 8 mm probe tip. The target area on the observed shaft must be smooth, free of surface defects, and have a minimum diameter of 10.7 mm (0.42 in) to ensure measurement accuracy. The probe's gap should be set to the center of its linear range, typically corresponding to -10.0 Vdc. The ClickLoc connector must be tightened to the specified torque to ensure a secure, environmentally sealed connection. Cable routing must avoid areas of extreme heat, physical abrasion, and proximity to high-voltage power lines to maintain signal integrity.

Sale!
200350-12-00-00 | Bently Nevada | Accelerometers

200350-12-00-00 | Bently Nevada | Accelerometers

Technical Overview

The Bently Nevada 200350-12-00-00 is a general-purpose, case-mounted industrial accelerometer designed for measuring absolute bearing housing or machine casing vibration. It utilizes a piezoelectric sensing element that generates a low-impedance voltage signal directly proportional to the acceleration of the component to which it is mounted. This analog voltage signal is transmitted via a two-wire system, which also supplies constant current power to the sensor's internal electronics (IEPE standard). The 200350-12-00-00 is specifically engineered for integration with Bently Nevada machinery protection systems, such as the 3500 series. It directly interfaces with the 3500/42M Proximitor/Seismic Monitor, which processes the raw acceleration signal. The monitor can then provide real-time acceleration data or perform single integration to derive velocity, a common parameter for assessing rotating machinery health. Constructed from 316L stainless steel with a hermetic seal, the 200350-12-00-00 is built to withstand harsh industrial environments, ensuring reliable signal transmission and long operational life in critical machinery monitoring applications.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number200350-12-00-00
Product TypeAccelerometers
ConditionBrand New
Warranty12 Months
Sensitivity10.2 mV/m·s⁻² (100 mV/g) ±5%
Frequency Response0.5 Hz to 10 kHz (±3 dB)
Measurement Range±490 m/s² (±50 g) peak
Power Requirement (IEPE)18 to 30 VDC, 2 to 10 mA Constant Current
Connector2-pin MIL-C-5015, Top Exit
Operating Temperature Range-55 °C to +121 °C (-67 °F to +250 °F)
Case Material316L Stainless Steel, Hermetically Sealed

Operational Capabilities

In Oil & Gas and Power Generation applications, the 200350-12-00-00 provides essential data for condition monitoring of critical assets like gas and steam turbines, compressors, pumps, and generators. Its reliability is substantiated by its robust construction; the hermetically sealed 316L stainless steel housing (rated to IP68) prevents ingress of moisture, chemicals, and particulates common in these environments. The sensor is designed for high MTBF (Mean Time Between Failures) through the use of solid-state electronics and minimal moving parts. Environmentally, the 200350-12-00-00 is specified to operate reliably from -55 °C to +121 °C, accommodating a wide range of ambient and machine surface temperatures. It is also designed to survive high-g shock events (up to 5000 g peak), ensuring data integrity is maintained even during machinery startup, shutdown, or upset conditions.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 200350-12-00-00 compatible with?
A: The 200350-12-00-00 is designed for primary compatibility with Bently Nevada monitoring systems, including the 3500 Machinery Protection System (interfacing with the 3500/42M Proximitor/Seismic Monitor) and the 3300 Monitoring System. It is also compatible with any third-party data acquisition or monitoring system that can provide standard IEPE (Integrated Electronics Piezo-Electric) sensor power, specifically a constant current source of 2 to 10 mA at a voltage of 18 to 30 VDC.

Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The mounting surface must be a flat, smooth (recommended finish of 0.8 μm / 32 μin Ra), and clean area on the machine case. A single mounting hole must be drilled and tapped for the sensor's 1/4-28 UNF mounting stud. Apply a thin, uniform layer of coupling fluid (silicone grease) to the mounting surface to eliminate air gaps and ensure optimal vibration transmission. The sensor must be tightened to the specified torque of 2.7 to 5.4 N·m (24 to 48 lbf·in) using a calibrated torque wrench. Ensure the interconnecting cable is routed to prevent strain on the connector and is shielded from high-voltage lines or other sources of electromagnetic interference. Use of conduit is recommended for physical protection.

Sale!
16710-33 | Bently Nevada | Interconnect Cable

16710-33 | Bently Nevada | Interconnect Cable

Technical Overview

The Bently Nevada 16710-33 is a multi-conductor, shielded interconnect cable designed for high-fidelity signal transmission within the 3500 Machinery Protection System. Its primary function is to provide a reliable electrical connection between a 3500 series I/O module and its associated external or internal termination blocks. This specific cable, with a length of 1.0 meter (3.3 feet), is critical for routing low-level analog signals from machinery sensors, such as proximity probes or accelerometers, to the monitoring modules for processing. The construction of the 16710-33 incorporates robust shielding to reject electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring high signal integrity, which is paramount for accurate vibration, position, and speed measurements. One end features a high-density D-subminiature connector for secure attachment to the I/O module, while the other end is configured for connection to the system's terminal strips. The precise engineering of the 16710-33 ensures that the signal characteristics are preserved throughout the measurement chain, enabling the 3500 system to perform its protective and diagnostic functions with maximum accuracy and reliability.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number16710-33
Product TypeInterconnect Cable
ConditionBrand New
Warranty12 Months
Cable Length1.0 meter (3.3 feet)
Connector AFemale D-subminiature (DB-type) for 3500 I/O Module
Connector BPigtail with pre-stripped conductors for terminal block connection
ShieldingOverall aluminum/Mylar foil shield with drain wire for EMI/RFI rejection
Conductor Gauge22 AWG, stranded tinned copper
Operating Temperature-30°C to +100°C (-22°F to +212°F)
Jacket MaterialIndustrial Grade PVC, Gray

Operational Capabilities

In Oil & Gas and Power Generation applications, the 16710-33 interconnect cable demonstrates high reliability in continuous-duty environments. Its robust construction is engineered to withstand the typical ambient conditions of a plant floor, including moderate vibration and wide temperature swings as specified by its -30°C to +100°C operating range. The cable's performance is defined by its ability to maintain signal integrity for critical measurements on assets like gas and steam turbines, centrifugal and reciprocating compressors, and large pump systems. The multi-layer shielding is effective in mitigating electrical noise from variable frequency drives (VFDs), motors, and high-voltage lines, preventing signal corruption that could lead to false alarms or missed protection events. The design focuses on long-term stability, with high-quality connectors and strain relief that prevent intermittent connections, a common failure point in industrial settings. The 16710-33 is an integral component in achieving the high Mean Time Between Failure (MTBF) rates expected from a SIL-rated machinery protection system.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 16710-33 compatible with?
A: The 16710-33 is specifically designed for use with the Bently Nevada 3500 Machinery Protection System. It is used to connect various 3500 I/O modules, such as the 3500/40M Proximitor Monitor, 3500/42M Proximitor/Seismic Monitor, and 3500/45 Position Monitor, to their corresponding external termination blocks (e.g., 3500/25 Keyphasor I/O, 3500/40 External Termination Block) or internal termination I/O modules. Compatibility is dependent on the specific I/O module and termination type being used in the 3500 rack configuration.

Q: What are the installation requirements?
A: Proper installation is critical for system performance. First, ensure all power to the 3500 rack is de-energized before installation. Securely fasten the D-sub connector of the 16710-33 to the rear of the designated I/O module using the integrated jackscrews. Route the cable through designated cable trays, avoiding sharp bends (maintain a minimum bend radius of 10x the cable diameter), pinch points, and proximity to high-voltage power cables to prevent physical damage and noise induction. Land the pre-stripped conductors of the pigtail end onto the correct terminals of the associated terminal block, following the wiring diagram specific to the monitor and transducer type. Ensure proper strain relief is applied to the cable at both ends. The cable's shield drain wire must be terminated correctly, typically at the rack chassis ground terminal only, to prevent ground loops per Bently Nevada system grounding guidelines.

Sale!
330102-00-12-05-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

330102-00-12-05-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

Technical Overview

The Bently Nevada 330102-00-12-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe, a component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. The probe functions by emitting a high-frequency radio frequency (RF) signal from its encapsulated tip. When positioned near a conductive target material, such as a machine shaft, this RF field induces eddy currents on the surface of the target. The interaction between the probe's field and the eddy currents creates an impedance change in the probe's coil, which is directly proportional to the gap between the probe tip and the target surface. This raw signal is transmitted through its integral 0.5-meter cable to a 3300 XL extension cable and subsequently to a 3300 XL Proximitor Sensor. The Proximitor Sensor demodulates and linearizes the signal, producing a precise DC voltage output that corresponds to the physical gap. This conditioned signal is then supplied to a Bently Nevada 3500 Series monitoring system for continuous machine protection, diagnostics, and data logging.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330102-00-12-05-02-05
Product Type3300 XL 8 mm Reverse Mount Proximity Probe
ConditionBrand New
Warranty12 Months
Total Length0.5 meter (1.6 feet)
Mounting Option3/8-24 UNF threads, Reverse Mount
Case Length1.2 inches (30.5 mm)
Connector TypeMiniature coaxial ClickLoc connector, gold-plated
Linear Range2.0 mm (80 mils)
Scale Factor7.87 V/mm (200 mV/mil) ±5%, when used with 3300 XL Proximitor and AISI 4140 steel target
Frequency Response0 Hz (DC) to 10 kHz (-3 dB)
Agency ApprovalsCSA/NRTL/C, ATEX/IECEx (Ex ia IIC T4 Ga, Ex ia IIIC T135°C Da)

Operational Capabilities

In Oil & Gas and Power Generation applications, the 330102-00-12-05-02-05 probe is integral to Machinery Protection Systems (MPS) on critical assets like gas and steam turbines, compressors, and large motor-pump sets. It provides the primary measurement for radial vibration, axial thrust position, and shaft eccentricity. The probe's construction from AISI 304 stainless steel ensures high reliability in corrosive and high-temperature environments. Its tip is hermetically sealed with a high-pressure, injection-molded Ryton® PPS material, preventing ingress of oil and process fluids. The specified operating temperature range for the probe tip is -34 °C to +177 °C (-29 °F to +350 °F). The included agency approvals (CSA, ATEX, IECEx) certify the 330102-00-12-05-02-05 for safe operation as an intrinsically safe apparatus in specified hazardous areas, a mandatory requirement for many hydrocarbon processing and power plant environments. The system demonstrates high long-term stability, minimizing calibration drift and ensuring consistent machine protection over extended operational periods.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 330102-00-12-05-02-05 compatible with?
A: The 330102-00

Sale!
Triconex 9674-810 Terminal Board

Triconex 9674-810 Terminal Board

The Triconex 9674-810 is a high-reliability External Termination Panel for Tricon v9 and v10 safety systems. Designed for rugged industrial environments, this terminal board facilitates secure field-to-control connectivity for digital output signals in SIL3-rated safety applications.
