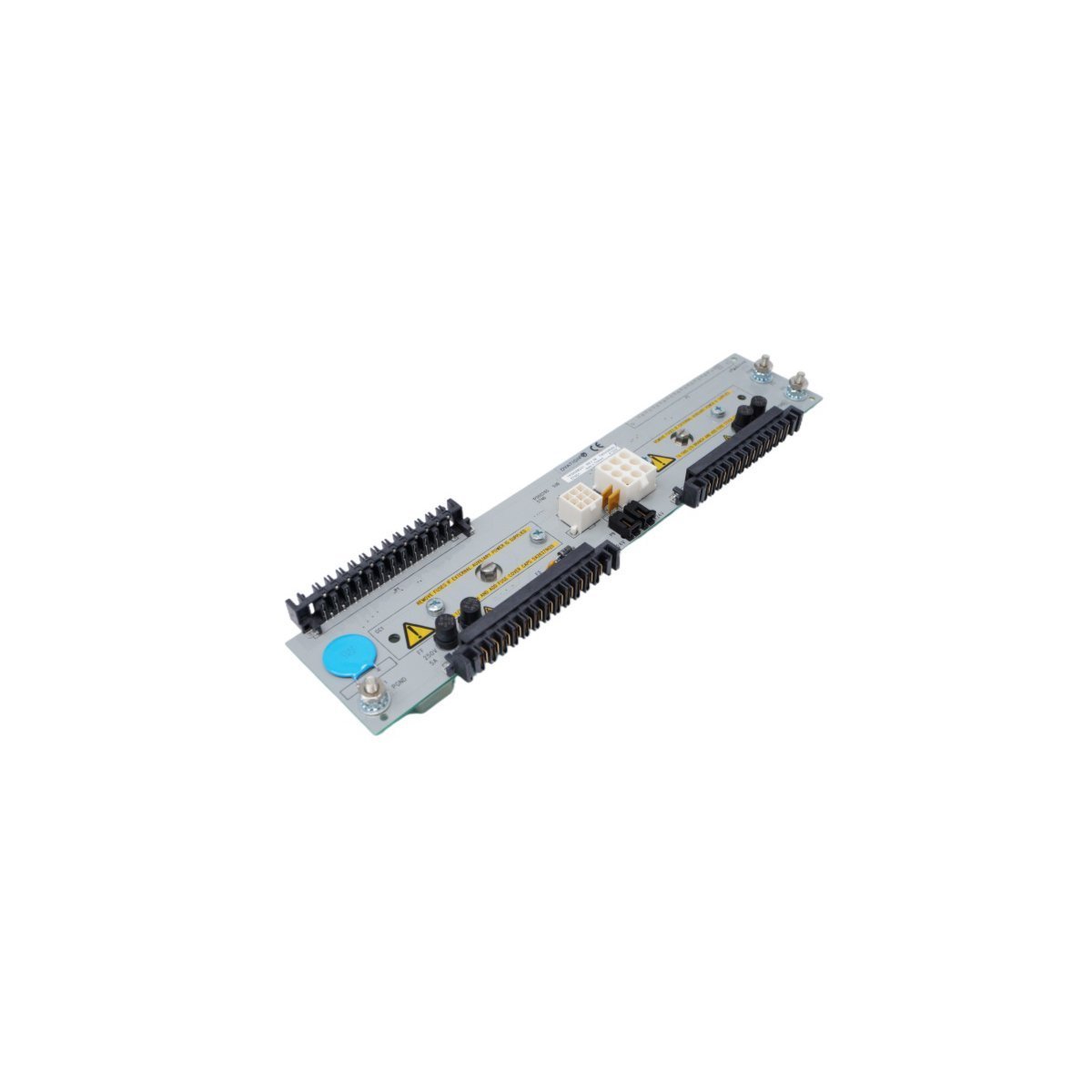

The Emerson Ovation 1P00028G01 Remote Node Transition Panel provides robust signal routing and high-integrity electrical isolation for legacy Ovation Distributed Control Systems (DCS). Operating at 220V AC across an ultra-wide temperature range of -40°C to +85°C, this compact transition panel eliminates field line noise and ensures reliable, deterministic peer-to-peer communication between remote I/O nodes and central controllers in demanding industrial environments.
The Emerson Ovationâ„¢ 1P00028G01 is a high-reliability hardware component belonging to the legacy Westinghouse / Emerson Ovation Distributed Control System (DCS) portfolio. Classified as a Remote Node Transition Panel (also referenced across engineering baselines as a Local I/O Transition Panel), this module acts as a critical signal routing and connection gateway. It interfaces distributed input/output networks, remote node field locations, and central Ovation controller processors, ensuring clean, isolated, and deterministic data transmission across expansive industrial process architectures.
| Parameter | Specification Details |
|---|---|
| Manufacturer | Emerson Process Management (Originally Westinghouse) |
| Product Platform | Ovationâ„¢ Distributed Control System (DCS) |
| Model / Part Number | 1P00028G01 |
| Module Type | Remote Node / Local I/O Transition Panel |
| Nominal Operating Voltage | 220V AC |
| Net Hardware Weight | 0.34 kg (Note: Full shipping assembly approx. 2.5 kg) |
| Physical Enclosure Dimensions | 12.1 x 5.2 x 16.6 cm |
| Discontinuation Date | December 31, 2018 (Legacy / Spare Parts Lifecycle Status) |
| Harmonized Tariff Code | 8537101190 |
| Regulatory Certifications | CE Marked, RoHS Compliant |
Engineered specifically to survive inside field-mounted termination cabinets and rugged plant environments without signal degradation, the 1P00028G01 features the following tolerances:
The 1P00028G01 transition panel is extensively utilized to bridge decentralized infrastructure nodes within mission-critical utility and continuous-process industries, such as:
