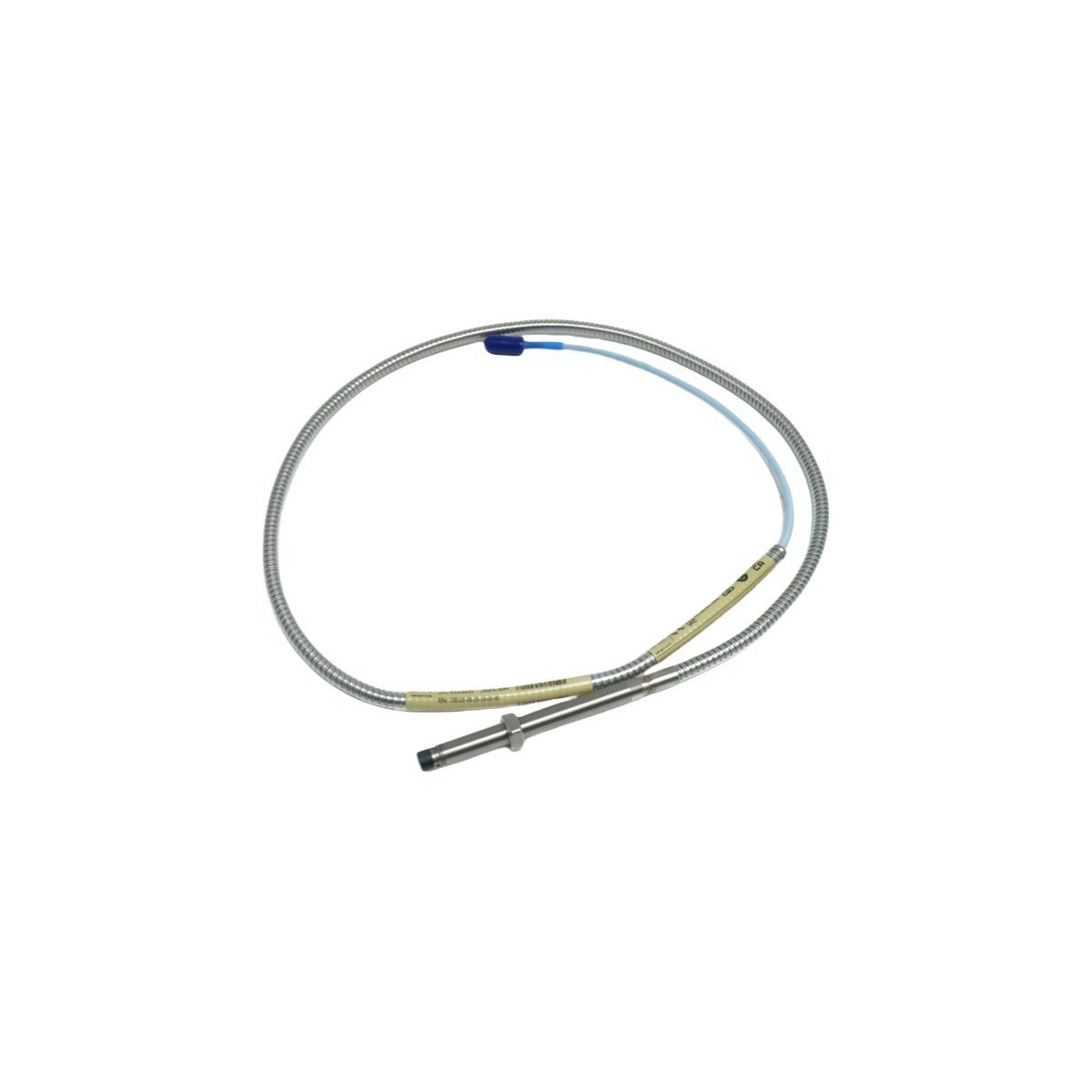

330102-08-15-10-02-00 Bently Nevada Eddy Current Proximitor Sensor Probe

Product Description

The Bently Nevada 330102-08-15-10-02-00 serves as a fundamental sensing element for the 3300 XL 8mm Proximity Transducer System. This high-precision eddy current probe measures the physical gap between the sensor tip and a conductive target, converting this distance into a precise proportional voltage.

Operational Role and Applications

This probe functions as a primary input for Turbine Supervisory Instrumentation (TSI) by capturing high-resolution data from rotating shafts. Because it measures both static displacement and dynamic oscillation, engineers utilize this component to monitor the mechanical health of critical assets. Common application areas include:

• Detecting radial vibration and axial thrust position in fluid-film bearing machines.
• Providing Keyphasor signals for phase timing and speed measurements.
• Monitoring industrial compressors, turbines, and large-scale pumps in hazardous environments.

Technical Characteristics and Advantages

The 330102-08-15-10-02-00 incorporates advanced materials that ensure thermal stability and linear accuracy across a wide operating range. Consequently, the sensor maintains high-fidelity signal output even when subjected to the harsh conditions typical of industrial machinery housings. Furthermore, the system architecture supports complete component interchangeability. This feature allows users to replace probes or extension cables without performing tedious bench calibrations or matching specific serial numbers.

• Regulatory Compliance: The probe meets or exceeds API 670 standards regarding mechanical configuration and linear range.
• Backward Compatibility: This XL series probe integrates seamlessly with legacy non-XL 3300 Proximitor sensors and extension cables.
• Robust Construction: The design features high-resistance PPS (polyphenylene sulfide) tip material to survive oil-contaminated and high-pressure environments.

Technical Specifications
