SKU: 330130-075-02-05

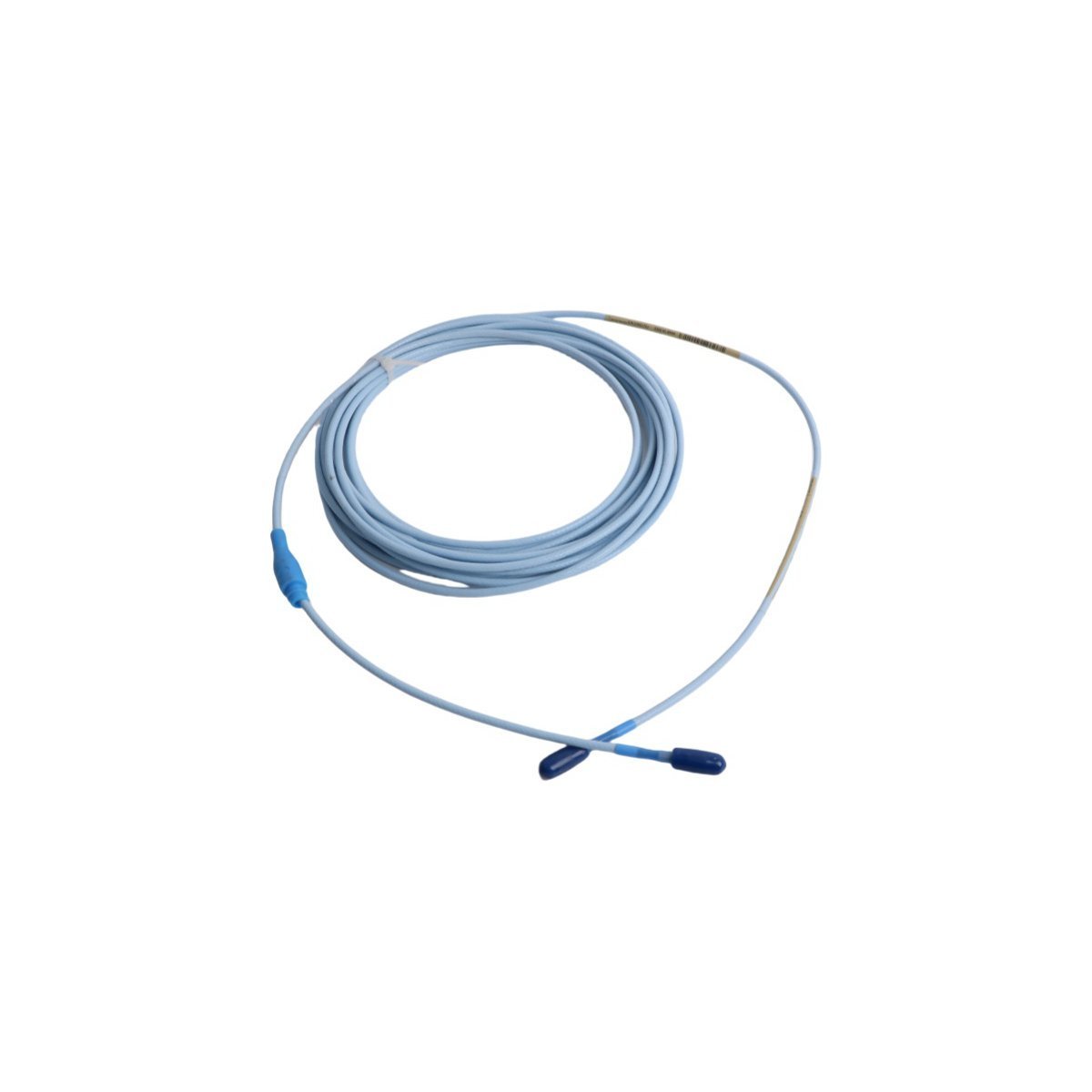

330130-075-02-05 | Bently Nevada | Extension Cable

Overview

The 330130-075-02-05 is a high-quality Extension Cable from Bently Nevada, designed for professional rotating machinery monitoring and protection systems.

Key Features

High-precision measurement technology
Designed for harsh industrial environments
Compatible with Bently Nevada monitoring systems
Brand new condition with full warranty

Technical Specifications

Parameter	Specification
Model Number	330130-075-02-05
Manufacturer	Bently Nevada
Product Type	Extension Cable
Condition	Brand New
Origin	USA

Applications

Turbine and generator monitoring
Compressor and pump protection
Motor and gearbox condition monitoring
Power plant rotating machinery

Tags: Bently Nevada
