330400-01-CN Product datasheet
Model number: | 330400-01-CN | Module Type： | Accelerometer Acceleration Transducers | |
Manufacture: | Bently Nevada | Condition： | Brand New | |
Range of Product: | 3300 Proximity Transducer System | Lead time： | In Stock | |
Weight: | 0.1 kg | HS CODE： | 8537101190 | |
Dimension: | 2.3×2.3×6cm | MOQ: | 1 | |
Product Origin: | USA | System： | TSI | |
Discontinued on: | active | Communication Service: | Ethernet router |
330400-01-CN Functional Description

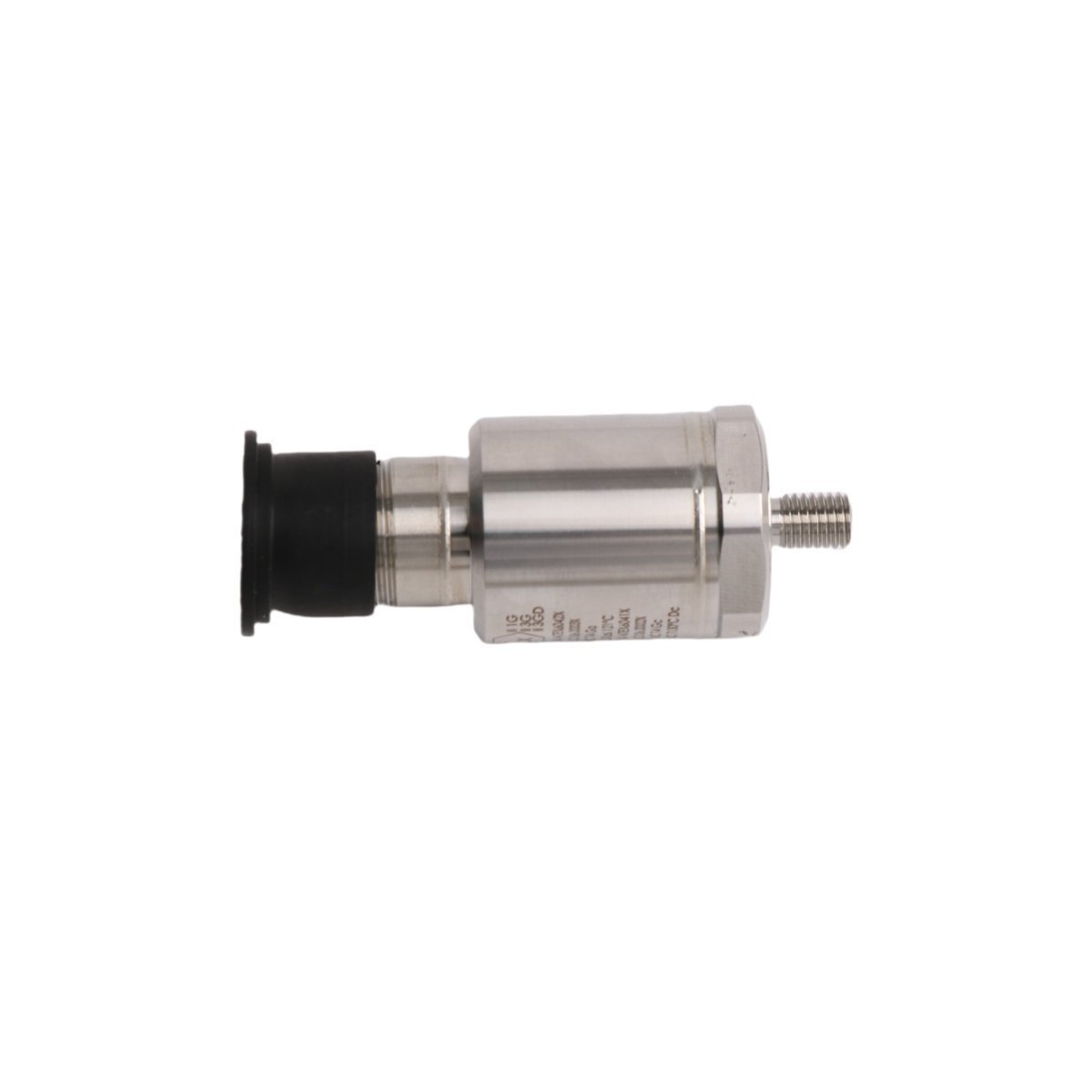

The BENTLY NAVADA Accelerometer 330400-01-CN is a high-precision accelerometer specifically designed for critical machinery protection applications, particularly in gear mesh monitoring scenarios. As part of Bently Nevada’s renowned monitoring solutions, this industrial-grade transducer meets the rigorous requirements of API Standard 670, ensuring reliable performance in demanding environments. With a sensitivity of 100 mV/g and an amplitude range of 50 g peak, it delivers accurate vibration measurements essential for detecting common machine faults like unbalance and misalignment.
Engineered for optimal performance, the Accelerometer Acceleration Tranducer 330400-01-CNfeatures a 1/4-28 UNF integral stud mounting system and demonstrates exceptional amplitude linearity (±1% to 50 g peak). Its broadband noise floor of just 0.004 g rms (10 Hz to 15kHz) ensures precise detection of even minor vibration changes. Manufactured in the USA and shipped from Xiamen, China (Tariff Code: 8537101190), this compact transducer (2.3×2.3×6 cm) weighs only 0.1 kg while delivering industrial-strength reliability.
For maximum effectiveness, the Bently Nevada 330400-01-CN in Stockmust be properly installed on bearing housings or machine casings to avoid false signals and maintain accurate frequency response. This accelerometer is particularly valuable in applications where casing vibration measurements are critical for overall machine protection. Bently Nevada offers expert engineering services to assist with optimal transducer placement and installation, ensuring the Bently Nevada 330400-01-CN performs at its best in your specific operating environment.
The 330400-01-CN Bently Nevada Acceleration Transducerstands out for its ability to detect subtle vibration changes transmitted from rotors to machine casings, making it indispensable for predictive maintenance programs. Its robust design and precise measurements help prevent costly downtime in oil & gas, power generation, and heavy industrial applications. For technical support or installation guidance with your 330400-01-CN 3300 Proximity Transducer System, consult Bently Nevada’s comprehensive instruction manuals and application notes.
The Emerson EPRO PR6423/010-000 CON021 Eddy Current Signal Converter delivers ultra-precise, non-contact displacement and vibration measurements for critical rotating machinery. Featuring an tip diameter, a rugged stainless steel housing, and advanced internal temperature compensation, it provides reliable, continuous asset protection and seamless DCS integration in harsh, high-pressure industrial environments.
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
The Bently Nevada 89477-30 is a specialized interconnect cable engineered for the 3500 Machinery Protection System. Its primary function is to establish a high-integrity communication link between a 3500/42M Proximitor/Seismic Monitor and its corresponding rear-mounted I/O module. The cable transmits raw, unamplified dynamic vibration and axial position signals from the I/O module's input terminals to the monitor's processing circuitry. It concurrently carries the -24 Vdc power from the monitor to the I/O module, which in turn powers the connected Proximitor probes. The 89477-30 is constructed as a multi-conductor, shielded assembly to ensure high signal-to-noise ratio (SNR) and protect the low-amplitude transducer signals from electromagnetic interference (EMI) and radio-frequency interference (RFI) prevalent in industrial environments. This robust shielding is critical for the accuracy of sub-mil (micrometer) level measurements required for effective machinery diagnostics and protection. The cable's specific length and keyed connectors ensure proper installation and signal path integrity within the 3500 rack architecture.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 89477-30 |
| Product Type | Interconnect Cable |
| Condition | Brand New |
| Warranty | 12 Months |
| Cable Length | 3.0 meters (9.8 feet) |
| Connector Type | Multi-pin, keyed D-subminiature with jackscrew locking mechanisms |
| System Compatibility | Bently Nevada 3500/42M Proximitor/Seismic Monitor and associated I/O modules |
| Cable Construction | Multi-conductor, 22 AWG, with overall foil and/or braid shielding |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Signal Type | Transmits dynamic transducer signals (vibration, position) and DC power |
| Application Environment | For internal use within 3500 system racks; not rated for field installation |
In Oil & Gas and Power Generation applications, the 89477-30 interconnect cable demonstrates high reliability essential for continuous machinery protection. Its performance is defined by its ability to maintain signal integrity in environments with significant electrical noise and mechanical vibration. The cable's robust construction, featuring secure locking connectors and comprehensive shielding, prevents signal degradation and intermittent connections, which are potential sources of false trips or missed alarms in a protection system. The specified operating temperature range of -30°C to +65°C ensures stable performance within control cabinets and rack rooms that experience thermal cycling. The reliability of the 89477-30 is a critical factor in the overall safety integrity level (SIL) rating of the 3500 system, as it provides the foundational data link for detecting incipient faults such as bearing wear, imbalance, and shaft cracks in critical rotating assets.
Q: What systems is the 89477-30 compatible with?
A: The 89477-30 interconnect cable is designed exclusively for the Bently Nevada 3500 Machinery Protection System. It specifically facilitates the connection between a 3500/42M Proximitor/Seismic Monitor and its corresponding I/O module (e.g., 3500/42M I/O with Internal Terminations). It is not designed or validated for use with other Bently Nevada system series (such as 3300) or any third-party monitoring equipment.
Q: What are the installation requirements?
A: Installation must be performed by a qualified instrumentation technician familiar with the 3500 system. The cable is to be routed within the 3500 rack, ensuring it is not pinched, kinked, or subjected to tension. Adhere to a minimum bend radius of 10 times the cable's outer diameter. The keyed connectors prevent incorrect mating; do not apply force if resistance is met. After seating the connectors, fully tighten the jackscrews to prevent disconnection from cabinet vibration. Route the 89477-30 cable away from high-voltage AC power wiring to further mitigate any risk of noise induction.
The Bently Nevada 21000-34-10-20-058-04-02 is a rigid proximity probe housing assembly designed for the external mounting of proximity probes on machinery casings. Its primary function is to provide a secure, environmentally sealed, and mechanically protected housing for a non-contacting eddy current proximity probe. This specific assembly, constructed from 304 Stainless Steel, ensures robust performance in corrosive industrial environments. It positions a 3300 XL 8 mm probe at a fixed distance from the mounting surface, defined by its 3.4-inch standoff dimension. When integrated into a Bently Nevada 3500 Machinery Protection System, the probe within the 21000-34-10-20-058-04-02 housing measures shaft vibration and position. The probe transmits a high-frequency RF signal, which is modulated by the gap to the conductive target. This signal is then demodulated by a Proximitor sensor, producing a DC voltage proportional to the gap. This voltage is processed by a 3500 monitor module (e.g., 3500/42M) to provide critical data for machinery diagnostics and protection, such as radial vibration, axial thrust position, and speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-34-10-20-058-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Condition | Brand New |
| Warranty | 12 Months |
| Material of Construction | 304 Stainless Steel |
| Mounting Thread Option | 3/4 - 14 NPT |
| Standoff Adapter Dimension (A) | 3.4 in (86 mm) |
| Housing Length (C) | 5.8 in (147 mm) |
| Included Probe | 3300 XL 8 mm Proximity Probe |
| Probe Cable Length (B) | 2.0 m (6.6 ft) |
| Operating Temperature Range | -34 °C to +177 °C (-29 °F to +350 °F), limited by probe/cable specifications |
In Oil & Gas and Power Generation applications, the 21000-34-10-20-058-04-02 housing assembly demonstrates high reliability in demanding operational conditions. Its 304 Stainless Steel construction provides excellent resistance to corrosion from process fluids, steam, and harsh atmospheric contaminants common in these industries. The rigid design ensures the probe's measurement gap remains stable, preventing measurement drift and false alarms, which is critical for the protection of high-speed turbomachinery. The 3/4 - 14 NPT mounting thread, when installed correctly with appropriate sealant, provides a secure, pressure-tight seal against machine casing pressures. This configuration is rated for hazardous area classifications when used with appropriate intrinsic safety barriers. The assembly's design minimizes susceptibility to mechanical shock and vibration, ensuring the integrity of the measurement signal path from the probe to the monitoring system for long-term, uninterrupted machinery protection.
Q: What systems is the 21000-34-10-20-058-04-02 compatible with?
A: The 21000-34-10-20-058-04-02 contains a 3300 XL 8 mm probe. This probe is a component of a complete transducer system that must also include a 3300 XL extension cable and a 3300 XL Proximitor Sensor. The complete transducer system is directly compatible with Bently Nevada monitoring systems, including the 3500 Series, 3300 Series, and the Orbit 60 Series. It provides a standard analog voltage signal (typically 2 to 18 Vdc or -2 to -18 Vdc) to the monitor's input module for processing.
Q: What are the installation requirements?
A: Installation requires a machined mounting boss on the machine case with a 3/4 - 14 NPT tapped hole. The surface of the boss must be perpendicular to the shaft centerline to ensure accurate measurement. Use an appropriate thread sealant (e.g., PTFE tape or liquid sealant rated for the process temperature and fluid) on the NPT threads to create a secure seal and prevent loosening. The assembly should be tightened to the specified torque value. After mechanical installation, the probe gap must be set by adjusting the probe within the housing to achieve the desired DC voltage, typically the center of its linear range (e.g., -10 Vdc for a standard 80 mil / 2 mm range), before locking it in place.
The Bently Nevada 21504-00-32-10-02 is a 3300 NSv series proximity vibration probe, a fundamental component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. Its primary function is to measure the distance (gap) between the probe tip and a conductive target material, typically a machine shaft. The probe operates by generating a high-frequency radio frequency (RF) field from its tip coil. When brought near the conductive target, this field induces eddy currents on the target's surface. These eddy currents alter the impedance of the probe's coil system. This change in impedance is detected by an associated Proximitor Sensor, which demodulates the signal into a voltage directly proportional to the probe-to-target gap. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Machinery Protection System, for real-time analysis, trending, and alarming. The 21504-00-32-10-02 is constructed with a stainless steel case for durability in industrial environments and is specifically configured with a 320 mm case length and a 1.0-meter integral cable.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21504-00-32-10-02 |
| Product Type | 3300 NSv Proximity Vibration Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Unthreaded Length | 0 mm |
| Case Length | 320 mm (12.6 in) |
| Total Length | 1.0 metre (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc connector, standard cable |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 304 Stainless Steel |
| System Linear Range | 2 mm (80 mils) |
| System Scale Factor | 7.87 V/mm (200 mV/mil) with 3300 NSv Proximitor |
In Oil & Gas and Power Generation applications, the 21504-00-32-10-02 probe demonstrates high reliability for continuous monitoring of critical assets such as gas and steam turbines, compressors, and large pump motors. Its non-contacting measurement principle eliminates mechanical wear, contributing to a high Mean Time Between Failures (MTBF) for the overall protection system. The probe is engineered to operate reliably in harsh industrial conditions. The probe tip is rated for continuous operation from -34 °C to +177 °C (-29 °F to +351 °F). The robust stainless steel case provides protection against physical impact and contaminants common in plant environments. When installed as part of a complete 3300 NSv transducer system, it provides a stable and repeatable measurement essential for machine protection and condition monitoring programs, enabling early detection of developing faults like imbalance, misalignment, and fluid-induced instabilities.
Q: What systems is the 21504-00-32-10-02 compatible with?
A: The 21504-00-32-10-02 probe is a component of the Bently Nevada 3300 NSv Proximity Transducer System. For correct operation, it must be used in conjunction with a 3300 NSv extension cable and a 3300 NSv Proximitor Sensor. The output from the Proximitor Sensor is compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as any data acquisition system, PLC, or DCS capable of accepting a -24 Vdc powered, 7.87 V/mm (200 mV/mil) analog signal.
Q: What are the installation requirements?
A: Proper installation is critical for measurement accuracy. The probe must be mounted perpendicular to the target surface using a rigid bracket. The physical gap should be set to place the DC output voltage in the middle of the system's linear range, typically -10 Vdc. The target area on the shaft must be at least 10.7 mm (0.42 in) in diameter, smooth (0.4 to 0.8 µm / 16 to 32 µin rms), and free of any electrical or magnetic irregularities (e.g., chrome plating, magnetised spots). Cable routing must avoid high-voltage power lines and other sources of electromagnetic interference. All ClickLoc connectors must be fully engaged to ensure a secure connection.
The Bently Nevada 21000-27-05-40-026-03-02 is a proximity probe housing assembly designed to provide a secure, environmentally sealed, and adjustable mounting for proximity probes on industrial machinery. Its primary function is to protect the sensitive probe element from the harsh process environment (e.g., high pressure, corrosive gases, liquids) while allowing precise positioning relative to the observed machine shaft. This specific assembly is constructed from 316 Stainless Steel for superior corrosion resistance. It features a 3/4-14 NPT mounting thread for direct installation into the machine casing. The assembly houses a 3300 XL 8 mm probe, which operates on the eddy current principle. The probe, connected via an extension cable to a Proximitor Sensor, transmits a high-frequency RF signal. The proximity of the conductive shaft surface modulates this signal, which the Proximitor Sensor demodulates into a DC voltage proportional to the probe-to-shaft gap. This conditioned signal is then supplied to a Bently Nevada 3500 Machinery Protection System for continuous monitoring of radial vibration, axial position, and rotational speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-27-05-40-026-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 316 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Probe Penetration Length | 400 mm (15.7 in) |
| Standoff Length | 50 mm (2.0 in) |
| Included Probe Option | 3300 XL 8 mm probe, 1.0 metre cable, miniature coaxial connector |
| Fittings Option | One 3/4-14 NPT plug provided |
| Housing Operating Temperature | -34 °C to +177 °C (-29 °F to +350 °F) |
In Oil & Gas and Power Generation applications, the 21000-27-05-40-026-03-02 assembly provides a robust and reliable platform for critical machinery monitoring. Its 316 Stainless Steel construction ensures long-term integrity in environments containing hydrogen sulfide (H2S), chlorides, and other corrosive agents common in refineries and offshore platforms. The NPT thread mounting, when installed with appropriate sealant, creates a high-pressure seal, preventing the escape of process gases or liquids. This is critical for safety and environmental compliance on equipment such as centrifugal compressors and high-pressure pumps. The assembly's design facilitates stable probe gapping, which is essential for the accuracy and repeatability of vibration and position measurements required for API 670 compliant protection systems. The housing is engineered for continuous, long-term service with minimal maintenance, contributing to high machine availability and reduced lifecycle costs for critical assets like gas turbines, steam turbines, and generators.
Q: What systems is the 21000-27-05-40-026-03-02 compatible with?
A: The 3300 XL 8 mm probe included with the 21000-27-05-40-026-03-02 assembly is part of a transducer system that requires a matching 3300 XL extension cable and a 3300 XL Proximitor Sensor. The complete transducer system output is fully compatible with Bently Nevada machinery protection and condition monitoring systems, including the 3500 Series (e.g., 3500/42M Proximitor/Seismic Monitor), 3300 Series Monitors, and ADRE data acquisition systems. The housing's 3/4-14 NPT mechanical interface is compatible with any machine case drilled and tapped to this standard thread size.
Q: What are the installation requirements?
A: Installation requires a 3/4-14 NPT tapped hole at the measurement location on the machine casing. An appropriate thread sealant (e.g., PTFE tape or pipe dope compatible with the process fluid and temperature) must be applied to the mounting threads to ensure a pressure-tight seal. The probe must be gapped by adjusting its position within the housing to achieve the correct DC voltage output (typically -10.0 Vdc for a 3300 XL 8 mm system) when measured at the Proximitor Sensor's output terminals. After gapping, the probe is secured in place using the housing's set screws. Adherence to Bently Nevada's specified torque values for the housing and any fittings is mandatory to prevent damage and ensure seal integrity.
The Bently Nevada 16710-33 is a multi-conductor, shielded interconnect cable designed for high-fidelity signal transmission within the 3500 Machinery Protection System. Its primary function is to provide a reliable electrical connection between a 3500 series I/O module and its associated external or internal termination blocks. This specific cable, with a length of 1.0 meter (3.3 feet), is critical for routing low-level analog signals from machinery sensors, such as proximity probes or accelerometers, to the monitoring modules for processing. The construction of the 16710-33 incorporates robust shielding to reject electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring high signal integrity, which is paramount for accurate vibration, position, and speed measurements. One end features a high-density D-subminiature connector for secure attachment to the I/O module, while the other end is configured for connection to the system's terminal strips. The precise engineering of the 16710-33 ensures that the signal characteristics are preserved throughout the measurement chain, enabling the 3500 system to perform its protective and diagnostic functions with maximum accuracy and reliability.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 16710-33 |
| Product Type | Interconnect Cable |
| Condition | Brand New |
| Warranty | 12 Months |
| Cable Length | 1.0 meter (3.3 feet) |
| Connector A | Female D-subminiature (DB-type) for 3500 I/O Module |
| Connector B | Pigtail with pre-stripped conductors for terminal block connection |
| Shielding | Overall aluminum/Mylar foil shield with drain wire for EMI/RFI rejection |
| Conductor Gauge | 22 AWG, stranded tinned copper |
| Operating Temperature | -30°C to +100°C (-22°F to +212°F) |
| Jacket Material | Industrial Grade PVC, Gray |
In Oil & Gas and Power Generation applications, the 16710-33 interconnect cable demonstrates high reliability in continuous-duty environments. Its robust construction is engineered to withstand the typical ambient conditions of a plant floor, including moderate vibration and wide temperature swings as specified by its -30°C to +100°C operating range. The cable's performance is defined by its ability to maintain signal integrity for critical measurements on assets like gas and steam turbines, centrifugal and reciprocating compressors, and large pump systems. The multi-layer shielding is effective in mitigating electrical noise from variable frequency drives (VFDs), motors, and high-voltage lines, preventing signal corruption that could lead to false alarms or missed protection events. The design focuses on long-term stability, with high-quality connectors and strain relief that prevent intermittent connections, a common failure point in industrial settings. The 16710-33 is an integral component in achieving the high Mean Time Between Failure (MTBF) rates expected from a SIL-rated machinery protection system.
Q: What systems is the 16710-33 compatible with?
A: The 16710-33 is specifically designed for use with the Bently Nevada 3500 Machinery Protection System. It is used to connect various 3500 I/O modules, such as the 3500/40M Proximitor Monitor, 3500/42M Proximitor/Seismic Monitor, and 3500/45 Position Monitor, to their corresponding external termination blocks (e.g., 3500/25 Keyphasor I/O, 3500/40 External Termination Block) or internal termination I/O modules. Compatibility is dependent on the specific I/O module and termination type being used in the 3500 rack configuration.
Q: What are the installation requirements?
A: Proper installation is critical for system performance. First, ensure all power to the 3500 rack is de-energized before installation. Securely fasten the D-sub connector of the 16710-33 to the rear of the designated I/O module using the integrated jackscrews. Route the cable through designated cable trays, avoiding sharp bends (maintain a minimum bend radius of 10x the cable diameter), pinch points, and proximity to high-voltage power cables to prevent physical damage and noise induction. Land the pre-stripped conductors of the pigtail end onto the correct terminals of the associated terminal block, following the wiring diagram specific to the monitor and transducer type. Ensure proper strain relief is applied to the cable at both ends. The cable's shield drain wire must be terminated correctly, typically at the rack chassis ground terminal only, to prevent ground loops per Bently Nevada system grounding guidelines.
The Bently Nevada 21000-16-10-15-075-03-02 is a genuine industrial component designed for critical automation systems. This high-quality product delivers reliable performance in demanding industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-16-10-15-075-03-02 |
| Condition | Brand New |
| Warranty | 12 Months |
Q: Is this a genuine Bently Nevada product?
A: Yes, this is a 100% genuine product with full manufacturer warranty.
Q: What is the warranty period?
A: All products come with a standard 12-month warranty.
