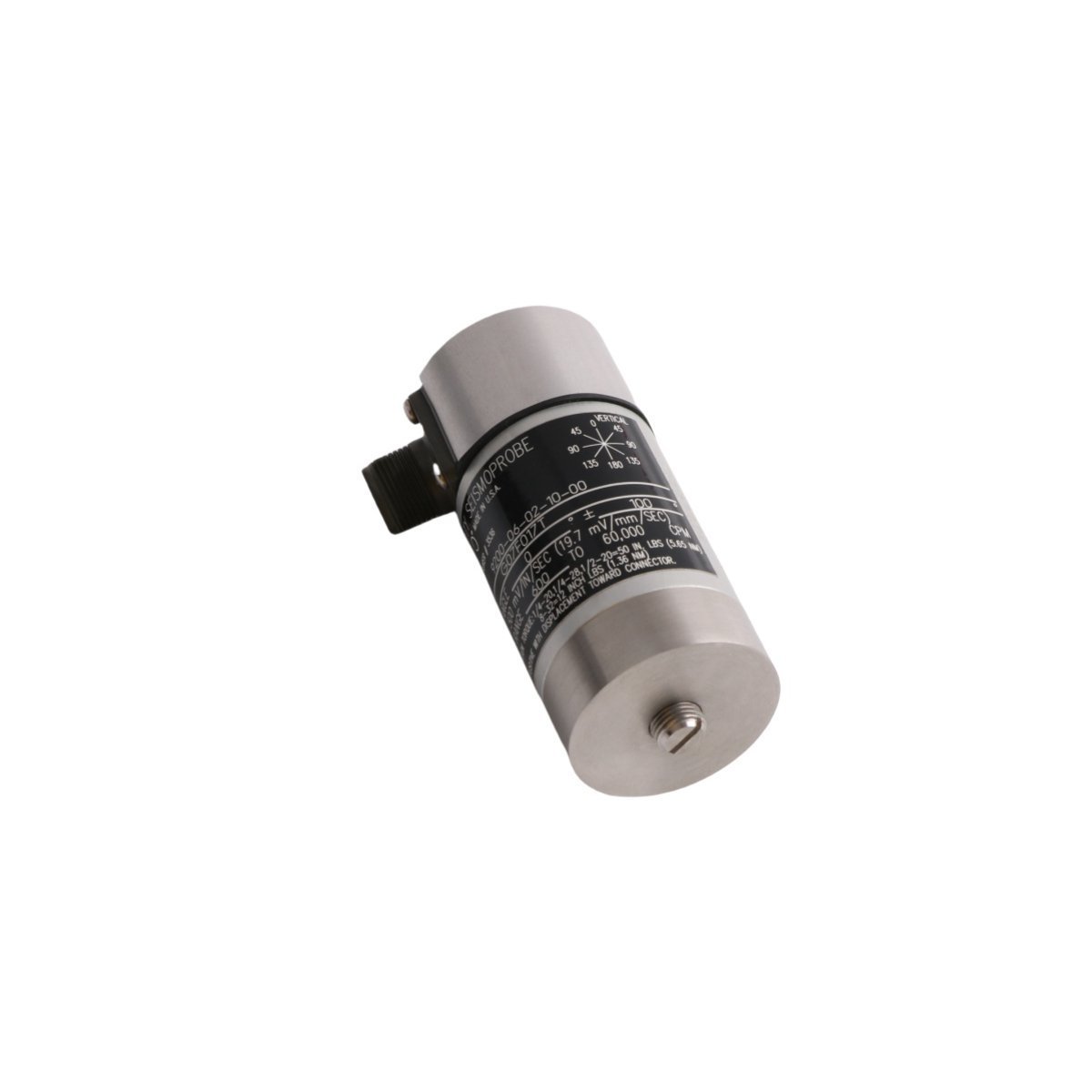

The Bently Nevada 9200-06-02-10-00 is a Two-wire Transducer (Seismoprobe Velocity Transducer) designed for rotating machinery vibration monitoring. Features self-generating moving-coil design with 4.5 Hz to 2 kHz frequency response, 0-5 in/s velocity range, and 20 mV/in/s sensitivity.
The 9200-06-02-10-00 is a Two-wire Transducer (also known as Seismoprobe Velocity Transducer) manufactured by Bently Nevada (Baker Hughes). This velocity sensor is designed for rotating machinery vibration monitoring applications.
| Parameter | Specification |
|---|---|
| Model Number | 9200-06-02-10-00 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | Two-wire Transducer (Seismoprobe Velocity Transducer) |
| Transducer Type | Self-generating moving-coil velocity pickup |
| Velocity Range | 0-5 inches/sec (0-127 mm/s) peak |
| Frequency Response | 4.5 Hz to 2 kHz (-3dB) |
| Natural Frequency | 14 Hz nominal |
| Coil Resistance | 275 Ω nominal |
| Sensitivity | 20 mV/in/s (0.79 mV/mm/s) ±5% |
| Mounting Angle | 0°, 45°, 90°, 180° options |
| Mounting Thread | ¼-28 UNF stud (standard) |
| Housing Material | 300 series stainless steel |
| Operating Temperature | -40°C to +100°C (-40°F to +212°F) |
| Agency Approvals | CSA, ATEX, IECEx (optional) |
