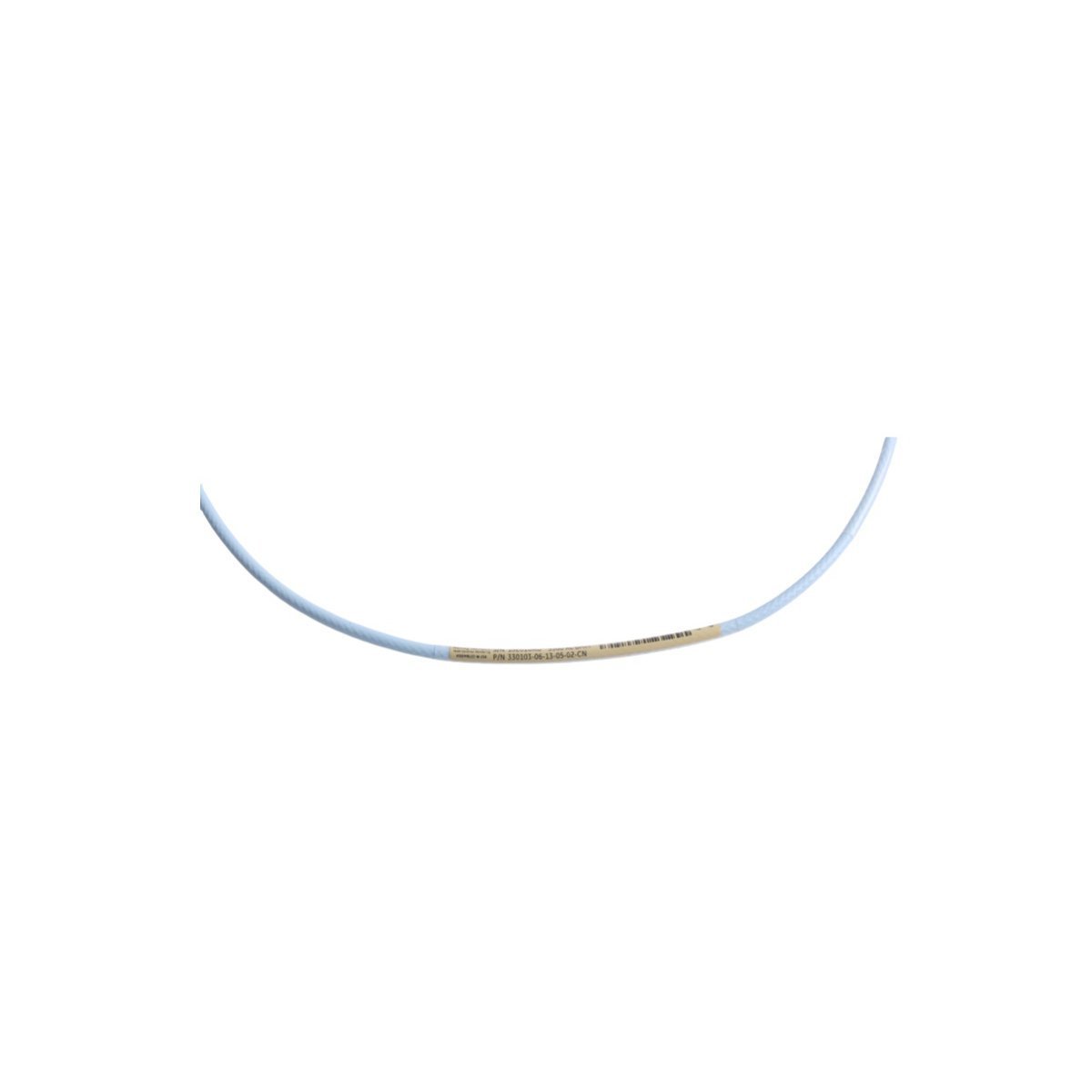

The Bently Nevada 330103-06-13-05-02-CN is a localized 3300 XL 8mm proximity transducer. It provides accurate non-contact vibration and position sensing for Chinese industrial applications.
The Bently Nevada 330103-06-13-05-02-CN serves as a precision sensing element for critical machinery monitoring. This proximity transducer specifically addresses the requirements of the Chinese industrial market. It detects vibration and position changes in rotating shafts without any physical contact. By monitoring these microscopic movements, the system provides essential data for asset protection. Furthermore, the 3300 XL series design ensures high-fidelity signal transmission to monitoring racks. Consequently, it remains a standard choice for high-reliability condition monitoring programs.
This transducer features an advanced induction coil housed within a polyphenylene sulfide (PPS) tip. This material provides superior resistance to chemical erosion and moisture ingress. Additionally, the stainless steel probe body protects internal electronics from mechanical stress. The -CN variant includes specialized firmware to match local infrastructure requirements perfectly. Furthermore, gold-plated connectors maintain low electrical resistance over many years of service. This construction ensures stable measurements even in high-temperature turbine environments.
Maintenance engineers deploy this specialized sensor across heavy industry sectors throughout China. It effectively monitors vibration in steam turbines, large generators, and industrial compressors. Moreover, the proximity probe tracks axial thrust and radial displacement with sub-micron accuracy. The localized certification simplifies regulatory compliance for state-owned and private enterprises alike. It integrates directly with Bently Nevada 3500 series machinery protection systems. This compatibility facilitates comprehensive oversight of critical production assets.
The 330103-06-13-05-02-CN optimizes maintenance workflows through its standardized electrical properties. It allows for quick replacement without the need for extensive system recalibration. Furthermore, the rugged design significantly extends the interval between routine sensor inspections. The secure ClickLoc connectors prevent signal loss caused by high-frequency mechanical vibration. By utilizing this genuine localized component, operators ensure maximum reliability for their monitoring hardware. Ultimately, it supports long-term operational safety and reduces unplanned facility downtime.
The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330192-00-28-05-00 |
| Product Type | 3300 XL 8 mm ETR Proximity Probes |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Probe Tip Temperature Range | -34 °C to +260 °C (-30 °F to +500 °F) |
| Total Length | 0.5 meters (1.6 feet) |
| Case Length | 2.8 inches (71.1 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.
Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a
