  4. 990-05-50-02-00 | Bently Nevada | Monitor Module
Sale!
SKU: 990-05-50-02-00

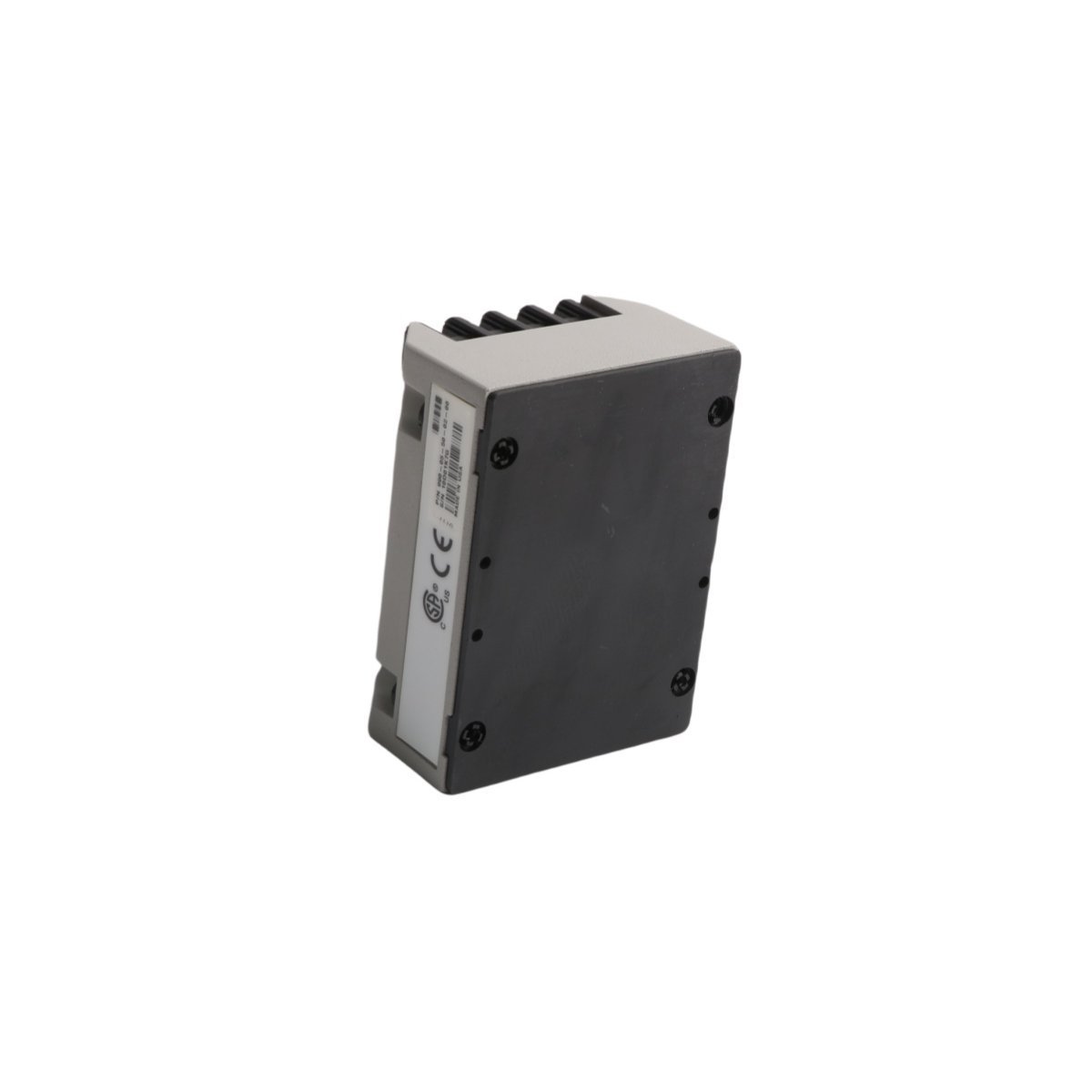

990-05-50-02-00 | Bently Nevada | Monitor Module

Request a Quote

990-05-50-02-00 Product datasheet

Model number:

990-05-50-02-00

Module Type：

Vibration Transmitter

Manufacture:

Bently Nevada

Condition：

Brand New

Range of Product:

990 Vibration Transmitter

Lead time：

In Stock

Weight:

0.46 kg

HS CODE：

8537101190

Dimension:

7.4×5.3×9.9cm

MOQ:

1

Product Origin:

USA

System：

TSI

Discontinued on:

active

Communication Service:

Ethernet router

990-05-50-02-00 Functional Description

The Bently Nevada 990-05-50-02-00 Vibration Transmitteris a two-wire, loop-powered vibration transmitter designed for OEMs of compressors, pumps, and fans. This robust device converts signals from 3300 NSv proximity probes into a 4-20mA output, providing real-time vibration data to control systems. The 990-05-50-02-00 VIBRATION TRANSMITTER Bently Nevadaoperates on 12-35VDC and supports 1,000Ω loop resistance, ensuring reliable performance in industrial environments.

Engineered for accuracy, the Vibration Transmitter Bently Nevada 990-05-50-02-00measures 0-5 mils pp (0-125μm pp) vibration ranges, with 23mA current limiting for protection. Its bulkhead screw mounting (option 02) offers secure installation, while compatibility with 5m/7m extension cables provides flexibility. The transmitter’s compact design integrates seamlessly into machinery control systems.

The Bently Nevada 990-05-50-02-00 PDFfeatures signal conditioning to filter noise, delivering clean data for predictive maintenance. Its loop-powered design eliminates external power needs, simplifying wiring and reducing costs. Ideal for harsh conditions, it meets industrial standards for durability.

As part of Bently Nevada’s trusted 990 series, the 990 Vibration Transmitter Bently Nevada 990-05-50-02-00ensures early fault detection and machinery protection. Its combination of precision measurement, rugged construction, and easy integration makes it a top choice for OEMs and end-users alike.

Tags: ,
