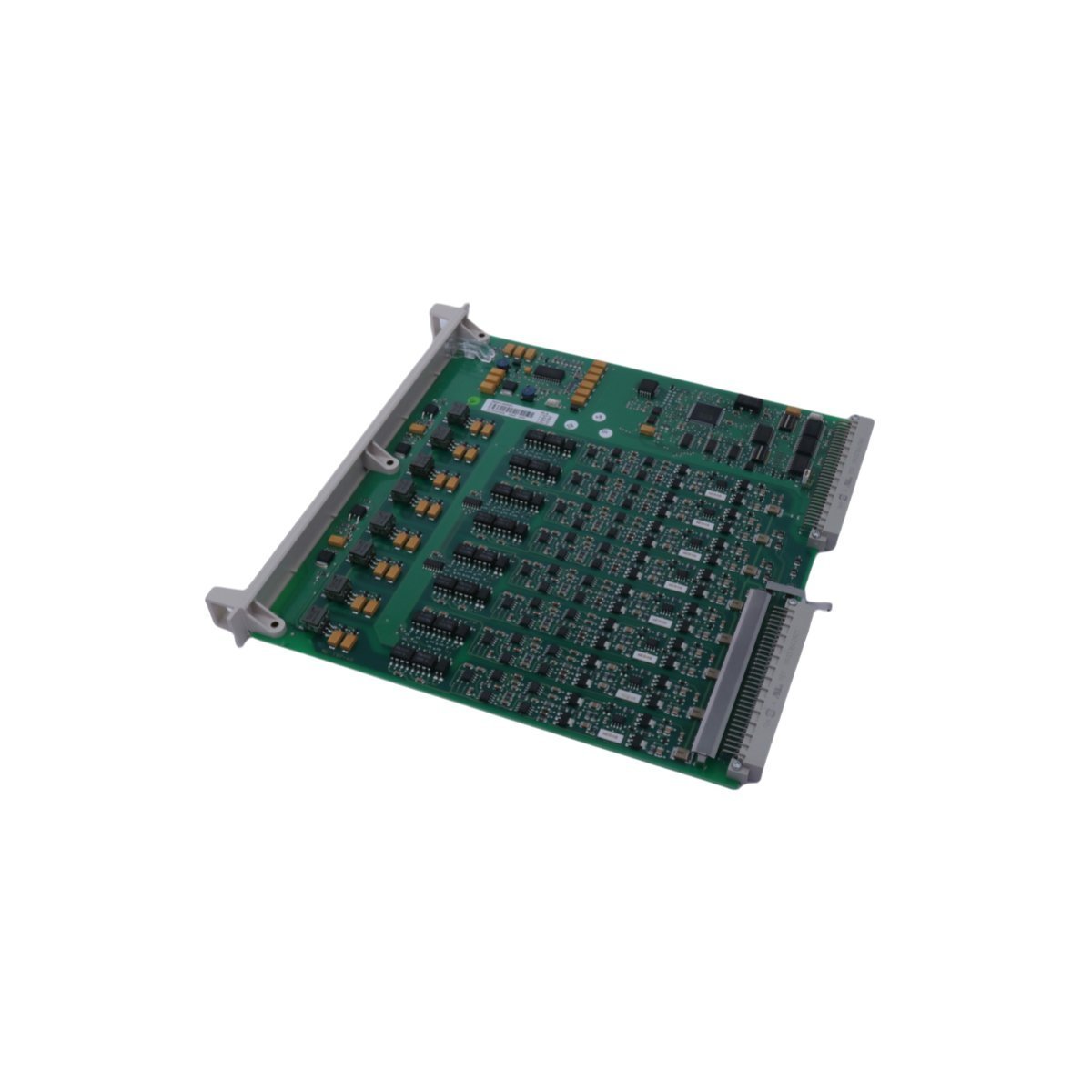

ABB 3BSE018293R1 DSAO120A Analog Output Board

Product Overview

The ABB 3BSE018293R1 (DSAO120A) serves as a high-performance 8-channel analog output board within the S800 I/O family.¹ Primarily, industries utilize this module in Advant Controller 450 and AC800M Distributed Control Systems (DCS). Furthermore, the module converts digital control commands into standard analog current or voltage signals.² Consequently, these signals drive field actuators—such as control valve positioners, variable speed drives, and industrial recorders—to ensure the system executes automation logic with absolute precision.

Technical Specifications

• Model Number: 3BSE018293R1³
• Abbreviation: DSAO120A⁴
• Manufacturer: ABB⁵
• Product Series: S800 I/O (compatible with AC500/AC800)
• Module Type: Analog Output Board⁶
• Number of Channels: 8 isolated channels⁷
• Resolution: 12-bit⁸
• Output Signal Range: 0 to 20 mA, 4 to 20 mA, or 0 to 10 V (configurable)
• Load Impedance: Up to 750 $\Omega$ (current) / $\ge$ 2 k$\Omega$ (voltage)
• Weight: 0.34 kg
• Dimensions: 2.0 cm x 25.5 cm x 24.3 cm
• Country of Origin: Sweden

High-Precision Signal Conversion

In addition to its versatile range, the DSAO120A engineering design provides high-fidelity signal transmission.⁹ Specifically, a 12-bit Digital-to-Analog Converter (DAC) enables smooth and granular control over connected actuators. Meanwhile, individual isolation for each of the eight channels prevents ground loops and protects the internal system bus from field-side electrical noise. This level of precision remains vital for process industries, where even a 1% deviation in valve position can significantly impact product quality or safety.

Advanced Diagnostics and Reliability

Beyond accuracy, the 3BSE018293R1 ensures maximum system uptime through its comprehensive self-diagnostic features. For instance, the board continuously monitors the following conditions:

• External Power Supply Status: It alerts the controller immediately if the system loses field power.
• Channel Integrity: It detects open-circuit conditions within current loops.
• Internal Hardware Health: It performs checksums on internal logic to prevent the output of erroneous signals.

  Moreover, the robust mechanical design permits reliable operation in harsh industrial environments characterized by high vibration and electromagnetic interference.

System Scalability and Integration

Finally, the modular design of the DSAO120A facilitates easy system expansion. Operators can mount the module on various terminal bases, such as the TU810 or TU812, and many configurations support hot-swapping to reduce maintenance downtime.¹⁰ Ultimately, the module achieves seamless integration with ABB’s Engineering Suite, allowing technicians to configure signal ranges and fail-safe values quickly via software.
